| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_062T04_9000001298_09258cztM0_level2.evt | modeM0/AS1A03_062T04_9000001298_09258cztM0_level2_quad_clean.evt |
| Size (bytes) | 668,419,200 | 113,143,680 |
| Size | 637.5 MB | 107.9 MB |
| Events in quadrant A | 6,199,280 | 692,617 |
| Events in quadrant B | 4,554,015 | 709,152 |
| Events in quadrant C | 4,441,687 | 694,681 |
| Events in quadrant D | 4,411,470 | 678,516 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24723 | 3 |
| B | 0 | 19805 | 2 |
| C | 0 | 19649 | 2 |
| D | 0 | 19814 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 192 | 0 |
| B | 0 | 192 | 0 |
| C | 0 | 192 | 0 |
| D | 0 | 192 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9395 | 177 | 1.883981% |
| B | 9395 | 102 | 1.085684% |
| C | 9395 | 68 | 0.723789% |
| D | 9394 | 104 | 1.107090% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11090 | 9397 | 62 | 62 | 0.56% | 0.66% |  |
| B | 11090 | 9397 | 1 | 1 | 0.01% | 0.01% |  |
| C | 11090 | 9397 | 0 | 0 | 0.00% | 0.00% |  |
| D | 11090 | 9397 | 15 | 15 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1676555 | 7362.26 | 1110 | 1083 | 227.6 |
| A | 4 | 2 | 75118 | 325.32 | 1110 | 1083 | 227.6 |
| A | 13 | 248 | 60756 | 262.21 | 1110 | 1083 | 227.6 |
| B | 0 | 214 | 54968 | 250.66 | 1123 | 1094 | 214.9 |
| B | 0 | 219 | 48748 | 221.72 | 1123 | 1094 | 214.9 |
| B | 4 | 173 | 28292 | 126.55 | 1123 | 1094 | 214.9 |
| C | 9 | 68 | 175474 | 689.25 | 1089 | 1091 | 253.0 |
| C | 14 | 234 | 14888 | 54.53 | 1089 | 1091 | 253.0 |
| C | 13 | 61 | 8168 | 27.97 | 1089 | 1091 | 253.0 |
| D | 2 | 136 | 141929 | 522.29 | 1080 | 1053 | 269.7 |
| D | 1 | 52 | 73186 | 267.43 | 1080 | 1053 | 269.7 |
| D | 7 | 71 | 36206 | 130.33 | 1080 | 1053 | 269.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

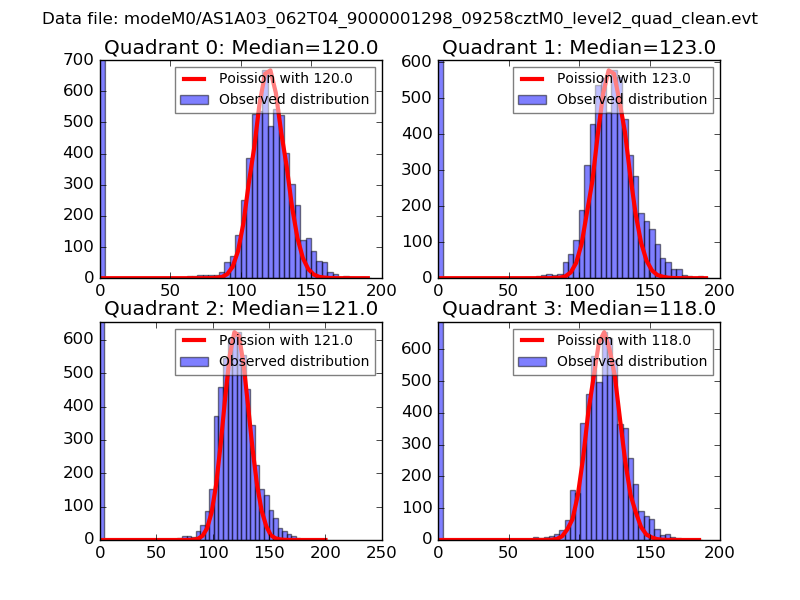

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

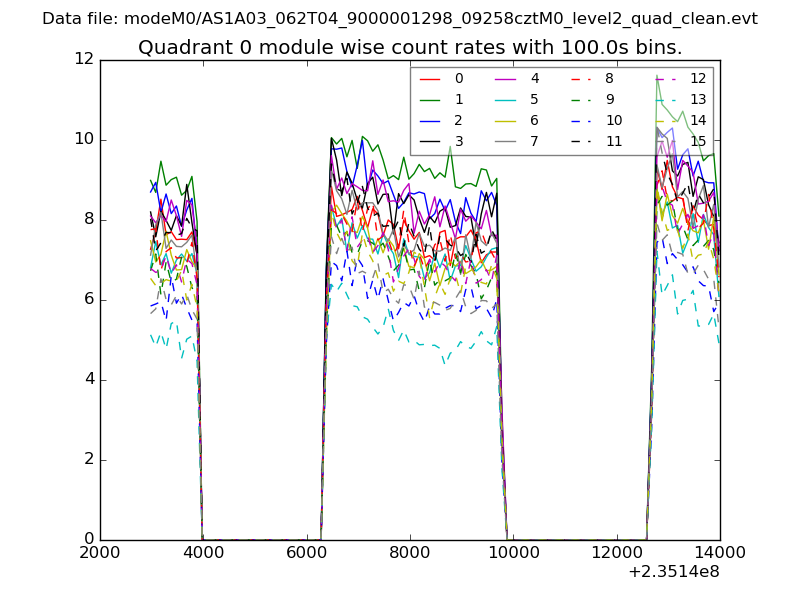

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

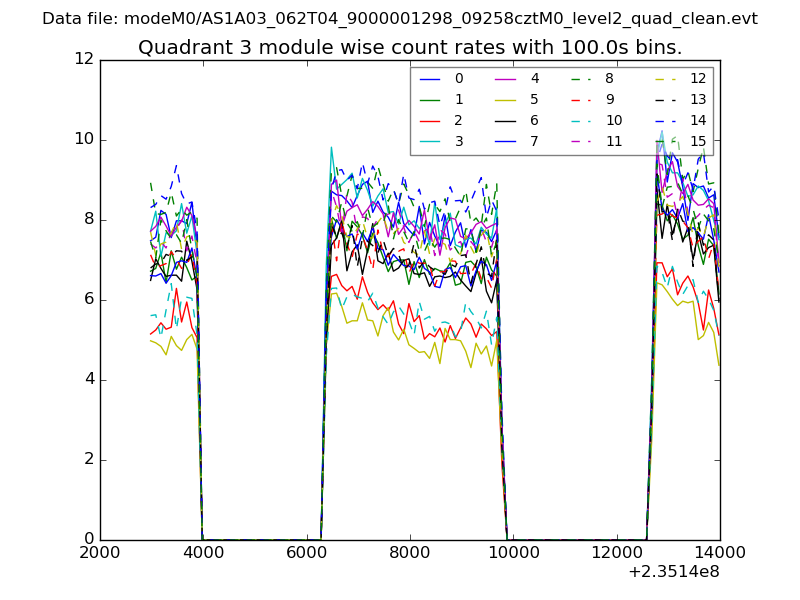

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

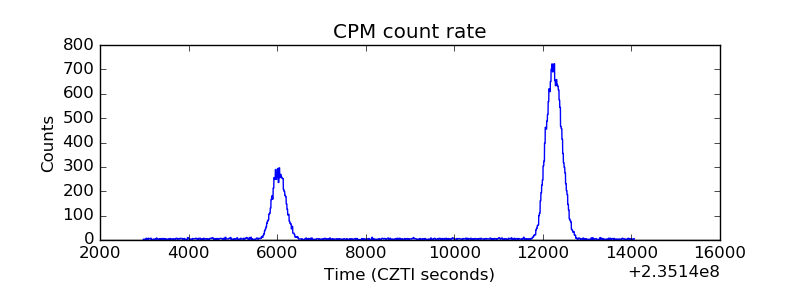

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

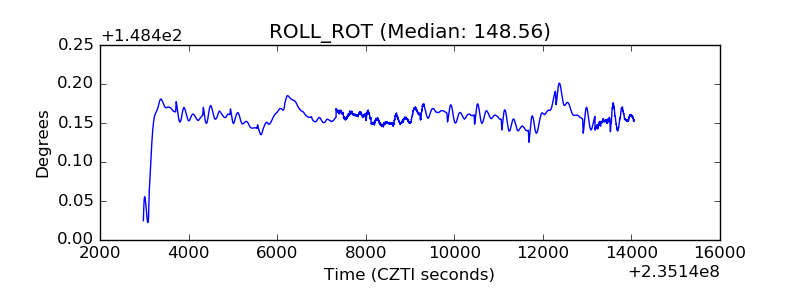

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
