| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_077T03_9000001310_09292cztM0_level2.evt | modeM0/AS1G07_077T03_9000001310_09292cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,506,880 | 93,124,800 |
| Size | 421.1 MB | 88.8 MB |
| Events in quadrant A | 3,793,445 | 588,788 |
| Events in quadrant B | 3,037,204 | 616,074 |
| Events in quadrant C | 2,892,409 | 609,146 |
| Events in quadrant D | 3,227,721 | 574,670 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 1 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15539 | 203 |
| B | 0 | 13178 | 130 |
| C | 0 | 12901 | 160 |
| D | 0 | 14158 | 174 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 125 | 4 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 2 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6183 | 106 | 1.714378% |
| B | 6196 | 34 | 0.548741% |
| C | 6182 | 16 | 0.258816% |
| D | 6188 | 66 | 1.066580% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7592 | 6257 | 29 | 29 | 0.38% | 0.46% |  |
| B | 7592 | 6256 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7592 | 6258 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7592 | 6254 | 35 | 35 | 0.46% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 677199 | 4548.97 | 735 | 721 | 148.7 |
| A | 13 | 251 | 101831 | 679.91 | 735 | 721 | 148.7 |
| A | 12 | 236 | 67661 | 450.14 | 735 | 721 | 148.7 |
| B | 0 | 214 | 43735 | 305.35 | 755 | 736 | 140.8 |
| B | 8 | 234 | 25670 | 177.06 | 755 | 736 | 140.8 |
| B | 12 | 111 | 14708 | 99.22 | 755 | 736 | 140.8 |
| C | 10 | 22 | 14894 | 83.54 | 736 | 741 | 169.4 |
| C | 14 | 67 | 5787 | 29.79 | 736 | 741 | 169.4 |
| C | 13 | 61 | 5568 | 28.49 | 736 | 741 | 169.4 |
| D | 1 | 52 | 227211 | 1246.99 | 714 | 696 | 181.6 |
| D | 7 | 71 | 92244 | 503.98 | 714 | 696 | 181.6 |
| D | 2 | 152 | 74670 | 407.23 | 714 | 696 | 181.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

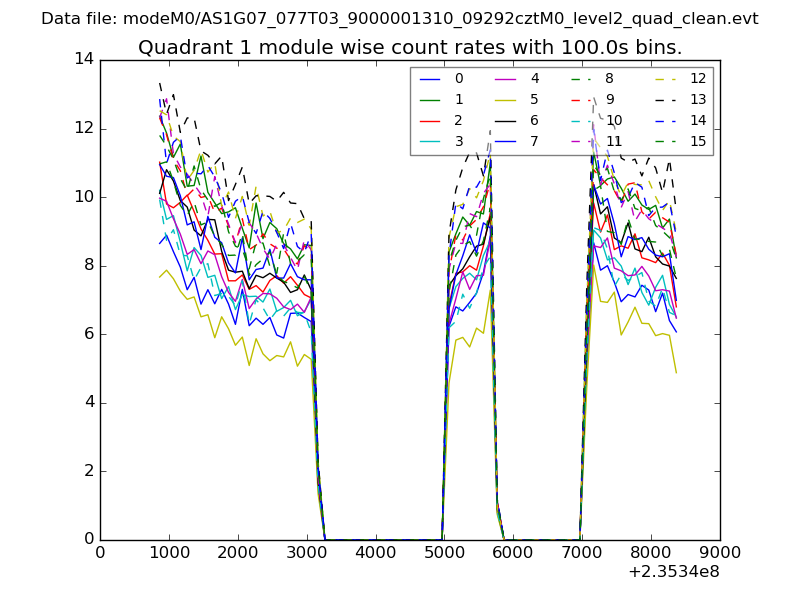

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

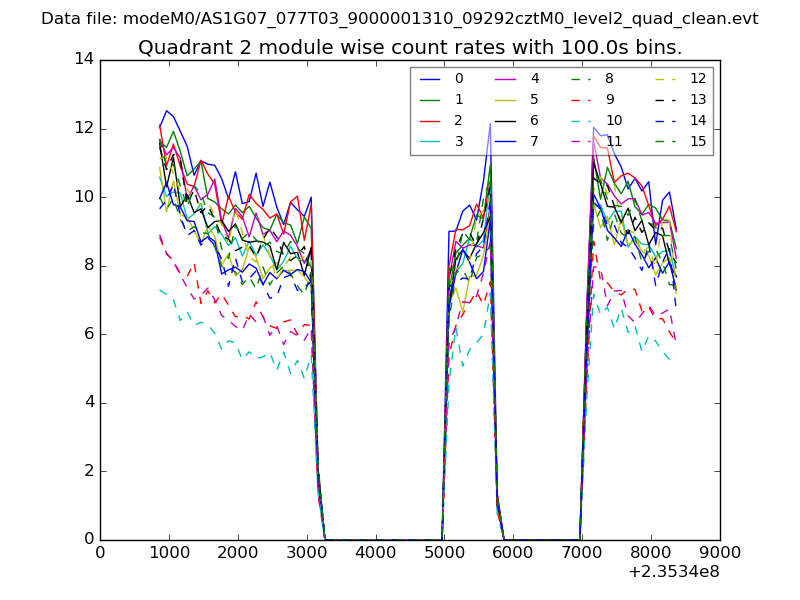

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

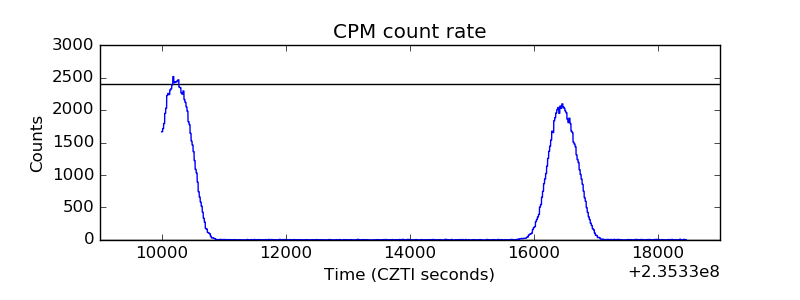

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

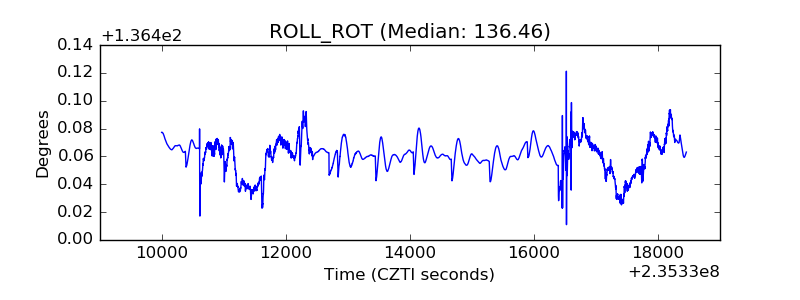

| _ROLL_ROT |  |

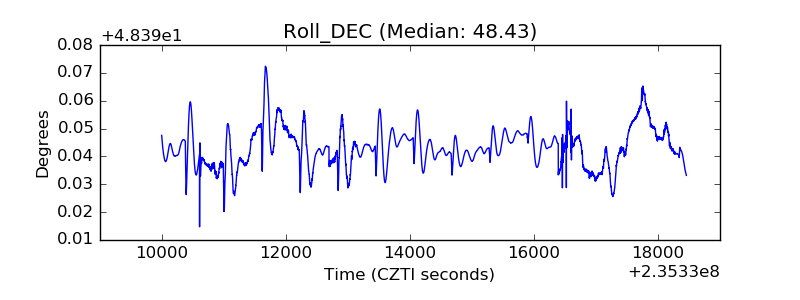

| _Roll_DEC |  |

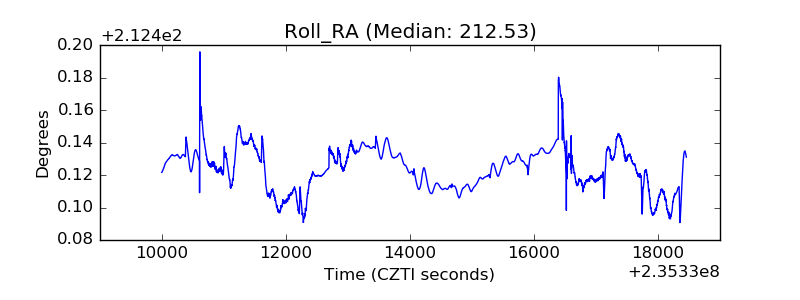

| _Roll_RA |  |
| Veto Counter |  |
