| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_077T03_9000001310_09297cztM0_level2.evt | modeM0/AS1G07_077T03_9000001310_09297cztM0_level2_quad_clean.evt |
| Size (bytes) | 655,217,280 | 94,406,400 |
| Size | 624.9 MB | 90.0 MB |
| Events in quadrant A | 4,880,244 | 578,559 |
| Events in quadrant B | 4,059,574 | 594,783 |
| Events in quadrant C | 3,849,896 | 597,389 |
| Events in quadrant D | 6,486,731 | 506,820 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19973 | 11 |
| B | 0 | 17709 | 8 |
| C | 0 | 17429 | 4 |
| D | 0 | 25191 | 27 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8350 | 440 | 5.269461% |
| B | 8350 | 428 | 5.125749% |
| C | 8352 | 299 | 3.579981% |
| D | 8347 | 1251 | 14.987421% |

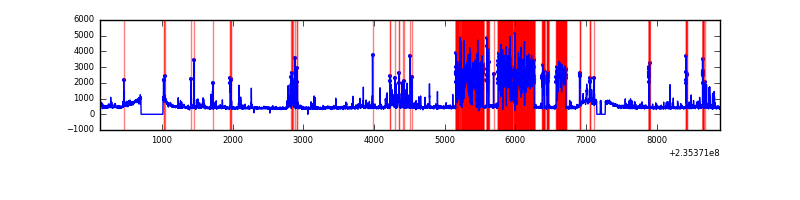

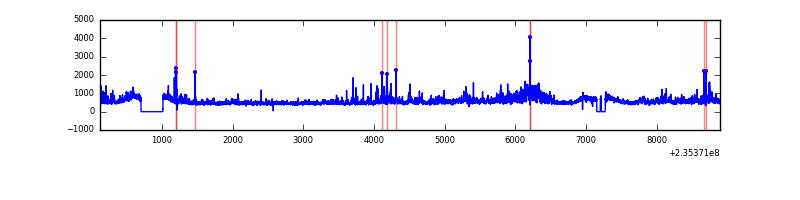

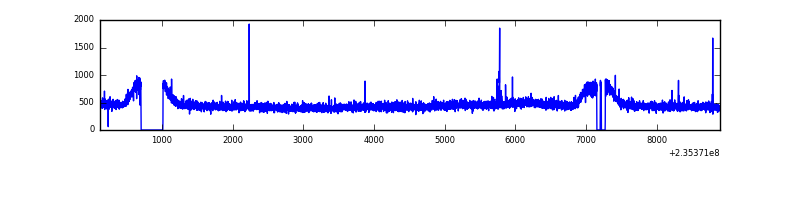

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8768 | 8356 | 10 | 10 | 0.11% | 0.12% |  |
| B | 8768 | 8356 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8768 | 8356 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8768 | 8355 | 857 | 857 | 9.77% | 10.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 938246 | 4614.13 | 987 | 961 | 203.1 |
| A | 15 | 239 | 61212 | 296.61 | 987 | 961 | 203.1 |
| A | 1 | 162 | 33048 | 157.96 | 987 | 961 | 203.1 |
| B | 4 | 80 | 81974 | 419.29 | 1000 | 973 | 193.2 |
| B | 0 | 214 | 43242 | 218.8 | 1000 | 973 | 193.2 |
| B | 12 | 111 | 22005 | 108.87 | 1000 | 973 | 193.2 |
| C | 10 | 22 | 12517 | 50.95 | 978 | 980 | 226.5 |
| C | 14 | 67 | 11925 | 48.33 | 978 | 980 | 226.5 |
| C | 13 | 61 | 7423 | 28.45 | 978 | 980 | 226.5 |
| D | 12 | 227 | 2297422 | 10395.89 | 911 | 886 | 220.9 |
| D | 1 | 52 | 392724 | 1773.76 | 911 | 886 | 220.9 |
| D | 12 | 233 | 175889 | 792.2 | 911 | 886 | 220.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

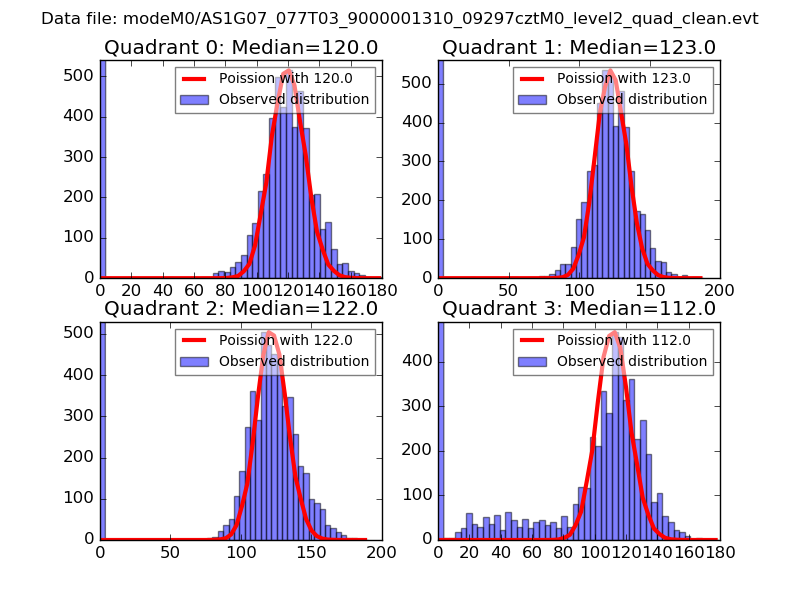

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

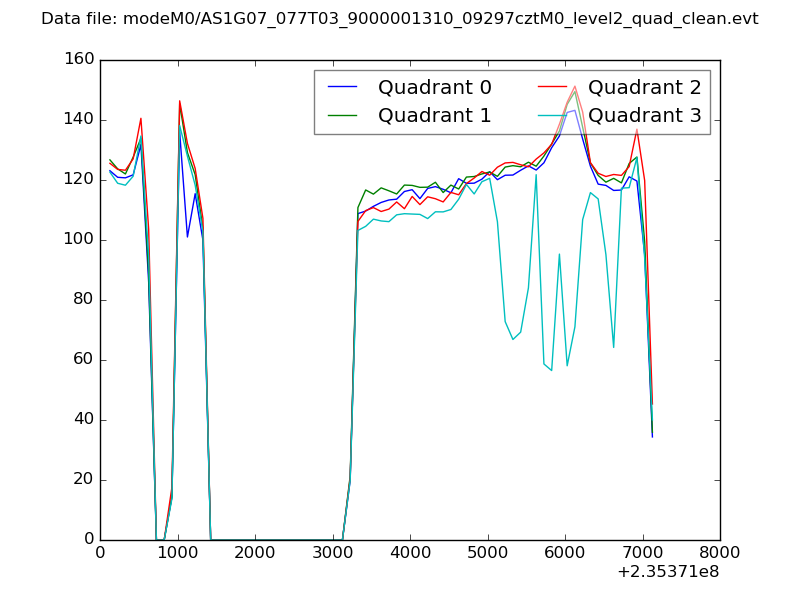

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

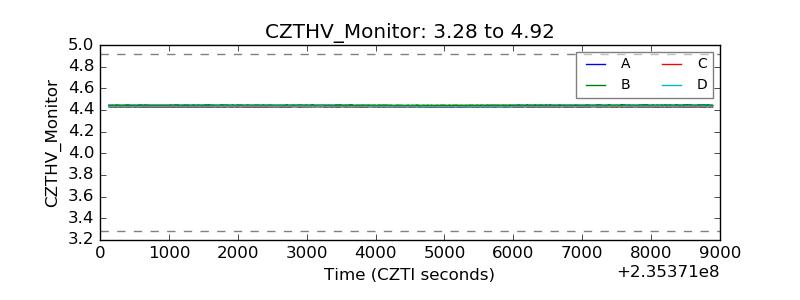

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

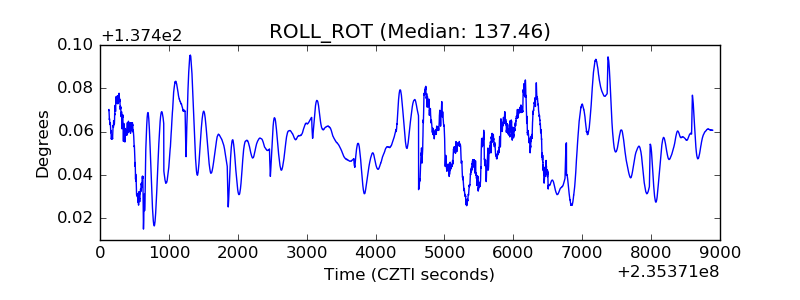

| _ROLL_ROT |  |
| _Roll_DEC |  |

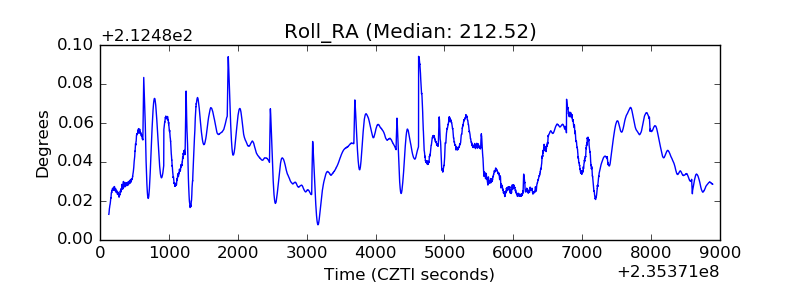

| _Roll_RA |  |
| Veto Counter |  |
