| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_076T03_9000001314_09308cztM0_level2.evt | modeM0/AS1G07_076T03_9000001314_09308cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,093,440 | 84,758,400 |
| Size | 410.2 MB | 80.8 MB |
| Events in quadrant A | 3,762,127 | 532,891 |
| Events in quadrant B | 2,985,581 | 544,213 |
| Events in quadrant C | 2,909,773 | 537,654 |
| Events in quadrant D | 2,941,979 | 514,896 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15265 | 141 |
| B | 0 | 13152 | 122 |
| C | 0 | 13072 | 137 |
| D | 0 | 13428 | 182 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6265 | 168 | 2.681564% |
| B | 6258 | 41 | 0.655161% |
| C | 6252 | 23 | 0.367882% |
| D | 6235 | 23 | 0.368885% |

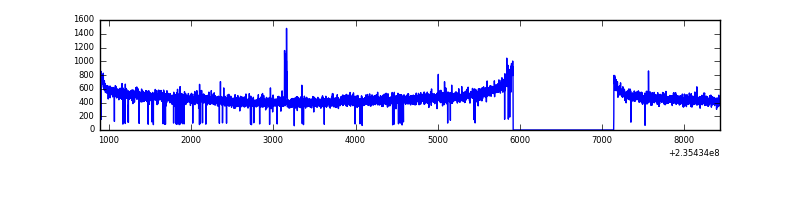

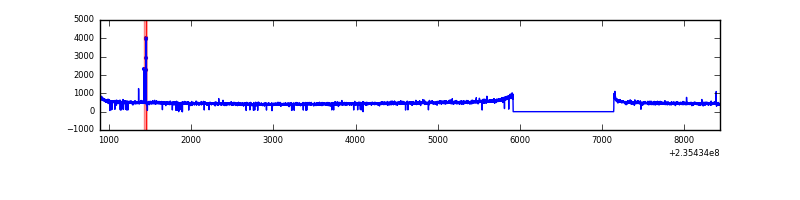

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7542 | 6315 | 104 | 104 | 1.38% | 1.65% |  |
| B | 7542 | 6313 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7542 | 6317 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7542 | 6313 | 14 | 14 | 0.19% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 505717 | 3328.77 | 748 | 733 | 151.7 |
| A | 8 | 5 | 276550 | 1818.14 | 748 | 733 | 151.7 |
| A | 1 | 162 | 64217 | 418.48 | 748 | 733 | 151.7 |
| B | 4 | 80 | 27992 | 187.43 | 760 | 743 | 145.4 |
| B | 12 | 111 | 16327 | 107.19 | 760 | 743 | 145.4 |
| B | 11 | 111 | 13203 | 85.7 | 760 | 743 | 145.4 |
| C | 3 | 254 | 10321 | 55.89 | 740 | 745 | 171.3 |
| C | 9 | 68 | 6662 | 34.53 | 740 | 745 | 171.3 |
| C | 13 | 61 | 5564 | 28.13 | 740 | 745 | 171.3 |
| D | 1 | 52 | 159557 | 850.74 | 726 | 710 | 186.7 |
| D | 2 | 234 | 20002 | 103.32 | 726 | 710 | 186.7 |
| D | 2 | 14 | 18593 | 95.78 | 726 | 710 | 186.7 |

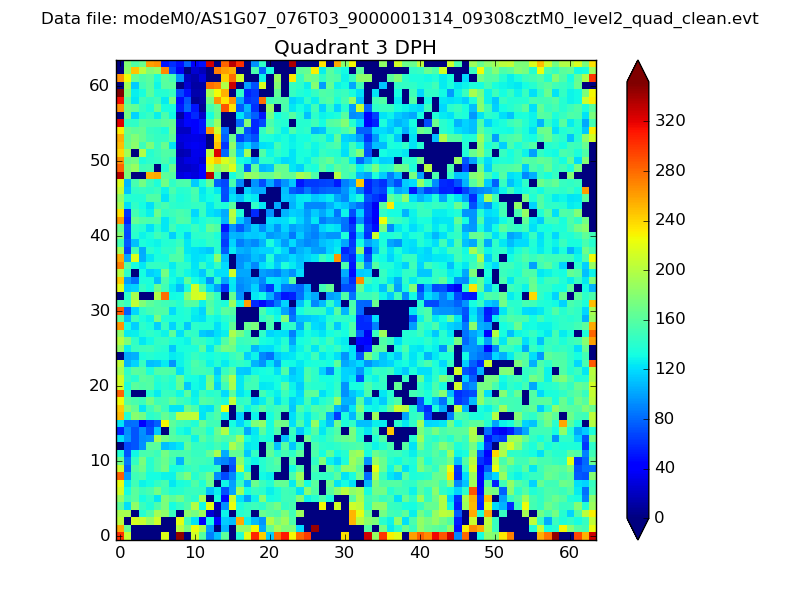

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

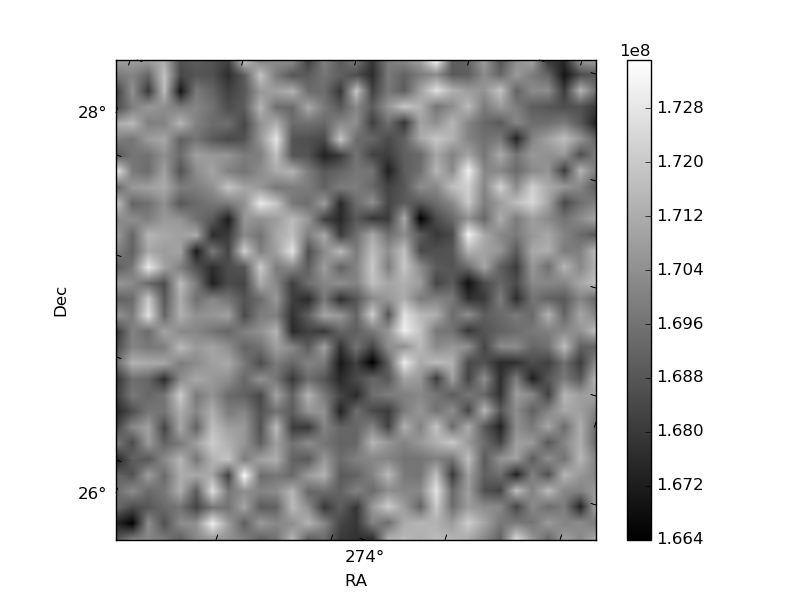

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

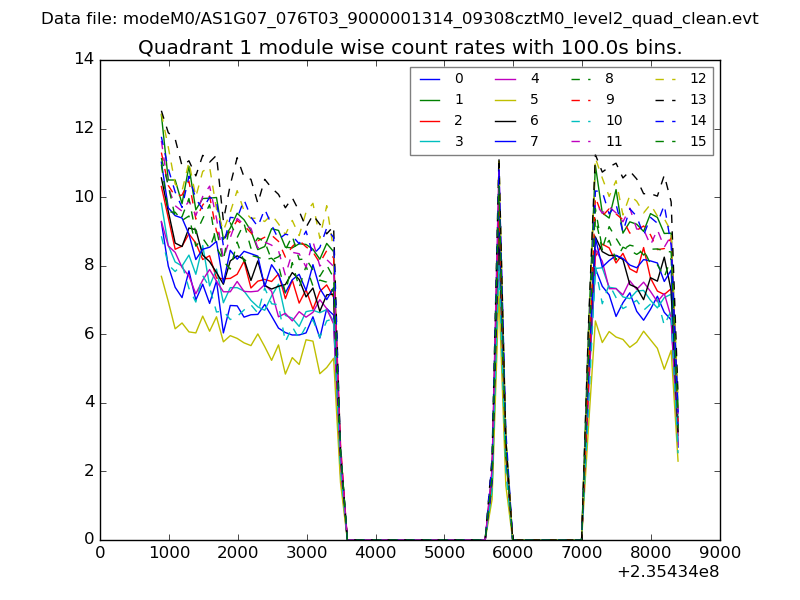

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

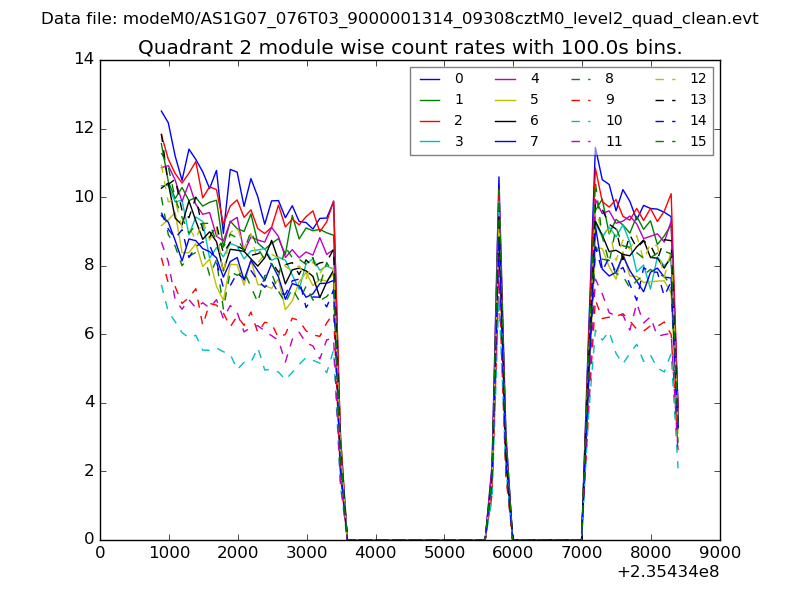

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

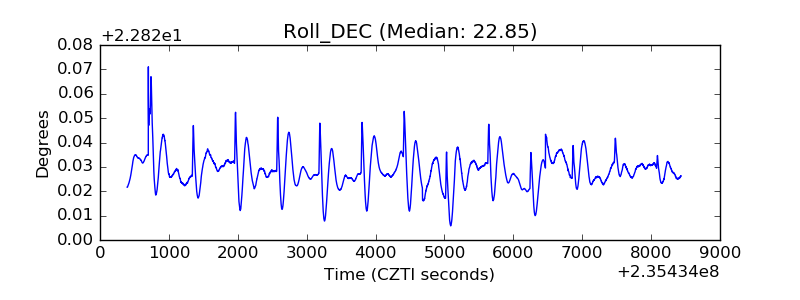

| _Roll_DEC |  |

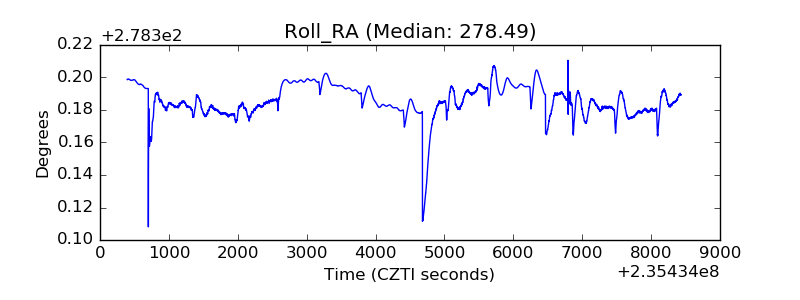

| _Roll_RA |  |
| Veto Counter |  |
