| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_077T04_9000001312_09300cztM0_level2.evt | modeM0/AS1G07_077T04_9000001312_09300cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,351,360 | 101,439,360 |
| Size | 541.1 MB | 96.7 MB |
| Events in quadrant A | 5,155,275 | 620,127 |
| Events in quadrant B | 3,882,759 | 637,605 |
| Events in quadrant C | 3,759,395 | 627,682 |
| Events in quadrant D | 3,825,435 | 613,980 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20665 | 6 |
| B | 0 | 16896 | 20 |
| C | 0 | 16800 | 18 |
| D | 0 | 17172 | 18 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8249 | 264 | 3.200388% |
| B | 8241 | 144 | 1.747361% |
| C | 8242 | 115 | 1.395292% |
| D | 8242 | 117 | 1.419558% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

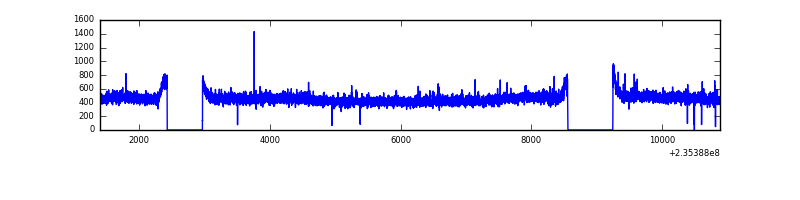

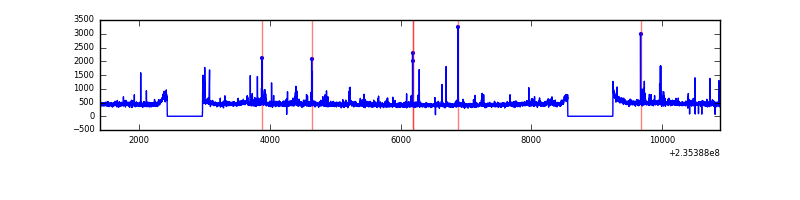

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9480 | 8252 | 50 | 50 | 0.53% | 0.61% |  |
| B | 9480 | 8251 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9480 | 8251 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9480 | 8252 | 6 | 6 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1185460 | 5935.44 | 966 | 942 | 199.6 |
| A | 15 | 223 | 82332 | 407.83 | 966 | 942 | 199.6 |
| A | 1 | 162 | 46866 | 230.12 | 966 | 942 | 199.6 |
| B | 0 | 214 | 36614 | 188.32 | 979 | 952 | 189.4 |
| B | 12 | 111 | 21561 | 108.83 | 979 | 952 | 189.4 |
| B | 0 | 213 | 20450 | 102.96 | 979 | 952 | 189.4 |
| C | 14 | 67 | 36464 | 160.21 | 951 | 954 | 221.6 |
| C | 13 | 61 | 7383 | 29.01 | 951 | 954 | 221.6 |
| C | 8 | 222 | 4406 | 15.57 | 951 | 954 | 221.6 |
| D | 2 | 136 | 51259 | 219.82 | 943 | 917 | 229.0 |
| D | 7 | 71 | 37421 | 159.4 | 943 | 917 | 229.0 |
| D | 2 | 234 | 33508 | 142.31 | 943 | 917 | 229.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

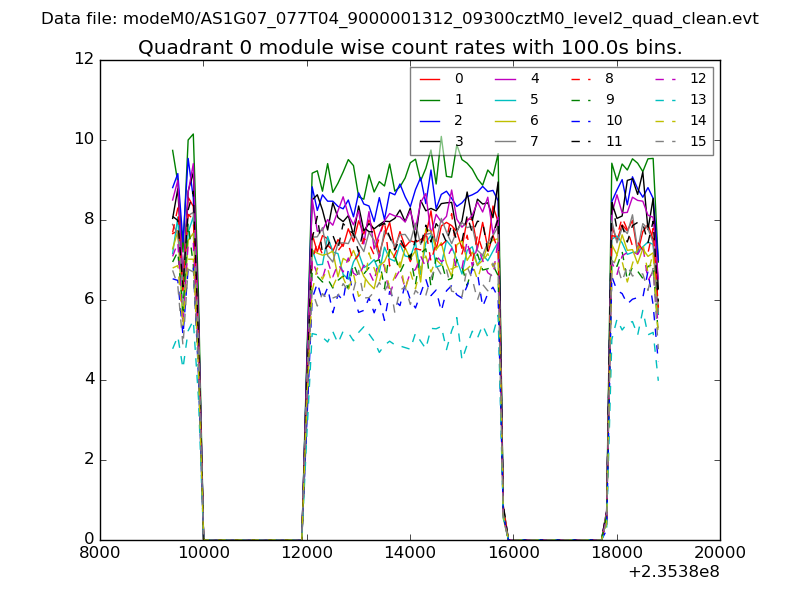

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

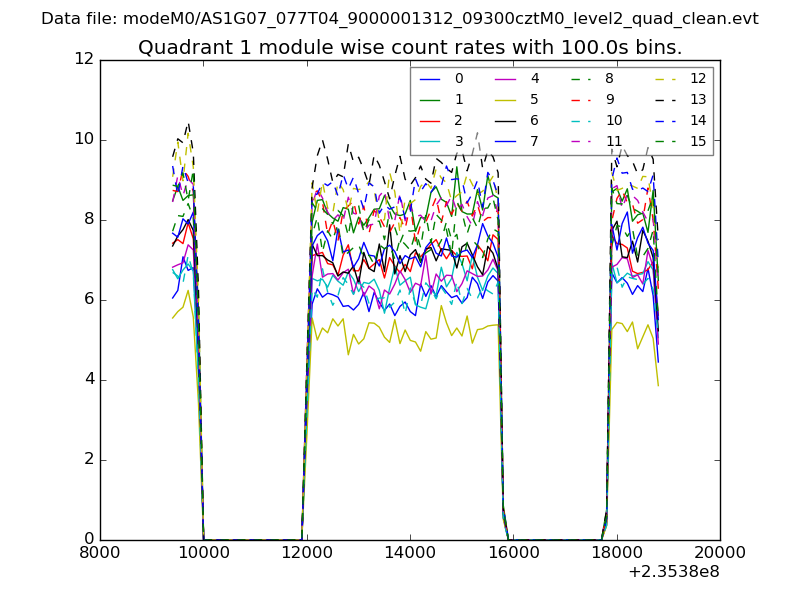

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

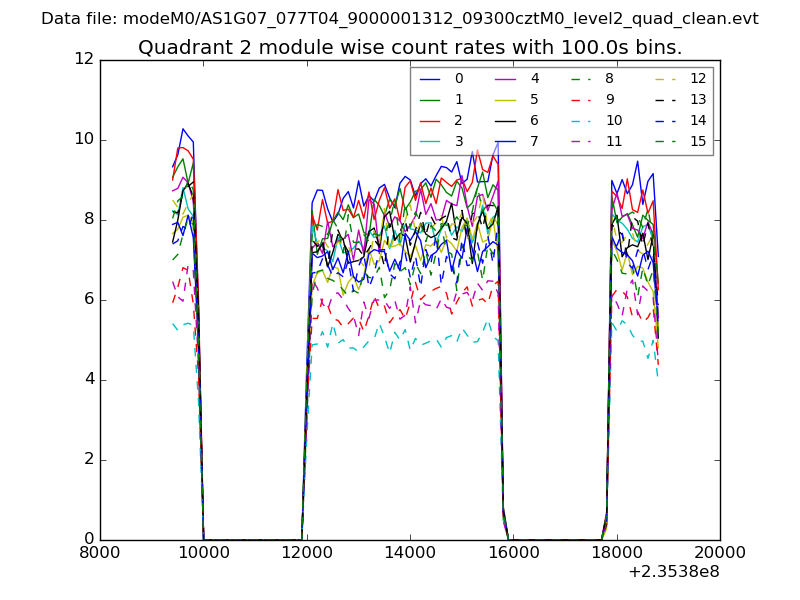

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

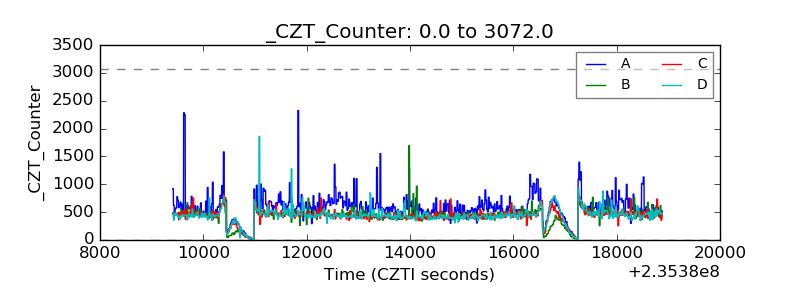

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

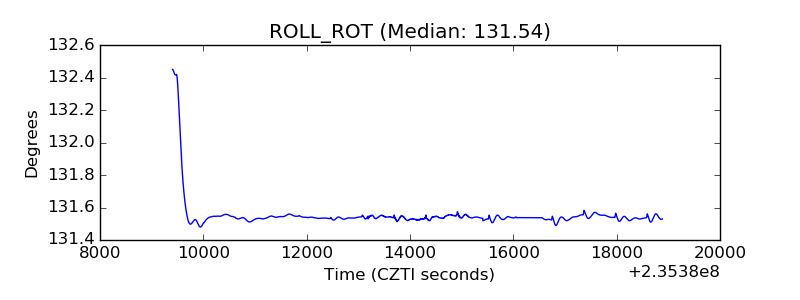

| _ROLL_ROT |  |

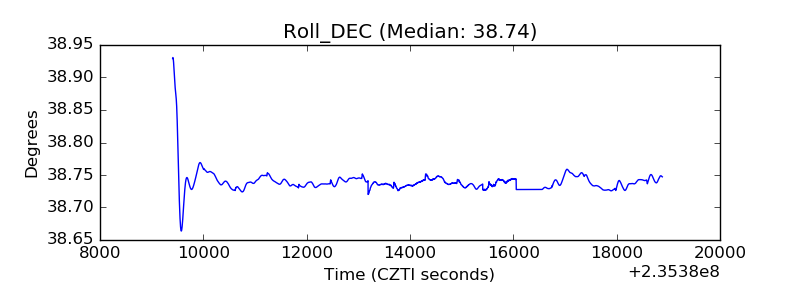

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
