| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_002T01_9000001316_09318cztM0_level2.evt | modeM0/AS1G07_002T01_9000001316_09318cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,856,960 | 98,092,800 |
| Size | 500.5 MB | 93.5 MB |
| Events in quadrant A | 4,427,657 | 635,613 |
| Events in quadrant B | 3,374,074 | 654,572 |
| Events in quadrant C | 3,091,458 | 642,975 |
| Events in quadrant D | 4,558,267 | 581,080 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17432 | 10 |
| B | 0 | 14408 | 4 |
| C | 0 | 13586 | 4 |
| D | 0 | 18019 | 32 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6542 | 355 | 5.426475% |
| B | 6544 | 77 | 1.176650% |
| C | 6544 | 48 | 0.733496% |
| D | 6538 | 549 | 8.397063% |

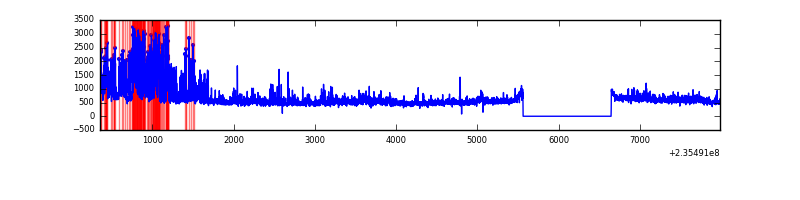

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 6546 | 152 | 152 | 1.99% | 2.32% |  |
| B | 7630 | 6546 | 11 | 11 | 0.14% | 0.17% |  |
| C | 7630 | 6546 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7630 | 6544 | 305 | 305 | 4.00% | 4.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1278148 | 7887.2 | 798 | 780 | 162.0 |
| A | 12 | 236 | 55959 | 340.7 | 798 | 780 | 162.0 |
| A | 1 | 162 | 19330 | 114.54 | 798 | 780 | 162.0 |
| B | 10 | 245 | 124932 | 801.49 | 809 | 787 | 154.9 |
| B | 0 | 219 | 38090 | 240.83 | 809 | 787 | 154.9 |
| B | 0 | 187 | 34582 | 218.18 | 809 | 787 | 154.9 |
| C | 13 | 61 | 5887 | 27.71 | 790 | 795 | 183.8 |
| C | 9 | 68 | 3826 | 16.49 | 790 | 795 | 183.8 |
| C | 14 | 67 | 3737 | 16.01 | 790 | 795 | 183.8 |
| D | 1 | 52 | 970811 | 5296.35 | 749 | 730 | 183.2 |
| D | 12 | 227 | 661865 | 3609.59 | 749 | 730 | 183.2 |
| D | 2 | 152 | 30500 | 162.53 | 749 | 730 | 183.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

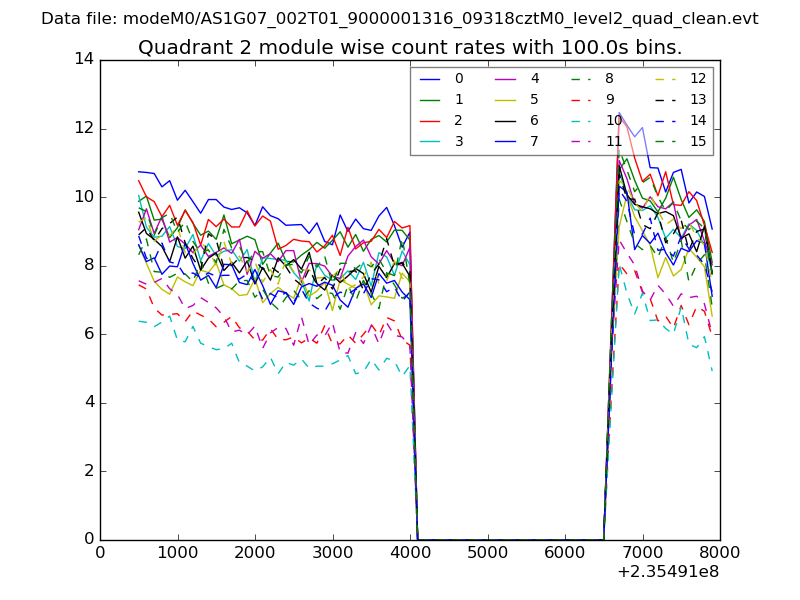

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

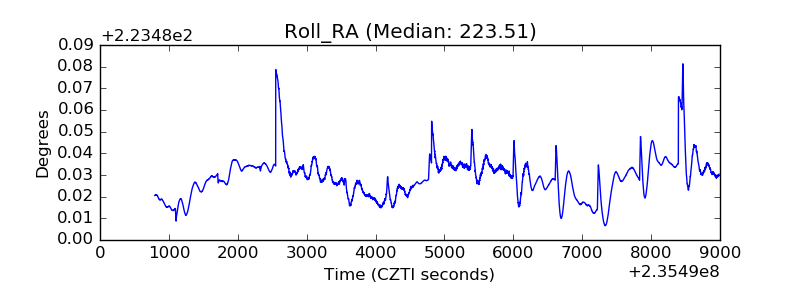

| _Roll_RA |  |

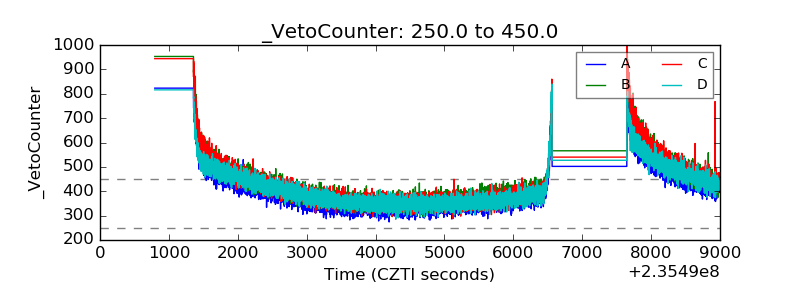

| Veto Counter |  |
