| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_009T01_9000001318_09322cztM0_level2.evt | modeM0/AS1G07_009T01_9000001318_09322cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,016,320 | 98,153,280 |
| Size | 469.2 MB | 93.6 MB |
| Events in quadrant A | 3,259,946 | 642,711 |
| Events in quadrant B | 3,208,446 | 661,280 |
| Events in quadrant C | 2,962,193 | 647,931 |
| Events in quadrant D | 5,042,864 | 581,073 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 1 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13620 | 32 |
| B | 0 | 13700 | 41 |
| C | 0 | 13037 | 42 |
| D | 0 | 19361 | 56 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6297 | 22 | 0.349373% |
| B | 6293 | 59 | 0.937550% |
| C | 6290 | 20 | 0.317965% |
| D | 6291 | 611 | 9.712287% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6310 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7599 | 6309 | 17 | 17 | 0.22% | 0.27% |  |
| C | 7599 | 6310 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7599 | 6309 | 587 | 587 | 7.72% | 9.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 259954 | 1657.02 | 766 | 750 | 156.4 |
| A | 1 | 162 | 33194 | 207.41 | 766 | 750 | 156.4 |
| A | 0 | 226 | 7238 | 41.48 | 766 | 750 | 156.4 |
| B | 10 | 245 | 134041 | 899.97 | 775 | 758 | 148.1 |
| B | 4 | 80 | 32208 | 212.36 | 775 | 758 | 148.1 |
| B | 0 | 219 | 26818 | 175.97 | 775 | 758 | 148.1 |
| C | 13 | 61 | 5663 | 28.02 | 758 | 763 | 174.9 |
| C | 9 | 68 | 2966 | 12.6 | 758 | 763 | 174.9 |
| C | 8 | 222 | 2117 | 7.74 | 758 | 763 | 174.9 |
| D | 12 | 227 | 2115045 | 11765.77 | 718 | 701 | 179.7 |
| D | 1 | 52 | 61878 | 340.43 | 718 | 701 | 179.7 |
| D | 12 | 233 | 61195 | 336.63 | 718 | 701 | 179.7 |

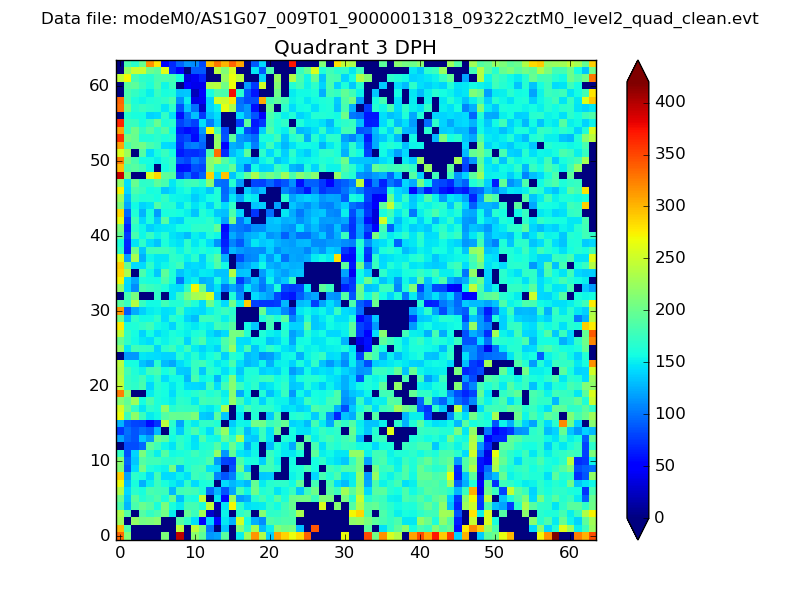

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

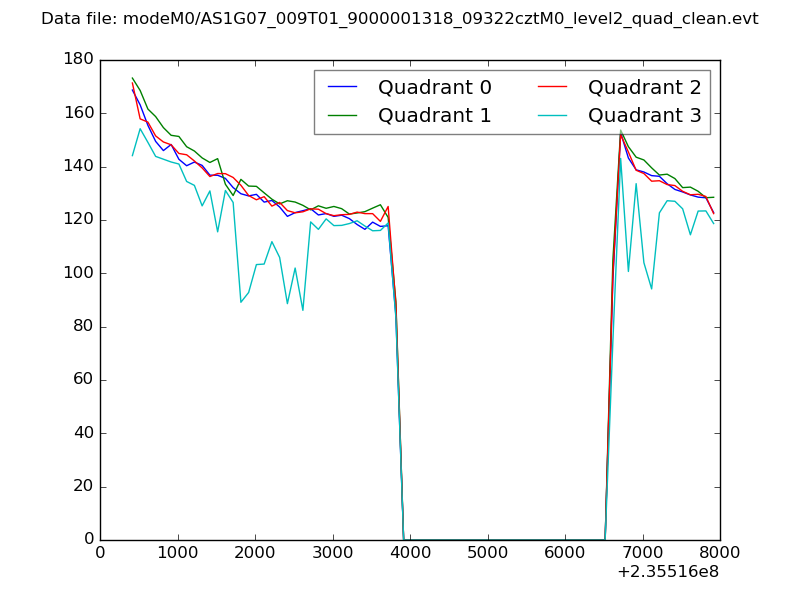

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

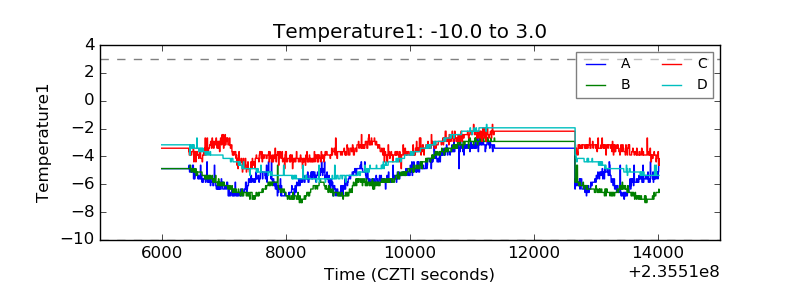

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

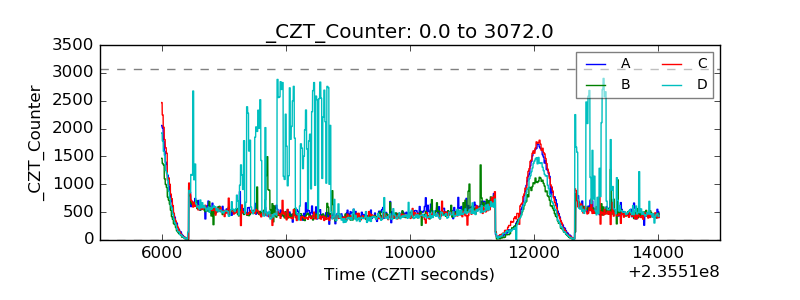

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

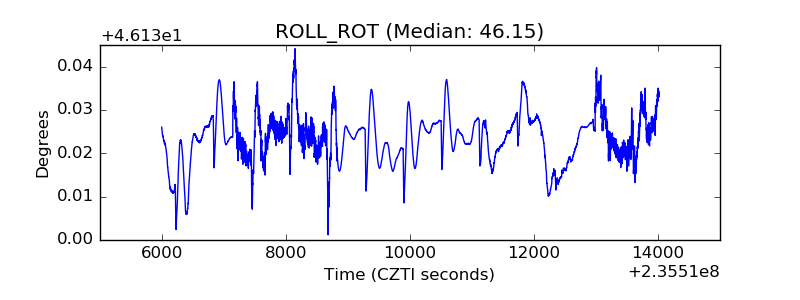

| _ROLL_ROT |  |
| _Roll_DEC |  |

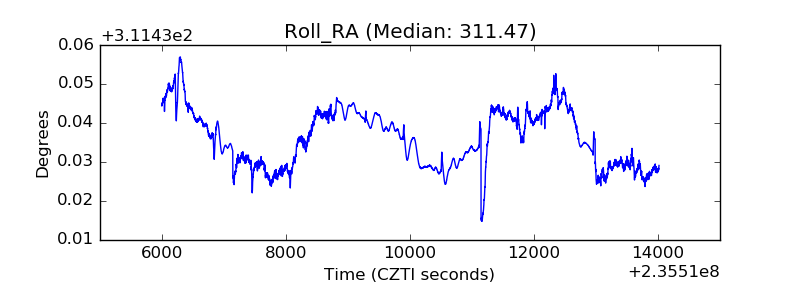

| _Roll_RA |  |
| Veto Counter |  |
