| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_076T02_9000001320_09331cztM0_level2.evt | modeM0/AS1G07_076T02_9000001320_09331cztM0_level2_quad_clean.evt |
| Size (bytes) | 701,772,480 | 107,493,120 |
| Size | 669.3 MB | 102.5 MB |
| Events in quadrant A | 5,119,579 | 707,663 |
| Events in quadrant B | 4,147,670 | 712,442 |
| Events in quadrant C | 4,531,284 | 684,954 |
| Events in quadrant D | 6,896,737 | 577,484 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20873 | 66 |
| B | 0 | 17581 | 35 |
| C | 0 | 19025 | 32 |
| D | 0 | 26305 | 35 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 2 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8220 | 178 | 2.165450% |
| B | 8232 | 144 | 1.749271% |
| C | 8231 | 245 | 2.976552% |
| D | 8231 | 1358 | 16.498603% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10121 | 8247 | 9 | 9 | 0.09% | 0.11% |  |
| B | 10121 | 8247 | 6 | 6 | 0.06% | 0.07% |  |
| C | 10121 | 8247 | 94 | 94 | 0.93% | 1.14% |  |
| D | 10121 | 8248 | 1043 | 1043 | 10.31% | 12.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1131925 | 5536.9 | 1010 | 989 | 204.3 |
| A | 1 | 162 | 42726 | 204.34 | 1010 | 989 | 204.3 |
| A | 15 | 174 | 22030 | 103.01 | 1010 | 989 | 204.3 |
| B | 0 | 214 | 69287 | 350.61 | 1010 | 987 | 194.8 |
| B | 0 | 219 | 42891 | 215.11 | 1010 | 987 | 194.8 |
| B | 0 | 246 | 40981 | 205.31 | 1010 | 987 | 194.8 |
| C | 4 | 254 | 727892 | 3229.43 | 969 | 973 | 225.1 |
| C | 13 | 61 | 7375 | 28.44 | 969 | 973 | 225.1 |
| C | 4 | 238 | 6669 | 25.31 | 969 | 973 | 225.1 |
| D | 1 | 52 | 3099996 | 14487.91 | 886 | 864 | 213.9 |
| D | 12 | 233 | 147209 | 684.14 | 886 | 864 | 213.9 |
| D | 7 | 71 | 104575 | 484.83 | 886 | 864 | 213.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

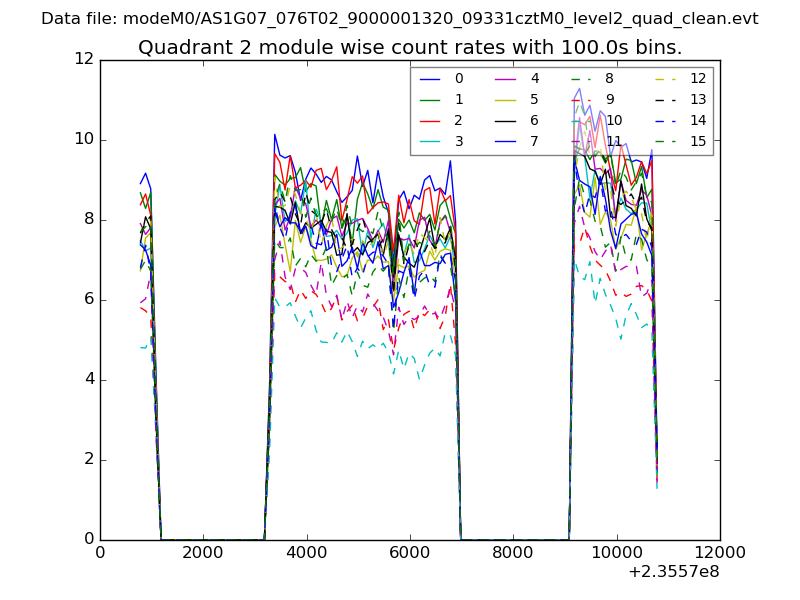

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

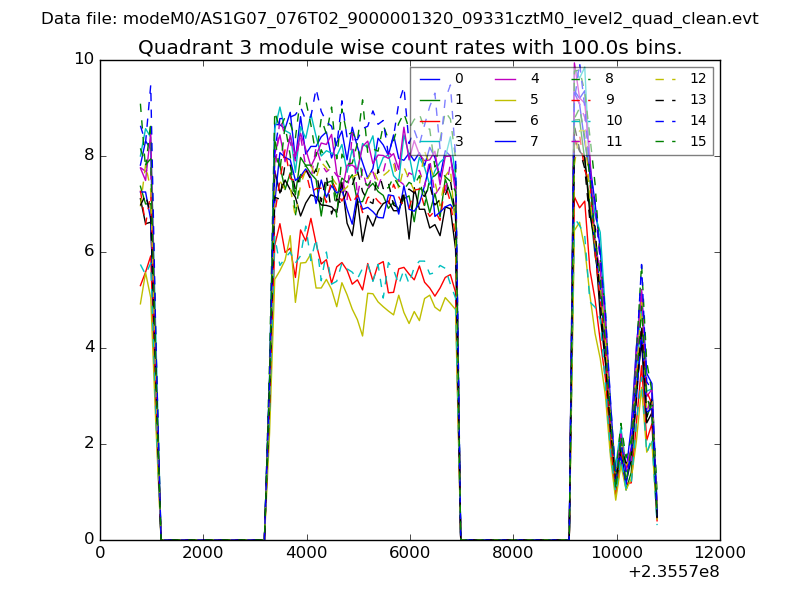

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

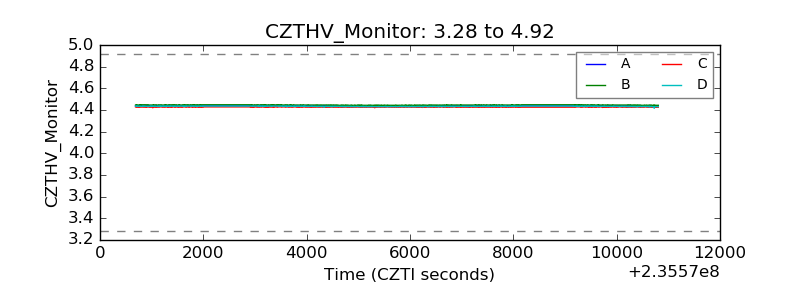

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

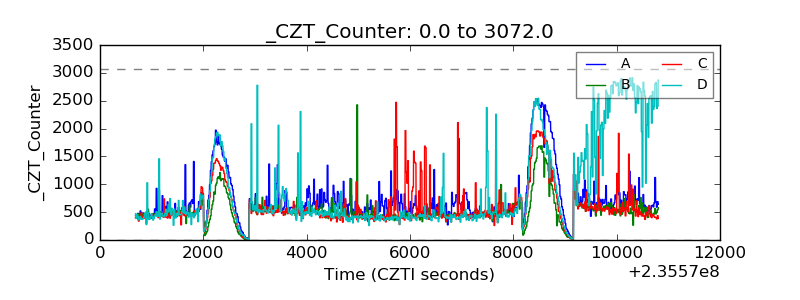

| CZT Counter |  |
| +2.5 Volts monitor |  |

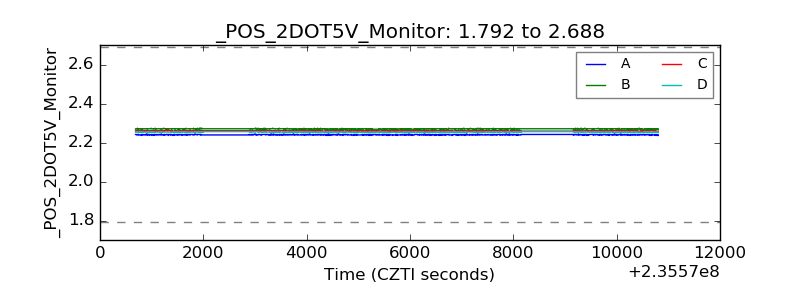

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

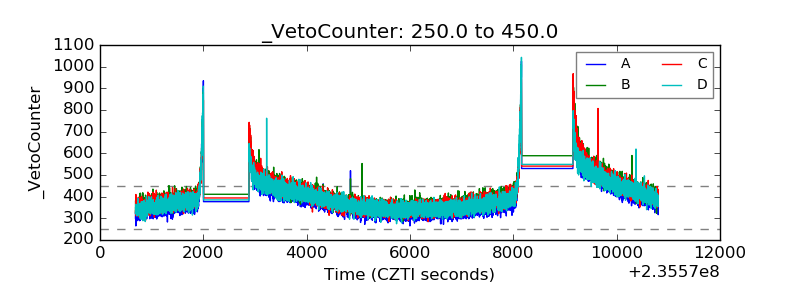

| Veto Counter |  |
