| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_076T02_9000001320_09333cztM0_level2.evt | modeM0/AS1G07_076T02_9000001320_09333cztM0_level2_quad_clean.evt |
| Size (bytes) | 595,909,440 | 87,776,640 |
| Size | 568.3 MB | 83.7 MB |
| Events in quadrant A | 4,504,916 | 607,565 |
| Events in quadrant B | 3,084,960 | 617,707 |
| Events in quadrant C | 3,177,122 | 593,523 |
| Events in quadrant D | 6,876,149 | 422,069 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18541 | 809 |
| B | 0 | 13635 | 434 |
| C | 0 | 14037 | 519 |
| D | 0 | 27332 | 2983 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 4 |
| B | 0 | 128 | 8 |
| C | 0 | 128 | 6 |
| D | 0 | 128 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5985 | 131 | 2.188805% |
| B | 6027 | 61 | 1.012112% |
| C | 6023 | 82 | 1.361448% |
| D | 5780 | 1689 | 29.221453% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7367 | 6202 | 26 | 26 | 0.35% | 0.42% |  |
| B | 7367 | 6216 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7367 | 6218 | 25 | 25 | 0.34% | 0.40% |  |
| D | 7367 | 6055 | 1402 | 1402 | 19.03% | 23.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1495161 | 9811.64 | 746 | 733 | 152.3 |
| A | 1 | 162 | 49184 | 318.1 | 746 | 733 | 152.3 |
| A | 15 | 174 | 41195 | 265.65 | 746 | 733 | 152.3 |
| B | 0 | 214 | 64326 | 442.32 | 746 | 729 | 143.8 |
| B | 10 | 245 | 39759 | 271.45 | 746 | 729 | 143.8 |
| B | 0 | 187 | 37985 | 259.12 | 746 | 729 | 143.8 |
| C | 4 | 254 | 364688 | 2193.47 | 714 | 718 | 165.9 |
| C | 8 | 128 | 11243 | 63.43 | 714 | 718 | 165.9 |
| C | 8 | 112 | 5873 | 31.07 | 714 | 718 | 165.9 |
| D | 1 | 52 | 3669354 | 25404.35 | 586 | 572 | 144.4 |
| D | 7 | 71 | 711402 | 4922.12 | 586 | 572 | 144.4 |
| D | 12 | 233 | 85337 | 586.95 | 586 | 572 | 144.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

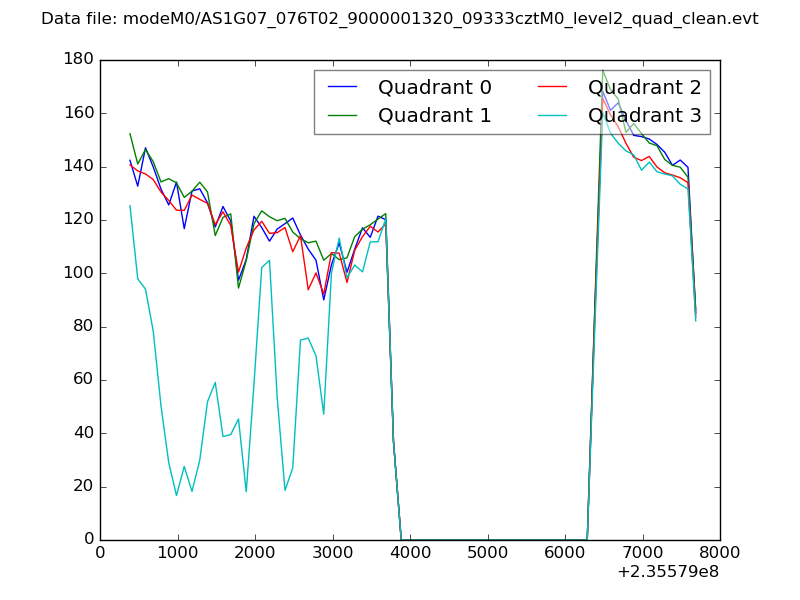

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

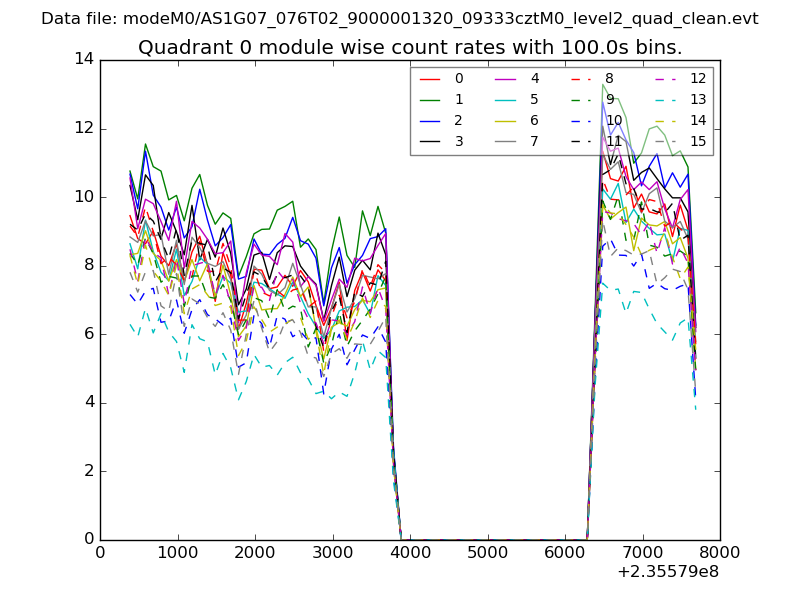

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

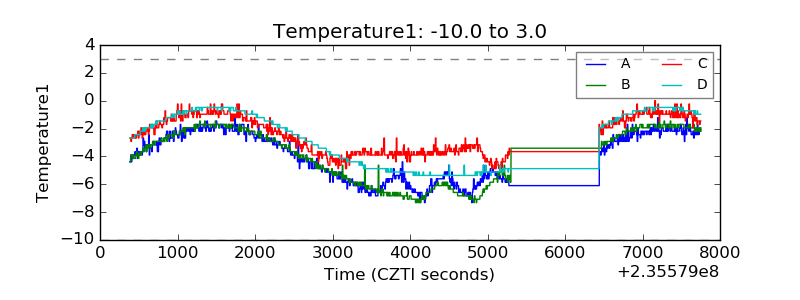

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

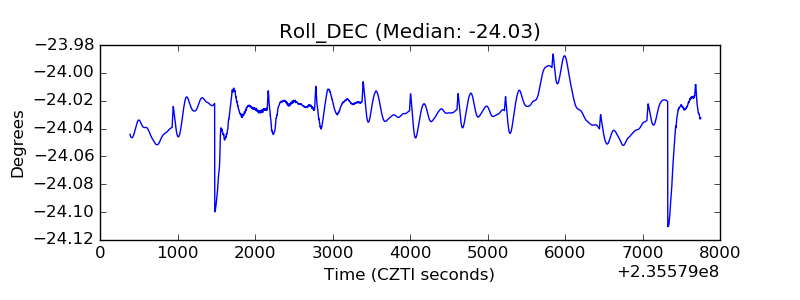

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
