| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_069T02_9000001324_09360cztM0_level2.evt | modeM0/AS1A03_069T02_9000001324_09360cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,519,040 | 101,416,320 |
| Size | 505.9 MB | 96.7 MB |
| Events in quadrant A | 3,998,210 | 652,277 |
| Events in quadrant B | 3,594,705 | 658,148 |
| Events in quadrant C | 3,270,759 | 654,222 |
| Events in quadrant D | 4,719,898 | 610,834 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16564 | 8 |
| B | 0 | 15373 | 7 |
| C | 0 | 14598 | 2 |
| D | 0 | 18811 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7120 | 155 | 2.176966% |
| B | 7120 | 134 | 1.882022% |
| C | 7122 | 98 | 1.376018% |
| D | 7121 | 377 | 5.294200% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

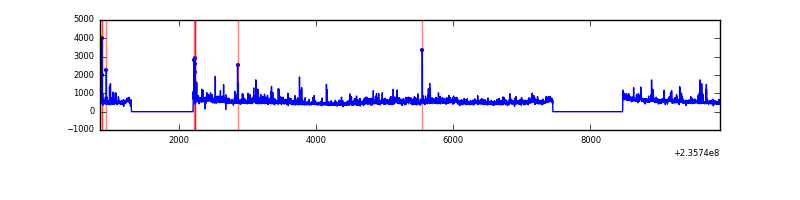

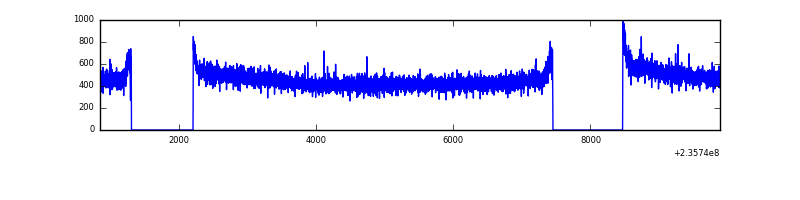

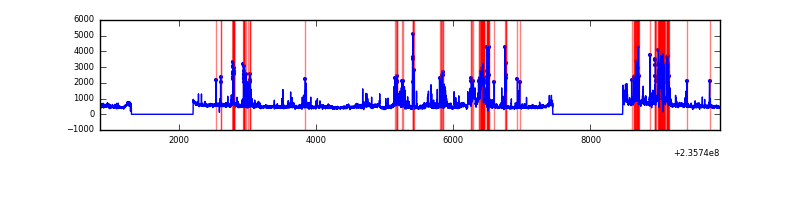

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9042 | 7124 | 9 | 9 | 0.10% | 0.13% |  |
| B | 9042 | 7124 | 8 | 8 | 0.09% | 0.11% |  |
| C | 9042 | 7124 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9042 | 7124 | 236 | 236 | 2.61% | 3.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 601146 | 3408.23 | 854 | 834 | 176.1 |
| A | 13 | 251 | 56677 | 317.04 | 854 | 834 | 176.1 |
| A | 1 | 162 | 23236 | 127.19 | 854 | 834 | 176.1 |
| B | 0 | 214 | 85253 | 516.66 | 854 | 831 | 163.4 |
| B | 5 | 255 | 59093 | 356.56 | 854 | 831 | 163.4 |
| B | 0 | 219 | 41321 | 247.8 | 854 | 831 | 163.4 |
| C | 13 | 61 | 6462 | 29.43 | 835 | 838 | 191.1 |
| C | 8 | 222 | 6284 | 28.5 | 835 | 838 | 191.1 |
| C | 14 | 234 | 3558 | 14.23 | 835 | 838 | 191.1 |
| D | 1 | 52 | 661803 | 3067.26 | 814 | 794 | 215.5 |
| D | 12 | 227 | 314918 | 1457.62 | 814 | 794 | 215.5 |
| D | 1 | 255 | 205814 | 951.35 | 814 | 794 | 215.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

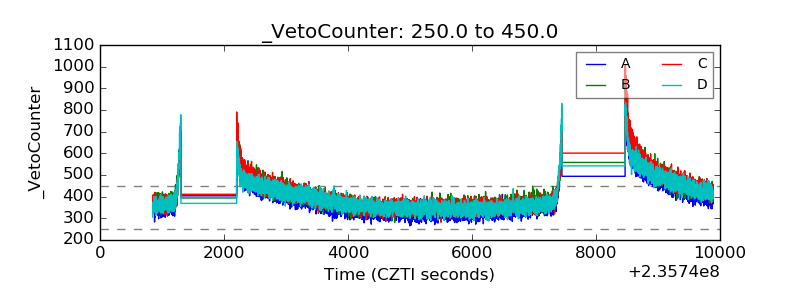

| Veto HV Monitor |  |
| Veto LLD |  |

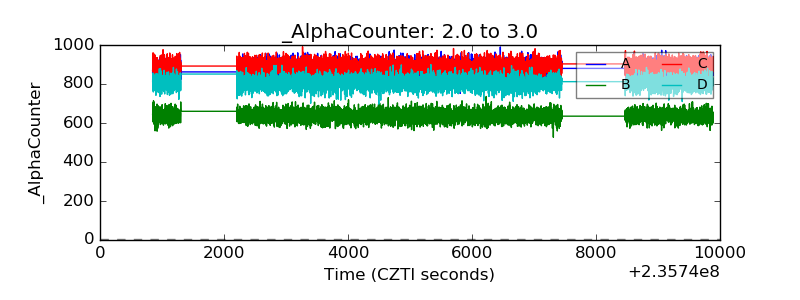

| Alpha Counter |  |
| _CPM_Rate |  |

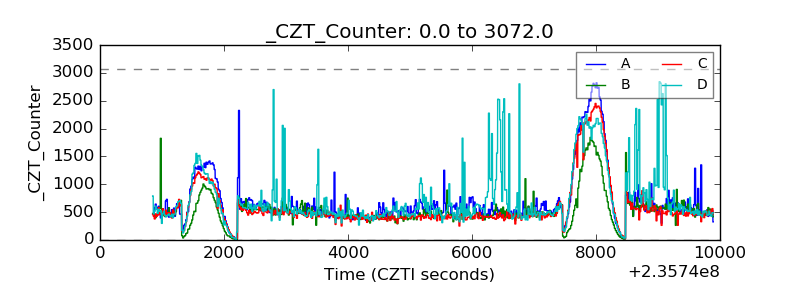

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

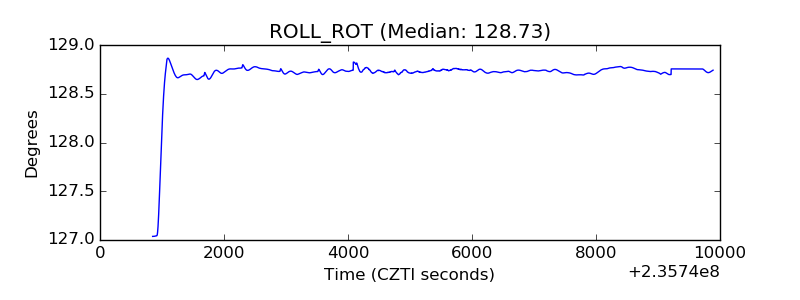

| _ROLL_ROT |  |
| _Roll_DEC |  |

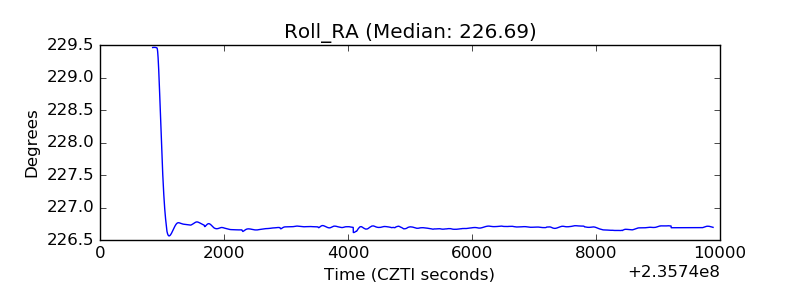

| _Roll_RA |  |
| Veto Counter |  |
