| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_040T01_9000001326_09363cztM0_level2.evt | modeM0/AS1G07_040T01_9000001326_09363cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,605,760 | 105,327,360 |
| Size | 441.2 MB | 100.4 MB |
| Events in quadrant A | 3,971,550 | 702,413 |
| Events in quadrant B | 3,216,735 | 707,118 |
| Events in quadrant C | 2,812,987 | 685,221 |
| Events in quadrant D | 3,590,050 | 664,615 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15973 | 2 |
| B | 0 | 13776 | 1 |
| C | 0 | 12609 | 1 |
| D | 0 | 15081 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6173 | 101 | 1.636157% |
| B | 6173 | 56 | 0.907176% |
| C | 6173 | 17 | 0.275393% |
| D | 6173 | 55 | 0.890977% |

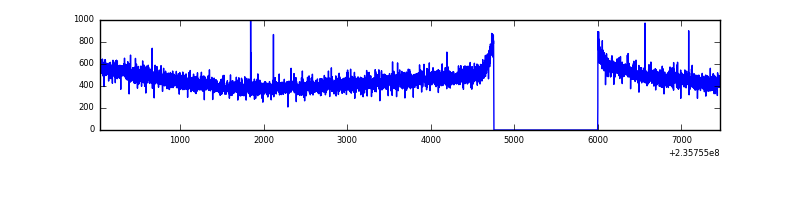

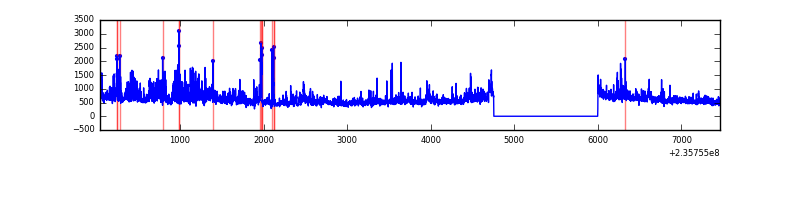

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7418 | 6174 | 15 | 15 | 0.20% | 0.24% |  |
| B | 7418 | 6174 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7418 | 6174 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7418 | 6174 | 26 | 26 | 0.35% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 961740 | 6294.23 | 754 | 741 | 152.7 |
| A | 13 | 251 | 51181 | 330.37 | 754 | 741 | 152.7 |
| A | 1 | 162 | 20448 | 129.07 | 754 | 741 | 152.7 |
| B | 0 | 214 | 98708 | 692.83 | 755 | 739 | 141.4 |
| B | 0 | 219 | 50252 | 350.15 | 755 | 739 | 141.4 |
| B | 4 | 173 | 37006 | 256.48 | 755 | 739 | 141.4 |
| C | 9 | 68 | 9677 | 54.49 | 716 | 720 | 164.4 |
| C | 13 | 61 | 5446 | 28.75 | 716 | 720 | 164.4 |
| C | 14 | 67 | 5152 | 26.96 | 716 | 720 | 164.4 |
| D | 8 | 195 | 585120 | 3094.63 | 712 | 697 | 188.9 |
| D | 1 | 52 | 78040 | 409.55 | 712 | 697 | 188.9 |
| D | 13 | 104 | 39862 | 207.39 | 712 | 697 | 188.9 |

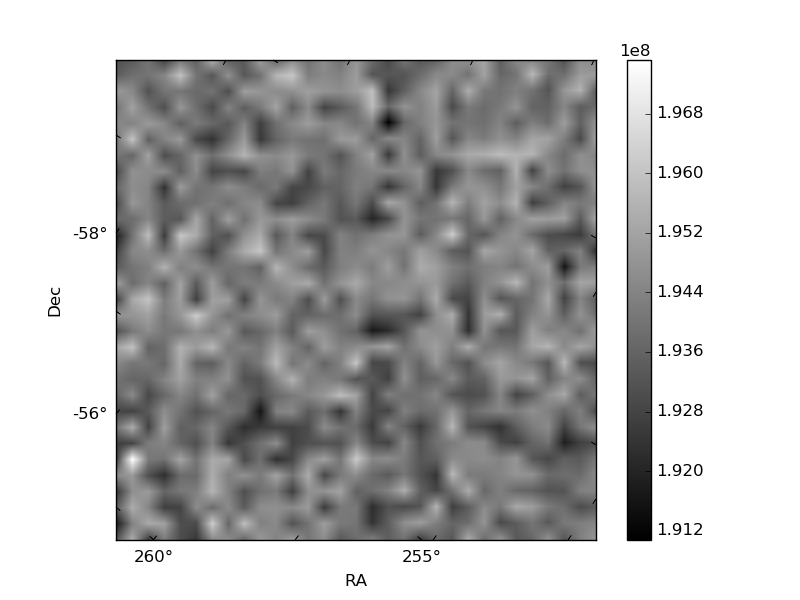

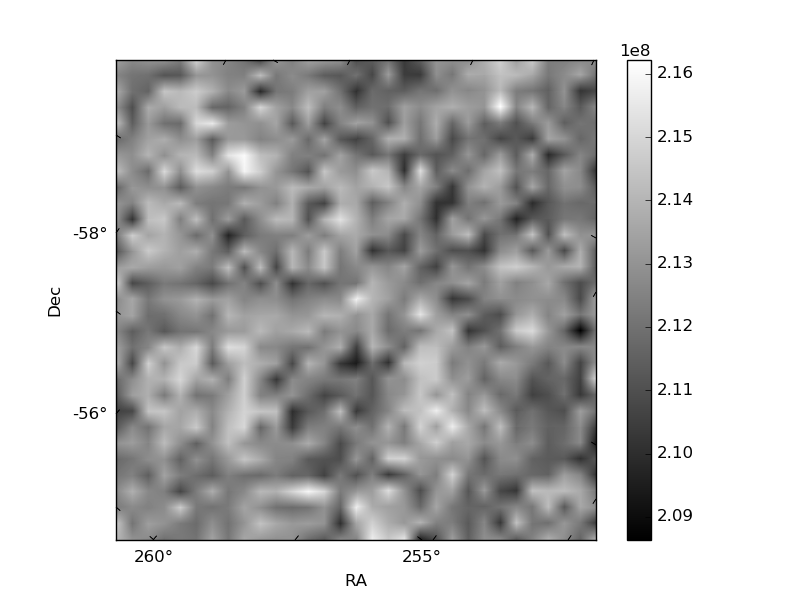

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

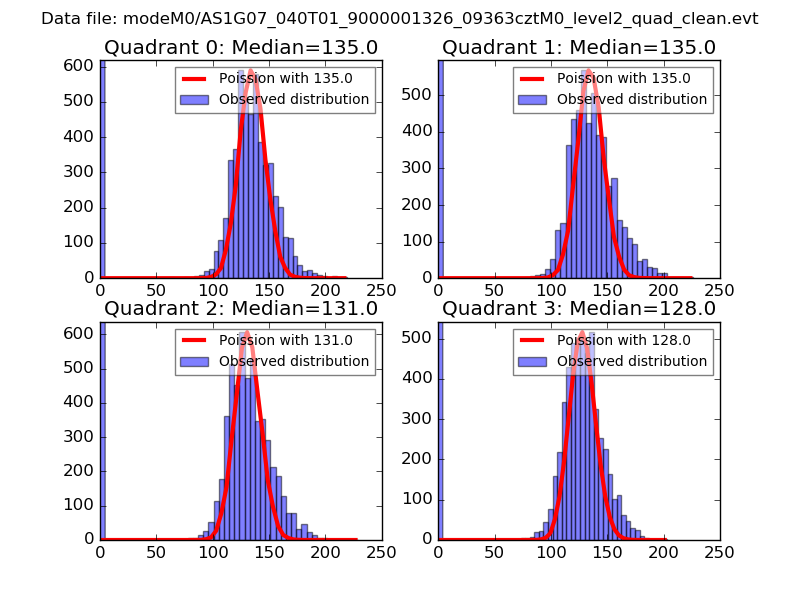

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

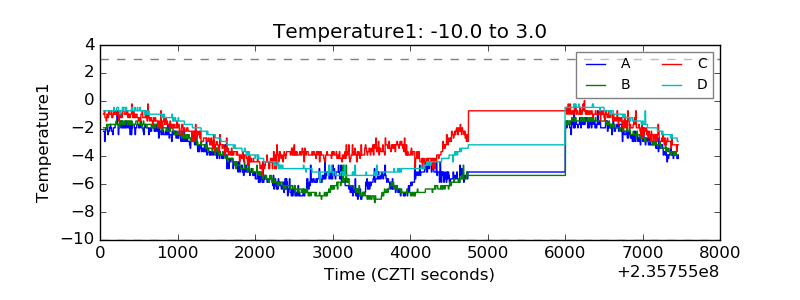

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

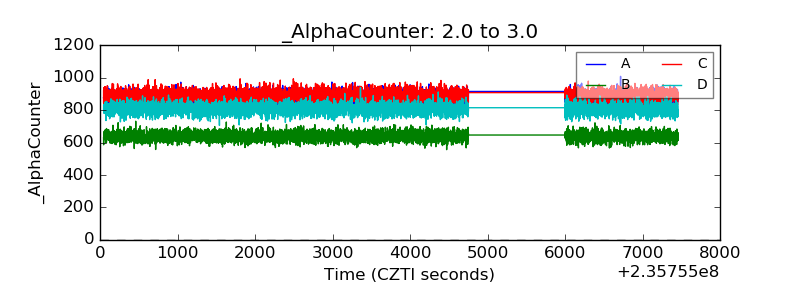

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
