| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_009T01_9000001328_09370cztM0_level2.evt | modeM0/AS1A03_009T01_9000001328_09370cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,743,360 | 72,198,720 |
| Size | 459.4 MB | 68.9 MB |
| Events in quadrant A | 3,401,720 | 443,592 |
| Events in quadrant B | 3,024,186 | 445,180 |
| Events in quadrant C | 3,931,449 | 436,472 |
| Events in quadrant D | 3,811,264 | 427,821 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14197 | 76 |
| B | 0 | 13268 | 31 |
| C | 0 | 16252 | 81 |
| D | 0 | 15747 | 58 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6200 | 105 | 1.693548% |
| B | 6217 | 150 | 2.412739% |
| C | 6202 | 147 | 2.370203% |
| D | 6211 | 134 | 2.157463% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6571 | 6233 | 4 | 4 | 0.06% | 0.06% |  |
| B | 6571 | 6233 | 39 | 39 | 0.59% | 0.63% |  |
| C | 6571 | 6233 | 2 | 2 | 0.03% | 0.03% |  |
| D | 6571 | 6233 | 30 | 30 | 0.46% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 468643 | 3176.92 | 716 | 701 | 147.3 |
| A | 1 | 162 | 81088 | 545.76 | 716 | 701 | 147.3 |
| A | 1 | 178 | 29506 | 195.56 | 716 | 701 | 147.3 |
| B | 5 | 255 | 124722 | 891.33 | 718 | 698 | 139.1 |
| B | 0 | 214 | 39840 | 281.31 | 718 | 698 | 139.1 |
| B | 4 | 173 | 35483 | 249.99 | 718 | 698 | 139.1 |
| C | 9 | 68 | 1223094 | 7525.53 | 692 | 694 | 162.4 |
| C | 13 | 61 | 5301 | 28.36 | 692 | 694 | 162.4 |
| C | 8 | 222 | 4760 | 25.03 | 692 | 694 | 162.4 |
| D | 8 | 195 | 913571 | 5165.41 | 691 | 672 | 176.7 |
| D | 13 | 104 | 97340 | 546.97 | 691 | 672 | 176.7 |
| D | 1 | 52 | 54186 | 302.8 | 691 | 672 | 176.7 |

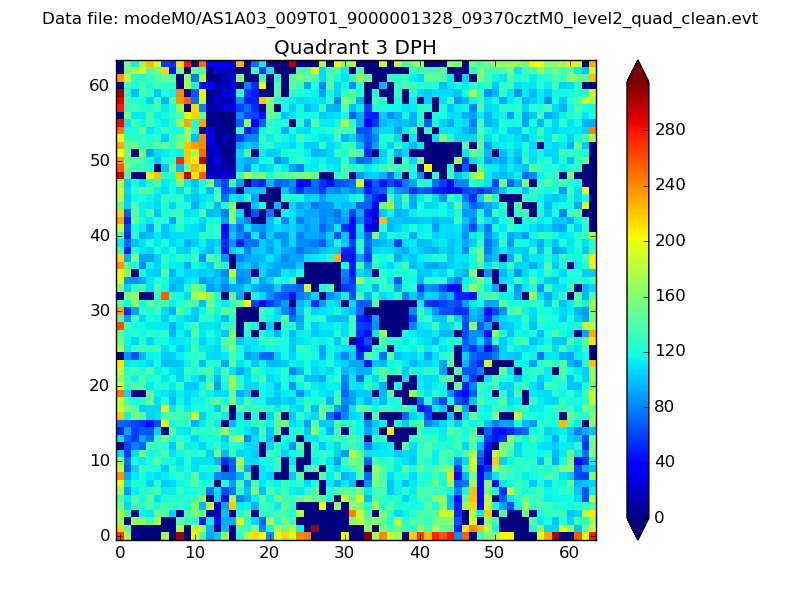

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

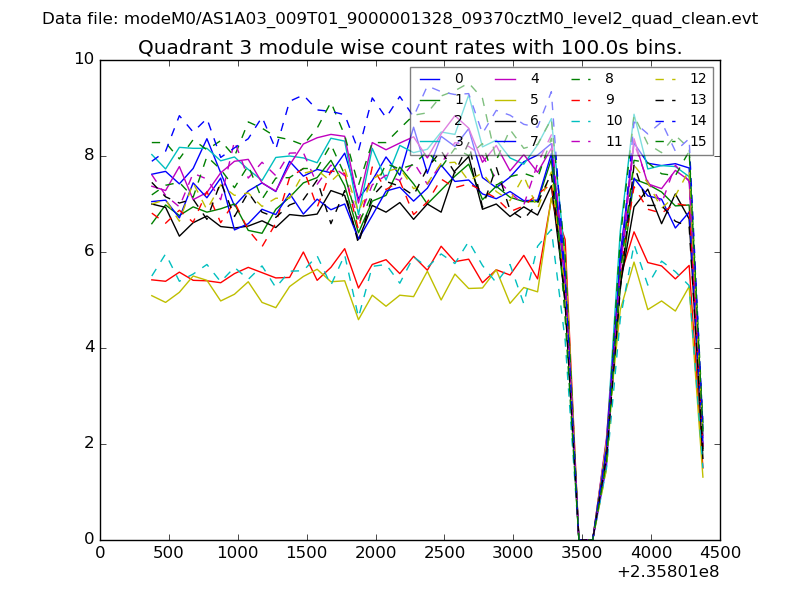

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
