| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_057T01_9000001330_09373cztM0_level2.evt | modeM0/AS1A03_057T01_9000001330_09373cztM0_level2_quad_clean.evt |
| Size (bytes) | 185,189,760 | 30,283,200 |
| Size | 176.6 MB | 28.9 MB |
| Events in quadrant A | 1,620,037 | 184,364 |
| Events in quadrant B | 1,270,017 | 188,091 |
| Events in quadrant C | 1,212,517 | 184,604 |
| Events in quadrant D | 1,334,918 | 180,791 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6449 | 5 |
| B | 0 | 5238 | 1 |
| C | 0 | 5141 | 8 |
| D | 0 | 5495 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2491 | 80 | 3.211562% |
| B | 2492 | 53 | 2.126806% |
| C | 2489 | 35 | 1.406187% |
| D | 2491 | 39 | 1.565636% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3337 | 2493 | 9 | 9 | 0.27% | 0.36% |  |
| B | 3337 | 2493 | 1 | 1 | 0.03% | 0.04% |  |
| C | 3337 | 2493 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3337 | 2493 | 2 | 2 | 0.06% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 303063 | 4660.61 | 313 | 306 | 65.0 |
| A | 13 | 251 | 82925 | 1271.83 | 313 | 306 | 65.0 |
| A | 5 | 16 | 18628 | 282.05 | 313 | 306 | 65.0 |
| B | 0 | 214 | 13875 | 219.53 | 316 | 306 | 61.8 |
| B | 4 | 173 | 12796 | 202.07 | 316 | 306 | 61.8 |
| B | 0 | 187 | 9839 | 154.23 | 316 | 306 | 61.8 |
| C | 13 | 61 | 2330 | 27.66 | 310 | 311 | 73.0 |
| C | 8 | 222 | 1184 | 11.96 | 310 | 311 | 73.0 |
| C | 14 | 234 | 969 | 9.02 | 310 | 311 | 73.0 |
| D | 1 | 52 | 44904 | 578.81 | 307 | 299 | 77.1 |
| D | 8 | 195 | 38949 | 501.54 | 307 | 299 | 77.1 |
| D | 7 | 71 | 32598 | 419.13 | 307 | 299 | 77.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

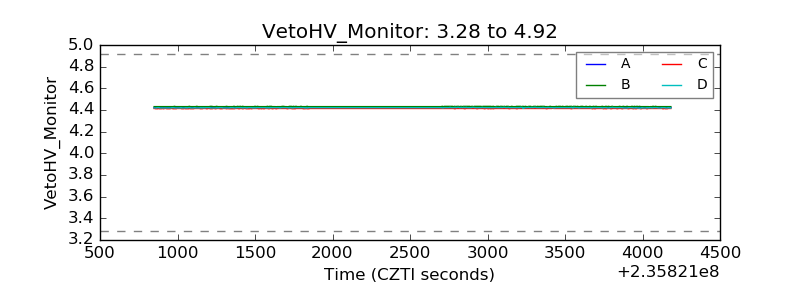

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

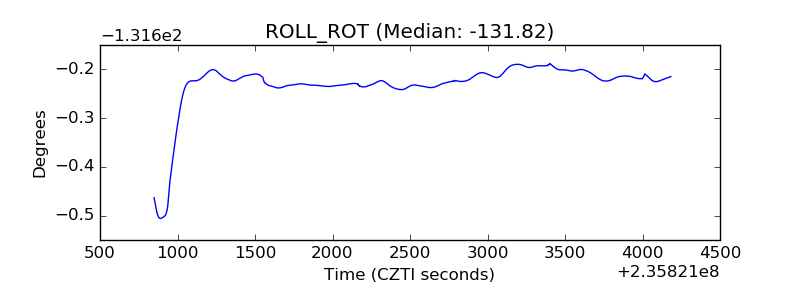

| _ROLL_ROT |  |
| _Roll_DEC |  |

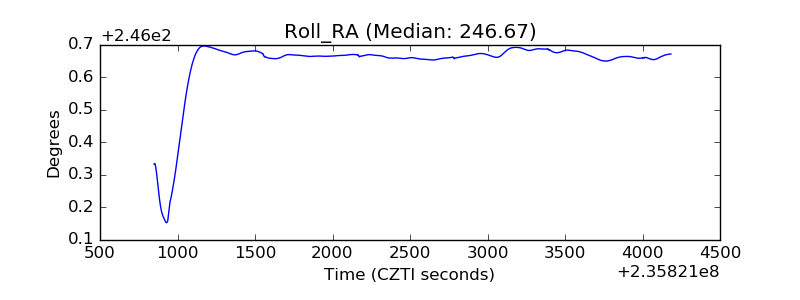

| _Roll_RA |  |
| Veto Counter |  |
