| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_057T01_9000001330_09377cztM0_level2.evt | modeM0/AS1A03_057T01_9000001330_09377cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,519,360 | 103,466,880 |
| Size | 432.5 MB | 98.7 MB |
| Events in quadrant A | 3,356,976 | 696,599 |
| Events in quadrant B | 3,000,554 | 703,404 |
| Events in quadrant C | 2,704,186 | 677,672 |
| Events in quadrant D | 4,269,134 | 640,481 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13862 | 2 |
| B | 0 | 12931 | 1 |
| C | 0 | 12188 | 1 |
| D | 0 | 16778 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5950 | 77 | 1.294118% |
| B | 5950 | 60 | 1.008403% |
| C | 5950 | 34 | 0.571429% |
| D | 5950 | 426 | 7.159664% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7160 | 5951 | 9 | 9 | 0.13% | 0.15% |  |
| B | 7160 | 5951 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7160 | 5951 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7160 | 5951 | 299 | 299 | 4.18% | 5.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 490242 | 3318.19 | 731 | 716 | 147.5 |
| A | 5 | 16 | 22218 | 145.75 | 731 | 716 | 147.5 |
| A | 1 | 162 | 14496 | 93.41 | 731 | 716 | 147.5 |
| B | 0 | 214 | 86389 | 626.18 | 728 | 713 | 136.8 |
| B | 0 | 219 | 38730 | 277.85 | 728 | 713 | 136.8 |
| B | 4 | 173 | 24964 | 177.24 | 728 | 713 | 136.8 |
| C | 13 | 61 | 5344 | 29.45 | 691 | 694 | 157.9 |
| C | 14 | 67 | 5097 | 27.88 | 691 | 694 | 157.9 |
| C | 8 | 222 | 3042 | 14.87 | 691 | 694 | 157.9 |
| D | 1 | 52 | 1071380 | 5930.9 | 677 | 662 | 180.5 |
| D | 12 | 233 | 258688 | 1429.25 | 677 | 662 | 180.5 |
| D | 8 | 195 | 167541 | 924.37 | 677 | 662 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

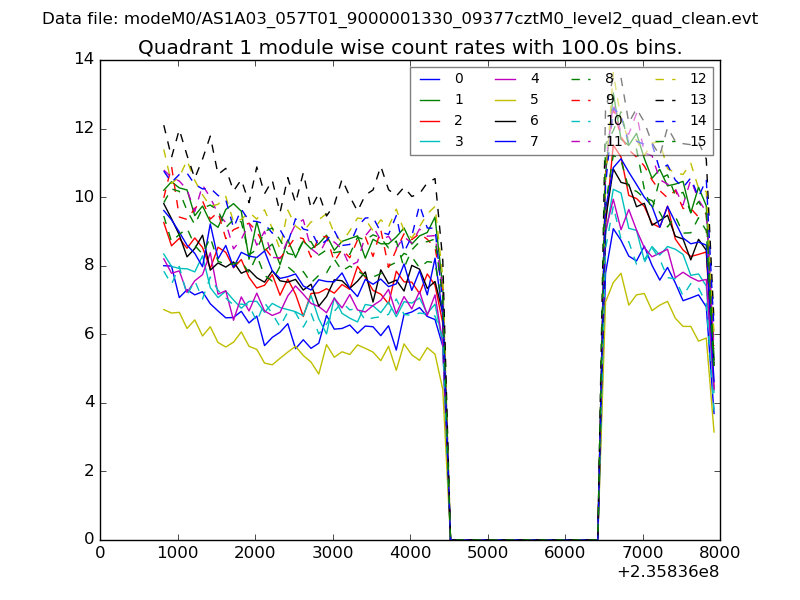

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

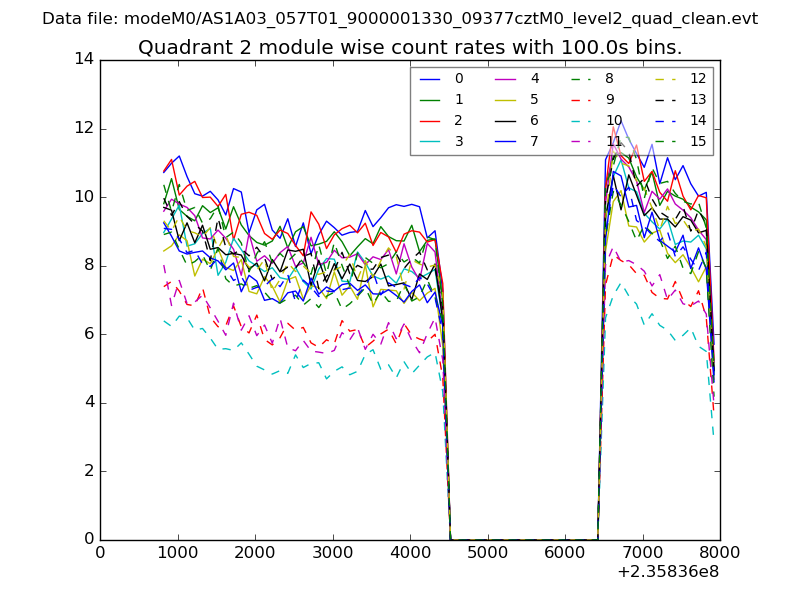

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

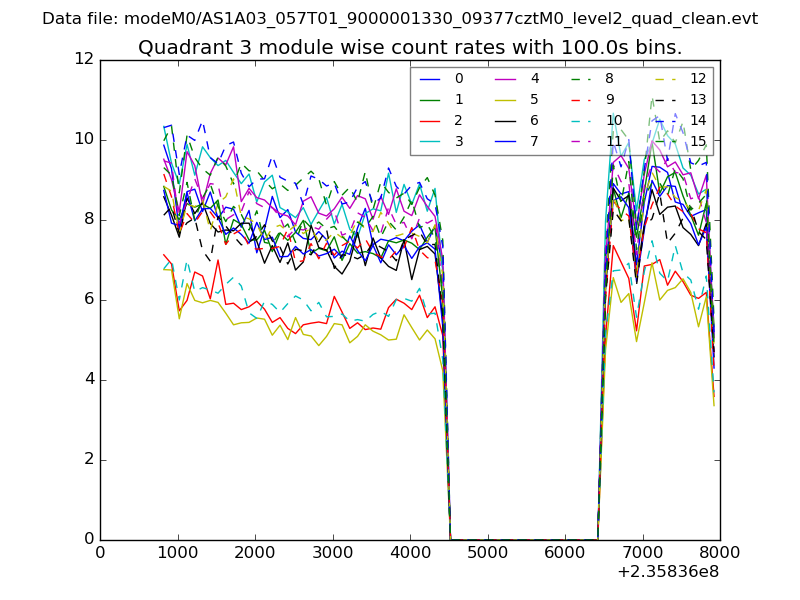

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

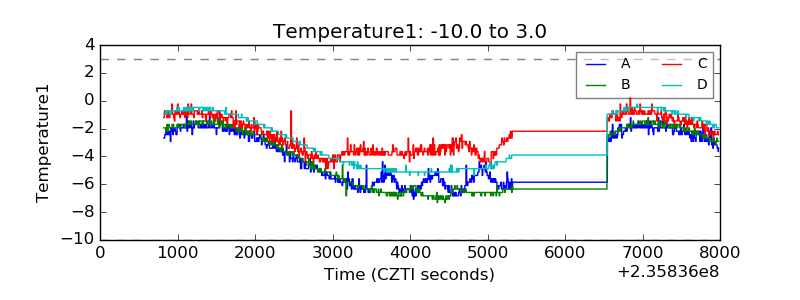

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

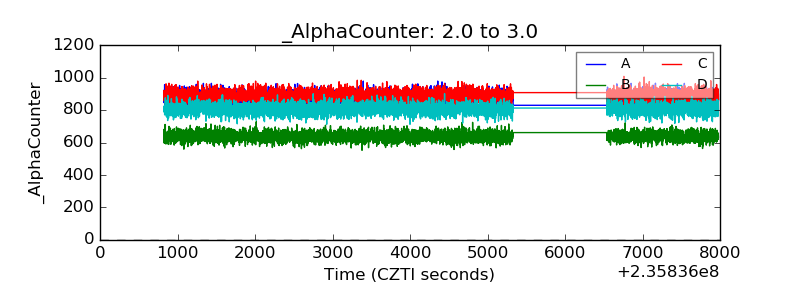

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

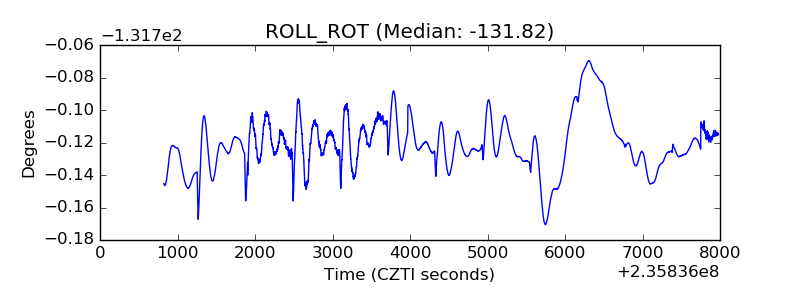

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

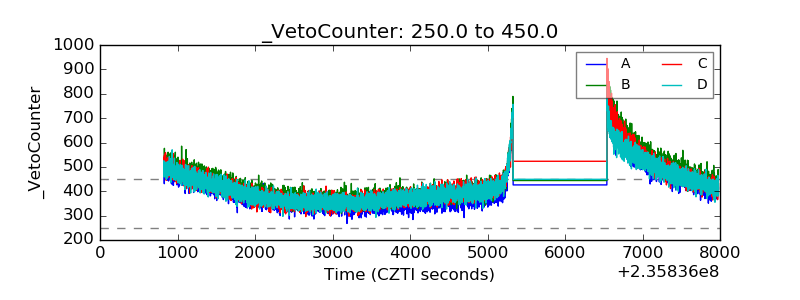

| Veto Counter |  |
