| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_057T01_9000001330_09379cztM0_level2.evt | modeM0/AS1A03_057T01_9000001330_09379cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,074,240 | 99,334,080 |
| Size | 413.0 MB | 94.7 MB |
| Events in quadrant A | 3,592,626 | 656,973 |
| Events in quadrant B | 3,163,587 | 663,227 |
| Events in quadrant C | 2,859,904 | 634,844 |
| Events in quadrant D | 3,072,779 | 615,178 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15097 | 2 |
| B | 0 | 13448 | 1 |
| C | 0 | 12868 | 1 |
| D | 0 | 13474 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6277 | 75 | 1.194838% |
| B | 6277 | 40 | 0.637247% |
| C | 6277 | 8 | 0.127449% |
| D | 6277 | 34 | 0.541660% |

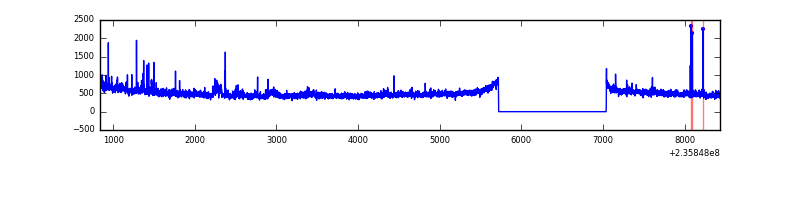

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7597 | 6278 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7597 | 6278 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7597 | 6278 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7597 | 6278 | 17 | 17 | 0.22% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 588557 | 3782.2 | 768 | 753 | 155.4 |
| A | 13 | 251 | 18041 | 111.24 | 768 | 753 | 155.4 |
| A | 5 | 16 | 12507 | 75.63 | 768 | 753 | 155.4 |
| B | 0 | 219 | 60411 | 410.56 | 774 | 758 | 145.3 |
| B | 0 | 214 | 22256 | 147.96 | 774 | 758 | 145.3 |
| B | 4 | 173 | 21325 | 141.55 | 774 | 758 | 145.3 |
| C | 10 | 22 | 6757 | 36.05 | 730 | 734 | 167.1 |
| C | 13 | 61 | 5602 | 29.13 | 730 | 734 | 167.1 |
| C | 8 | 222 | 2862 | 12.74 | 730 | 734 | 167.1 |
| D | 12 | 233 | 85298 | 442.23 | 723 | 707 | 191.3 |
| D | 1 | 52 | 66658 | 344.78 | 723 | 707 | 191.3 |
| D | 2 | 136 | 49877 | 257.05 | 723 | 707 | 191.3 |

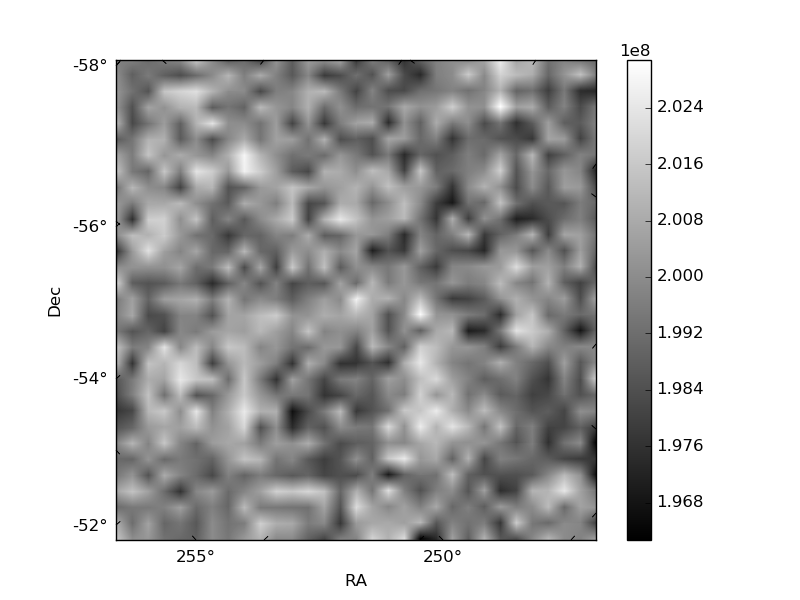

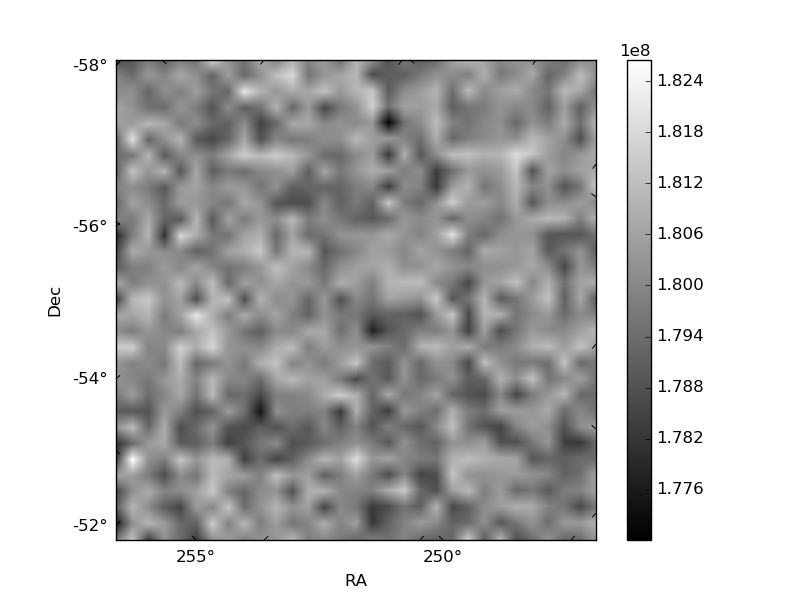

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

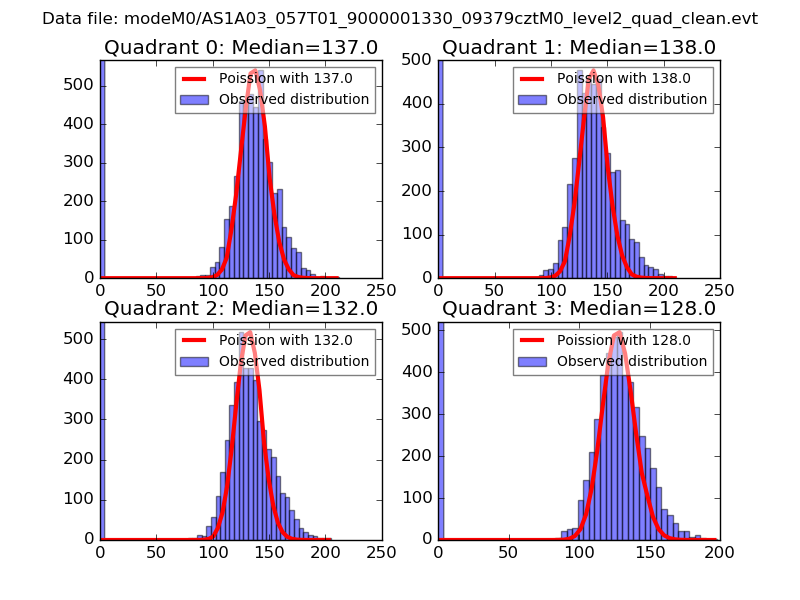

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

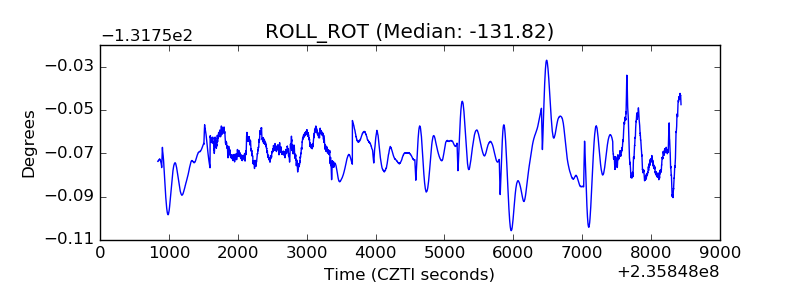

| _ROLL_ROT |  |
| _Roll_DEC |  |

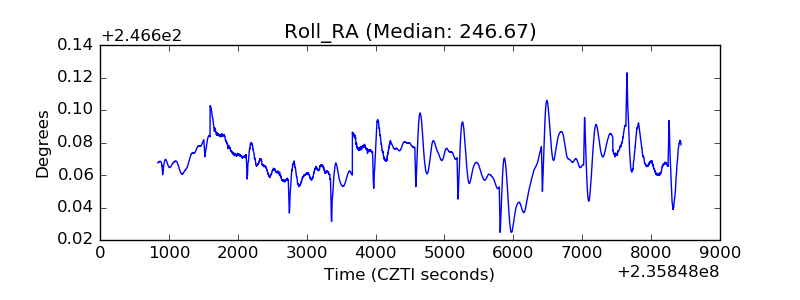

| _Roll_RA |  |

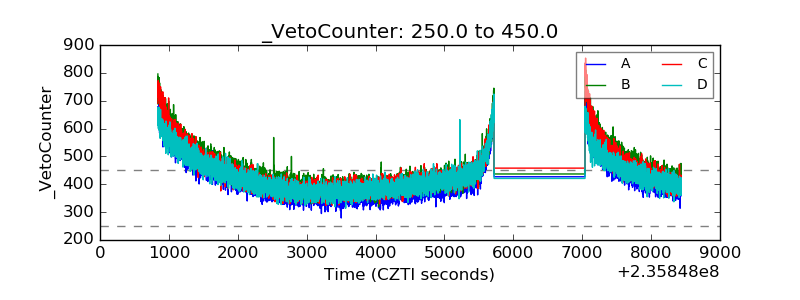

| Veto Counter |  |
