| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_069T01_9000001332_09387cztM0_level2.evt | modeM0/AS1G07_069T01_9000001332_09387cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,140,840,000 | 190,805,760 |
| Size | 1.1 GB | 182.0 MB |
| Events in quadrant A | 8,824,371 | 1,186,368 |
| Events in quadrant B | 7,310,683 | 1,210,426 |
| Events in quadrant C | 6,917,530 | 1,213,829 |
| Events in quadrant D | 10,428,569 | 1,077,456 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38882 | 2307 |
| B | 0 | 34263 | 1837 |
| C | 0 | 33949 | 1803 |
| D | 0 | 48037 | 5876 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 342 | 10 |
| B | 0 | 342 | 26 |
| C | 0 | 342 | 22 |
| D | 0 | 342 | 18 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 1 |
| C | 0 | 13 | 1 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15803 | 219 | 1.385813% |
| B | 15863 | 185 | 1.166236% |
| C | 15868 | 102 | 0.642803% |
| D | 15623 | 1257 | 8.045830% |

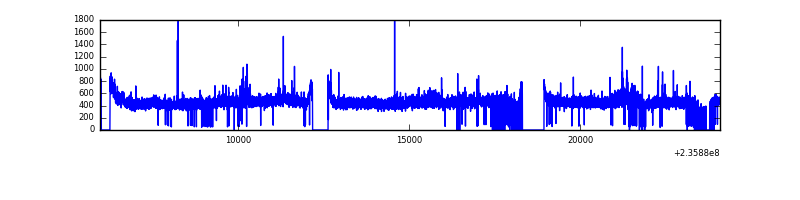

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18105 | 16247 | 14 | 14 | 0.08% | 0.09% |  |
| B | 18105 | 16244 | 0 | 0 | 0.00% | 0.00% |  |
| C | 18105 | 16270 | 0 | 0 | 0.00% | 0.00% |  |
| D | 18105 | 16074 | 1087 | 1087 | 6.00% | 6.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1460915 | 3980.37 | 1794 | 1751 | 366.6 |
| A | 1 | 162 | 165844 | 447.62 | 1794 | 1751 | 366.6 |
| A | 4 | 2 | 86396 | 230.9 | 1794 | 1751 | 366.6 |
| B | 0 | 214 | 84284 | 236.56 | 1817 | 1769 | 348.8 |
| B | 0 | 219 | 78357 | 219.57 | 1817 | 1769 | 348.8 |
| B | 0 | 187 | 56197 | 156.04 | 1817 | 1769 | 348.8 |
| C | 10 | 22 | 15901 | 34.71 | 1766 | 1772 | 407.0 |
| C | 13 | 61 | 13094 | 27.82 | 1766 | 1772 | 407.0 |
| C | 14 | 67 | 6341 | 11.23 | 1766 | 1772 | 407.0 |
| D | 1 | 52 | 3566464 | 8505.75 | 1671 | 1632 | 419.1 |
| D | 13 | 104 | 120675 | 284.04 | 1671 | 1632 | 419.1 |
| D | 12 | 233 | 86767 | 203.13 | 1671 | 1632 | 419.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

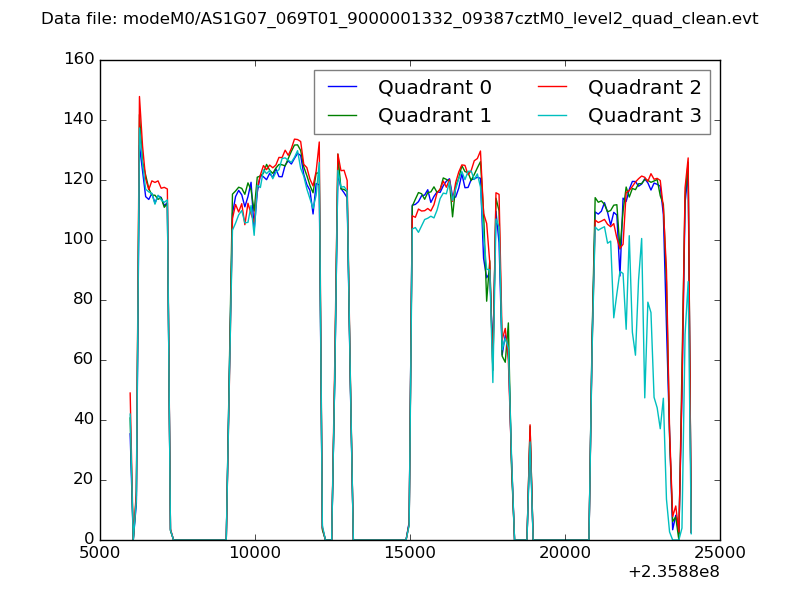

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

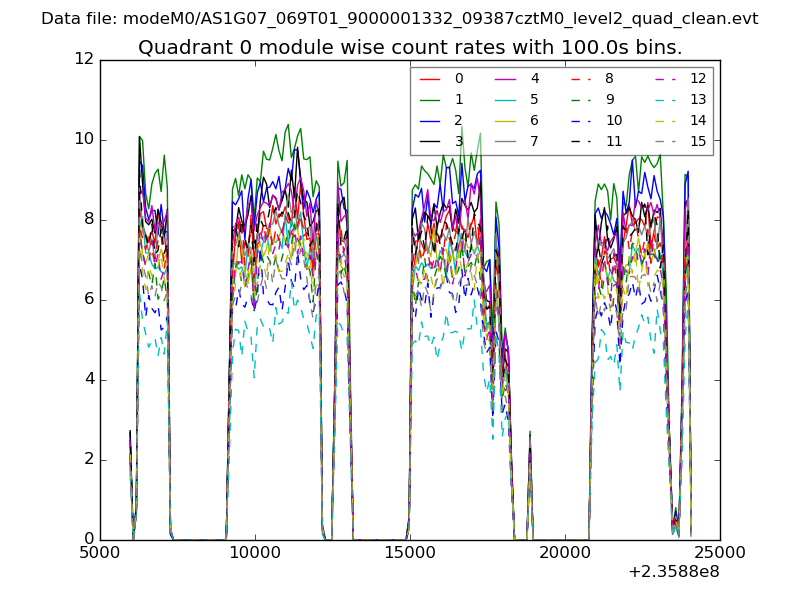

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

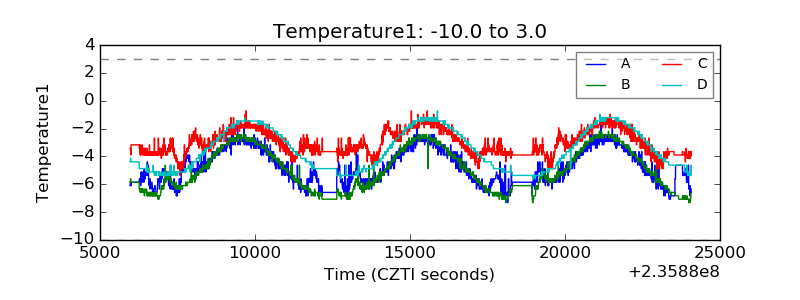

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
