| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_069T01_9000001332_09389cztM0_level2.evt | modeM0/AS1G07_069T01_9000001332_09389cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,056,000 | 87,678,720 |
| Size | 556.0 MB | 83.6 MB |
| Events in quadrant A | 4,044,796 | 564,801 |
| Events in quadrant B | 3,264,088 | 571,116 |
| Events in quadrant C | 3,033,362 | 567,121 |
| Events in quadrant D | 6,869,885 | 493,220 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16438 | 60 |
| B | 0 | 14102 | 43 |
| C | 0 | 13512 | 57 |
| D | 0 | 25167 | 327 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6589 | 97 | 1.472151% |
| B | 6589 | 80 | 1.214145% |
| C | 6582 | 59 | 0.896384% |
| D | 6556 | 1323 | 20.179988% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7659 | 6610 | 14 | 14 | 0.18% | 0.21% |  |
| B | 7659 | 6608 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7659 | 6609 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7659 | 6603 | 1164 | 1164 | 15.20% | 17.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 746073 | 4614.24 | 800 | 784 | 161.5 |
| A | 5 | 16 | 188765 | 1163.83 | 800 | 784 | 161.5 |
| A | 13 | 251 | 15831 | 93.16 | 800 | 784 | 161.5 |
| B | 0 | 187 | 63434 | 414.85 | 798 | 779 | 151.0 |
| B | 0 | 214 | 61185 | 399.96 | 798 | 779 | 151.0 |
| B | 0 | 219 | 20865 | 132.99 | 798 | 779 | 151.0 |
| C | 13 | 61 | 5746 | 27.63 | 776 | 778 | 179.8 |
| C | 14 | 234 | 2798 | 11.23 | 776 | 778 | 179.8 |
| C | 8 | 222 | 2094 | 7.32 | 776 | 778 | 179.8 |
| D | 1 | 52 | 3921108 | 22626.31 | 711 | 692 | 173.3 |
| D | 2 | 152 | 60318 | 344.13 | 711 | 692 | 173.3 |
| D | 13 | 104 | 54181 | 308.71 | 711 | 692 | 173.3 |

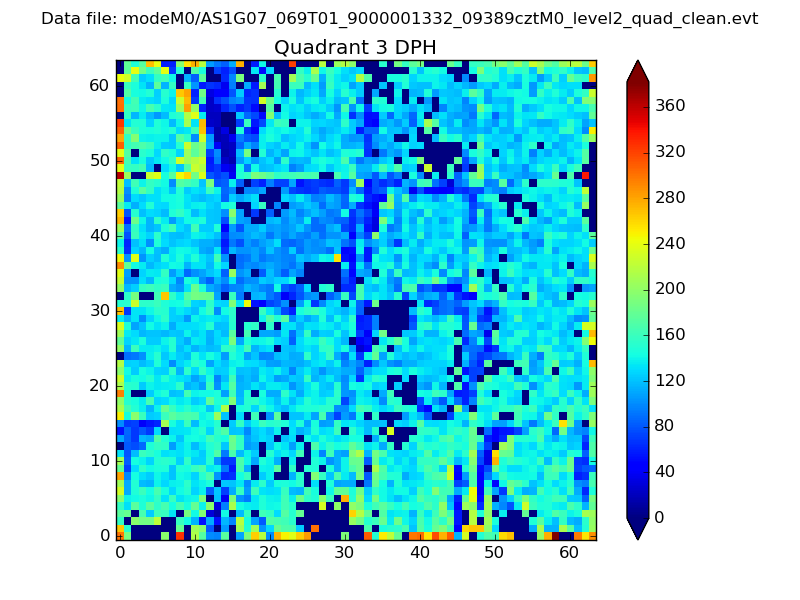

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

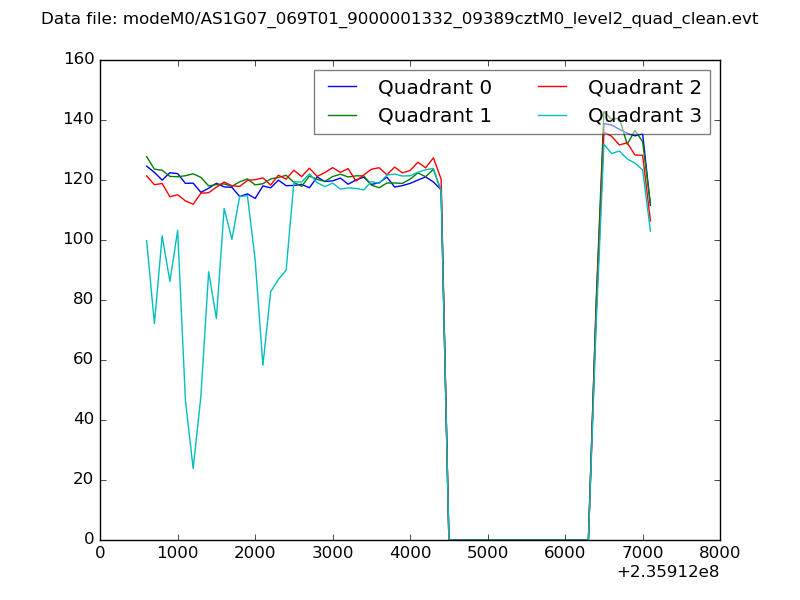

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

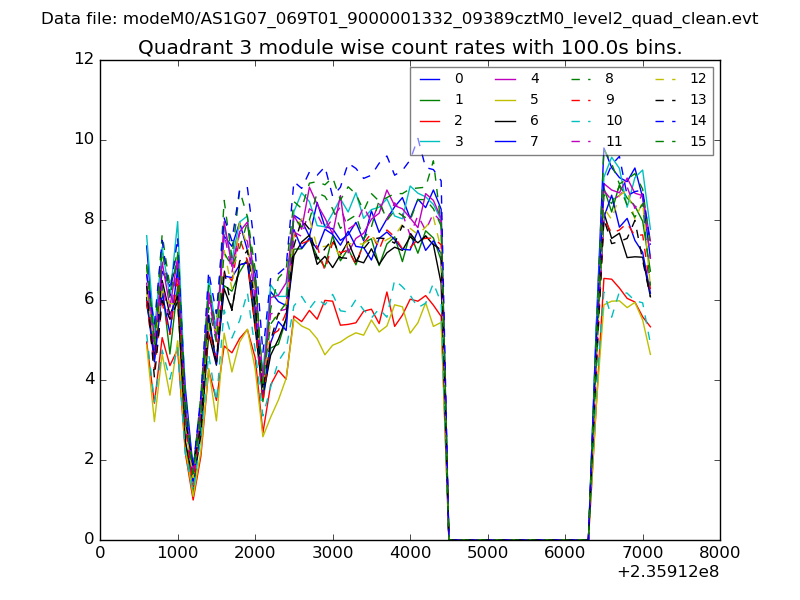

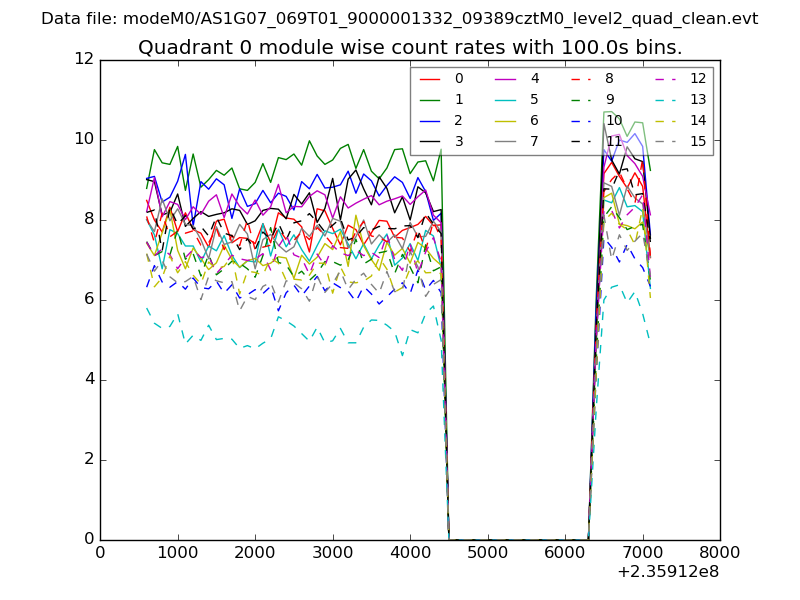

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

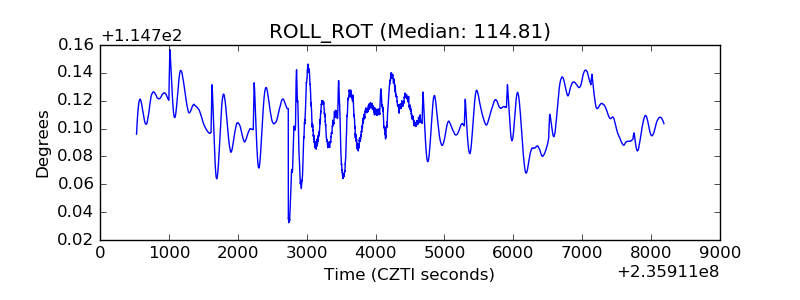

| _ROLL_ROT |  |
