| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_044T09_9000001334_09399cztM0_level2.evt | modeM0/AS1G07_044T09_9000001334_09399cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,401,920 | 96,013,440 |
| Size | 482.9 MB | 91.6 MB |
| Events in quadrant A | 4,081,007 | 588,849 |
| Events in quadrant B | 3,540,567 | 600,668 |
| Events in quadrant C | 3,471,677 | 605,224 |
| Events in quadrant D | 3,722,706 | 579,953 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16957 | 3 |
| B | 0 | 15904 | 2 |
| C | 0 | 15857 | 2 |
| D | 0 | 16773 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7661 | 266 | 3.472132% |
| B | 7661 | 275 | 3.589610% |
| C | 7661 | 146 | 1.905756% |
| D | 7661 | 235 | 3.067485% |

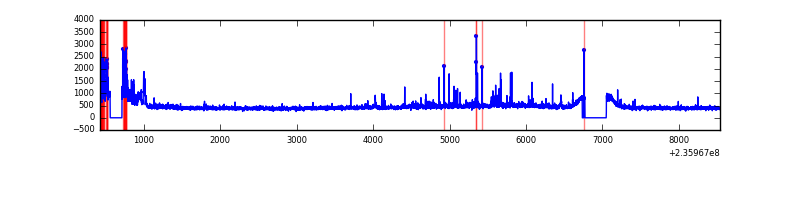

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8116 | 7664 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8116 | 7664 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8116 | 7664 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8116 | 7664 | 38 | 38 | 0.47% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 446570 | 2408.1 | 900 | 879 | 185.1 |
| A | 12 | 236 | 69495 | 370.73 | 900 | 879 | 185.1 |
| A | 13 | 251 | 69482 | 370.66 | 900 | 879 | 185.1 |
| B | 12 | 111 | 20226 | 110.24 | 904 | 879 | 175.5 |
| B | 11 | 111 | 16208 | 87.34 | 904 | 879 | 175.5 |
| B | 14 | 111 | 12100 | 63.93 | 904 | 879 | 175.5 |
| C | 13 | 61 | 6730 | 28.34 | 888 | 890 | 206.1 |
| C | 1 | 3 | 3727 | 13.77 | 888 | 890 | 206.1 |
| C | 8 | 222 | 3130 | 10.87 | 888 | 890 | 206.1 |
| D | 1 | 52 | 193043 | 917.57 | 869 | 849 | 209.5 |
| D | 7 | 71 | 90665 | 428.8 | 869 | 849 | 209.5 |
| D | 9 | 64 | 51134 | 240.07 | 869 | 849 | 209.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

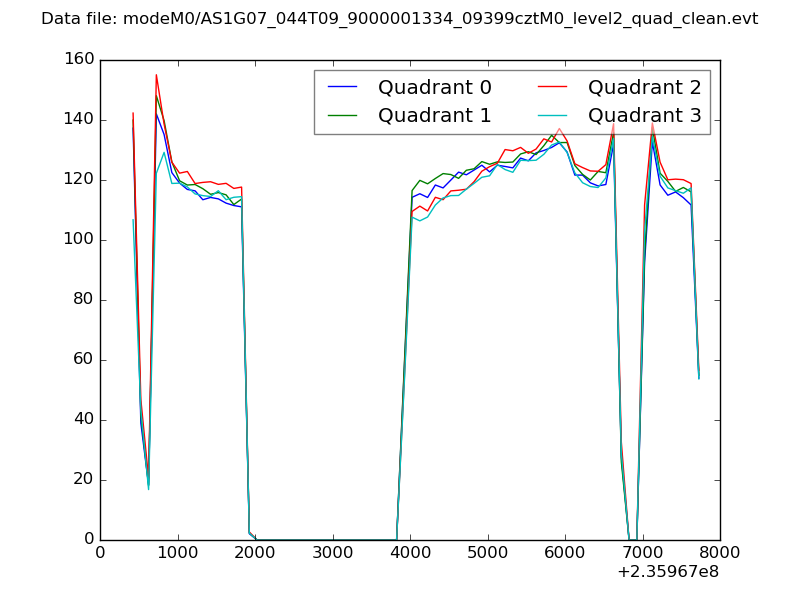

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

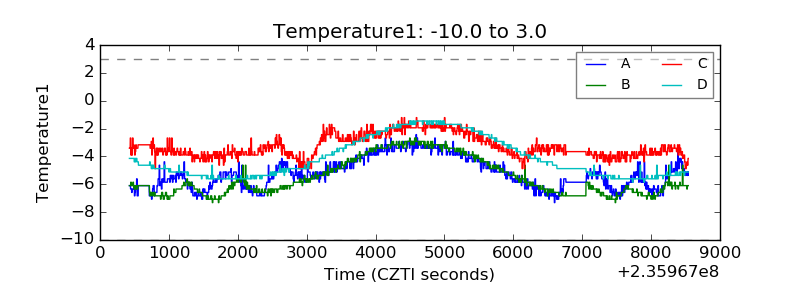

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

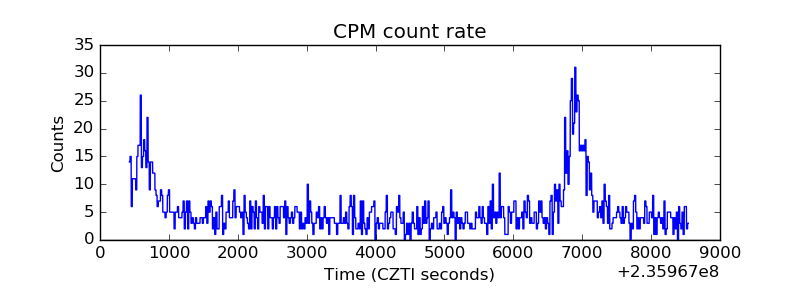

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

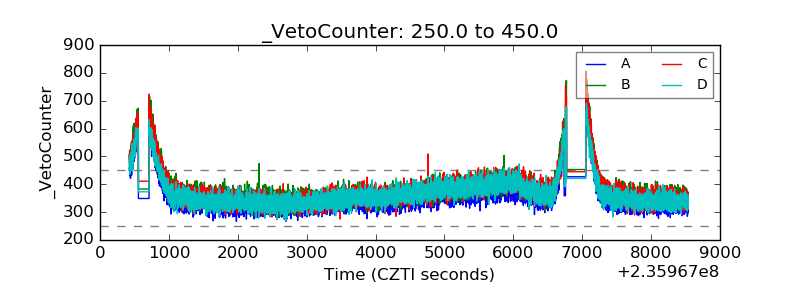

| Veto Counter |  |
