| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_044T09_9000001334_09411cztM0_level2.evt | modeM0/AS1G07_044T09_9000001334_09411cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,461,120 | 96,462,720 |
| Size | 433.4 MB | 92.0 MB |
| Events in quadrant A | 3,846,652 | 604,871 |
| Events in quadrant B | 3,205,389 | 615,134 |
| Events in quadrant C | 3,133,925 | 616,094 |
| Events in quadrant D | 3,104,386 | 600,443 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16255 | 6 |
| B | 0 | 14418 | 4 |
| C | 0 | 14327 | 2 |
| D | 0 | 14378 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6955 | 51 | 0.733285% |
| B | 6955 | 28 | 0.402588% |
| C | 6956 | 19 | 0.273145% |
| D | 6956 | 14 | 0.201265% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6957 | 13 | 13 | 0.17% | 0.19% |  |
| B | 7591 | 6957 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7591 | 6957 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7591 | 6957 | 3 | 3 | 0.04% | 0.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 560563 | 3437.28 | 797 | 777 | 162.9 |
| A | 4 | 2 | 100220 | 610.61 | 797 | 777 | 162.9 |
| A | 1 | 162 | 46663 | 281.76 | 797 | 777 | 162.9 |
| B | 0 | 214 | 36188 | 230.21 | 805 | 784 | 153.8 |
| B | 12 | 111 | 17067 | 105.88 | 805 | 784 | 153.8 |
| B | 11 | 111 | 13991 | 85.88 | 805 | 784 | 153.8 |
| C | 4 | 254 | 31882 | 169.92 | 789 | 793 | 183.0 |
| C | 14 | 234 | 15075 | 78.06 | 789 | 793 | 183.0 |
| C | 10 | 22 | 9185 | 45.87 | 789 | 793 | 183.0 |
| D | 2 | 234 | 34640 | 179.0 | 781 | 763 | 189.3 |
| D | 8 | 195 | 28087 | 144.37 | 781 | 763 | 189.3 |
| D | 12 | 227 | 23829 | 121.87 | 781 | 763 | 189.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

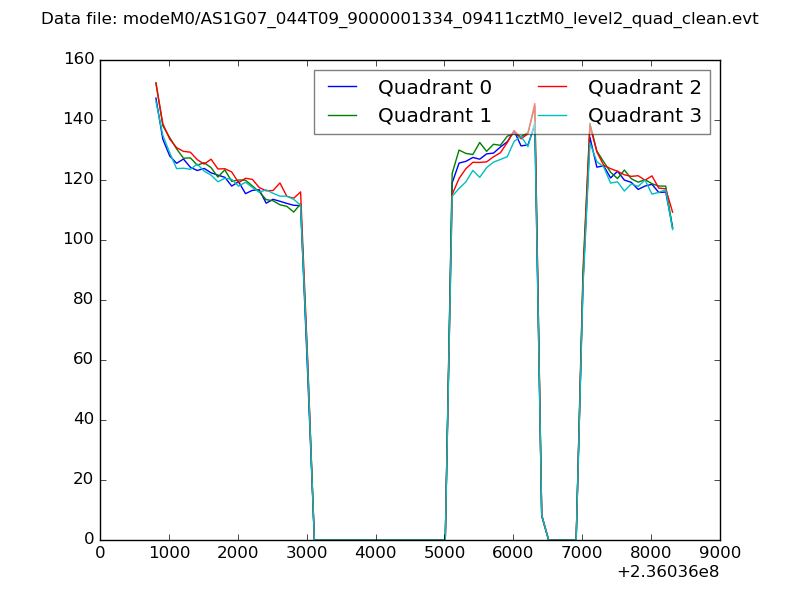

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

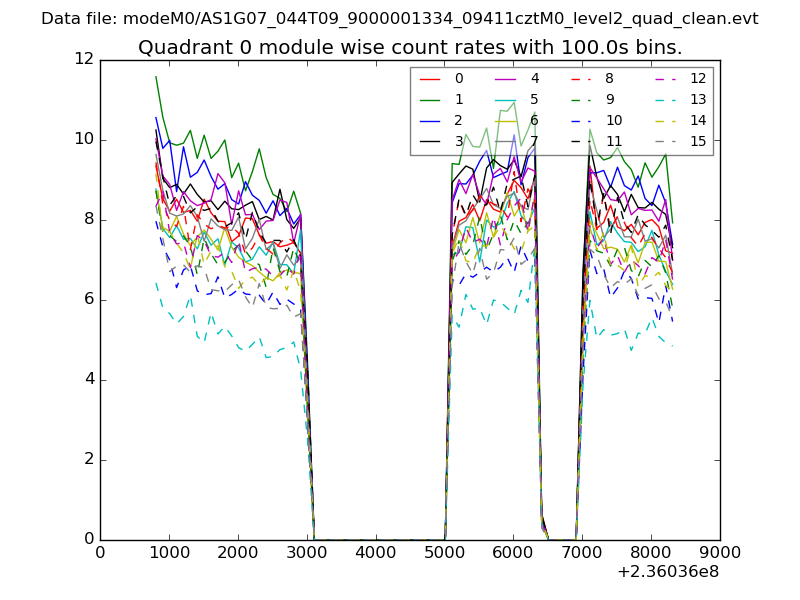

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

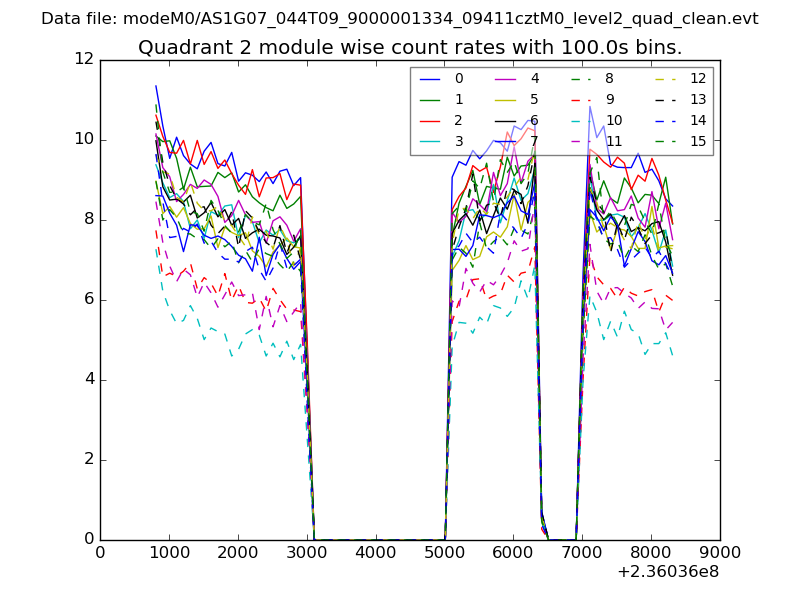

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

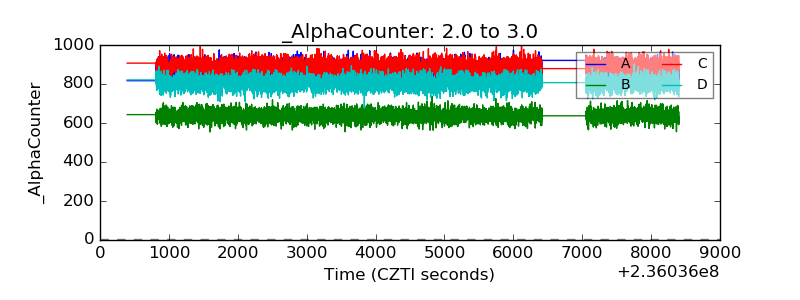

| Alpha Counter |  |

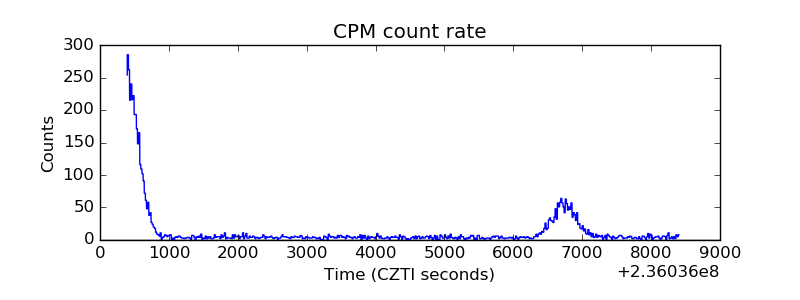

| _CPM_Rate |  |

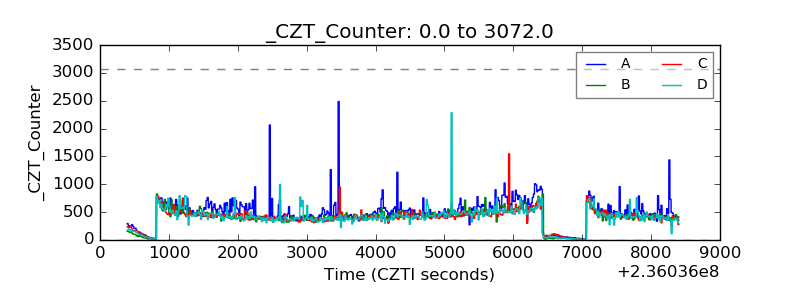

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

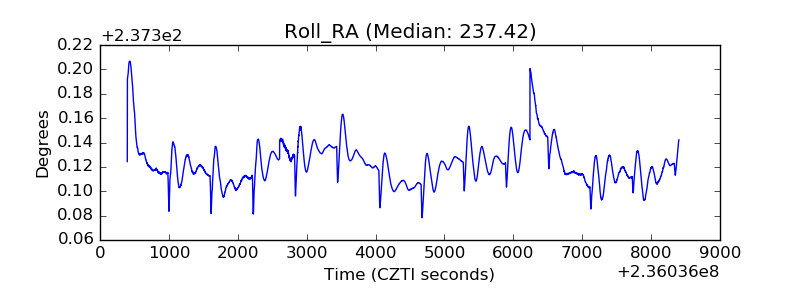

| _Roll_RA |  |

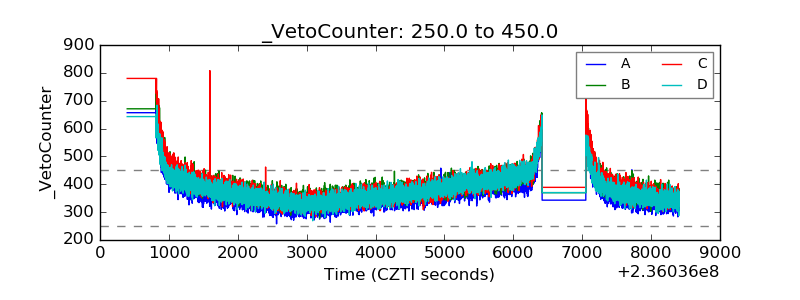

| Veto Counter |  |
