| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001340_09425cztM0_level2.evt | modeM0/AS1A02_178T01_9000001340_09425cztM0_level2_quad_clean.evt |
| Size (bytes) | 644,855,040 | 88,905,600 |
| Size | 615.0 MB | 84.8 MB |
| Events in quadrant A | 3,334,692 | 586,115 |
| Events in quadrant B | 3,298,742 | 586,093 |
| Events in quadrant C | 9,135,411 | 492,232 |
| Events in quadrant D | 3,313,583 | 567,394 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 2 |
| B | 0 | 140 | 8 |
| C | 0 | 140 | 6 |
| D | 0 | 140 | 8 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14608 | 397 |
| B | 0 | 14651 | 391 |
| C | 0 | 34404 | 2900 |
| D | 0 | 14788 | 430 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 1 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6652 | 41 | 0.616356% |
| B | 6656 | 52 | 0.781250% |
| C | 6396 | 2069 | 32.348343% |
| D | 6664 | 26 | 0.390156% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

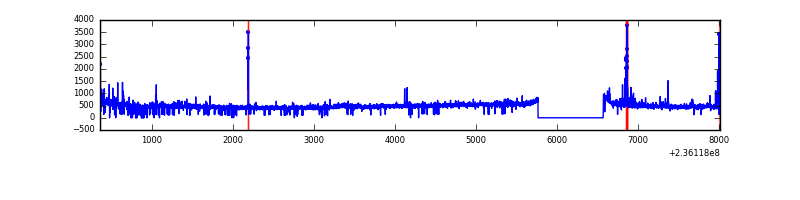

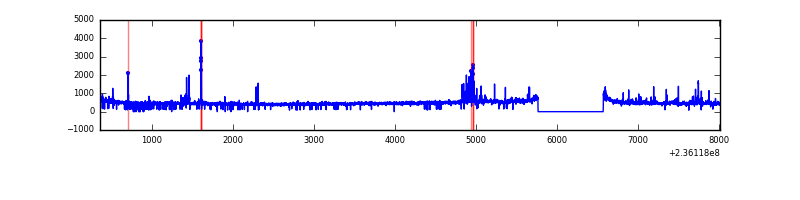

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7644 | 6812 | 14 | 14 | 0.18% | 0.21% |  |
| B | 7644 | 6816 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7644 | 6729 | 1599 | 1599 | 20.92% | 23.76% |  |
| D | 7644 | 6824 | 14 | 14 | 0.18% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 221188 | 1367.88 | 784 | 767 | 161.1 |
| A | 1 | 162 | 32093 | 194.4 | 784 | 767 | 161.1 |
| A | 4 | 2 | 26781 | 161.44 | 784 | 767 | 161.1 |
| B | 4 | 80 | 59913 | 395.36 | 785 | 767 | 149.6 |
| B | 0 | 214 | 54831 | 361.39 | 785 | 767 | 149.6 |
| B | 0 | 219 | 44466 | 292.1 | 785 | 767 | 149.6 |
| C | 4 | 254 | 6600302 | 45180.93 | 630 | 633 | 146.1 |
| C | 9 | 68 | 67233 | 455.94 | 630 | 633 | 146.1 |
| C | 13 | 61 | 4808 | 28.58 | 630 | 633 | 146.1 |
| D | 8 | 195 | 271043 | 1404.48 | 753 | 732 | 192.5 |
| D | 7 | 71 | 97760 | 504.14 | 753 | 732 | 192.5 |
| D | 2 | 234 | 30027 | 152.21 | 753 | 732 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

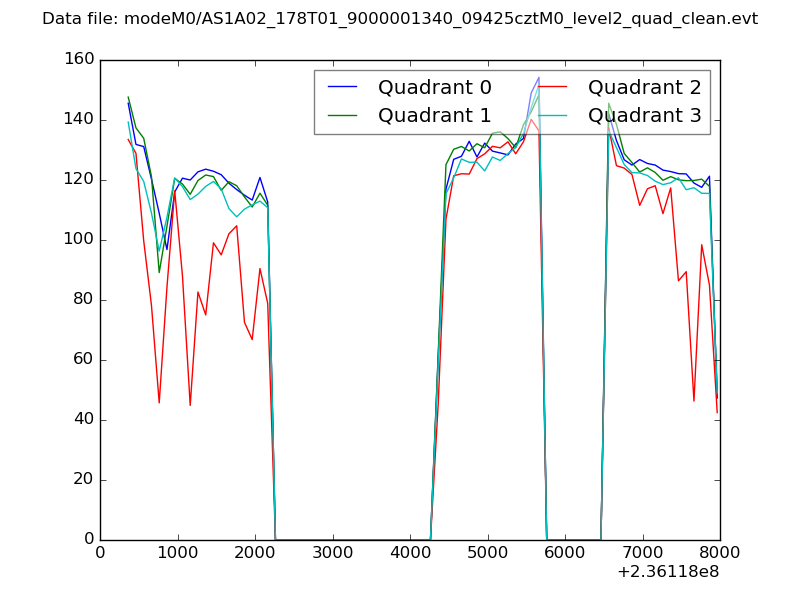

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

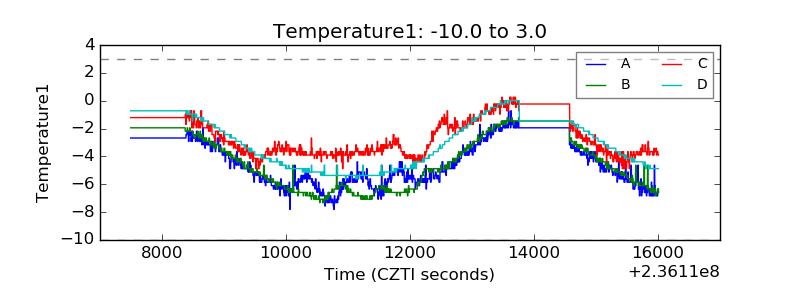

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

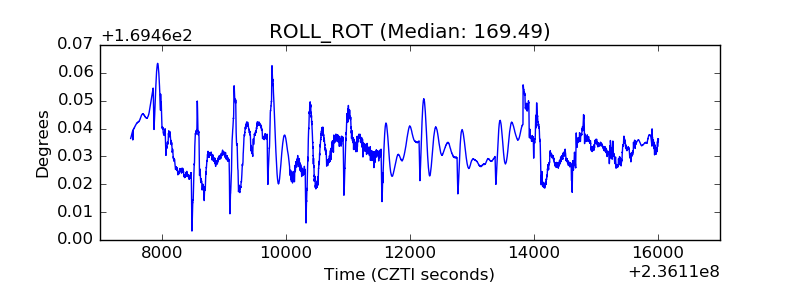

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

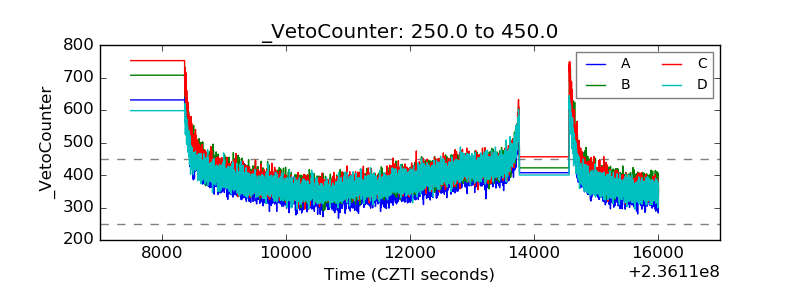

| Veto Counter |  |
