| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001340_09428cztM0_level2.evt | modeM0/AS1A02_178T01_9000001340_09428cztM0_level2_quad_clean.evt |
| Size (bytes) | 333,040,320 | 53,496,000 |
| Size | 317.6 MB | 51.0 MB |
| Events in quadrant A | 2,481,053 | 319,061 |
| Events in quadrant B | 2,382,786 | 315,308 |
| Events in quadrant C | 2,285,671 | 321,385 |
| Events in quadrant D | 2,588,495 | 307,155 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 149 | 49 |
| B | 0 | 149 | 43 |
| C | 0 | 149 | 45 |
| D | 0 | 149 | 42 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15677 | 4942 |
| B | 0 | 15321 | 4779 |
| C | 0 | 15152 | 4607 |
| D | 0 | 16739 | 5613 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 1 |
| D | 0 | 4 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5074 | 49 | 0.965708% |
| B | 5074 | 51 | 1.005124% |
| C | 5120 | 31 | 0.605469% |
| D | 5035 | 52 | 1.032771% |

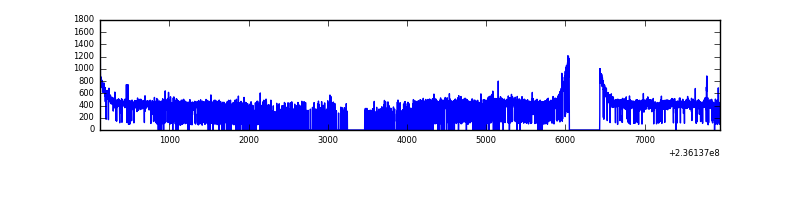

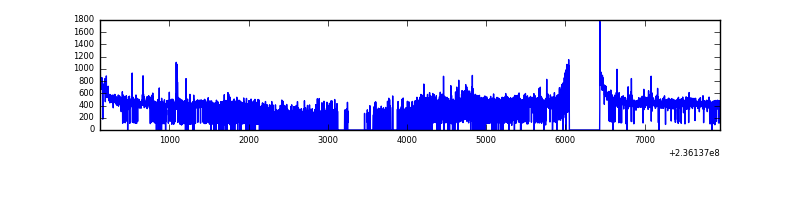

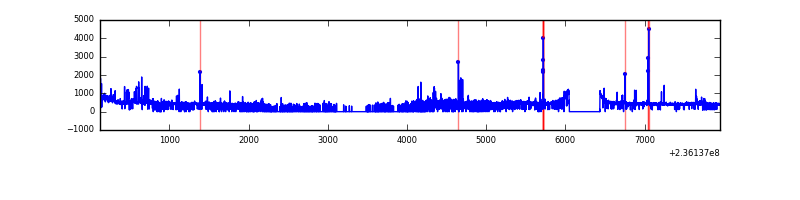

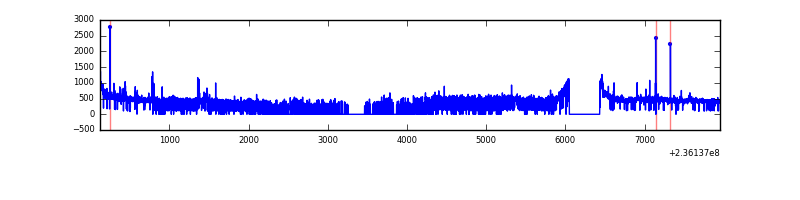

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7827 | 5933 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7827 | 5944 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7827 | 5949 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7828 | 5839 | 11 | 11 | 0.14% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 169102 | 1377.51 | 592 | 580 | 122.3 |
| A | 14 | 111 | 9852 | 75.79 | 592 | 580 | 122.3 |
| A | 1 | 162 | 9555 | 73.36 | 592 | 580 | 122.3 |
| B | 0 | 214 | 27298 | 228.7 | 595 | 580 | 116.8 |
| B | 4 | 173 | 14466 | 118.86 | 595 | 580 | 116.8 |
| B | 12 | 111 | 12689 | 103.65 | 595 | 580 | 116.8 |
| C | 9 | 68 | 24551 | 176.17 | 577 | 579 | 136.1 |
| C | 13 | 61 | 4339 | 27.63 | 577 | 579 | 136.1 |
| C | 14 | 234 | 3661 | 22.65 | 577 | 579 | 136.1 |
| D | 8 | 195 | 241594 | 1625.66 | 562 | 549 | 148.3 |
| D | 1 | 52 | 102843 | 689.89 | 562 | 549 | 148.3 |
| D | 2 | 14 | 28481 | 188.38 | 562 | 549 | 148.3 |

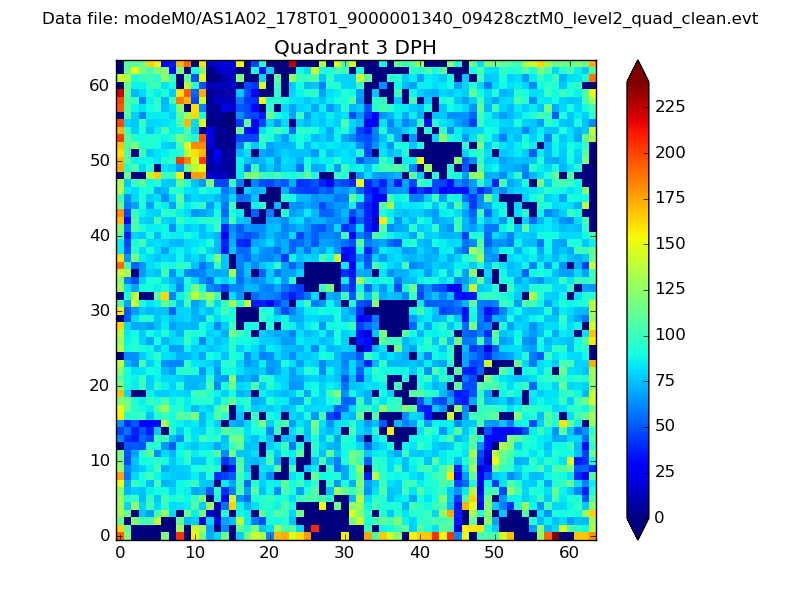

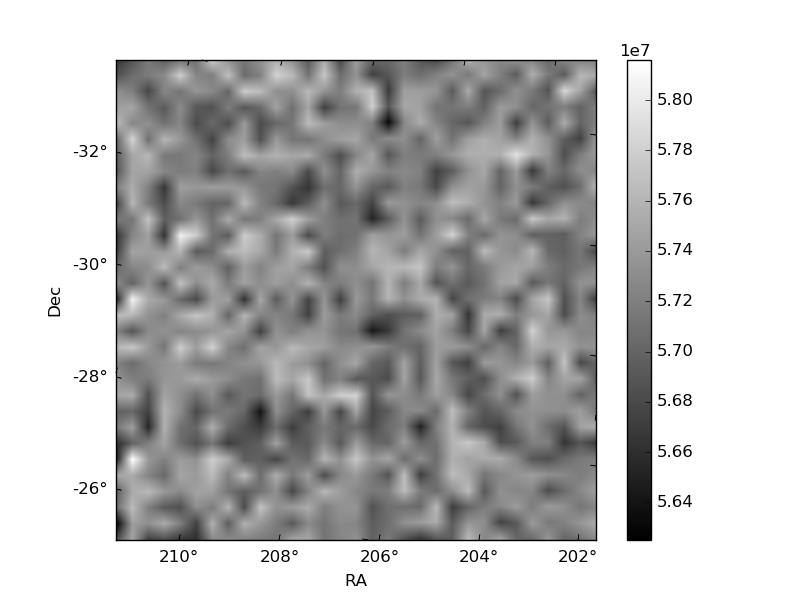

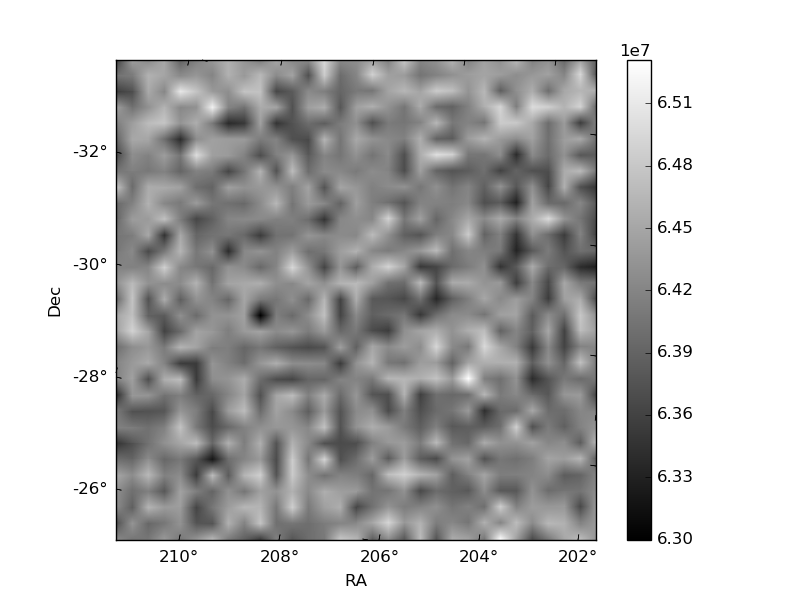

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

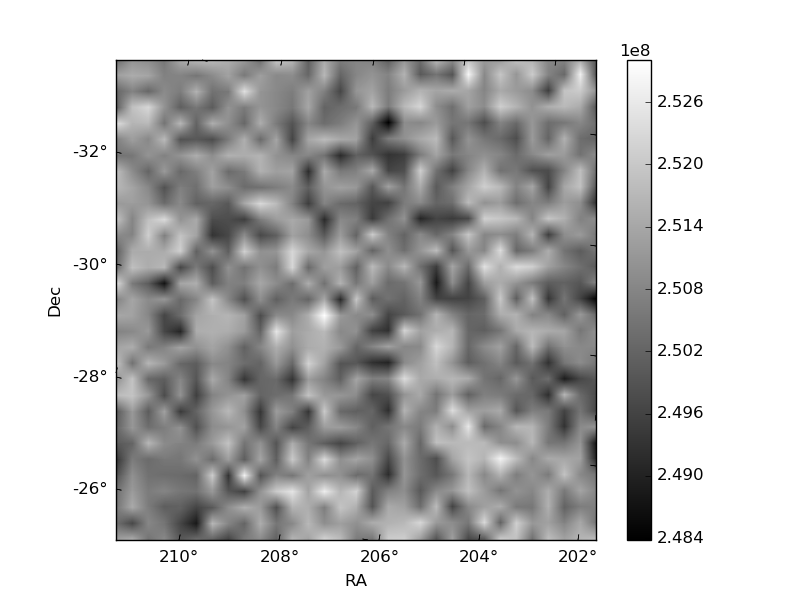

| Plot type | Count rate plots | Images |
|---|---|---|

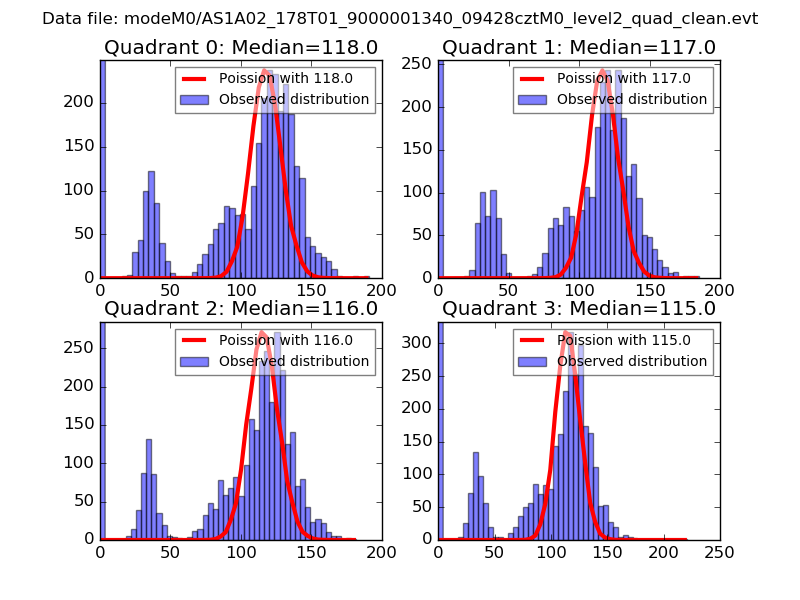

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

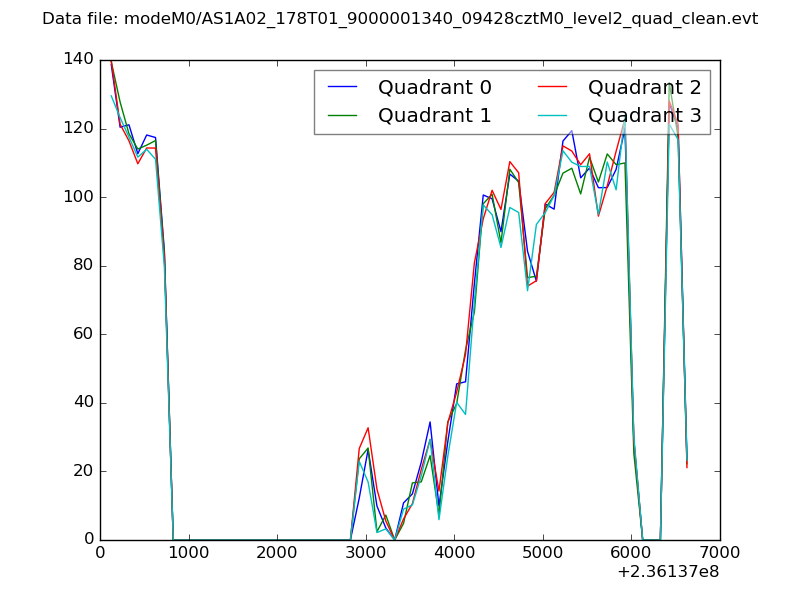

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

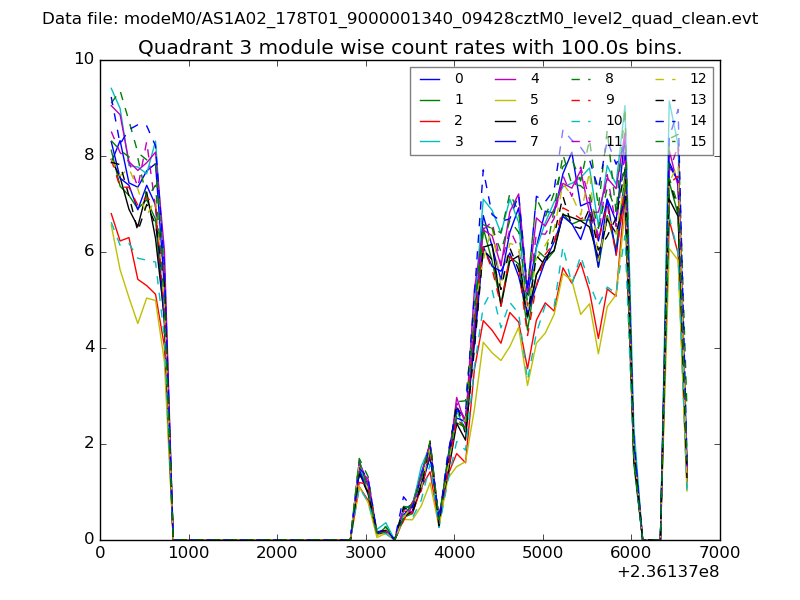

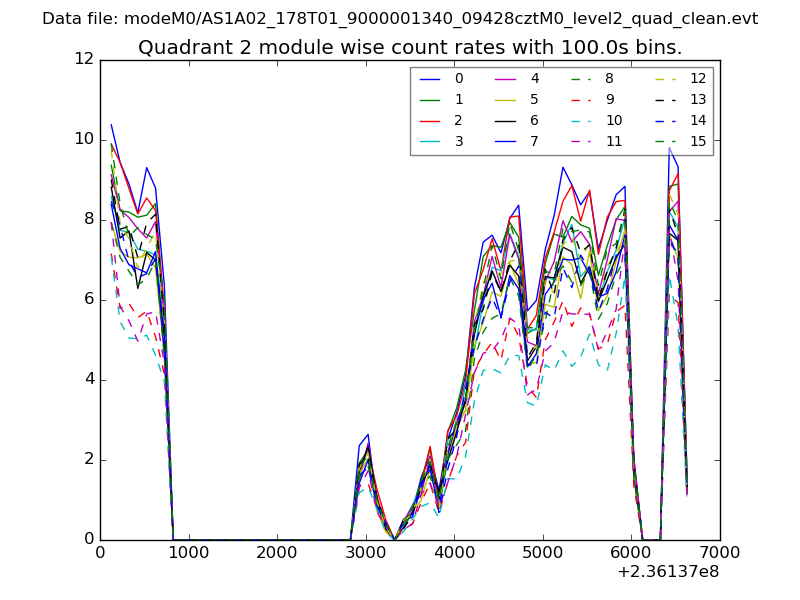

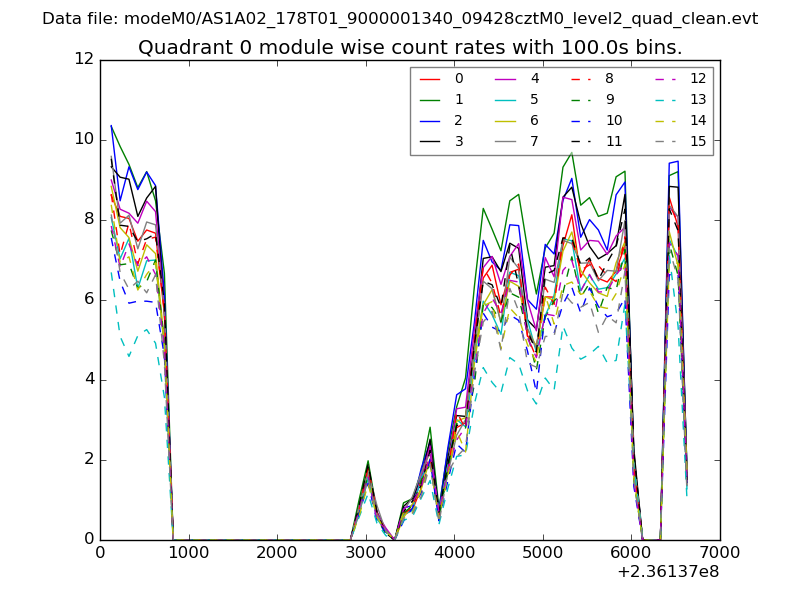

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

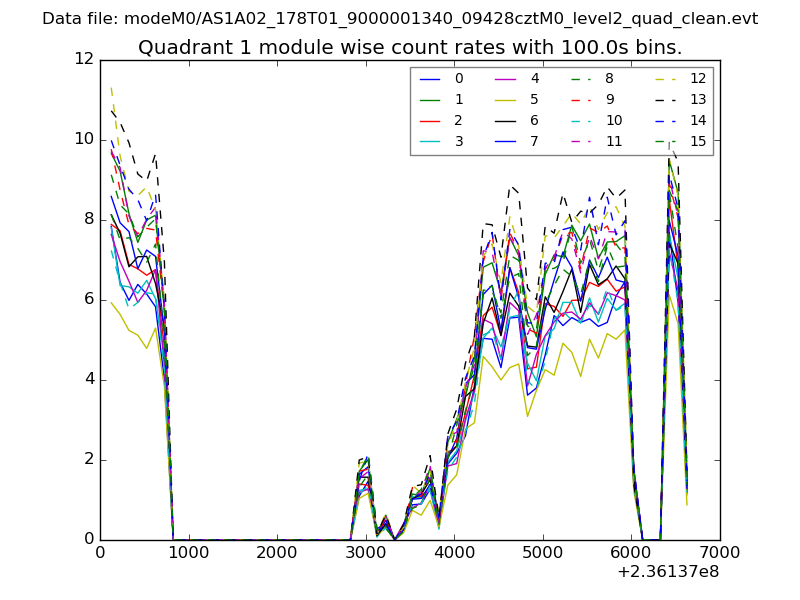

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

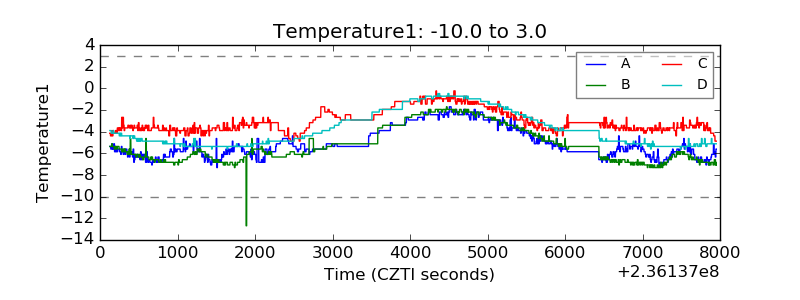

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

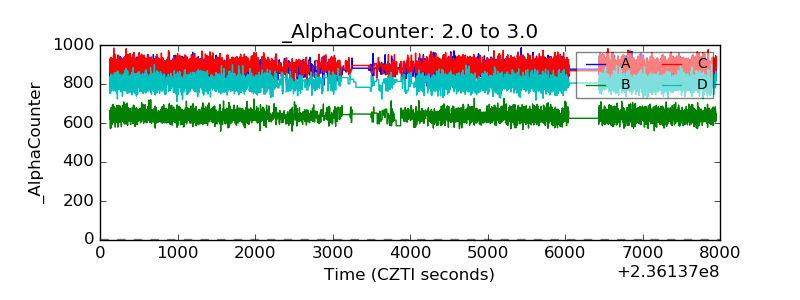

| Alpha Counter |  |

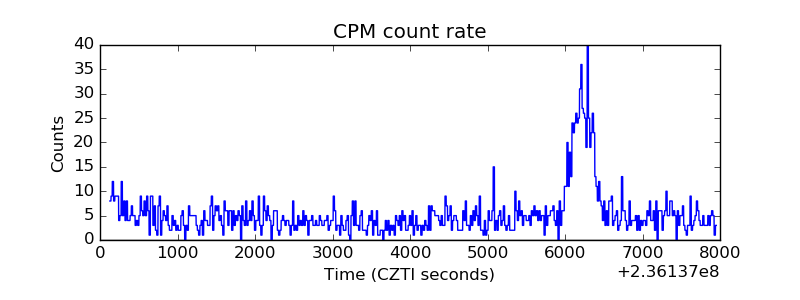

| _CPM_Rate |  |

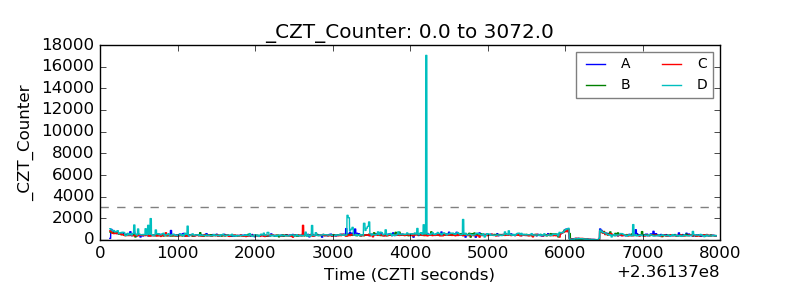

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

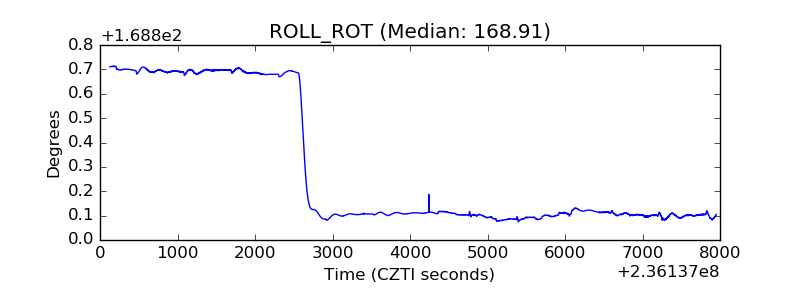

| _ROLL_ROT |  |

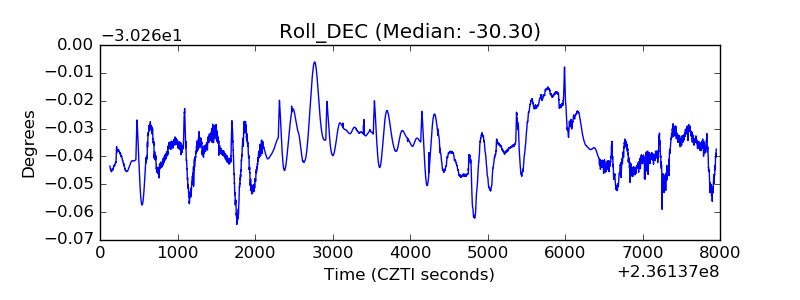

| _Roll_DEC |  |

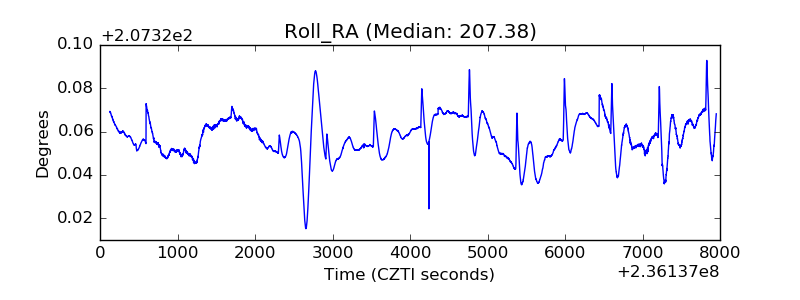

| _Roll_RA |  |
| Veto Counter |  |
