| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001340_09431cztM0_level2.evt | modeM0/AS1A02_178T01_9000001340_09431cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,006,720 | 88,416,000 |
| Size | 406.3 MB | 84.3 MB |
| Events in quadrant A | 3,301,274 | 558,693 |
| Events in quadrant B | 3,038,438 | 562,451 |
| Events in quadrant C | 2,927,883 | 557,218 |
| Events in quadrant D | 3,190,333 | 545,138 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 219 | 75 |
| B | 0 | 214 | 87 |
| C | 0 | 219 | 91 |
| D | 0 | 217 | 89 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22711 | 8991 |
| B | 0 | 21779 | 8568 |
| C | 0 | 21776 | 8537 |
| D | 0 | 22636 | 9164 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 2 |
| C | 0 | 16 | 3 |
| D | 0 | 16 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6475 | 53 | 0.818533% |
| B | 6492 | 51 | 0.785582% |
| C | 6523 | 36 | 0.551893% |
| D | 6470 | 36 | 0.556414% |

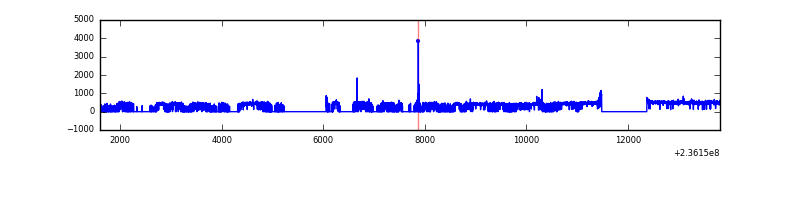

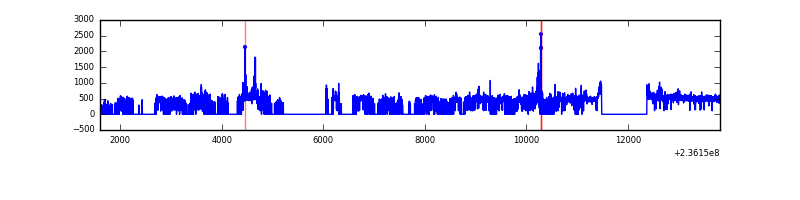

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12173 | 7466 | 4 | 4 | 0.03% | 0.05% |  |
| B | 12189 | 7518 | 0 | 0 | 0.00% | 0.00% |  |
| C | 12205 | 7582 | 1 | 1 | 0.01% | 0.01% |  |
| D | 12201 | 7539 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 293602 | 1869.09 | 764 | 745 | 156.7 |
| A | 4 | 2 | 23176 | 143.16 | 764 | 745 | 156.7 |
| A | 1 | 162 | 21037 | 129.51 | 764 | 745 | 156.7 |
| B | 0 | 219 | 25880 | 170.24 | 765 | 745 | 147.6 |
| B | 12 | 111 | 16342 | 105.64 | 765 | 745 | 147.6 |
| B | 11 | 111 | 13329 | 85.23 | 765 | 745 | 147.6 |
| C | 9 | 68 | 16457 | 91.52 | 741 | 745 | 171.7 |
| C | 14 | 234 | 15989 | 88.8 | 741 | 745 | 171.7 |
| C | 13 | 61 | 5735 | 29.07 | 741 | 745 | 171.7 |
| D | 8 | 195 | 210165 | 1165.88 | 736 | 719 | 179.6 |
| D | 1 | 52 | 93982 | 519.15 | 736 | 719 | 179.6 |
| D | 7 | 71 | 35659 | 194.49 | 736 | 719 | 179.6 |

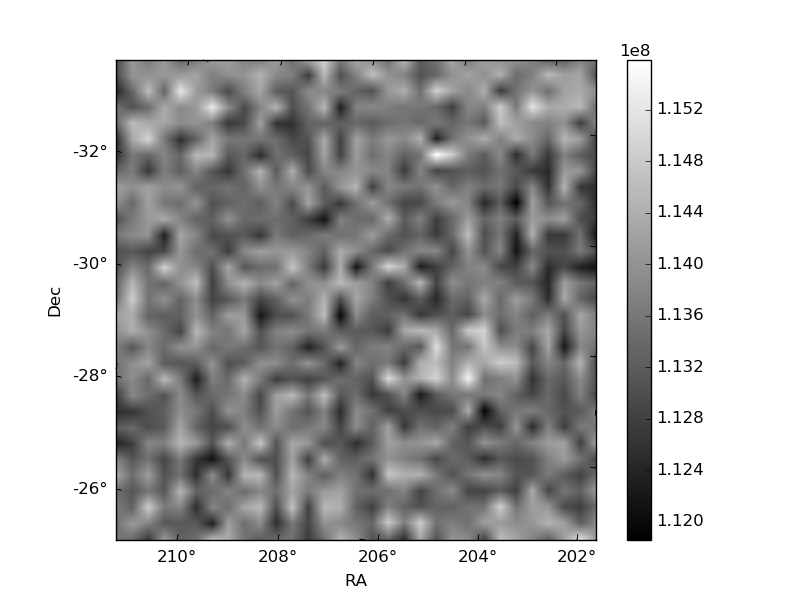

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

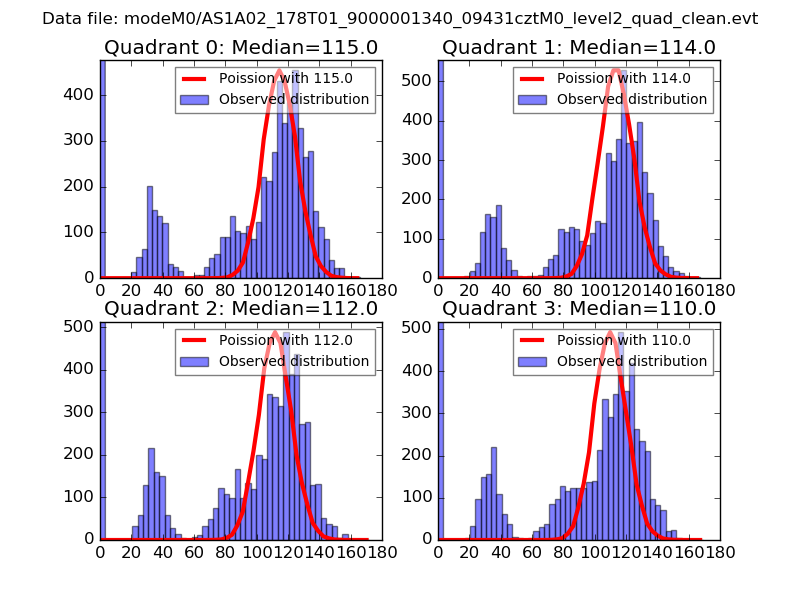

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

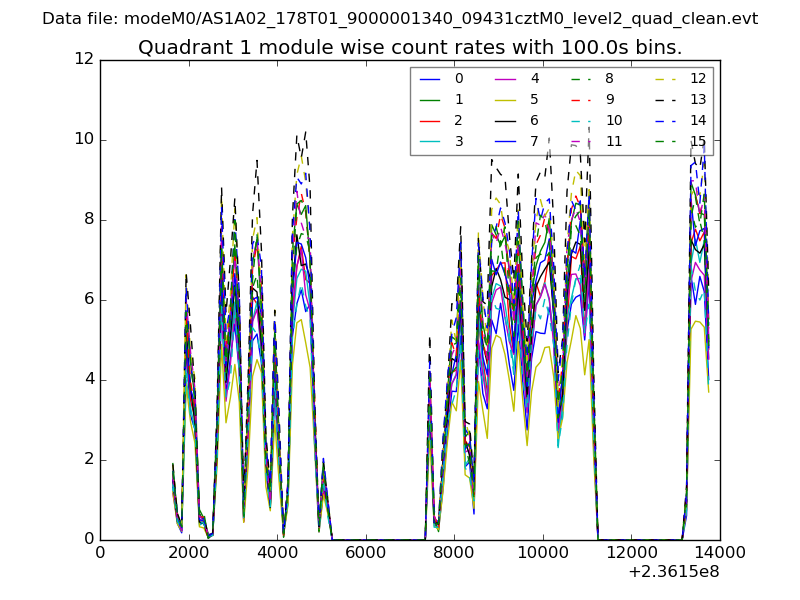

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

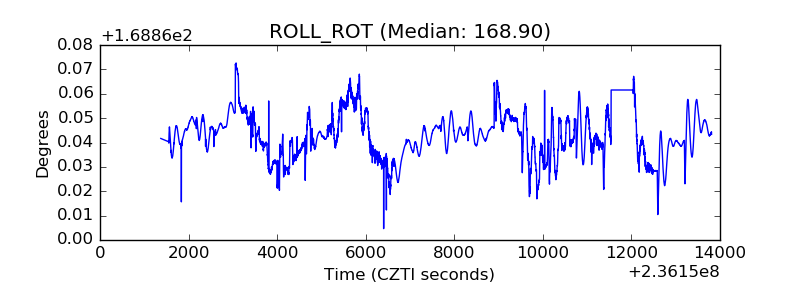

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
