| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001340_09440cztM0_level2.evt | modeM0/AS1A02_178T01_9000001340_09440cztM0_level2_quad_clean.evt |
| Size (bytes) | 410,423,040 | 84,761,280 |
| Size | 391.4 MB | 80.8 MB |
| Events in quadrant A | 3,108,211 | 539,240 |
| Events in quadrant B | 2,984,575 | 529,110 |
| Events in quadrant C | 2,982,922 | 533,625 |
| Events in quadrant D | 2,922,519 | 523,209 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 8 |
| B | 0 | 150 | 18 |
| C | 0 | 150 | 18 |
| D | 0 | 149 | 13 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15626 | 2246 |
| B | 0 | 15430 | 2345 |
| C | 0 | 15459 | 1999 |
| D | 0 | 15610 | 2240 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 4 |
| B | 0 | 16 | 0 |
| C | 0 | 15 | 1 |
| D | 0 | 16 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6297 | 38 | 0.603462% |
| B | 6236 | 44 | 0.705581% |
| C | 6355 | 62 | 0.975610% |
| D | 6282 | 42 | 0.668577% |

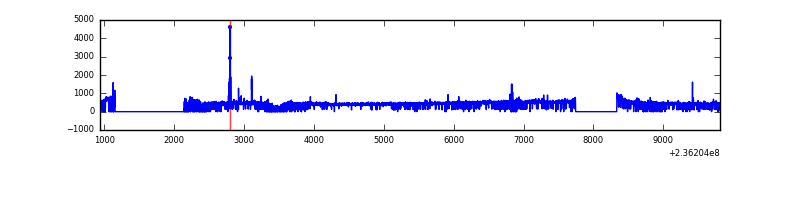

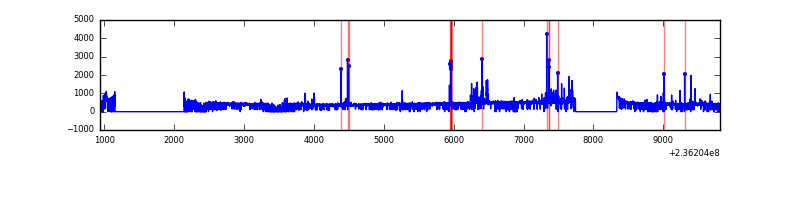

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8874 | 6919 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8872 | 6888 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8873 | 6976 | 38 | 38 | 0.43% | 0.54% |  |
| D | 8874 | 6937 | 19 | 19 | 0.21% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 149081 | 979.45 | 741 | 726 | 151.5 |
| A | 1 | 162 | 43228 | 280.6 | 741 | 726 | 151.5 |
| A | 15 | 174 | 15845 | 99.82 | 741 | 726 | 151.5 |
| B | 0 | 229 | 30177 | 208.77 | 731 | 713 | 141.1 |
| B | 0 | 246 | 22543 | 154.68 | 731 | 713 | 141.1 |
| B | 0 | 214 | 20509 | 140.27 | 731 | 713 | 141.1 |
| C | 14 | 234 | 168927 | 1004.84 | 713 | 717 | 167.4 |
| C | 9 | 68 | 31973 | 186.72 | 713 | 717 | 167.4 |
| C | 13 | 61 | 5415 | 28.06 | 713 | 717 | 167.4 |
| D | 12 | 233 | 100994 | 545.44 | 707 | 689 | 183.9 |
| D | 7 | 71 | 45837 | 245.51 | 707 | 689 | 183.9 |
| D | 2 | 14 | 34064 | 181.49 | 707 | 689 | 183.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

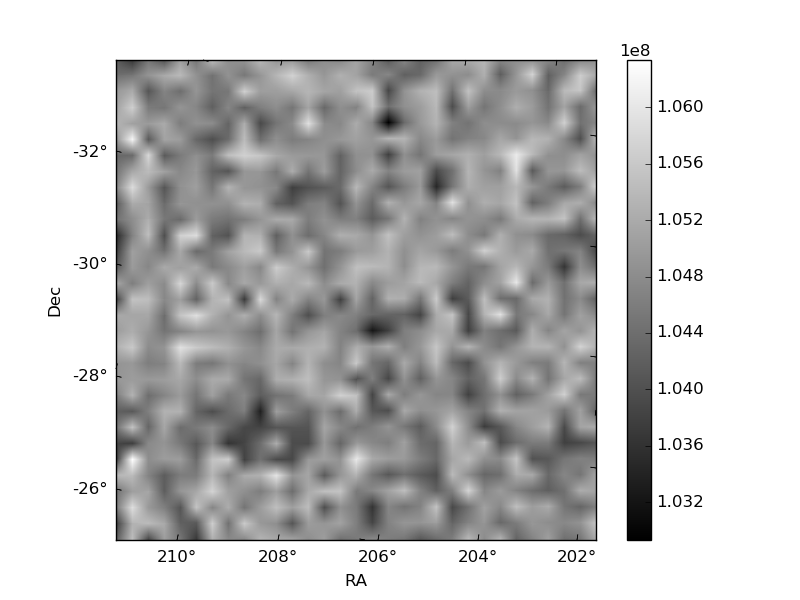

| Plot type | Count rate plots | Images |
|---|---|---|

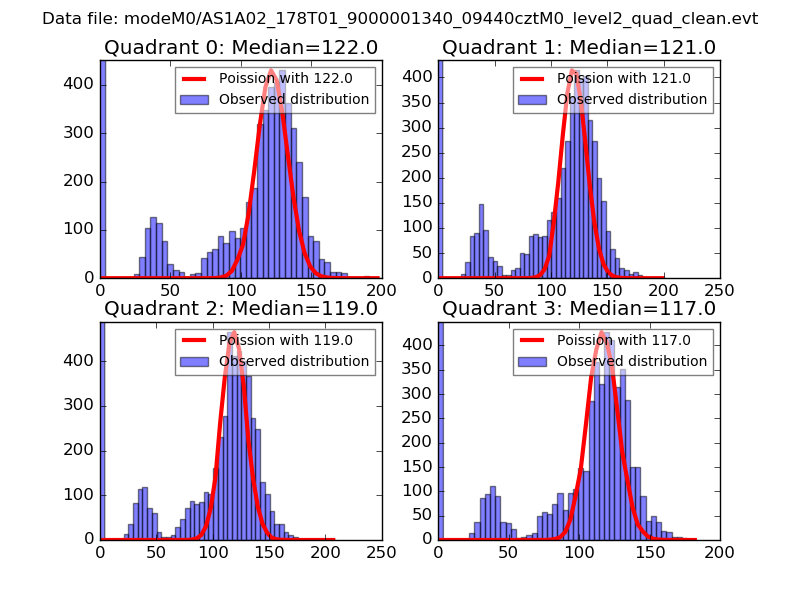

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

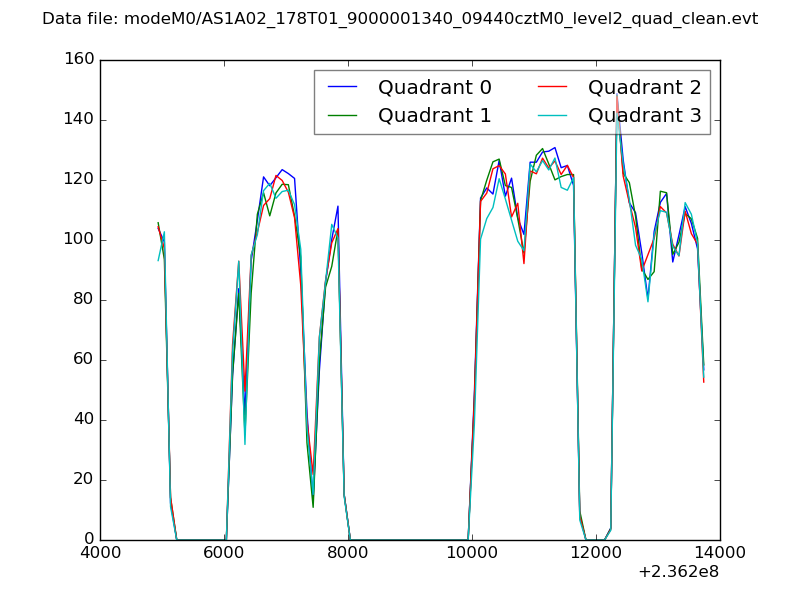

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

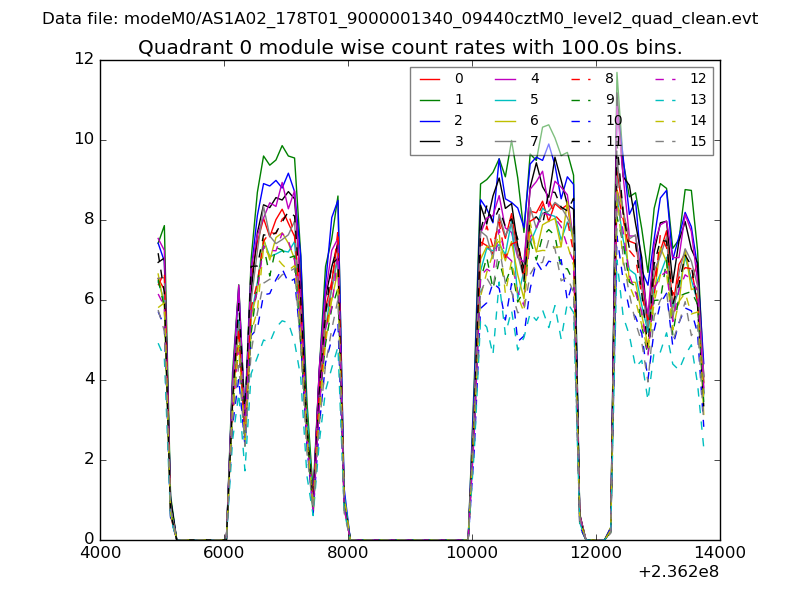

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

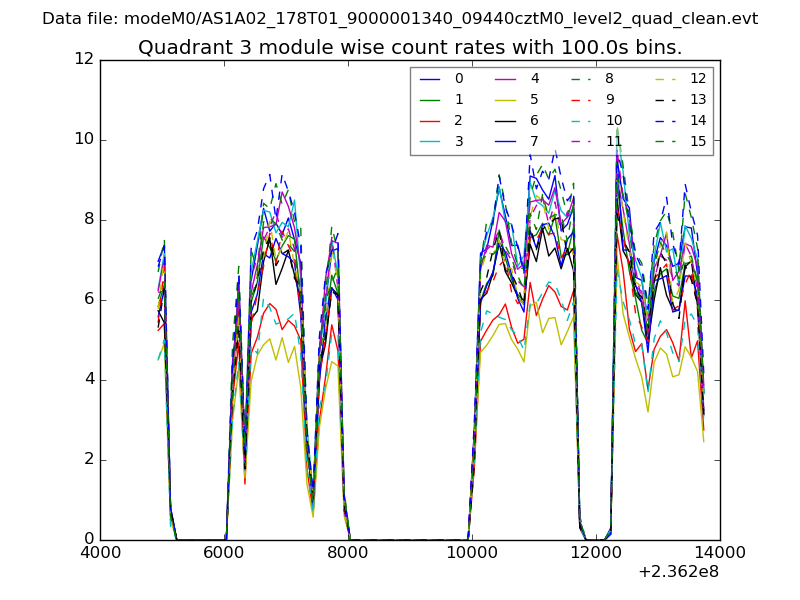

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

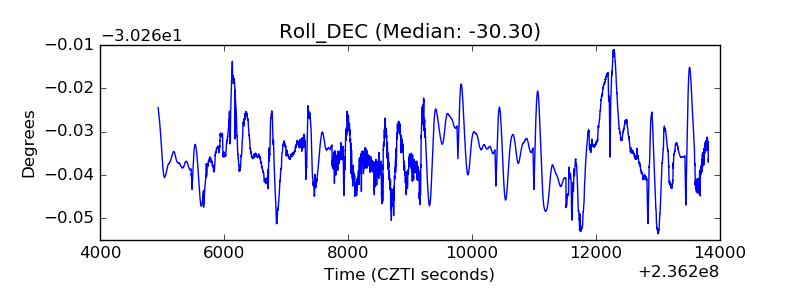

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
