| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_063T01_9000001336_09413cztM0_level2.evt | modeM0/AS1G07_063T01_9000001336_09413cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,892,160 | 80,415,360 |
| Size | 439.5 MB | 76.7 MB |
| Events in quadrant A | 3,649,937 | 494,420 |
| Events in quadrant B | 2,819,130 | 514,871 |
| Events in quadrant C | 4,202,442 | 504,399 |
| Events in quadrant D | 2,863,361 | 486,999 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 16 |
| B | 0 | 142 | 18 |
| C | 0 | 142 | 16 |
| D | 0 | 142 | 14 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17347 | 2365 |
| B | 0 | 14446 | 1598 |
| C | 0 | 19423 | 2564 |
| D | 0 | 15155 | 1822 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6157 | 101 | 1.640409% |
| B | 6270 | 104 | 1.658692% |
| C | 6175 | 374 | 6.056680% |
| D | 6254 | 97 | 1.551007% |

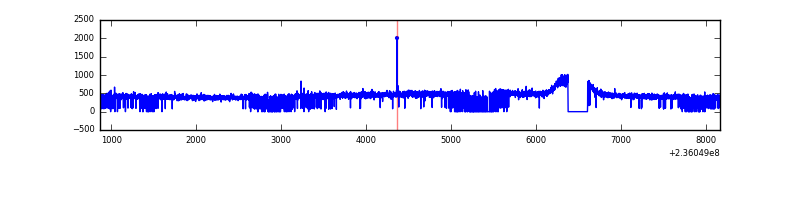

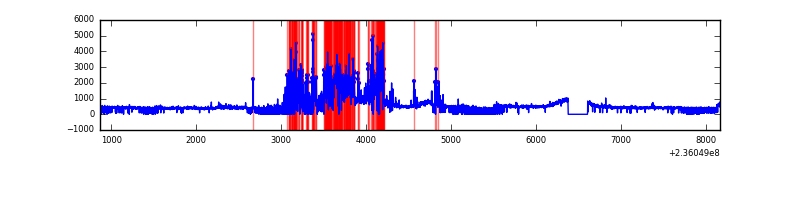

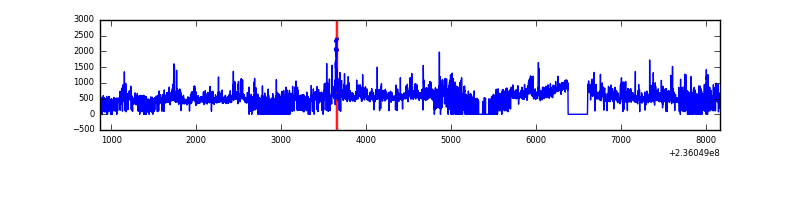

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7294 | 6620 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7295 | 6698 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7294 | 6664 | 299 | 299 | 4.10% | 4.49% |  |
| D | 7295 | 6705 | 23 | 23 | 0.32% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 889499 | 6095.98 | 705 | 690 | 145.8 |
| A | 4 | 2 | 21402 | 142.06 | 705 | 690 | 145.8 |
| A | 1 | 162 | 20425 | 135.35 | 705 | 690 | 145.8 |
| B | 12 | 111 | 16249 | 110.03 | 725 | 707 | 141.3 |
| B | 11 | 111 | 12972 | 86.83 | 725 | 707 | 141.3 |
| B | 14 | 111 | 9773 | 64.18 | 725 | 707 | 141.3 |
| C | 4 | 254 | 1080585 | 6834.53 | 676 | 678 | 158.0 |
| C | 9 | 68 | 480217 | 3034.91 | 676 | 678 | 158.0 |
| C | 13 | 61 | 5045 | 27.64 | 676 | 678 | 158.0 |
| D | 1 | 52 | 120007 | 681.25 | 690 | 671 | 175.2 |
| D | 2 | 14 | 31617 | 176.66 | 690 | 671 | 175.2 |
| D | 2 | 234 | 25131 | 139.63 | 690 | 671 | 175.2 |

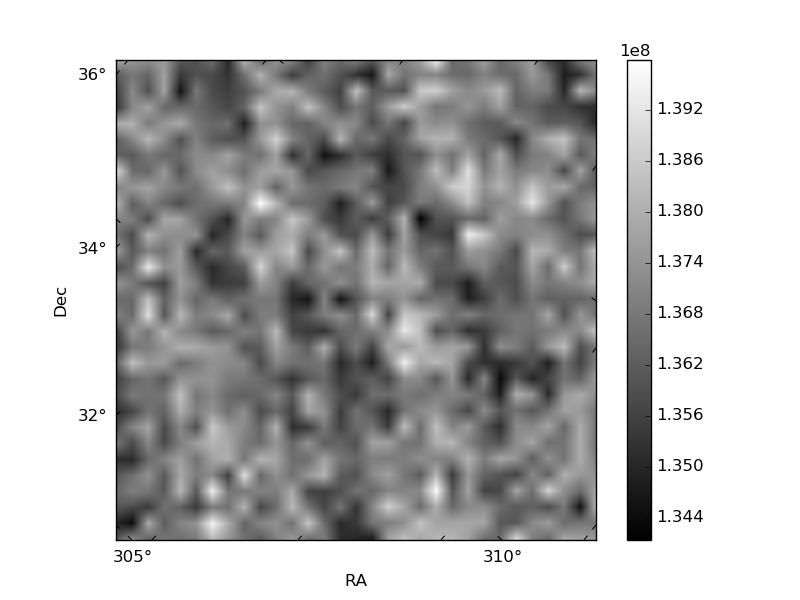

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

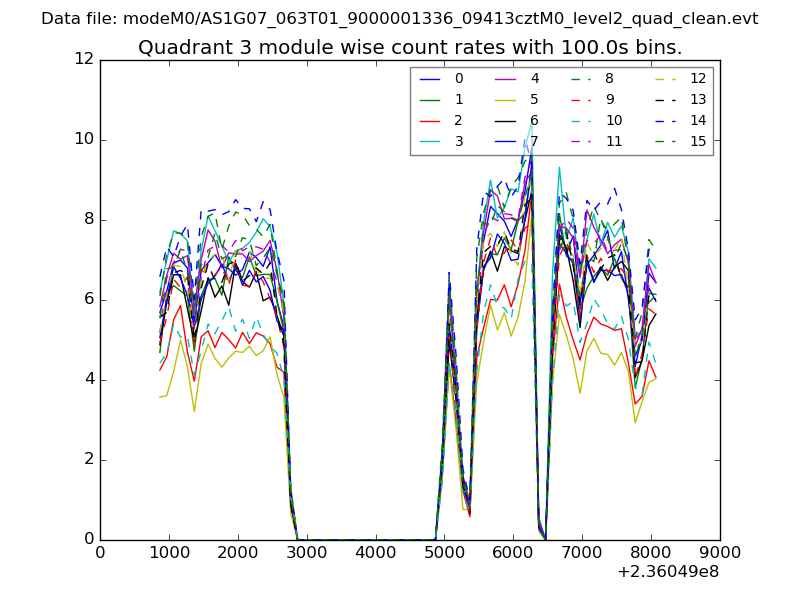

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

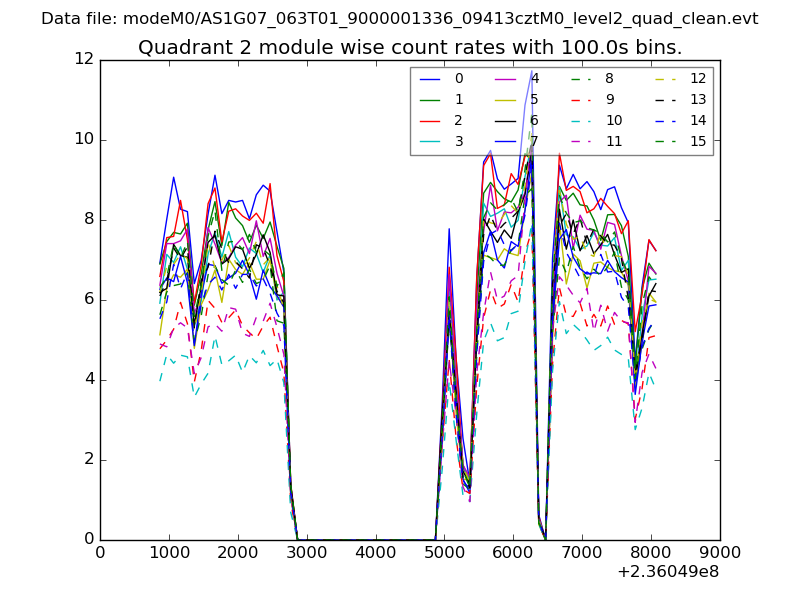

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

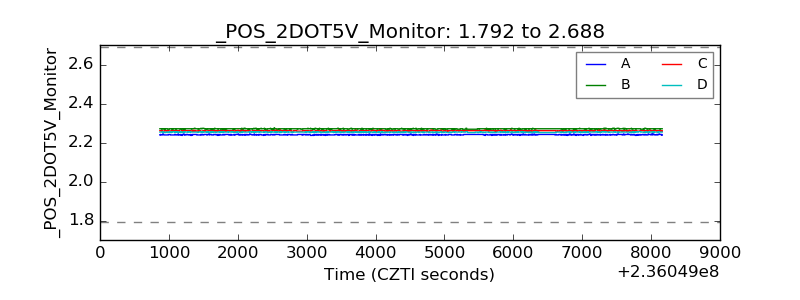

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

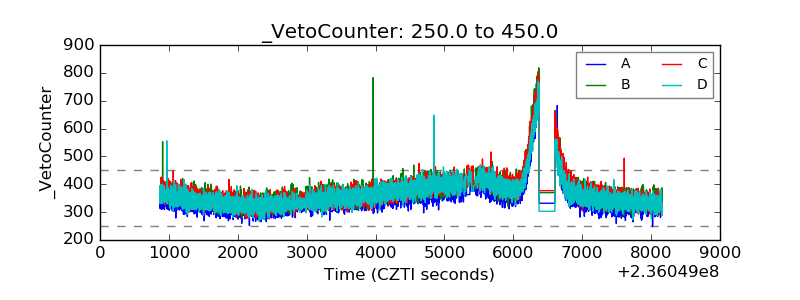

| Veto Counter |  |
