| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_177T01_9000001344_09449cztM0_level2.evt | modeM0/AS1T01_177T01_9000001344_09449cztM0_level2_quad_clean.evt |
| Size (bytes) | 138,951,360 | 30,666,240 |
| Size | 132.5 MB | 29.2 MB |
| Events in quadrant A | 1,075,656 | 205,964 |
| Events in quadrant B | 1,048,081 | 206,515 |
| Events in quadrant C | 937,471 | 197,356 |
| Events in quadrant D | 1,028,924 | 193,420 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4433 | 2 |
| B | 0 | 4185 | 1 |
| C | 0 | 3827 | 1 |
| D | 0 | 4110 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1701 | 71 | 4.174015% |
| B | 1701 | 88 | 5.173427% |
| C | 1701 | 51 | 2.998236% |
| D | 1701 | 66 | 3.880071% |

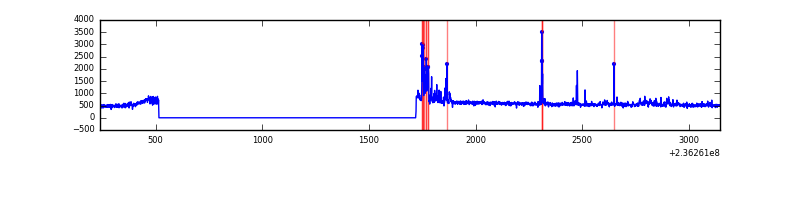

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2906 | 1702 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2906 | 1702 | 14 | 14 | 0.48% | 0.82% |  |
| C | 2906 | 1702 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2906 | 1702 | 6 | 6 | 0.21% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 43632 | 830.34 | 249 | 244 | 52.3 |
| A | 1 | 162 | 34563 | 656.78 | 249 | 244 | 52.3 |
| A | 1 | 178 | 13337 | 250.56 | 249 | 244 | 52.3 |
| B | 4 | 173 | 51655 | 1077.45 | 242 | 237 | 47.7 |
| B | 0 | 214 | 23137 | 479.86 | 242 | 237 | 47.7 |
| B | 0 | 187 | 22651 | 469.68 | 242 | 237 | 47.7 |
| C | 4 | 254 | 5209 | 87.83 | 238 | 240 | 56.6 |
| C | 13 | 61 | 1824 | 28.0 | 238 | 240 | 56.6 |
| C | 14 | 67 | 1175 | 16.53 | 238 | 240 | 56.6 |
| D | 12 | 227 | 88092 | 1443.43 | 242 | 236 | 60.9 |
| D | 1 | 52 | 7648 | 121.78 | 242 | 236 | 60.9 |
| D | 2 | 234 | 6266 | 99.07 | 242 | 236 | 60.9 |

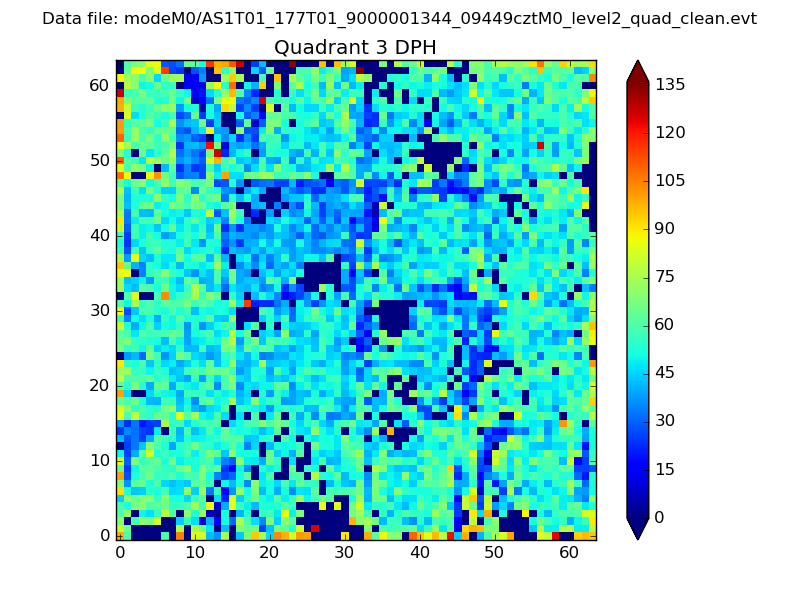

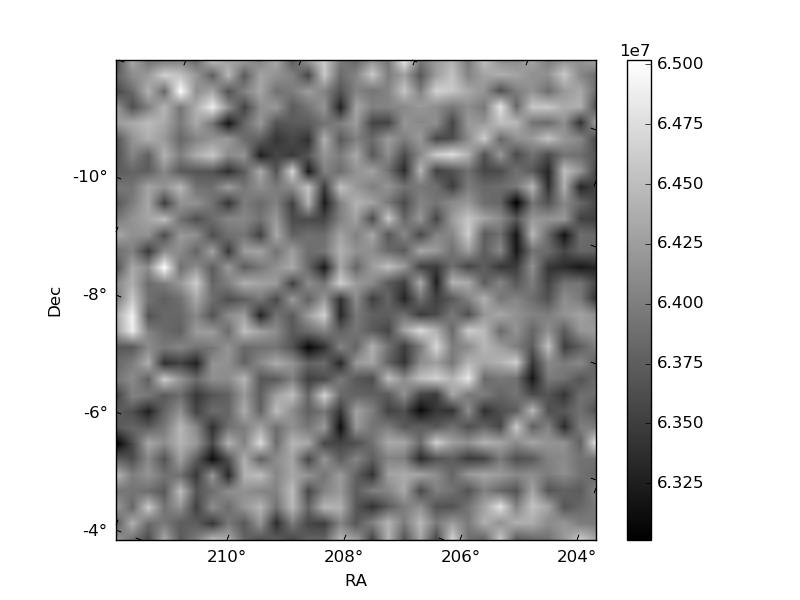

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

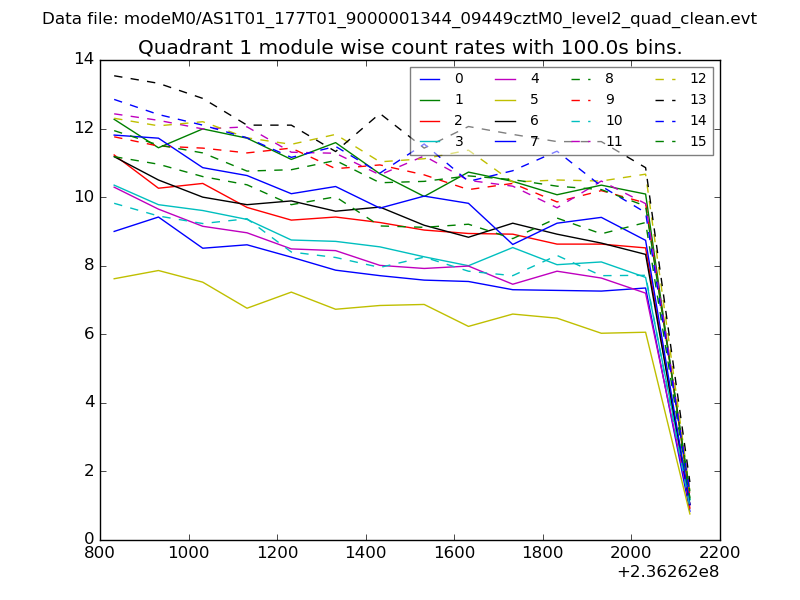

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

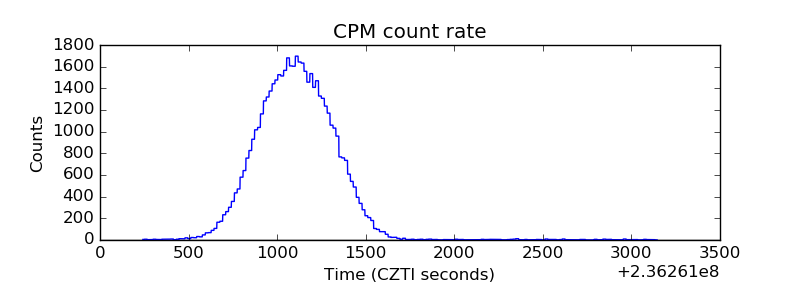

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

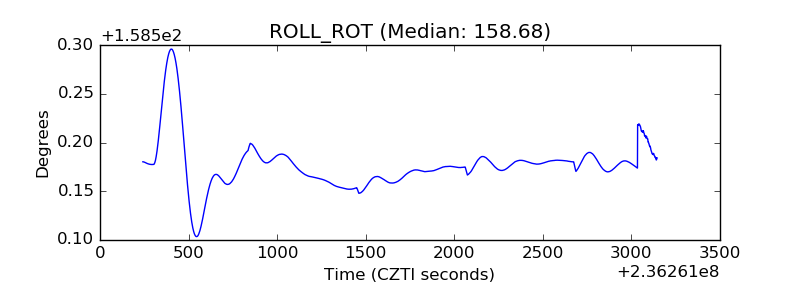

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
