| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_177T01_9000001344_09451cztM0_level2.evt | modeM0/AS1T01_177T01_9000001344_09451cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,198,080 | 105,022,080 |
| Size | 456.0 MB | 100.2 MB |
| Events in quadrant A | 3,505,786 | 705,109 |
| Events in quadrant B | 3,663,404 | 692,370 |
| Events in quadrant C | 3,104,395 | 675,795 |
| Events in quadrant D | 3,779,643 | 666,413 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14477 | 3 |
| B | 0 | 14991 | 2 |
| C | 0 | 13352 | 2 |
| D | 0 | 15395 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6322 | 80 | 1.265422% |
| B | 6322 | 143 | 2.261942% |
| C | 6322 | 38 | 0.601076% |
| D | 6322 | 104 | 1.645049% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

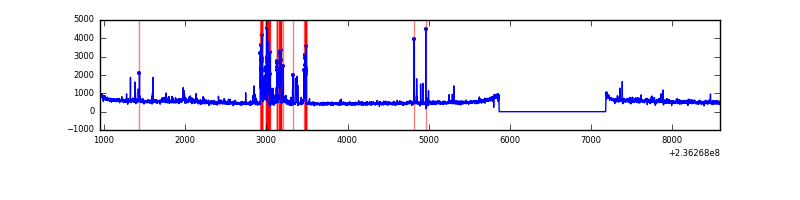

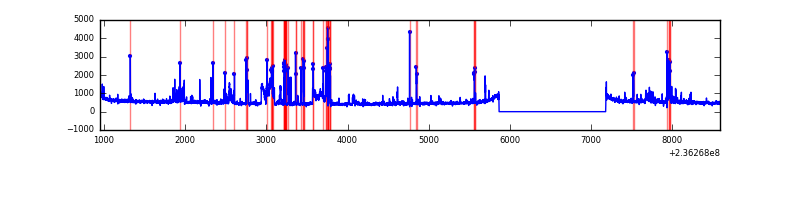

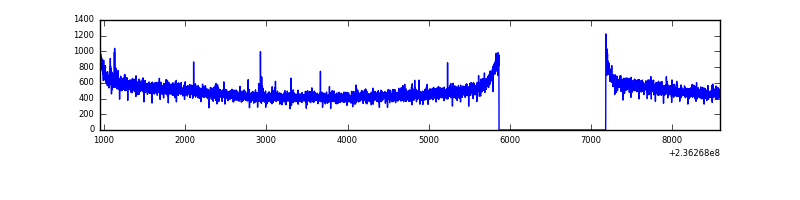

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 6323 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7637 | 6323 | 71 | 71 | 0.93% | 1.12% |  |
| C | 7637 | 6323 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7637 | 6323 | 66 | 66 | 0.86% | 1.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 158495 | 927.21 | 835 | 819 | 170.1 |
| A | 1 | 162 | 62895 | 365.04 | 835 | 819 | 170.1 |
| A | 1 | 178 | 22678 | 128.54 | 835 | 819 | 170.1 |
| B | 0 | 214 | 438112 | 2837.19 | 816 | 800 | 154.1 |
| B | 0 | 219 | 21370 | 133.45 | 816 | 800 | 154.1 |
| B | 0 | 229 | 21277 | 132.85 | 816 | 800 | 154.1 |
| C | 14 | 67 | 9157 | 45.97 | 790 | 796 | 181.9 |
| C | 4 | 254 | 6150 | 29.44 | 790 | 796 | 181.9 |
| C | 13 | 61 | 6130 | 29.33 | 790 | 796 | 181.9 |
| D | 12 | 227 | 421676 | 2066.36 | 801 | 780 | 203.7 |
| D | 1 | 52 | 148903 | 727.2 | 801 | 780 | 203.7 |
| D | 7 | 71 | 68256 | 331.27 | 801 | 780 | 203.7 |

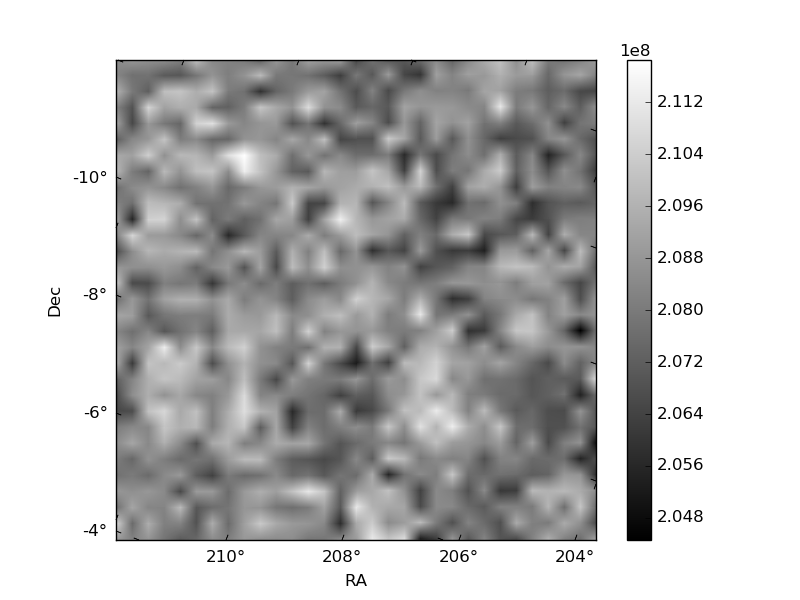

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

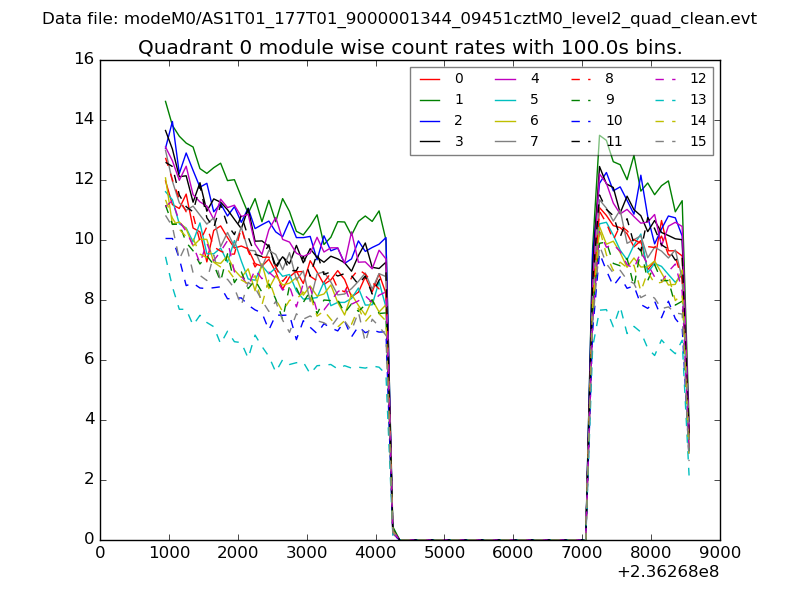

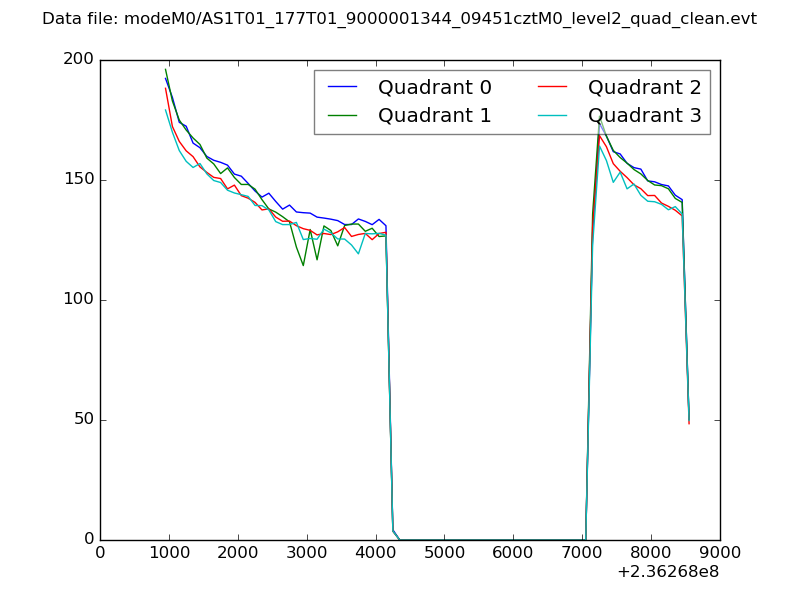

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

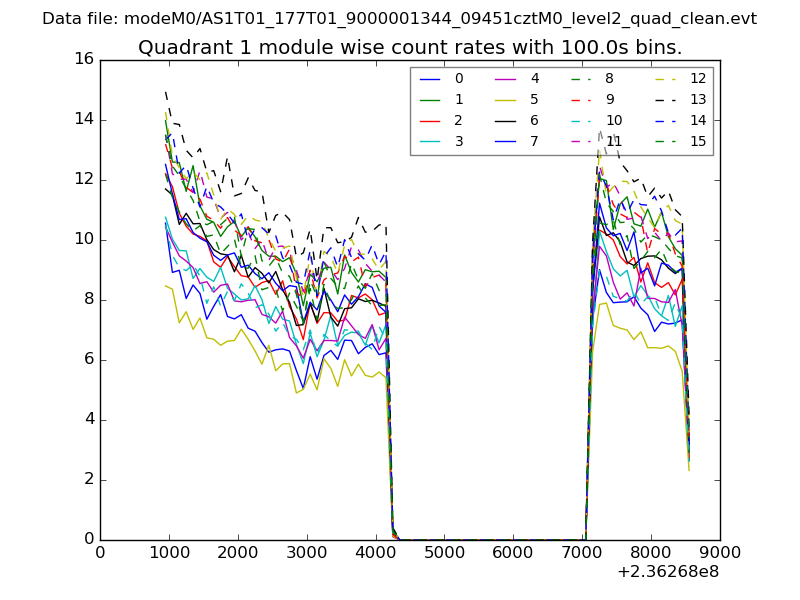

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

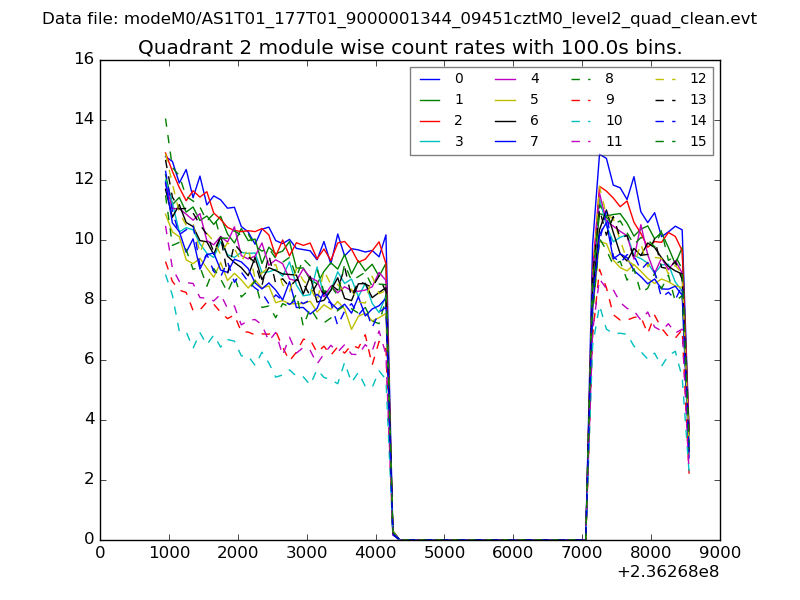

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
