| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_230T06_9000001350_09500cztM0_level2.evt | modeM0/AS1G05_230T06_9000001350_09500cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,228,480 | 100,488,960 |
| Size | 561.0 MB | 95.8 MB |
| Events in quadrant A | 5,158,113 | 632,406 |
| Events in quadrant B | 3,577,168 | 658,249 |
| Events in quadrant C | 4,522,266 | 624,457 |
| Events in quadrant D | 4,054,585 | 612,116 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21542 | 991 |
| B | 0 | 16164 | 491 |
| C | 0 | 19494 | 822 |
| D | 0 | 17859 | 733 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 8 |
| B | 0 | 156 | 2 |
| C | 0 | 156 | 6 |
| D | 0 | 156 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7358 | 141 | 1.916282% |
| B | 7457 | 74 | 0.992356% |
| C | 7402 | 312 | 4.215077% |
| D | 7375 | 99 | 1.342373% |

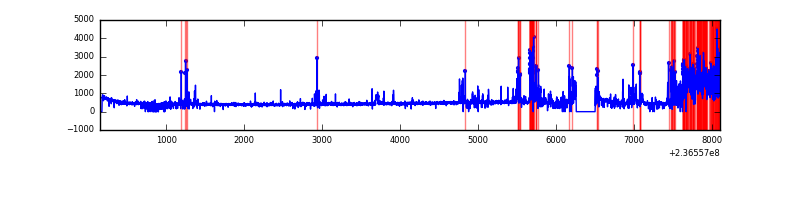

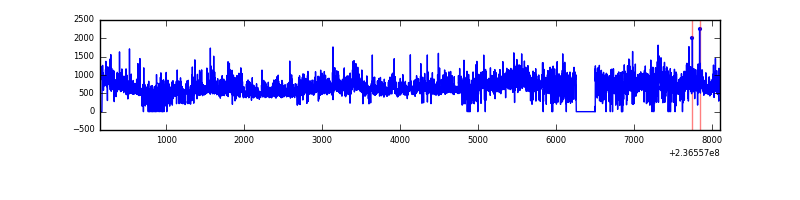

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7958 | 7639 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7958 | 7662 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7958 | 7645 | 209 | 209 | 2.63% | 2.73% |  |
| D | 7958 | 7640 | 65 | 65 | 0.82% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 996058 | 5649.81 | 860 | 841 | 176.2 |
| A | 1 | 162 | 354146 | 2005.7 | 860 | 841 | 176.2 |
| A | 1 | 178 | 172435 | 974.13 | 860 | 841 | 176.2 |
| B | 0 | 214 | 60798 | 350.81 | 882 | 860 | 170.9 |
| B | 0 | 219 | 28210 | 160.07 | 882 | 860 | 170.9 |
| B | 0 | 187 | 20291 | 113.73 | 882 | 860 | 170.9 |
| C | 4 | 254 | 1232903 | 6409.03 | 827 | 830 | 192.2 |
| C | 9 | 68 | 46609 | 238.13 | 827 | 830 | 192.2 |
| C | 13 | 61 | 6113 | 27.48 | 827 | 830 | 192.2 |
| D | 8 | 195 | 302339 | 1382.58 | 824 | 804 | 218.1 |
| D | 13 | 104 | 211115 | 964.31 | 824 | 804 | 218.1 |
| D | 1 | 52 | 170005 | 775.81 | 824 | 804 | 218.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

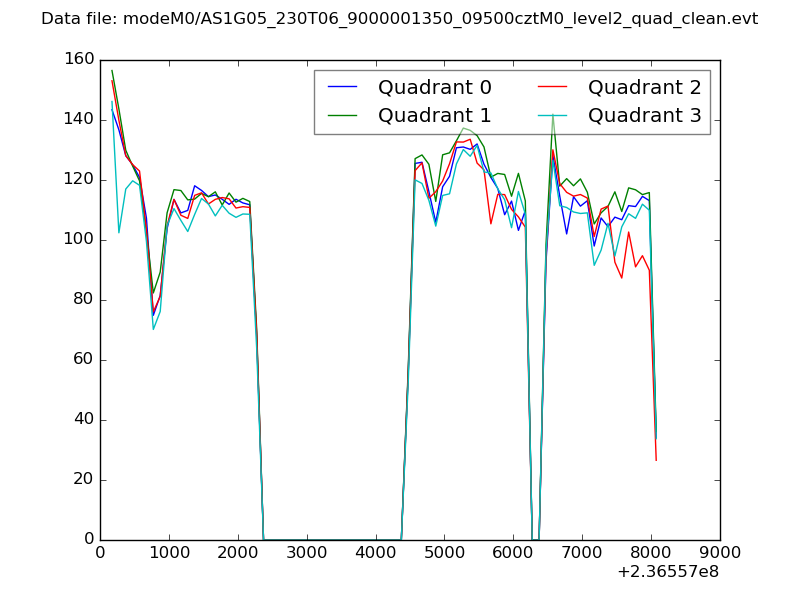

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

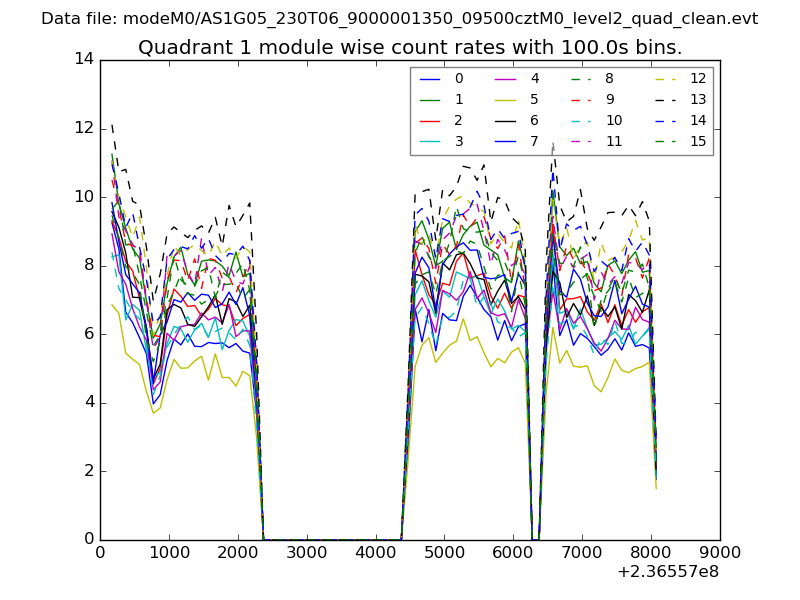

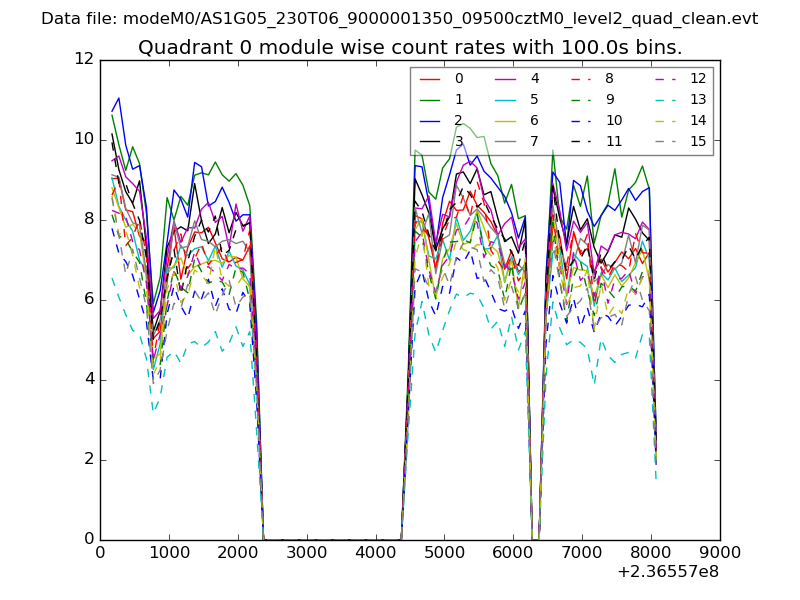

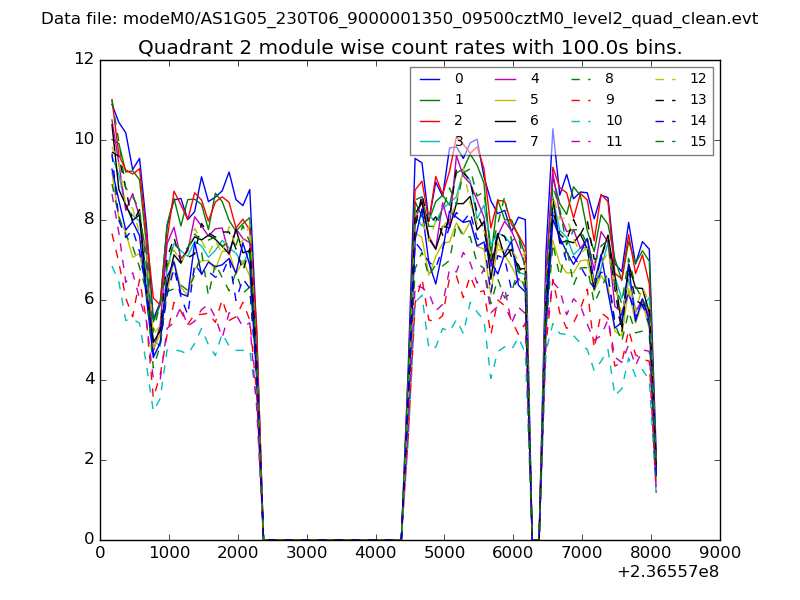

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

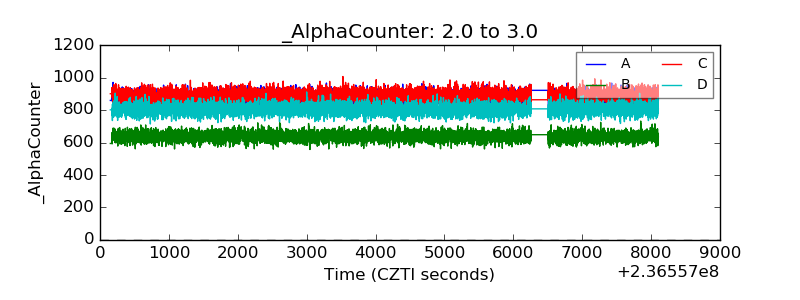

| Alpha Counter |  |

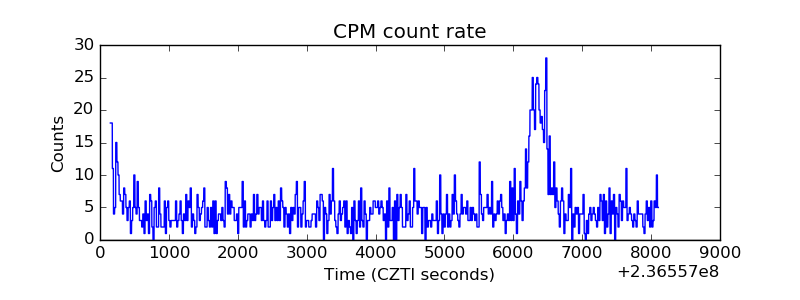

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
