| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_230T06_9000001350_09522cztM0_level2.evt | modeM0/AS1G05_230T06_9000001350_09522cztM0_level2_quad_clean.evt |
| Size (bytes) | 209,891,520 | 40,754,880 |
| Size | 200.2 MB | 38.9 MB |
| Events in quadrant A | 1,564,013 | 256,135 |
| Events in quadrant B | 1,563,763 | 262,881 |
| Events in quadrant C | 1,396,935 | 257,932 |
| Events in quadrant D | 1,627,667 | 245,151 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7832 | 1419 |
| B | 0 | 7566 | 1151 |
| C | 0 | 7272 | 1264 |
| D | 0 | 7826 | 1264 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 14 |
| B | 0 | 72 | 10 |
| C | 0 | 72 | 10 |
| D | 0 | 72 | 8 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 1 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 1 |
| D | 0 | 7 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2922 | 3 | 0.102669% |
| B | 3006 | 8 | 0.266134% |
| C | 2946 | 0 | 0.000000% |
| D | 2972 | 13 | 0.437416% |

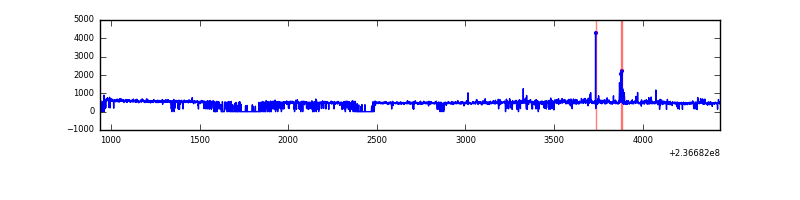

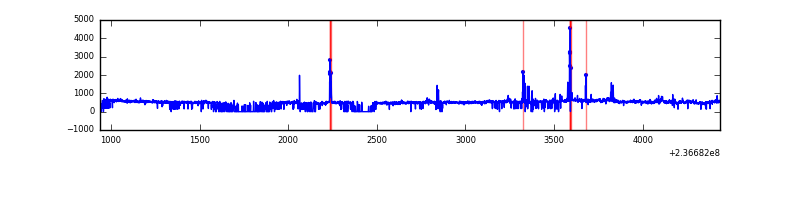

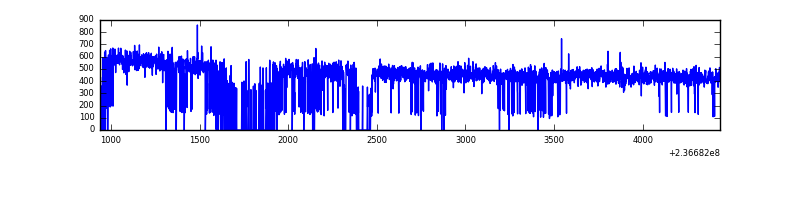

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3488 | 3188 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3497 | 3213 | 3 | 3 | 0.09% | 0.09% |  |
| C | 3490 | 3204 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3494 | 3204 | 11 | 11 | 0.31% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 69470 | 906.53 | 369 | 363 | 76.2 |
| A | 1 | 178 | 26524 | 343.17 | 369 | 363 | 76.2 |
| A | 1 | 161 | 26272 | 339.87 | 369 | 363 | 76.2 |
| B | 0 | 214 | 65428 | 909.7 | 377 | 370 | 71.5 |
| B | 4 | 80 | 21272 | 292.27 | 377 | 370 | 71.5 |
| B | 12 | 111 | 7414 | 98.5 | 377 | 370 | 71.5 |
| C | 13 | 61 | 2709 | 28.0 | 357 | 360 | 83.9 |
| C | 9 | 68 | 1687 | 15.82 | 357 | 360 | 83.9 |
| C | 8 | 222 | 1257 | 10.69 | 357 | 360 | 83.9 |
| D | 8 | 195 | 165451 | 1888.23 | 361 | 352 | 87.4 |
| D | 1 | 52 | 25880 | 291.96 | 361 | 352 | 87.4 |
| D | 7 | 71 | 18460 | 207.1 | 361 | 352 | 87.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

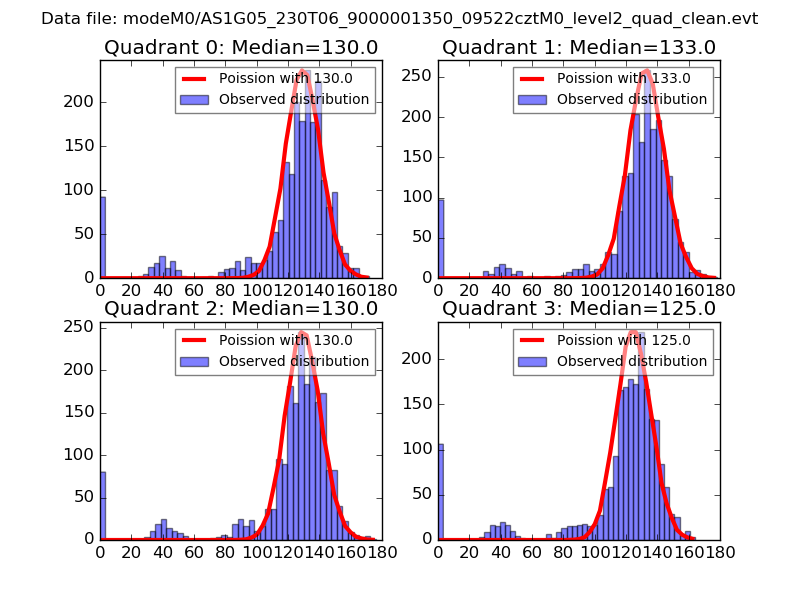

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

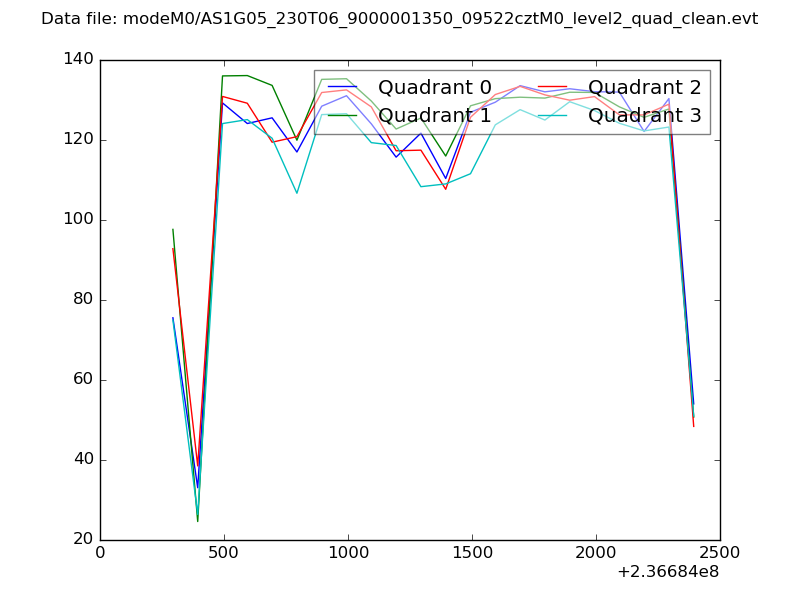

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

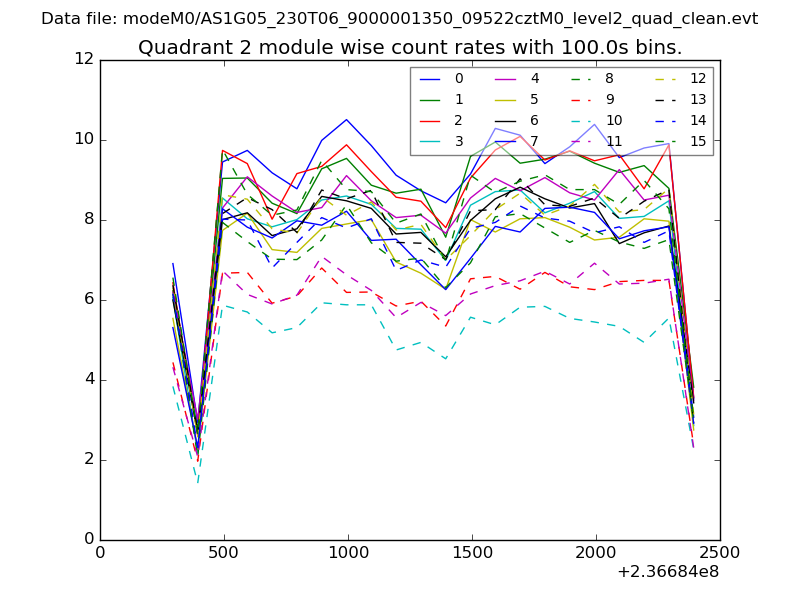

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

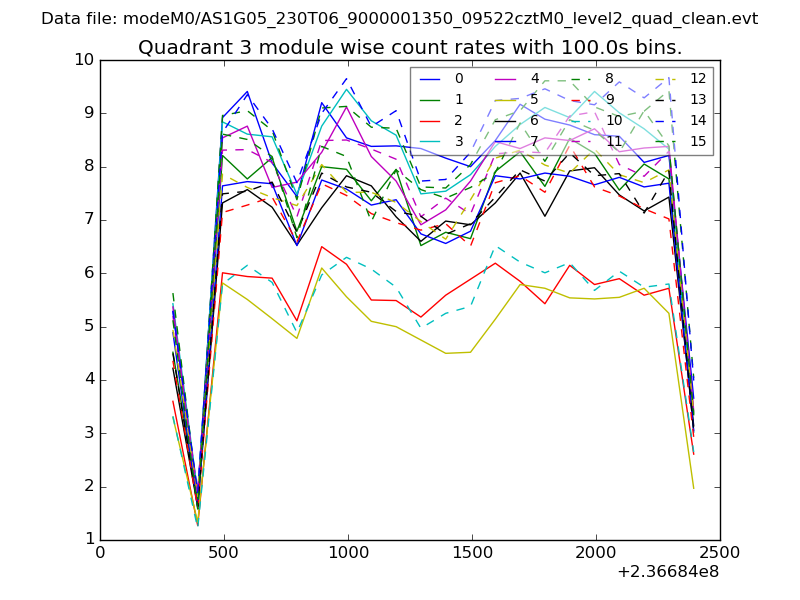

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

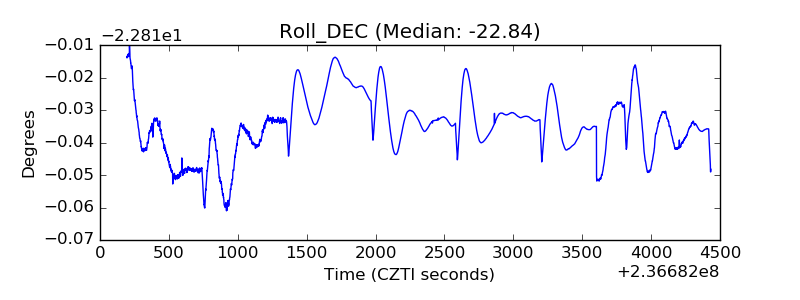

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
