| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_049T01_9000001352_09546cztM0_level2.evt | modeM0/AS1G07_049T01_9000001352_09546cztM0_level2_quad_clean.evt |
| Size (bytes) | 370,457,280 | 101,453,760 |
| Size | 353.3 MB | 96.8 MB |
| Events in quadrant A | 2,669,565 | 679,673 |
| Events in quadrant B | 2,709,055 | 675,156 |
| Events in quadrant C | 2,441,061 | 670,425 |
| Events in quadrant D | 3,013,012 | 650,672 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 273359709408 | 0 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11997 | 153 |
| B | 0 | 12102 | 198 |
| C | 0 | 11599 | 179 |
| D | 0 | 13055 | 236 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 2 |
| C | 0 | 116 | 2 |
| D | 0 | 116 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5683 | 17 | 0.299138% |
| B | 5665 | 27 | 0.476611% |
| C | 5670 | 11 | 0.194004% |
| D | 5660 | 60 | 1.060071% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5759 | 5753 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5759 | 5747 | 4 | 4 | 0.07% | 0.07% |  |
| C | 5759 | 5753 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5759 | 5753 | 28 | 28 | 0.49% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 87838 | 657.24 | 645 | 630 | 132.7 |
| A | 1 | 178 | 33622 | 248.64 | 645 | 630 | 132.7 |
| A | 1 | 161 | 32621 | 241.1 | 645 | 630 | 132.7 |
| B | 4 | 80 | 74996 | 604.78 | 644 | 627 | 123.0 |
| B | 0 | 214 | 36916 | 295.11 | 644 | 627 | 123.0 |
| B | 0 | 85 | 24145 | 191.25 | 644 | 627 | 123.0 |
| C | 13 | 61 | 4695 | 28.21 | 623 | 626 | 144.2 |
| C | 14 | 234 | 4163 | 24.52 | 623 | 626 | 144.2 |
| C | 12 | 4 | 3479 | 19.78 | 623 | 626 | 144.2 |
| D | 1 | 52 | 287248 | 1800.3 | 616 | 600 | 159.2 |
| D | 8 | 195 | 124186 | 776.19 | 616 | 600 | 159.2 |
| D | 12 | 233 | 90855 | 566.85 | 616 | 600 | 159.2 |

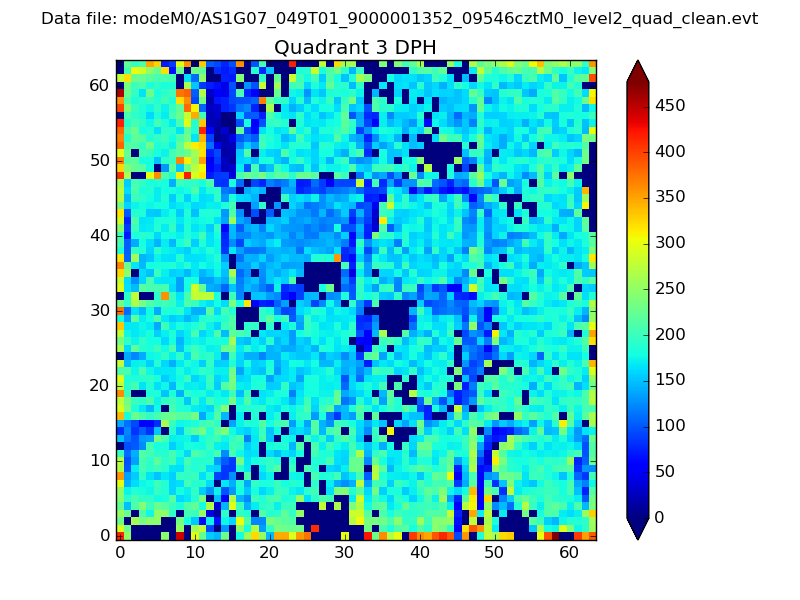

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

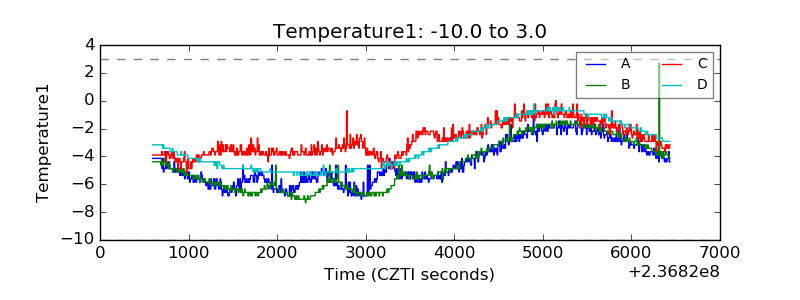

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

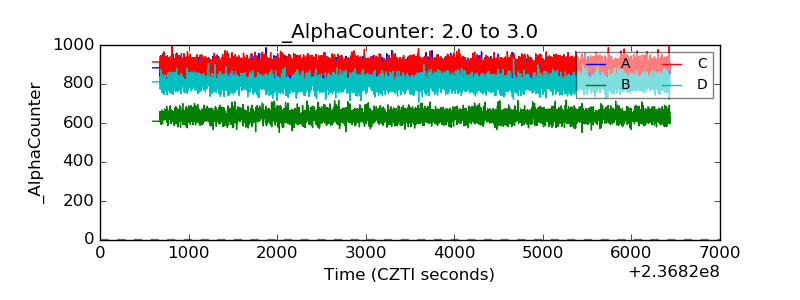

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

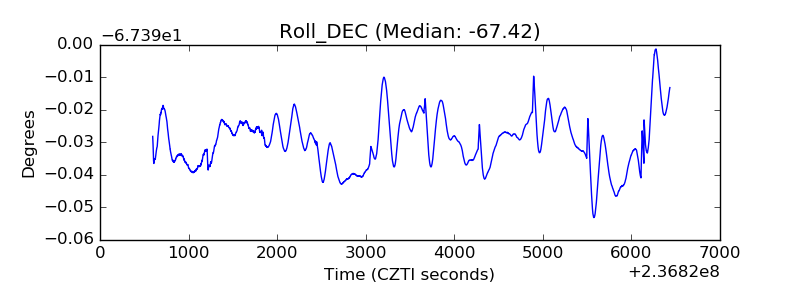

| _Roll_DEC |  |

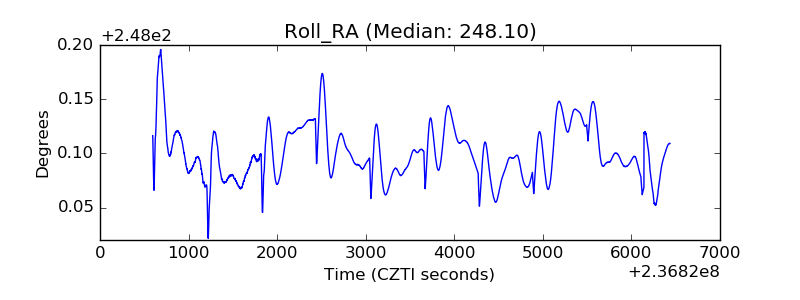

| _Roll_RA |  |
| Veto Counter |  |
