| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_049T02_9000001354_09548cztM0_level2.evt | modeM0/AS1G07_049T02_9000001354_09548cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,959,040 | 123,629,760 |
| Size | 412.9 MB | 117.9 MB |
| Events in quadrant A | 3,123,872 | 827,302 |
| Events in quadrant B | 3,240,578 | 834,516 |
| Events in quadrant C | 2,964,409 | 826,638 |
| Events in quadrant D | 3,339,803 | 801,335 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 2 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13646 | 83 |
| B | 0 | 13957 | 106 |
| C | 0 | 13381 | 79 |
| D | 0 | 14397 | 116 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6530 | 49 | 0.750383% |
| B | 6520 | 67 | 1.027607% |
| C | 6531 | 40 | 0.612464% |
| D | 6515 | 47 | 0.721412% |

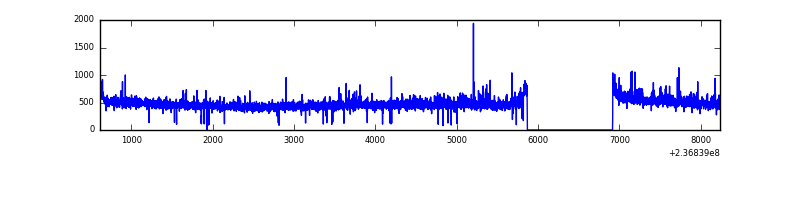

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7619 | 6569 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7619 | 6569 | 16 | 16 | 0.21% | 0.24% |  |
| C | 7619 | 6570 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7619 | 6567 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 80901 | 513.88 | 773 | 756 | 156.0 |
| A | 1 | 178 | 25459 | 158.39 | 773 | 756 | 156.0 |
| A | 1 | 161 | 24606 | 152.92 | 773 | 756 | 156.0 |
| B | 15 | 85 | 71223 | 481.83 | 774 | 754 | 146.3 |
| B | 4 | 80 | 69875 | 472.61 | 774 | 754 | 146.3 |
| B | 0 | 214 | 40875 | 274.33 | 774 | 754 | 146.3 |
| C | 13 | 61 | 5675 | 28.39 | 757 | 761 | 173.1 |
| C | 14 | 67 | 2951 | 12.65 | 757 | 761 | 173.1 |
| C | 14 | 234 | 2932 | 12.54 | 757 | 761 | 173.1 |
| D | 12 | 227 | 312747 | 1733.33 | 749 | 731 | 180.0 |
| D | 8 | 195 | 51556 | 282.35 | 749 | 731 | 180.0 |
| D | 1 | 52 | 50792 | 278.1 | 749 | 731 | 180.0 |

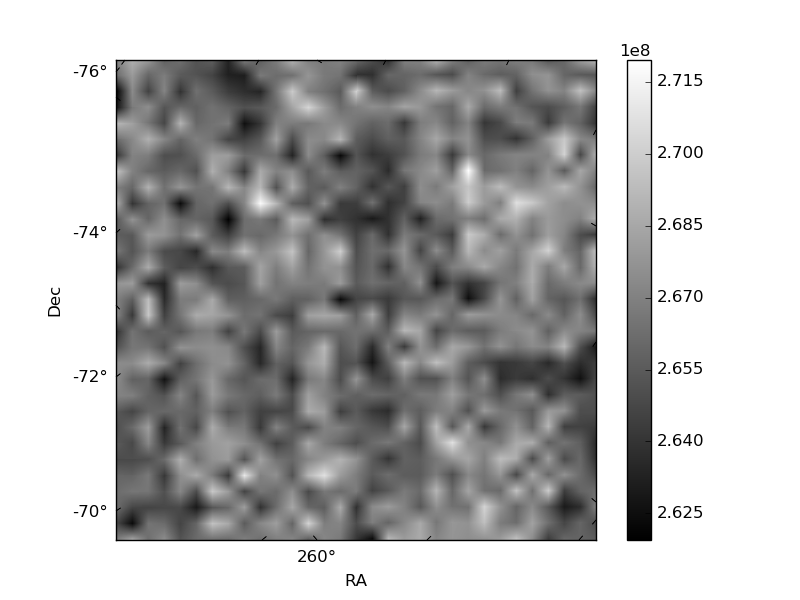

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

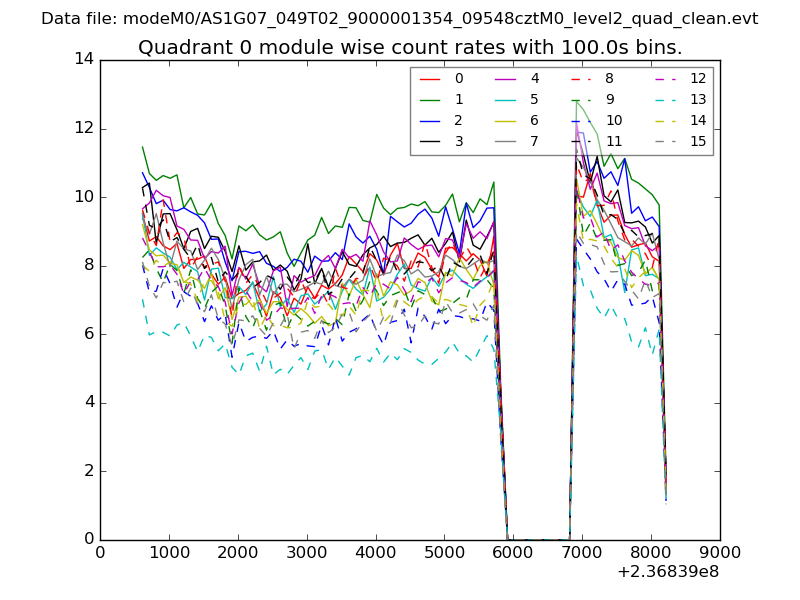

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

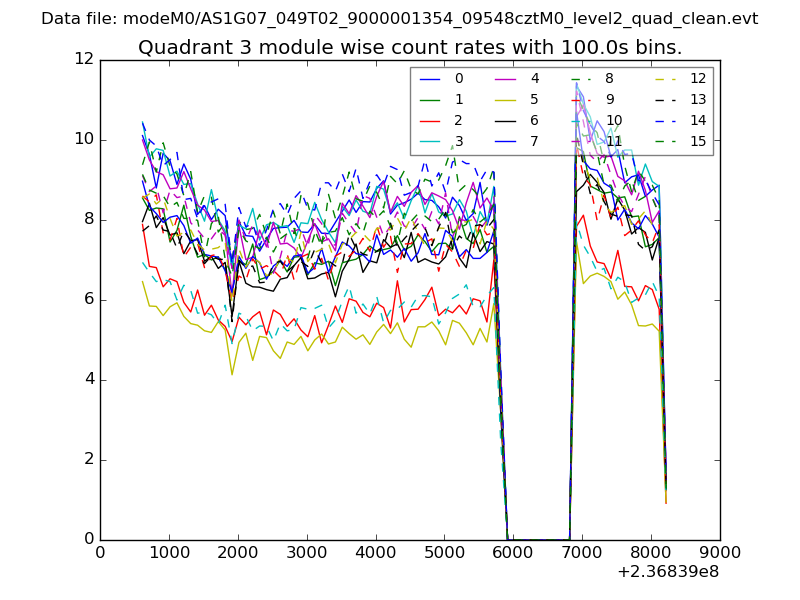

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

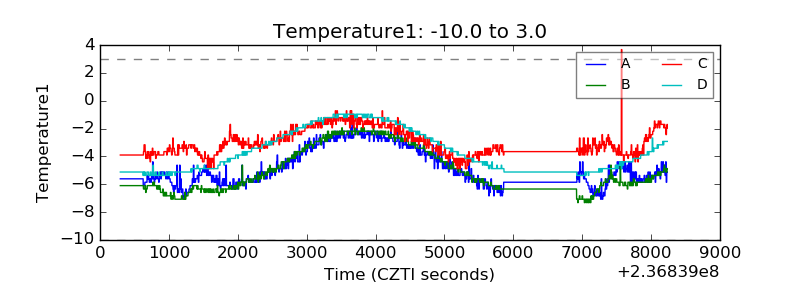

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

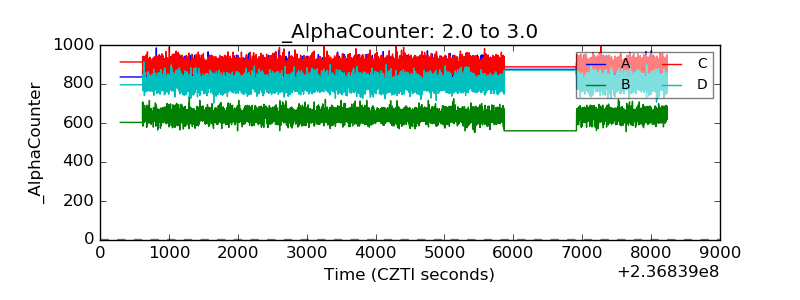

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

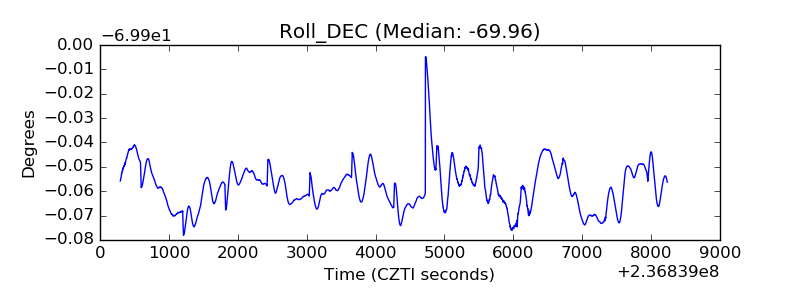

| _Roll_DEC |  |

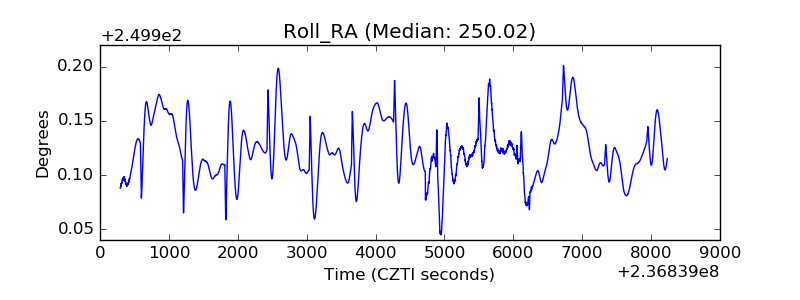

| _Roll_RA |  |
| Veto Counter |  |
