| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_069T01_9000001356_09558cztM0_level2.evt | modeM0/AS1G07_069T01_9000001356_09558cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,724,800 | 92,842,560 |
| Size | 435.6 MB | 88.5 MB |
| Events in quadrant A | 3,504,796 | 584,907 |
| Events in quadrant B | 3,361,806 | 588,630 |
| Events in quadrant C | 2,995,875 | 595,770 |
| Events in quadrant D | 3,514,070 | 575,417 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 18 |
| B | 0 | 154 | 16 |
| C | 0 | 153 | 17 |
| D | 0 | 154 | 22 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 3 |
| D | 0 | 6 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17240 | 2239 |
| B | 0 | 16912 | 2092 |
| C | 0 | 15740 | 1989 |
| D | 0 | 17100 | 2247 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6677 | 121 | 1.812191% |
| B | 6692 | 87 | 1.300060% |
| C | 6709 | 25 | 0.372634% |
| D | 6681 | 44 | 0.658584% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8169 | 7056 | 4 | 4 | 0.05% | 0.06% |  |
| B | 8169 | 7048 | 9 | 9 | 0.11% | 0.13% |  |
| C | 8170 | 7067 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8170 | 7063 | 7 | 7 | 0.09% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 220367 | 1384.18 | 773 | 756 | 158.7 |
| A | 1 | 178 | 102927 | 643.97 | 773 | 756 | 158.7 |
| A | 1 | 161 | 101166 | 632.87 | 773 | 756 | 158.7 |
| B | 4 | 80 | 114388 | 768.74 | 778 | 758 | 147.8 |
| B | 0 | 214 | 86887 | 582.69 | 778 | 758 | 147.8 |
| B | 0 | 187 | 75412 | 505.06 | 778 | 758 | 147.8 |
| C | 13 | 61 | 5670 | 27.51 | 767 | 770 | 178.1 |
| C | 8 | 222 | 2215 | 8.11 | 767 | 770 | 178.1 |
| C | 3 | 202 | 1893 | 6.3 | 767 | 770 | 178.1 |
| D | 12 | 227 | 262238 | 1330.2 | 758 | 737 | 196.6 |
| D | 1 | 52 | 214555 | 1087.65 | 758 | 737 | 196.6 |
| D | 8 | 195 | 59011 | 296.43 | 758 | 737 | 196.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

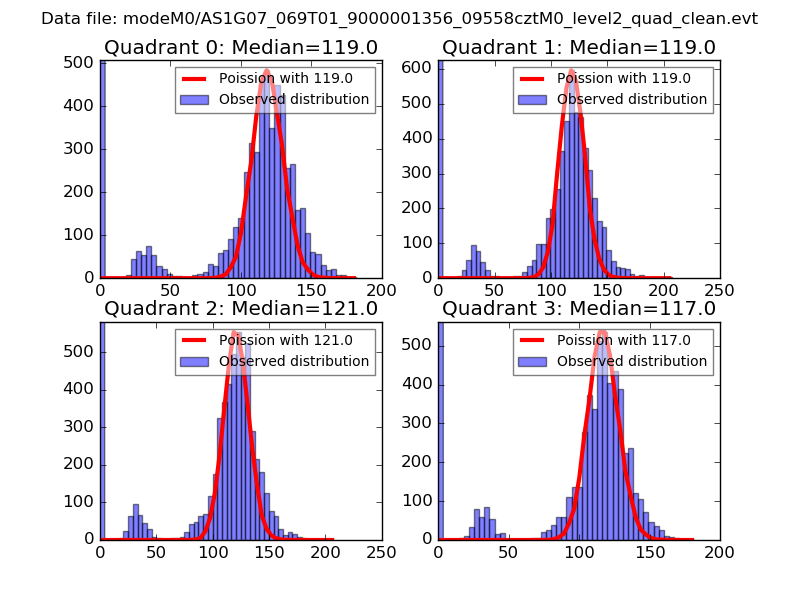

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

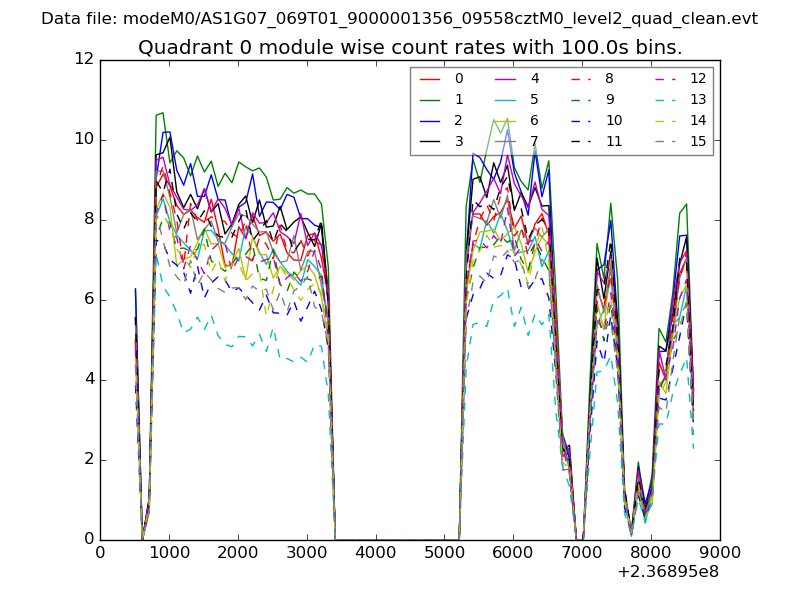

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

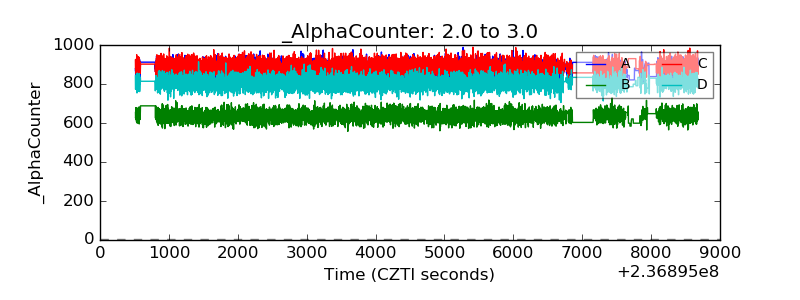

| Alpha Counter |  |

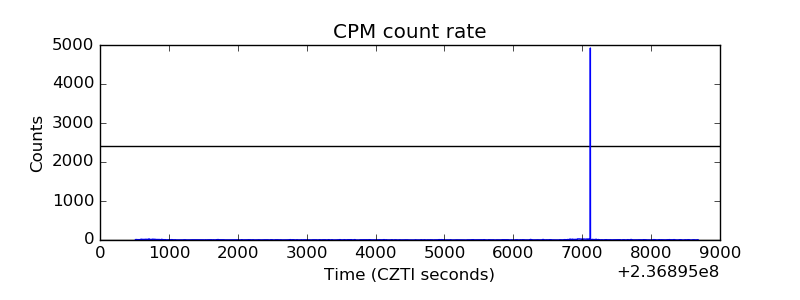

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

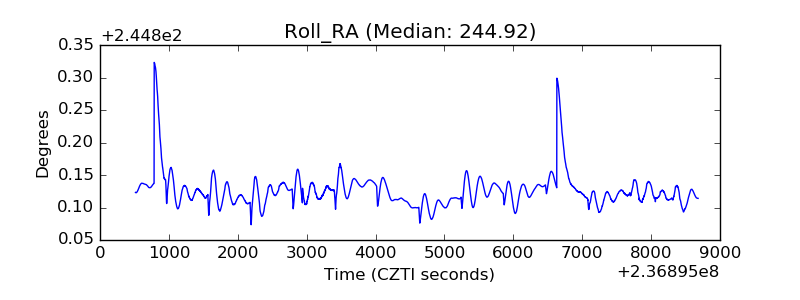

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

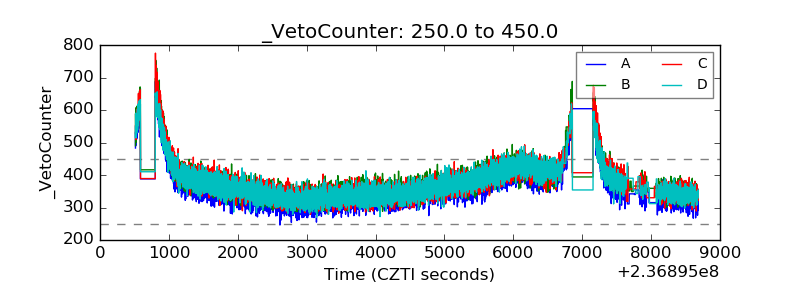

| Veto Counter |  |
