| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_027T01_9000001358_09568cztM0_level2.evt | modeM0/AS1G07_027T01_9000001358_09568cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,585,920 | 90,411,840 |
| Size | 462.1 MB | 86.2 MB |
| Events in quadrant A | 3,922,402 | 582,107 |
| Events in quadrant B | 3,415,678 | 583,765 |
| Events in quadrant C | 3,269,239 | 569,374 |
| Events in quadrant D | 3,634,569 | 557,017 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15890 | 3 |
| B | 0 | 13896 | 2 |
| C | 0 | 13455 | 2 |
| D | 0 | 14526 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6388 | 177 | 2.770820% |
| B | 6388 | 129 | 2.019411% |
| C | 6388 | 107 | 1.675016% |
| D | 6388 | 143 | 2.238572% |

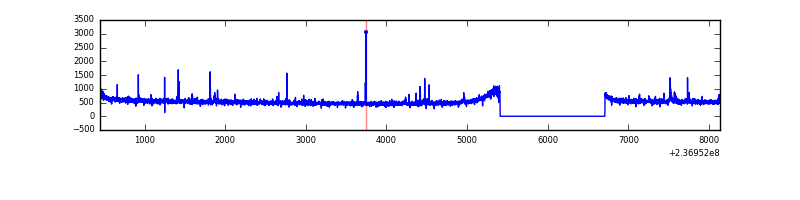

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7688 | 6389 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7688 | 6389 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7688 | 6389 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7688 | 6389 | 35 | 35 | 0.46% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 250019 | 1430.8 | 867 | 851 | 174.1 |
| A | 1 | 178 | 121852 | 694.82 | 867 | 851 | 174.1 |
| A | 1 | 161 | 115012 | 655.55 | 867 | 851 | 174.1 |
| B | 10 | 252 | 21380 | 127.52 | 860 | 842 | 161.1 |
| B | 4 | 80 | 19810 | 117.78 | 860 | 842 | 161.1 |
| B | 15 | 85 | 19778 | 117.58 | 860 | 842 | 161.1 |
| C | 9 | 236 | 7320 | 33.49 | 836 | 845 | 193.3 |
| C | 13 | 61 | 6132 | 27.35 | 836 | 845 | 193.3 |
| C | 8 | 208 | 2801 | 10.12 | 836 | 845 | 193.3 |
| D | 13 | 122 | 154030 | 765.22 | 838 | 820 | 200.2 |
| D | 1 | 52 | 96051 | 475.64 | 838 | 820 | 200.2 |
| D | 7 | 71 | 90297 | 446.9 | 838 | 820 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

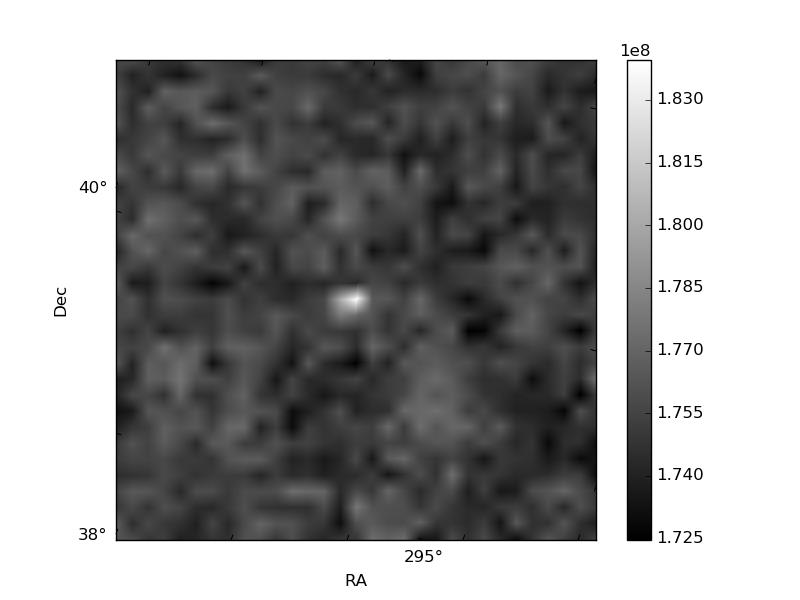

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

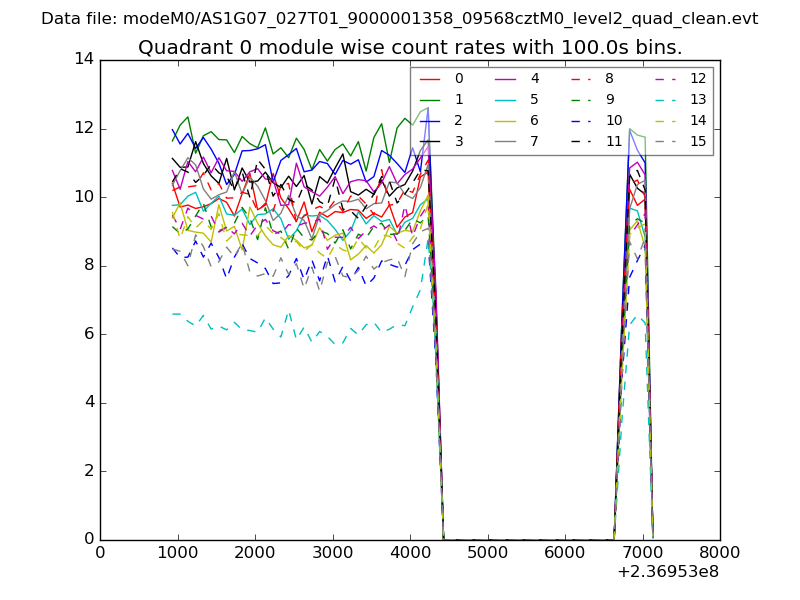

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

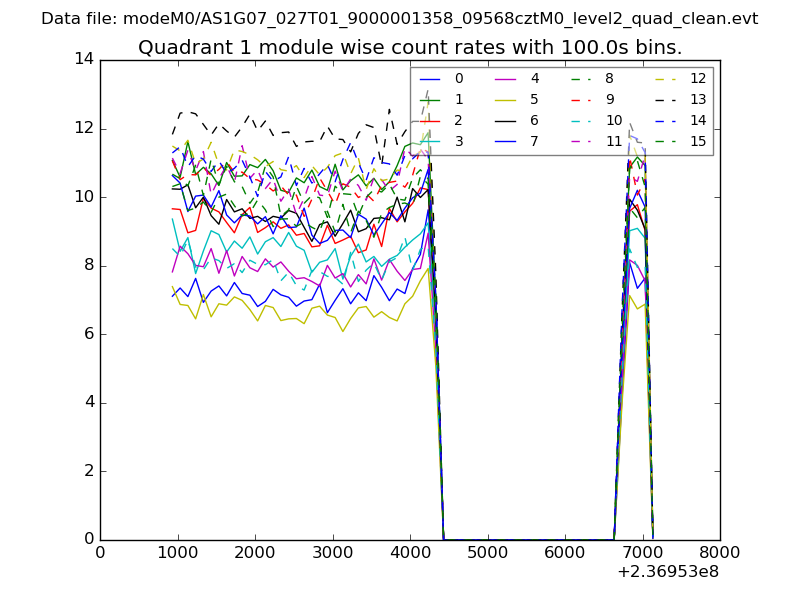

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

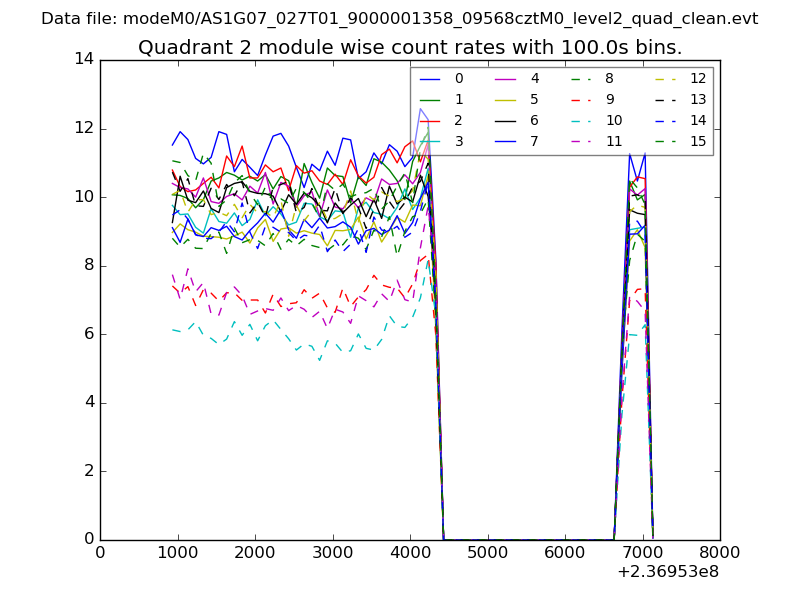

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

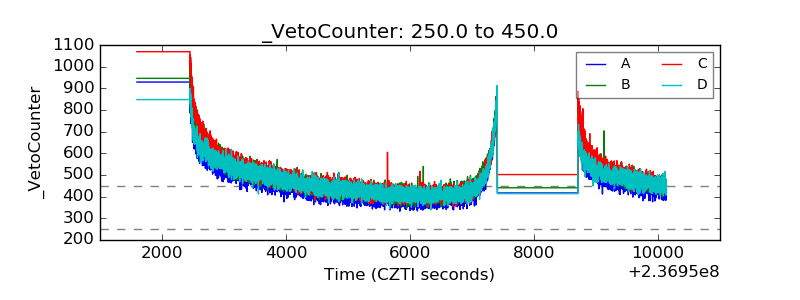

| Veto HV Monitor |  |
| Veto LLD |  |

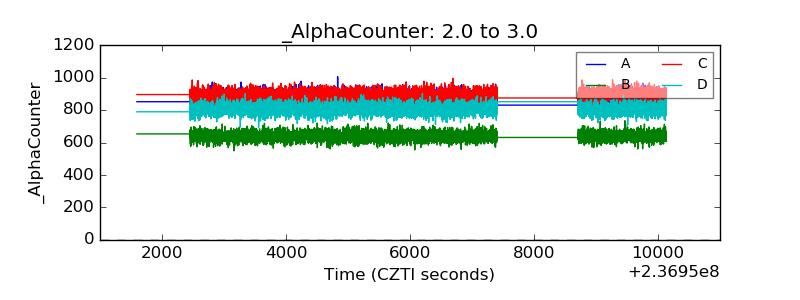

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

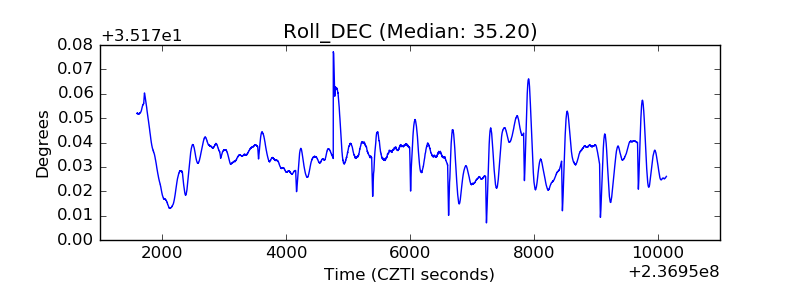

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
