| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_042T01_9000001360_09570cztM0_level2.evt | modeM0/AS1G07_042T01_9000001360_09570cztM0_level2_quad_clean.evt |
| Size (bytes) | 207,250,560 | 34,289,280 |
| Size | 197.6 MB | 32.7 MB |
| Events in quadrant A | 1,720,118 | 210,599 |
| Events in quadrant B | 1,503,006 | 212,934 |
| Events in quadrant C | 1,417,536 | 208,246 |
| Events in quadrant D | 1,440,080 | 202,166 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6906 | 2 |
| B | 0 | 6143 | 1 |
| C | 0 | 5952 | 1 |
| D | 0 | 6059 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2858 | 112 | 3.918824% |
| B | 2858 | 78 | 2.729181% |
| C | 2858 | 61 | 2.134360% |
| D | 2858 | 55 | 1.924423% |

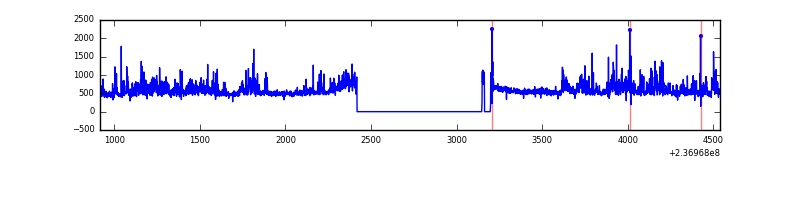

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3623 | 2860 | 3 | 3 | 0.08% | 0.10% |  |
| B | 3623 | 2860 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3623 | 2860 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3623 | 2860 | 5 | 5 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 109313 | 1413.68 | 373 | 365 | 77.1 |
| A | 1 | 178 | 58620 | 755.9 | 373 | 365 | 77.1 |
| A | 1 | 161 | 54482 | 702.21 | 373 | 365 | 77.1 |
| B | 15 | 255 | 32763 | 452.18 | 371 | 363 | 71.7 |
| B | 0 | 214 | 14788 | 201.32 | 371 | 363 | 71.7 |
| B | 12 | 111 | 8002 | 106.61 | 371 | 363 | 71.7 |
| C | 9 | 236 | 9975 | 113.9 | 360 | 361 | 84.4 |
| C | 13 | 61 | 2654 | 27.17 | 360 | 361 | 84.4 |
| C | 14 | 234 | 1231 | 10.31 | 360 | 361 | 84.4 |
| D | 12 | 227 | 16848 | 180.74 | 360 | 350 | 91.3 |
| D | 7 | 71 | 15987 | 171.31 | 360 | 350 | 91.3 |
| D | 2 | 234 | 14987 | 160.35 | 360 | 350 | 91.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

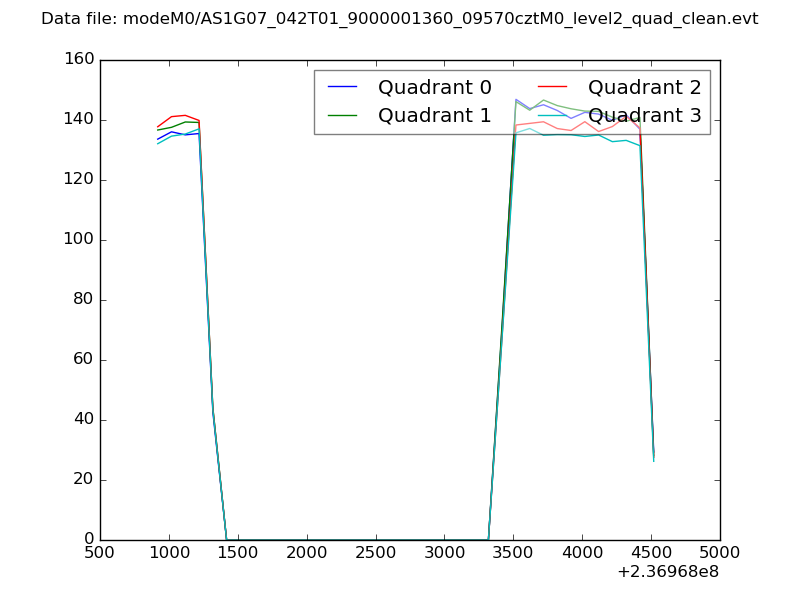

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

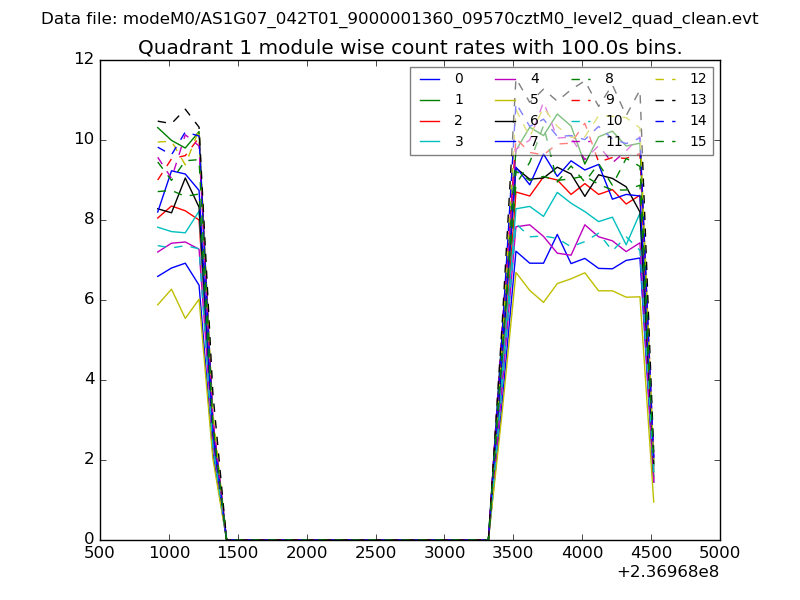

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

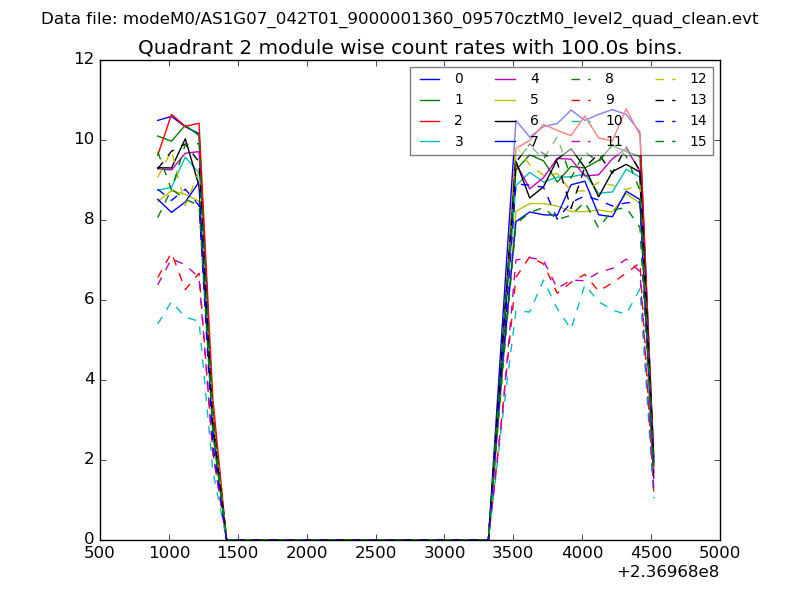

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

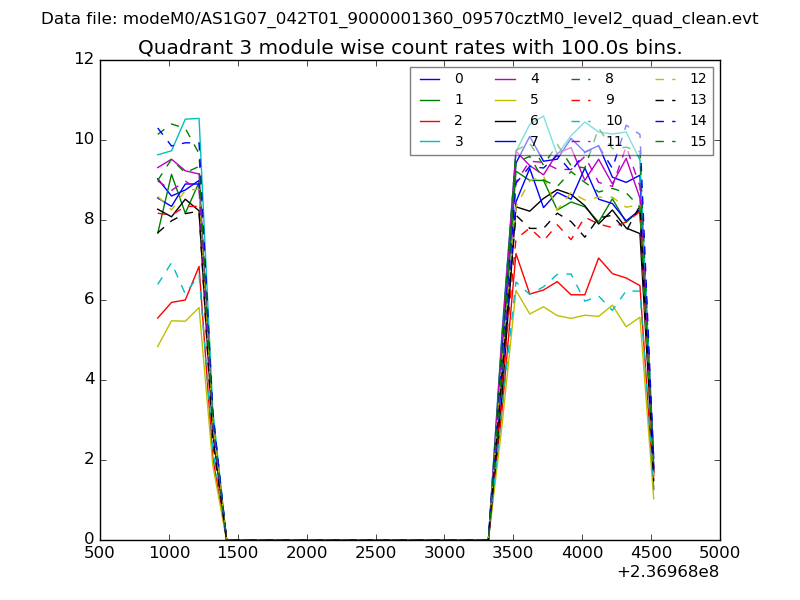

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

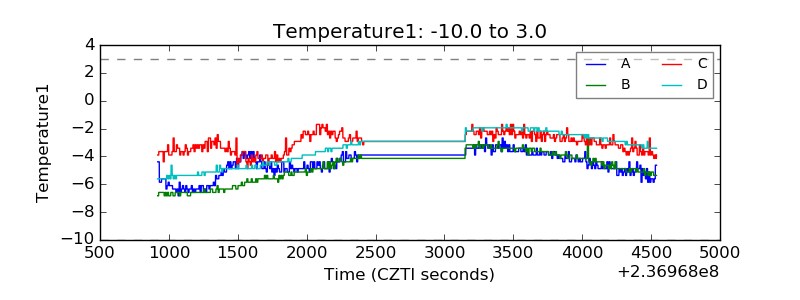

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

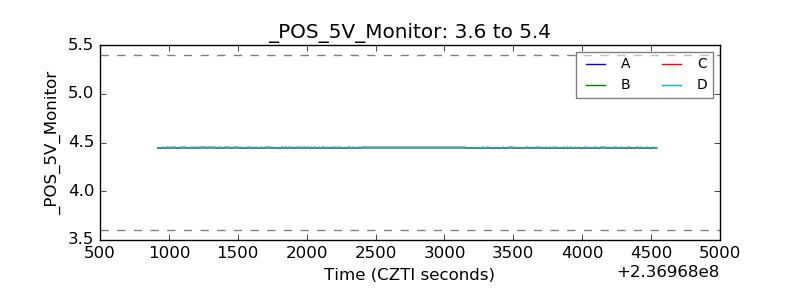

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

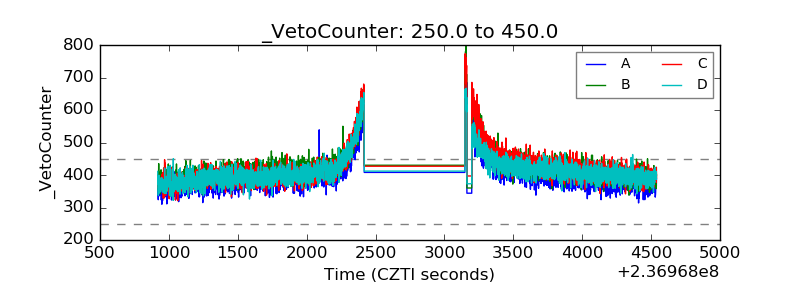

| Veto Counter |  |
