| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T01_9000001364_09594cztM0_level2.evt | modeM0/AS1G05_238T01_9000001364_09594cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,701,760 | 74,937,600 |
| Size | 435.5 MB | 71.5 MB |
| Events in quadrant A | 3,541,735 | 480,040 |
| Events in quadrant B | 2,950,105 | 484,353 |
| Events in quadrant C | 2,815,445 | 466,589 |
| Events in quadrant D | 4,122,639 | 425,147 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14396 | 2 |
| B | 0 | 12281 | 1 |
| C | 0 | 12226 | 1 |
| D | 0 | 16045 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5909 | 75 | 1.269250% |
| B | 5909 | 26 | 0.440007% |
| C | 5909 | 6 | 0.101540% |
| D | 5909 | 406 | 6.870875% |

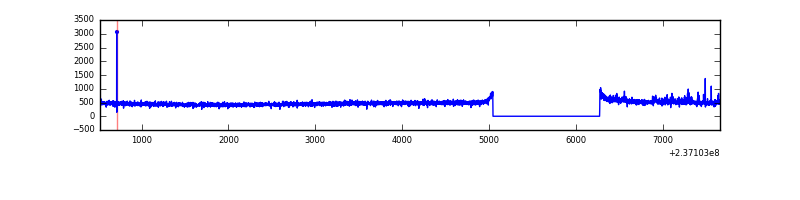

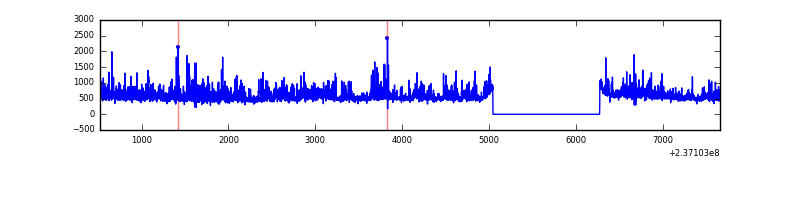

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7139 | 5910 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7139 | 5910 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7139 | 5910 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7139 | 5909 | 330 | 330 | 4.62% | 5.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 259417 | 1720.71 | 741 | 728 | 150.3 |
| A | 1 | 178 | 140308 | 928.44 | 741 | 728 | 150.3 |
| A | 1 | 161 | 132505 | 876.54 | 741 | 728 | 150.3 |
| B | 0 | 214 | 29710 | 208.46 | 734 | 719 | 139.1 |
| B | 0 | 219 | 19083 | 132.05 | 734 | 719 | 139.1 |
| B | 4 | 173 | 17472 | 120.46 | 734 | 719 | 139.1 |
| C | 9 | 68 | 61484 | 371.88 | 705 | 710 | 163.4 |
| C | 13 | 61 | 5297 | 28.07 | 705 | 710 | 163.4 |
| C | 14 | 234 | 3922 | 19.65 | 705 | 710 | 163.4 |
| D | 1 | 52 | 1227972 | 7024.83 | 686 | 670 | 174.7 |
| D | 13 | 104 | 106514 | 605.83 | 686 | 670 | 174.7 |
| D | 2 | 152 | 58339 | 330.09 | 686 | 670 | 174.7 |

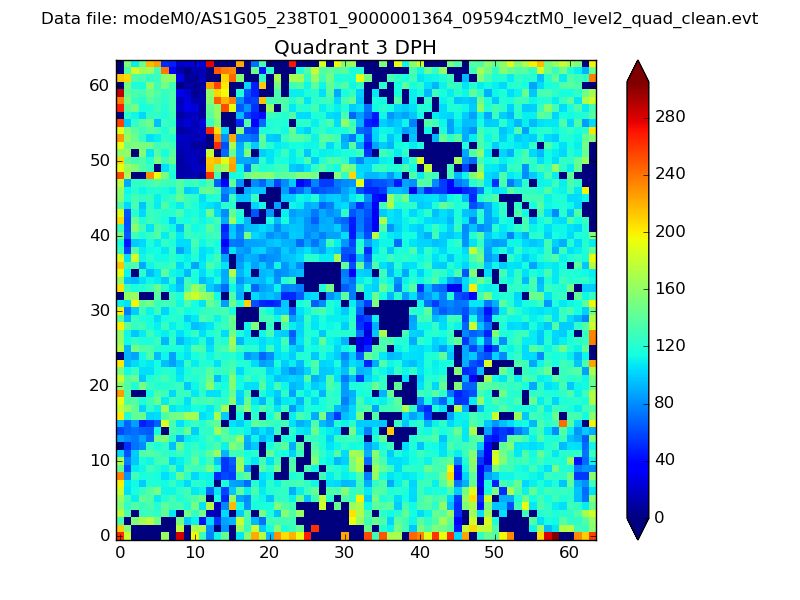

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

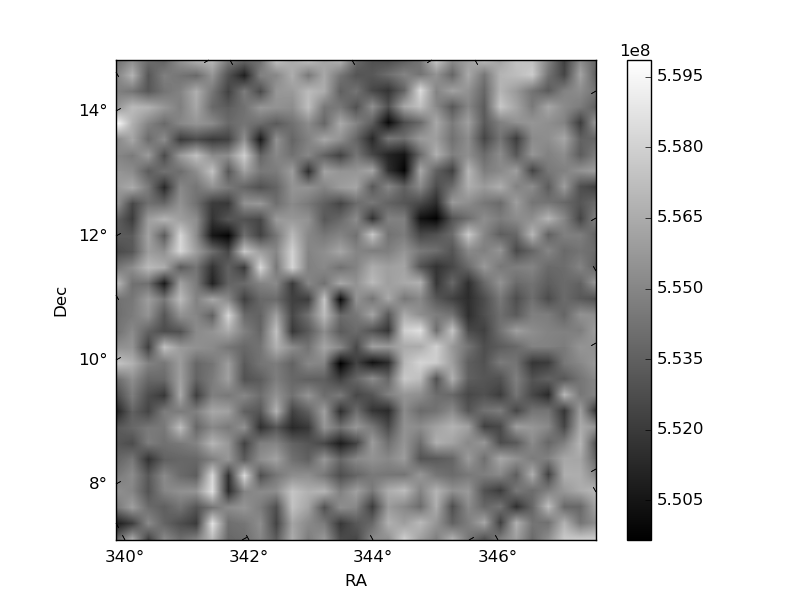

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

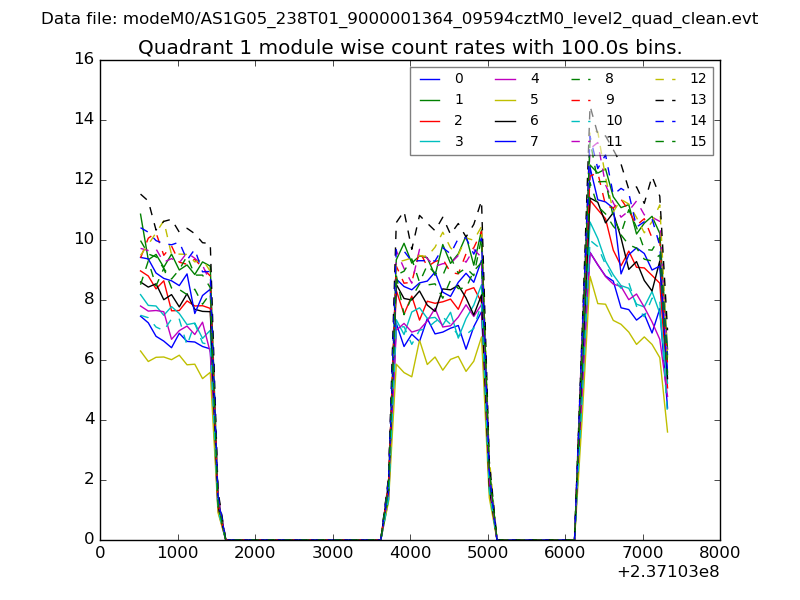

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

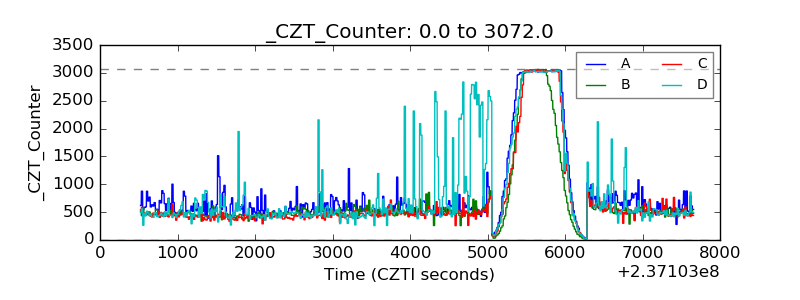

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

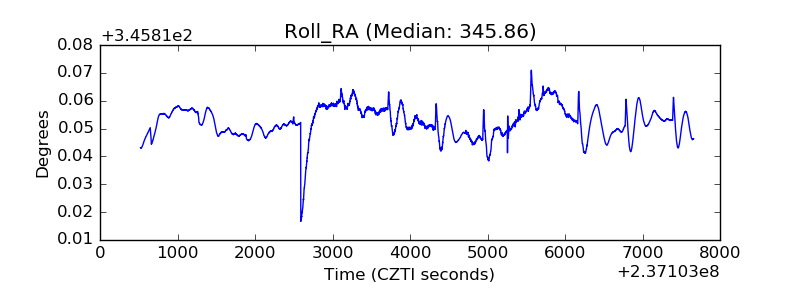

| _Roll_RA |  |

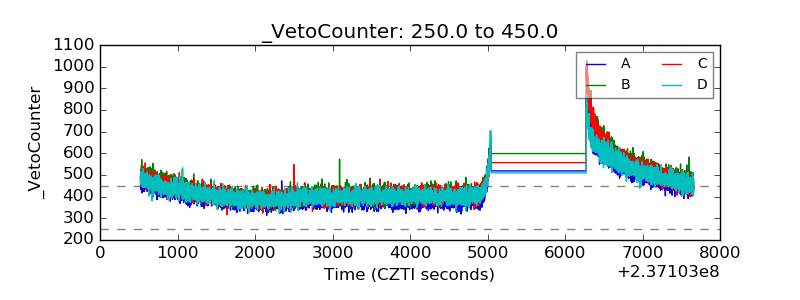

| Veto Counter |  |
