| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T01_9000001364_09595cztM0_level2.evt | modeM0/AS1G05_238T01_9000001364_09595cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,720,320 | 77,918,400 |
| Size | 485.2 MB | 74.3 MB |
| Events in quadrant A | 3,859,688 | 494,109 |
| Events in quadrant B | 3,245,990 | 499,275 |
| Events in quadrant C | 4,011,010 | 468,944 |
| Events in quadrant D | 3,867,885 | 462,517 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15627 | 2 |
| B | 0 | 13217 | 1 |
| C | 0 | 15719 | 1 |
| D | 0 | 15371 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6220 | 98 | 1.575563% |
| B | 6220 | 39 | 0.627010% |
| C | 6220 | 228 | 3.665595% |
| D | 6220 | 146 | 2.347267% |

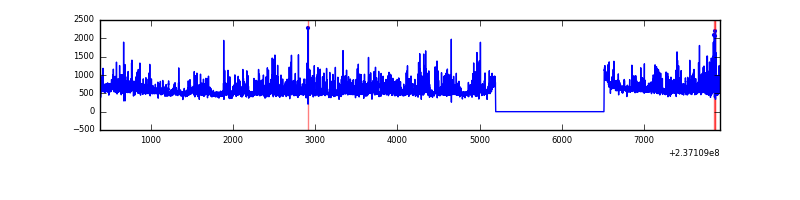

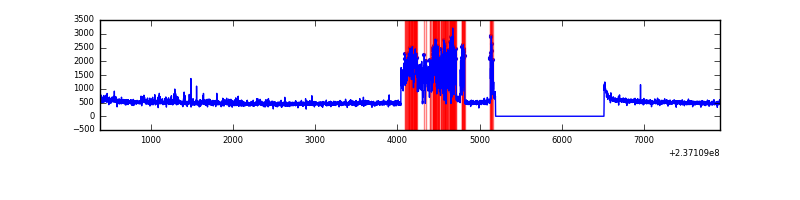

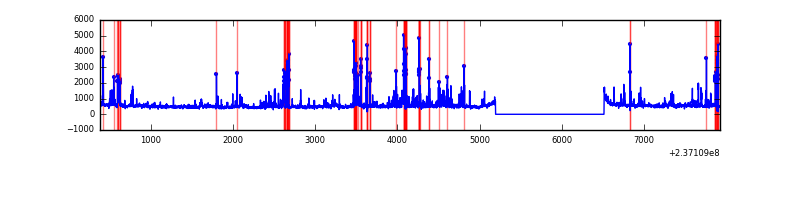

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7540 | 6221 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7540 | 6221 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7540 | 6221 | 172 | 172 | 2.28% | 2.76% |  |
| D | 7540 | 6221 | 100 | 100 | 1.33% | 1.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 275593 | 1670.69 | 818 | 803 | 164.5 |
| A | 1 | 178 | 143396 | 866.95 | 818 | 803 | 164.5 |
| A | 1 | 161 | 136789 | 826.78 | 818 | 803 | 164.5 |
| B | 4 | 173 | 50741 | 326.35 | 811 | 795 | 153.0 |
| B | 3 | 209 | 20225 | 126.96 | 811 | 795 | 153.0 |
| B | 12 | 111 | 16613 | 103.35 | 811 | 795 | 153.0 |
| C | 9 | 68 | 999584 | 5594.39 | 771 | 776 | 178.5 |
| C | 13 | 61 | 5882 | 28.6 | 771 | 776 | 178.5 |
| C | 14 | 67 | 3204 | 13.6 | 771 | 776 | 178.5 |
| D | 1 | 52 | 532227 | 2664.39 | 778 | 761 | 199.5 |
| D | 13 | 122 | 135191 | 673.94 | 778 | 761 | 199.5 |
| D | 12 | 227 | 58589 | 289.91 | 778 | 761 | 199.5 |

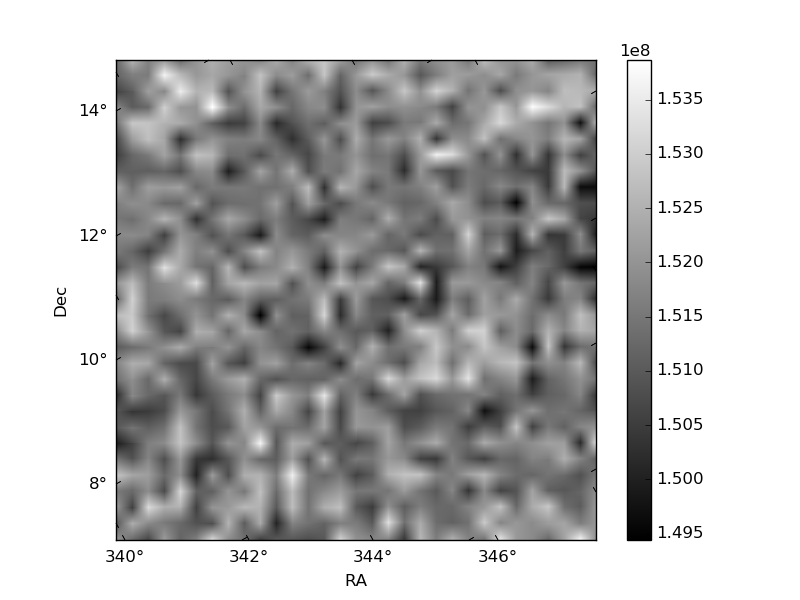

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

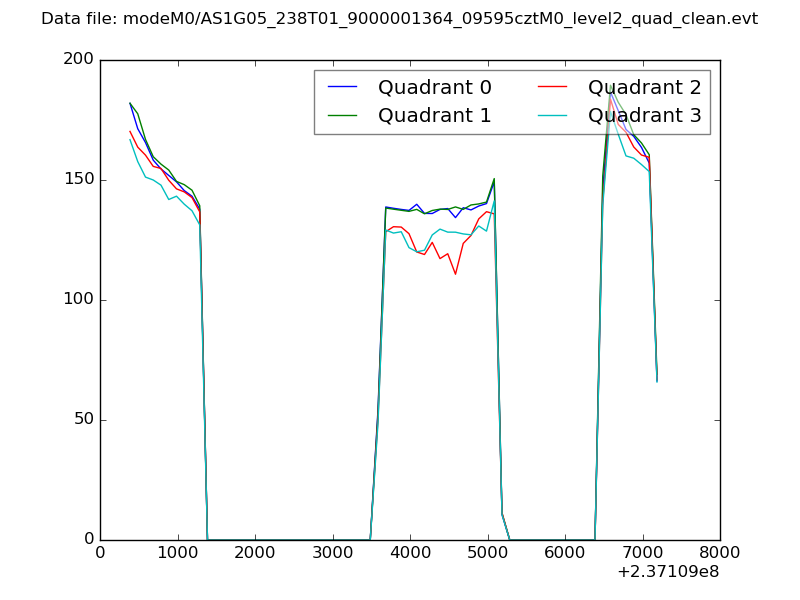

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

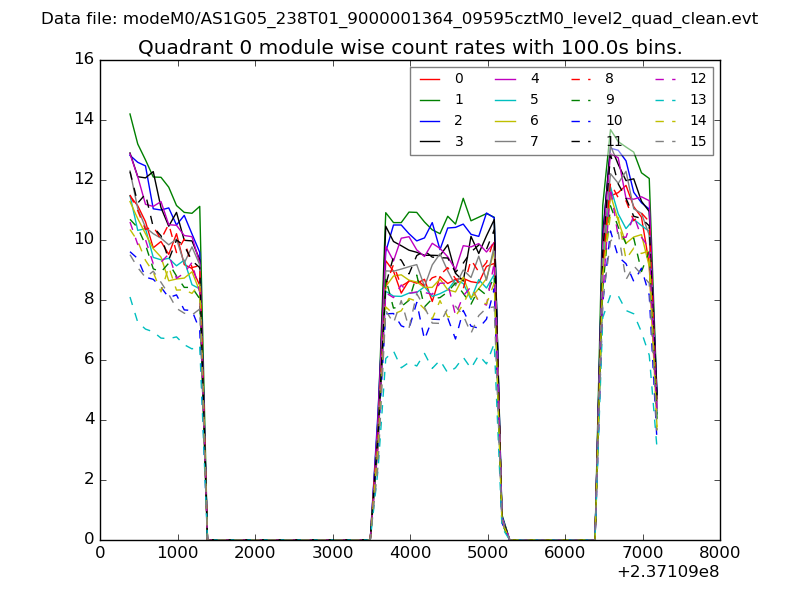

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

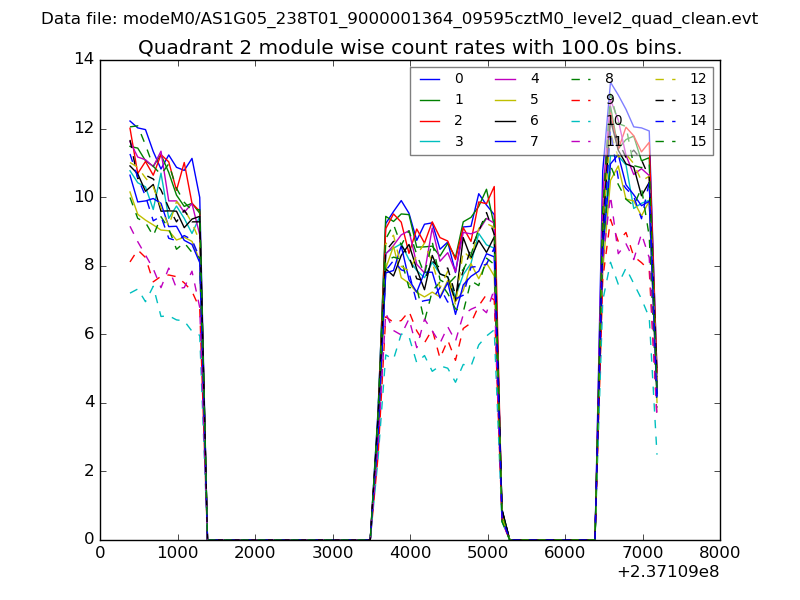

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

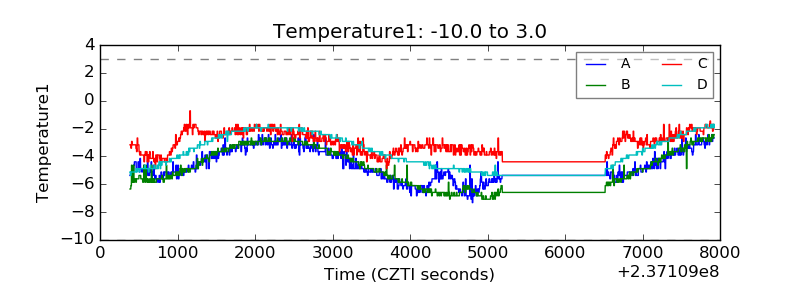

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
