| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T01_9000001364_09611cztM0_level2.evt | modeM0/AS1G05_238T01_9000001364_09611cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,845,120 | 64,252,800 |
| Size | 436.6 MB | 61.3 MB |
| Events in quadrant A | 3,194,049 | 387,829 |
| Events in quadrant B | 3,313,677 | 384,712 |
| Events in quadrant C | 3,063,510 | 374,346 |
| Events in quadrant D | 3,873,124 | 365,326 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12957 | 2 |
| B | 0 | 13376 | 1 |
| C | 0 | 12786 | 1 |
| D | 0 | 15515 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6204 | 131 | 2.111541% |
| B | 6204 | 145 | 2.337202% |
| C | 6204 | 77 | 1.241135% |
| D | 6204 | 160 | 2.578981% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

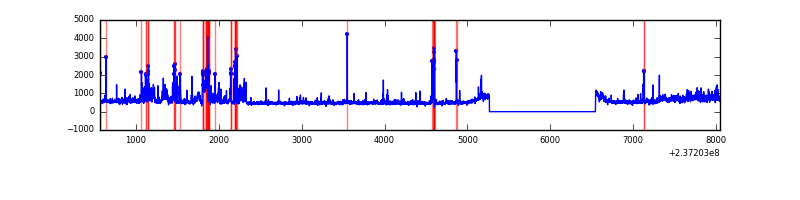

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7484 | 6205 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7484 | 6205 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7484 | 6205 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7484 | 6205 | 61 | 61 | 0.82% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 12410 | 69.84 | 827 | 812 | 166.1 |
| A | 0 | 226 | 7889 | 42.62 | 827 | 812 | 166.1 |
| A | 12 | 194 | 6768 | 35.87 | 827 | 812 | 166.1 |
| B | 0 | 214 | 55842 | 357.64 | 816 | 798 | 153.9 |
| B | 15 | 85 | 29663 | 187.55 | 816 | 798 | 153.9 |
| B | 10 | 252 | 29363 | 185.6 | 816 | 798 | 153.9 |
| C | 13 | 61 | 5863 | 28.02 | 785 | 790 | 181.0 |
| C | 3 | 202 | 1993 | 6.64 | 785 | 790 | 181.0 |
| C | 3 | 203 | 1730 | 5.19 | 785 | 790 | 181.0 |
| D | 13 | 122 | 312430 | 1550.18 | 792 | 775 | 201.0 |
| D | 1 | 52 | 307288 | 1524.6 | 792 | 775 | 201.0 |
| D | 10 | 199 | 103360 | 510.26 | 792 | 775 | 201.0 |

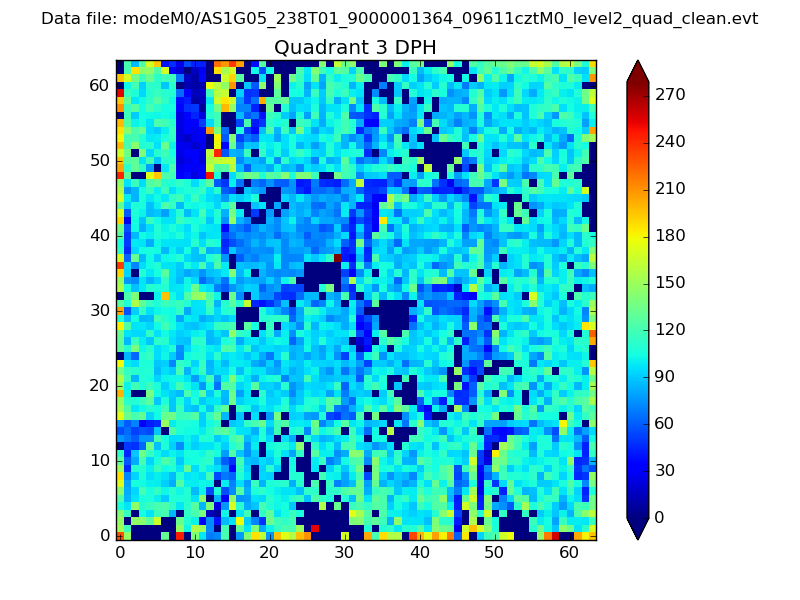

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

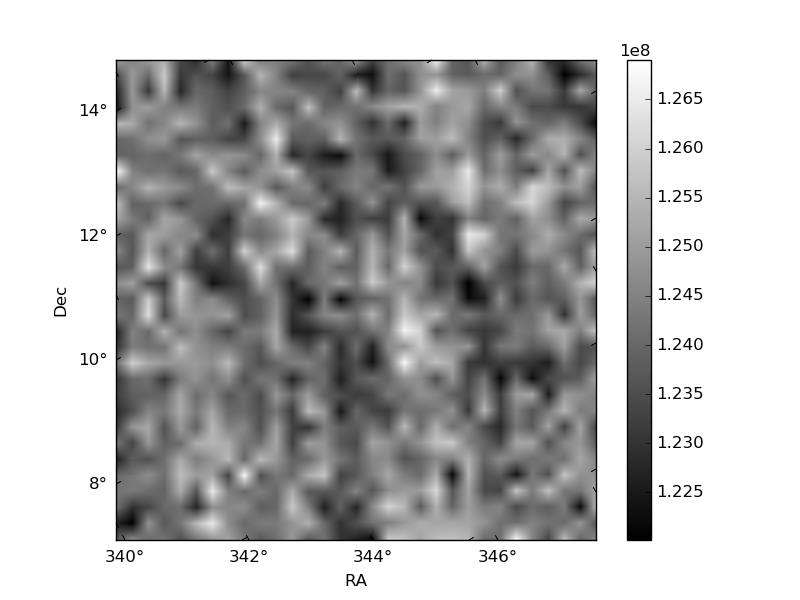

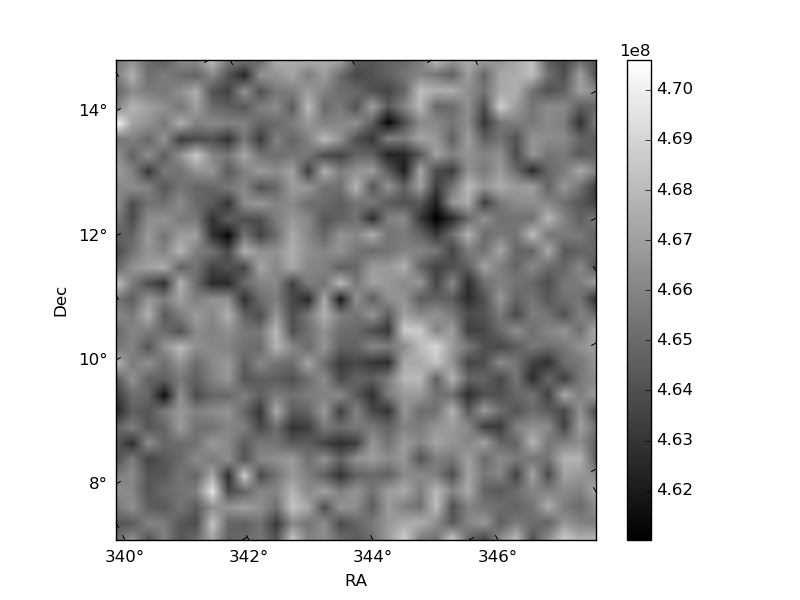

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

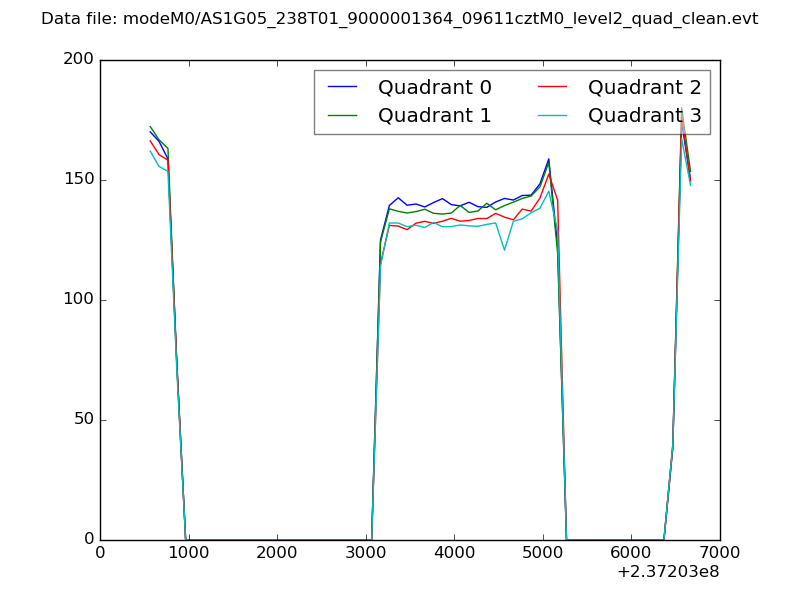

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

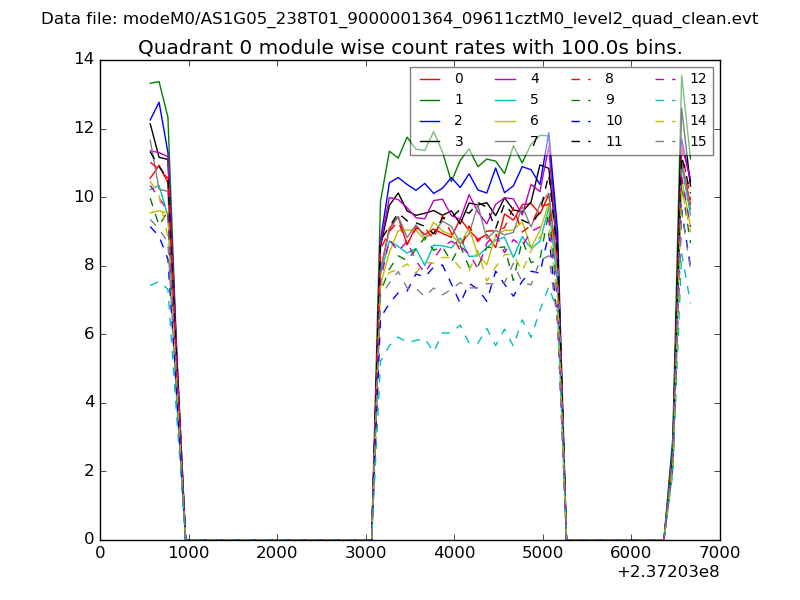

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

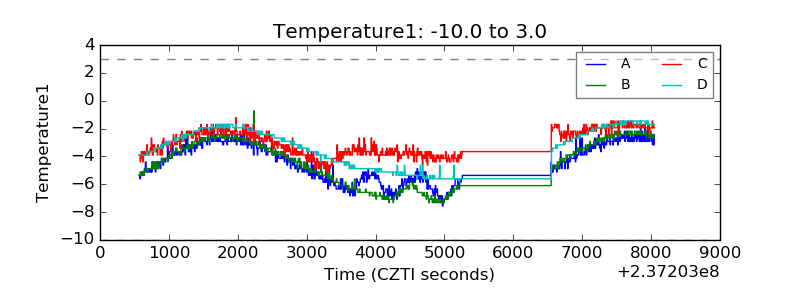

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

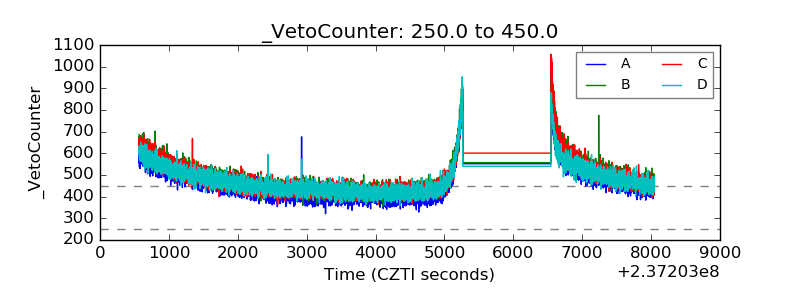

| Veto Counter |  |
