| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T01_9000001364_09613cztM0_level2.evt | modeM0/AS1G05_238T01_9000001364_09613cztM0_level2_quad_clean.evt |
| Size (bytes) | 215,930,880 | 38,926,080 |
| Size | 205.9 MB | 37.1 MB |
| Events in quadrant A | 1,528,226 | 249,652 |
| Events in quadrant B | 1,568,804 | 247,185 |
| Events in quadrant C | 1,492,861 | 240,467 |
| Events in quadrant D | 1,739,361 | 223,657 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13448 | 6976 |
| B | 0 | 13894 | 7311 |
| C | 0 | 13368 | 6909 |
| D | 0 | 15890 | 8884 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 133 | 65 |
| B | 0 | 132 | 66 |
| C | 0 | 135 | 71 |
| D | 0 | 132 | 69 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 3 |
| B | 0 | 12 | 5 |
| C | 0 | 12 | 5 |
| D | 0 | 10 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3079 | 90 | 2.923027% |
| B | 3050 | 87 | 2.852459% |
| C | 3077 | 75 | 2.437439% |
| D | 2910 | 84 | 2.886598% |

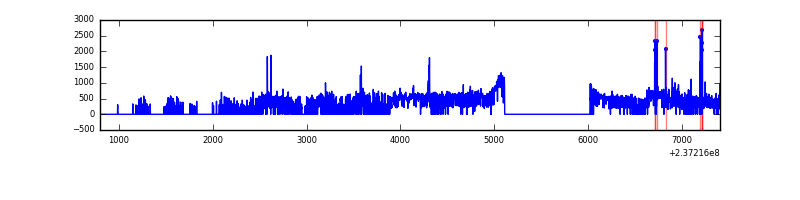

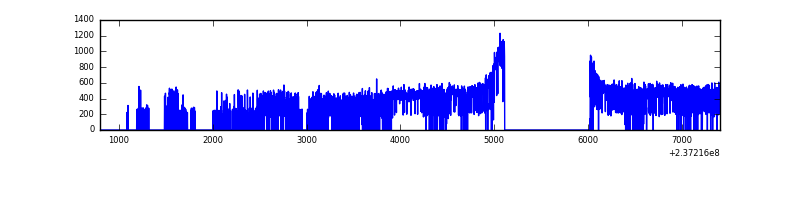

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

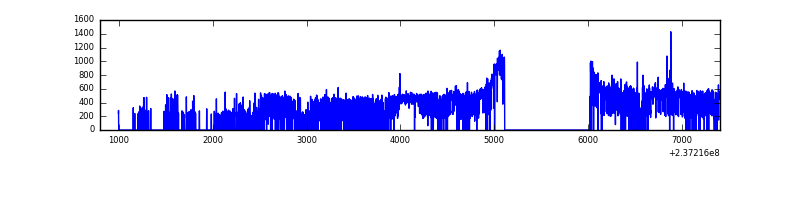

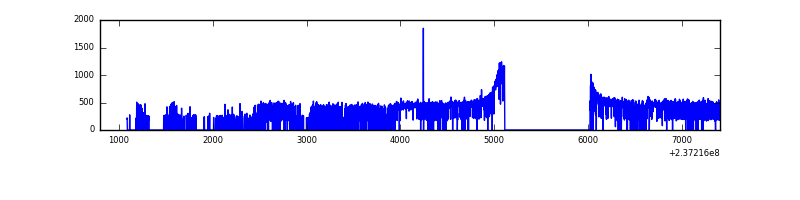

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6608 | 3888 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6410 | 3894 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6319 | 3927 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6608 | 3717 | 8 | 8 | 0.12% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 3653 | 39.55 | 396 | 388 | 82.6 |
| A | 12 | 194 | 3253 | 34.7 | 396 | 388 | 82.6 |
| A | 3 | 137 | 1749 | 16.49 | 396 | 388 | 82.6 |
| B | 0 | 214 | 26103 | 329.35 | 390 | 381 | 78.1 |
| B | 4 | 80 | 12581 | 156.21 | 390 | 381 | 78.1 |
| B | 12 | 111 | 8626 | 105.57 | 390 | 381 | 78.1 |
| C | 13 | 61 | 2940 | 27.94 | 382 | 384 | 91.5 |
| C | 14 | 234 | 2756 | 25.92 | 382 | 384 | 91.5 |
| C | 3 | 202 | 908 | 5.73 | 382 | 384 | 91.5 |
| D | 13 | 122 | 203698 | 2171.42 | 361 | 352 | 93.6 |
| D | 6 | 240 | 56105 | 595.36 | 361 | 352 | 93.6 |
| D | 12 | 227 | 45206 | 478.97 | 361 | 352 | 93.6 |

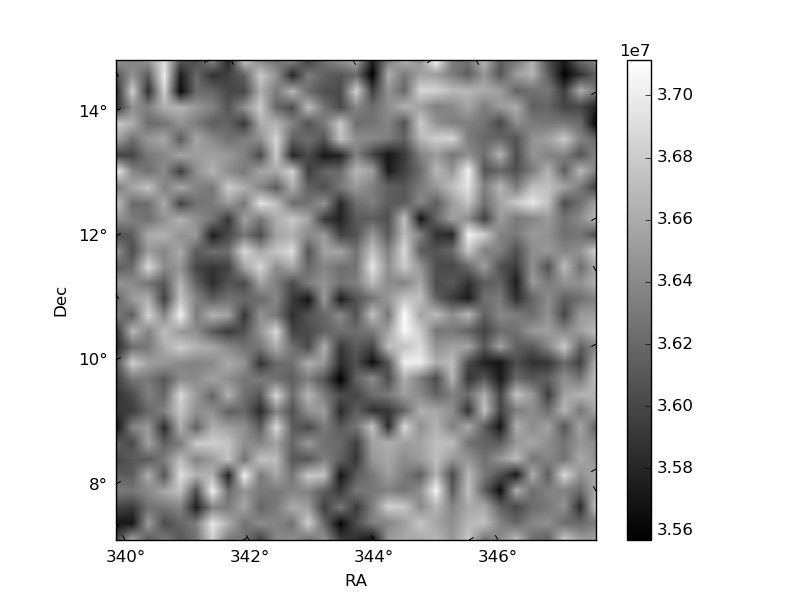

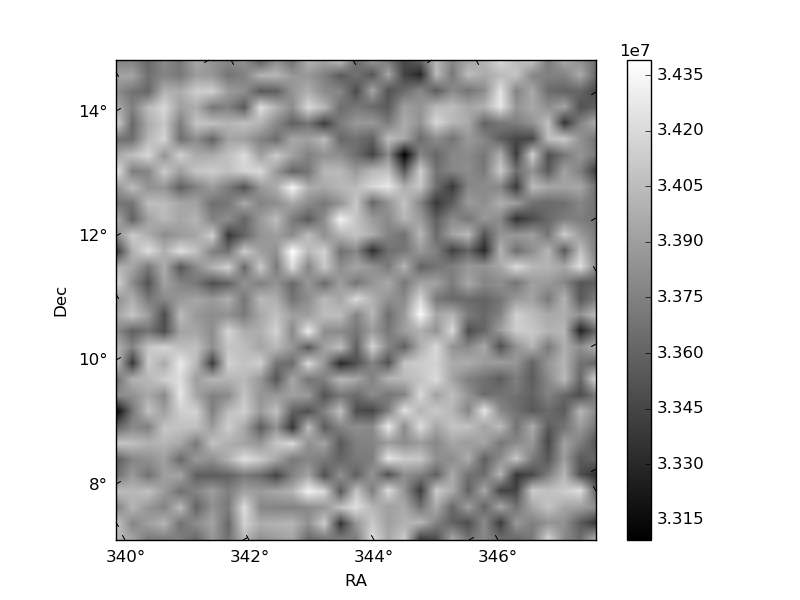

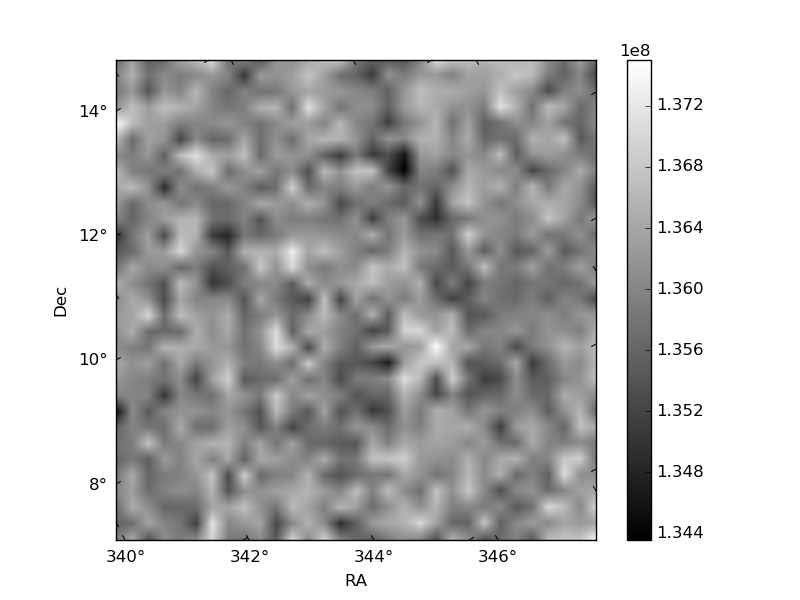

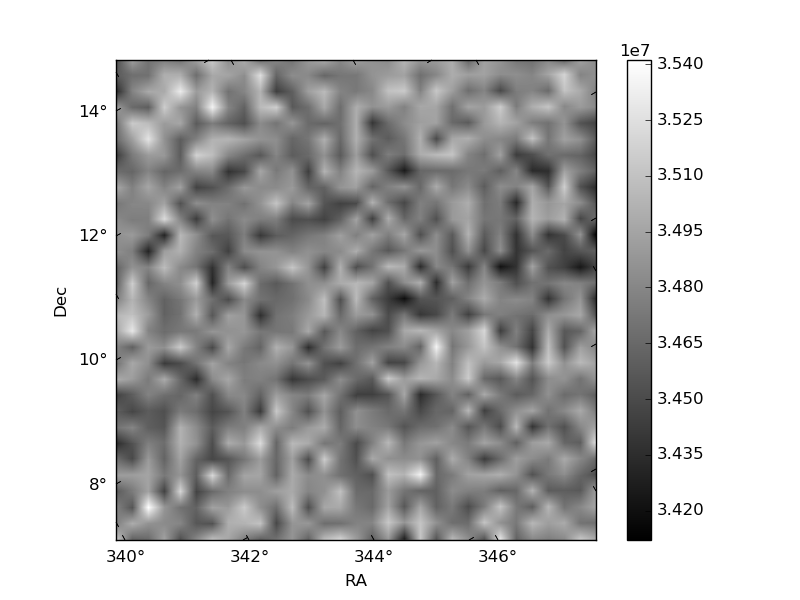

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

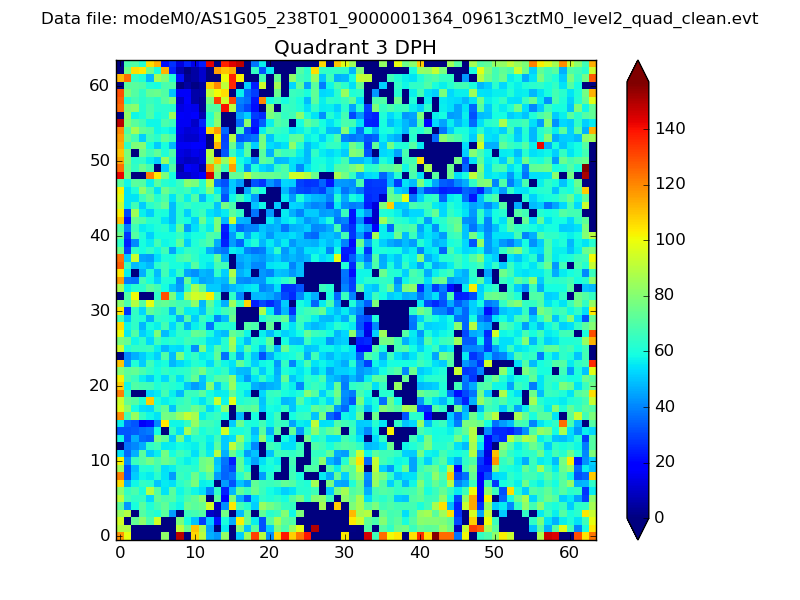

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

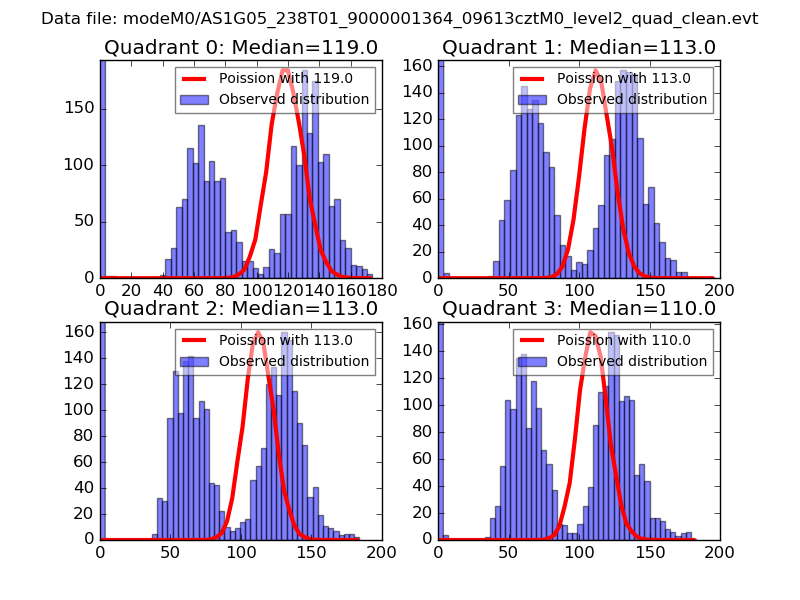

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

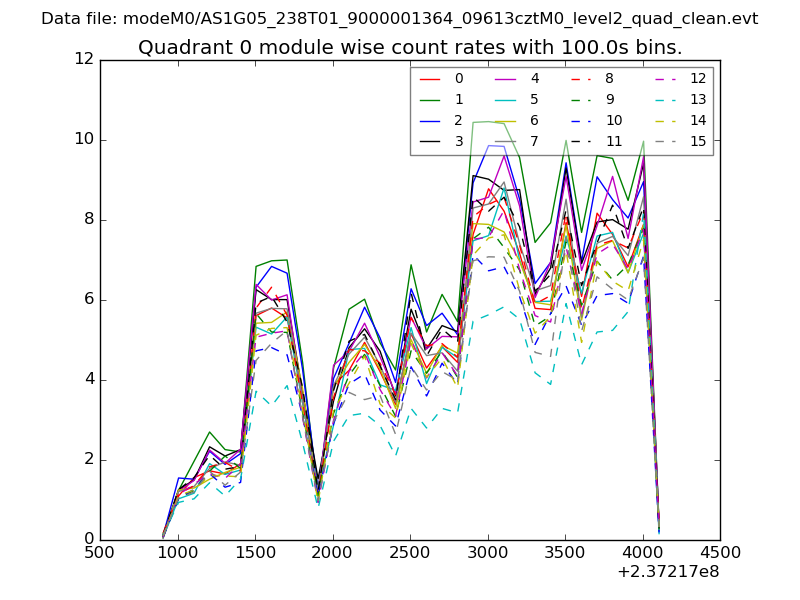

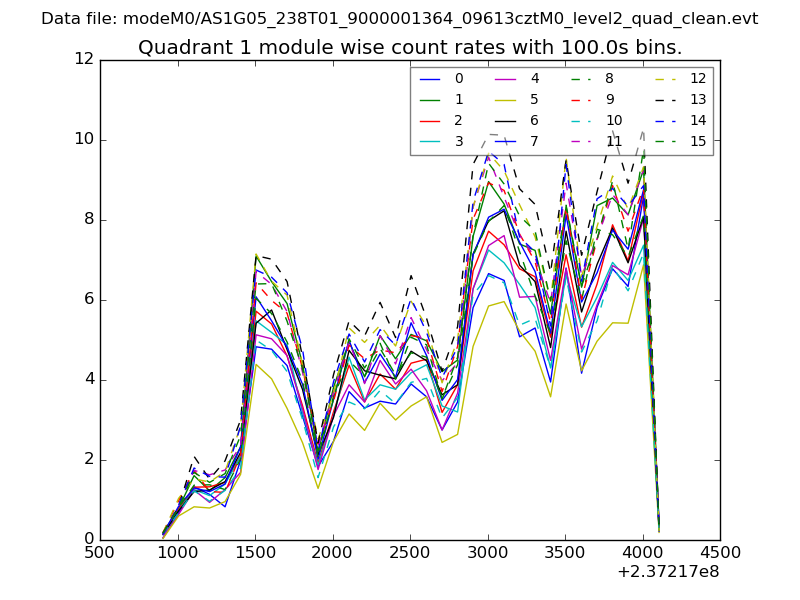

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

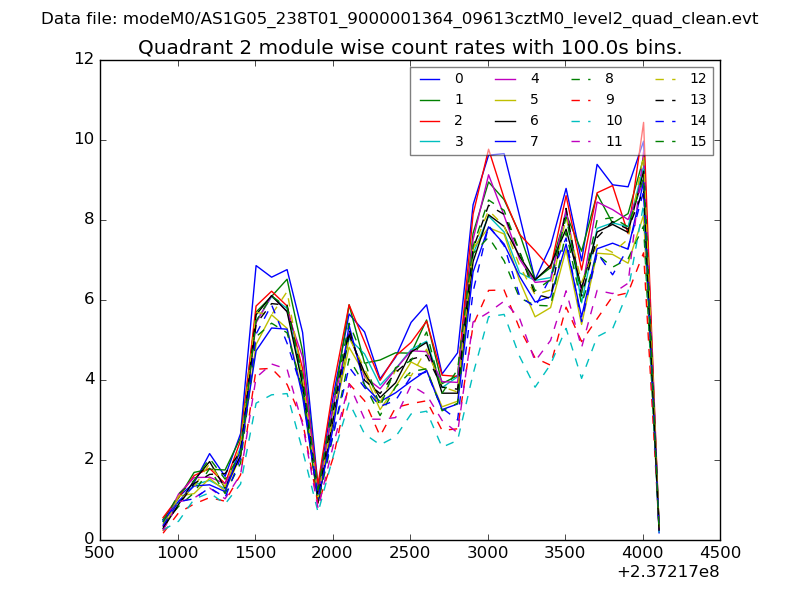

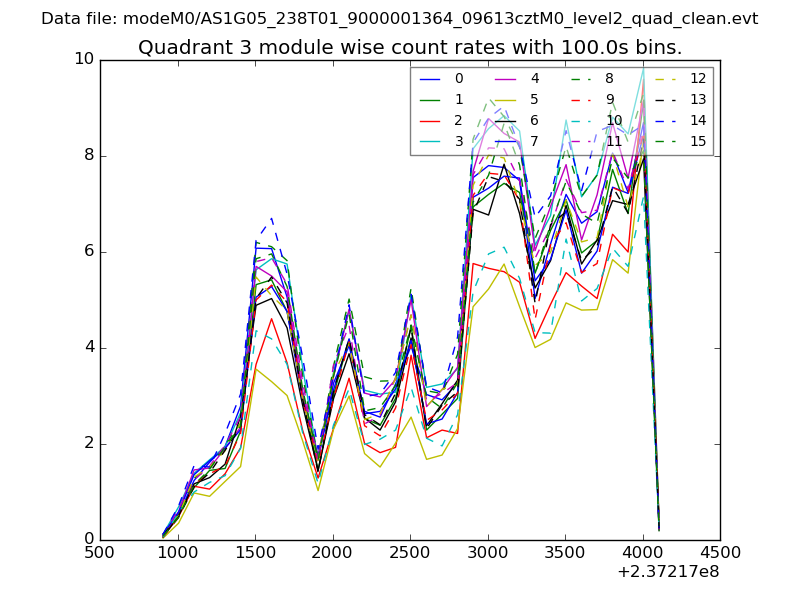

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

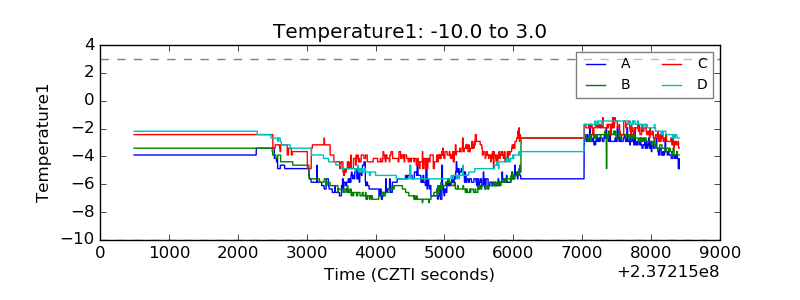

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

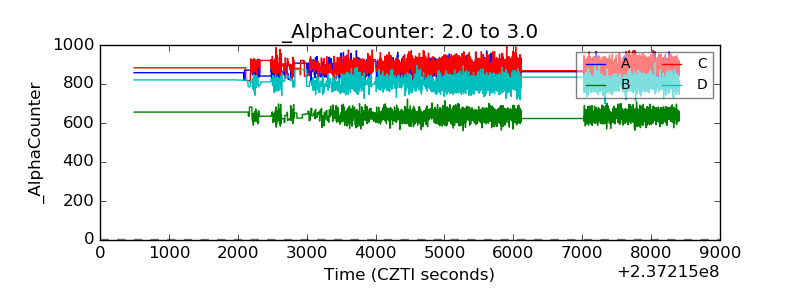

| Alpha Counter |  |
| _CPM_Rate |  |

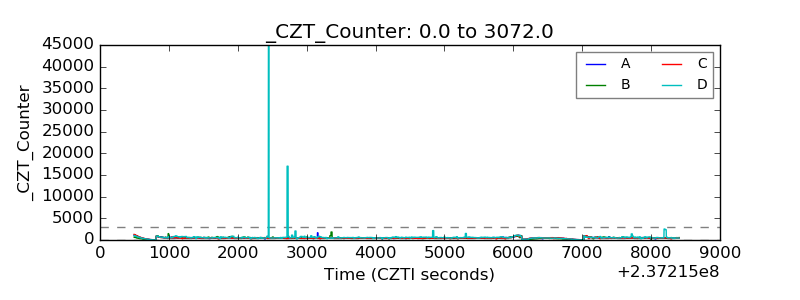

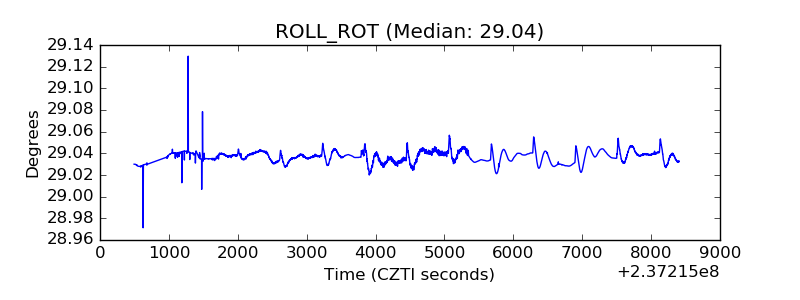

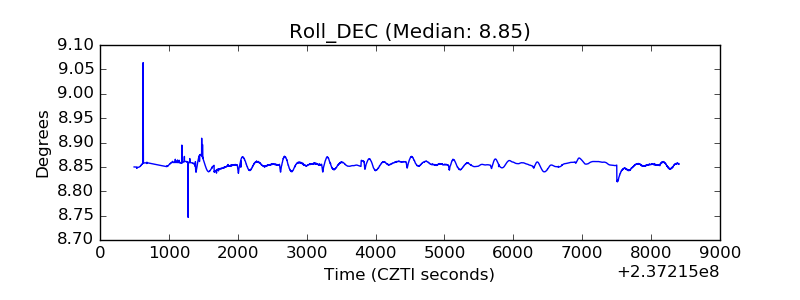

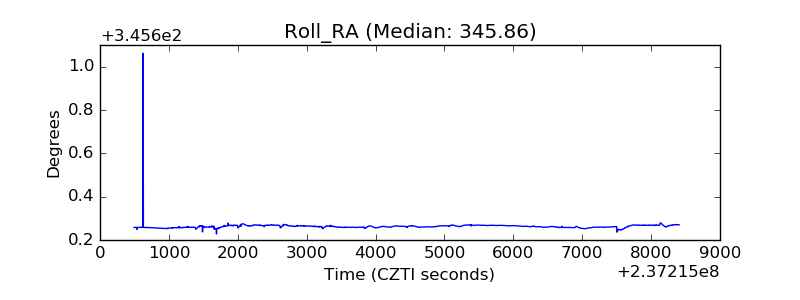

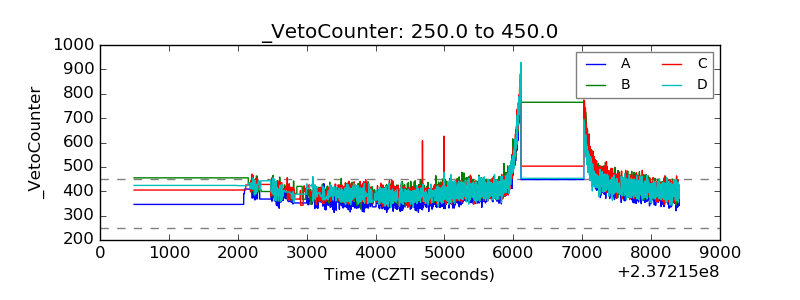

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
