| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T01_9000001364_09619cztM0_level2.evt | modeM0/AS1G05_238T01_9000001364_09619cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,740,160 | 68,423,040 |
| Size | 404.1 MB | 65.3 MB |
| Events in quadrant A | 2,974,905 | 425,217 |
| Events in quadrant B | 3,082,035 | 420,001 |
| Events in quadrant C | 2,881,650 | 403,046 |
| Events in quadrant D | 3,470,331 | 389,882 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15695 | 2659 |
| B | 0 | 16189 | 3014 |
| C | 0 | 15549 | 2743 |
| D | 0 | 17778 | 3320 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 153 | 17 |
| B | 0 | 154 | 14 |
| C | 0 | 154 | 24 |
| D | 0 | 154 | 26 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 1 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6249 | 95 | 1.520243% |
| B | 6142 | 134 | 2.181700% |
| C | 6192 | 97 | 1.566537% |
| D | 6134 | 149 | 2.429084% |

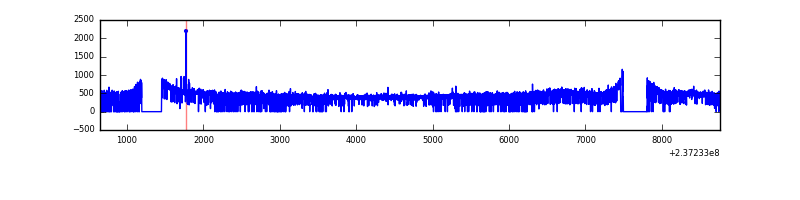

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8115 | 7172 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8117 | 7085 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8113 | 7132 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8113 | 7136 | 51 | 51 | 0.63% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 11259 | 66.89 | 768 | 750 | 157.1 |
| A | 0 | 226 | 7093 | 40.37 | 768 | 750 | 157.1 |
| A | 12 | 194 | 6372 | 35.78 | 768 | 750 | 157.1 |
| B | 0 | 214 | 60799 | 413.79 | 752 | 733 | 145.2 |
| B | 0 | 219 | 39592 | 267.7 | 752 | 733 | 145.2 |
| B | 4 | 80 | 27152 | 182.0 | 752 | 733 | 145.2 |
| C | 8 | 128 | 12196 | 67.15 | 731 | 734 | 170.7 |
| C | 8 | 112 | 5959 | 30.61 | 731 | 734 | 170.7 |
| C | 13 | 61 | 5713 | 29.17 | 731 | 734 | 170.7 |
| D | 1 | 52 | 309889 | 1756.28 | 722 | 704 | 176.0 |
| D | 13 | 122 | 198722 | 1124.82 | 722 | 704 | 176.0 |
| D | 13 | 105 | 59486 | 333.9 | 722 | 704 | 176.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

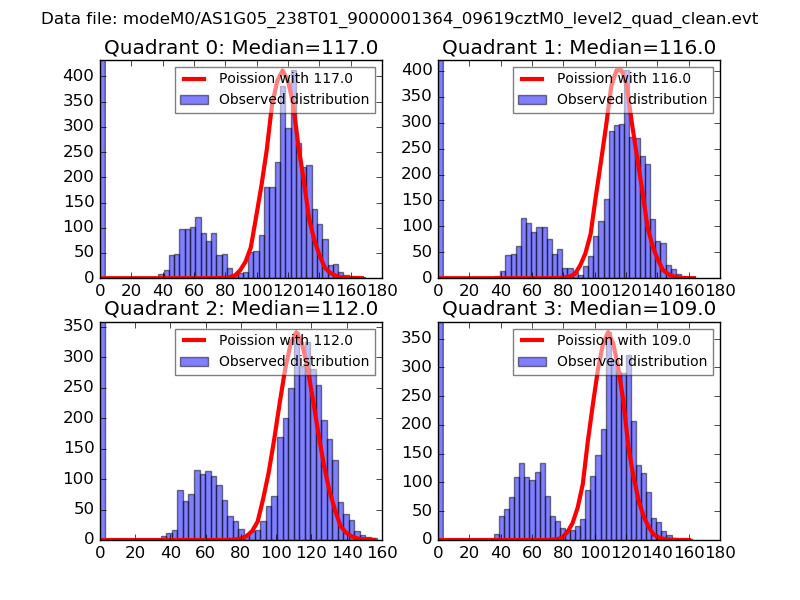

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

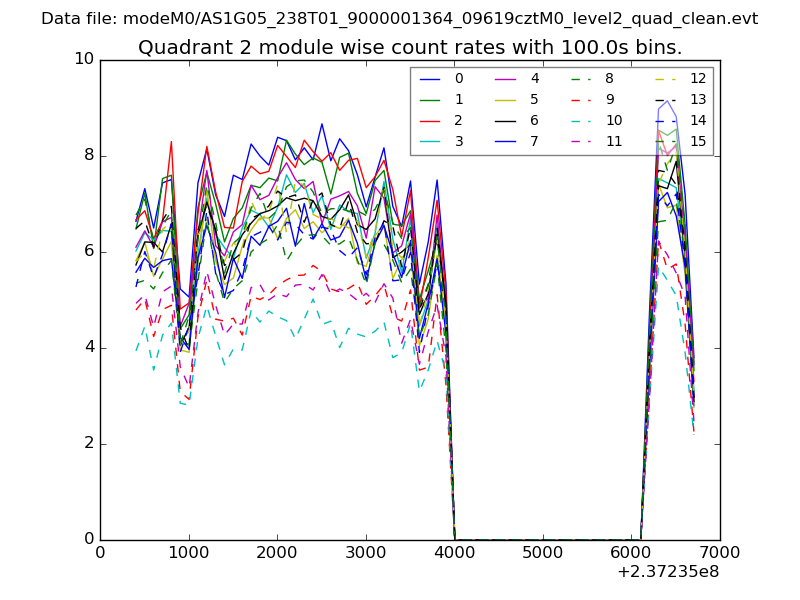

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

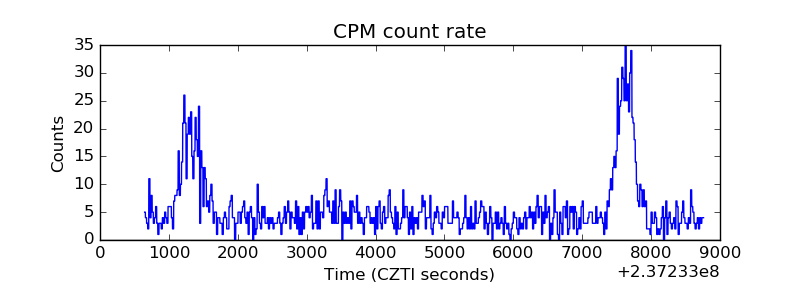

| _CPM_Rate |  |

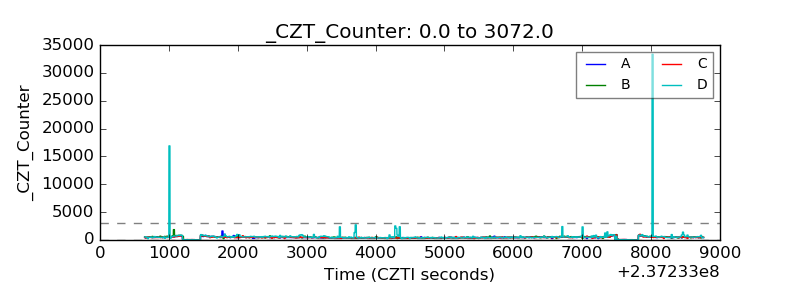

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

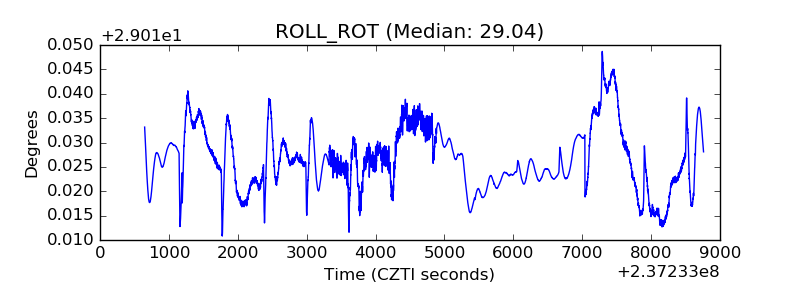

| _ROLL_ROT |  |

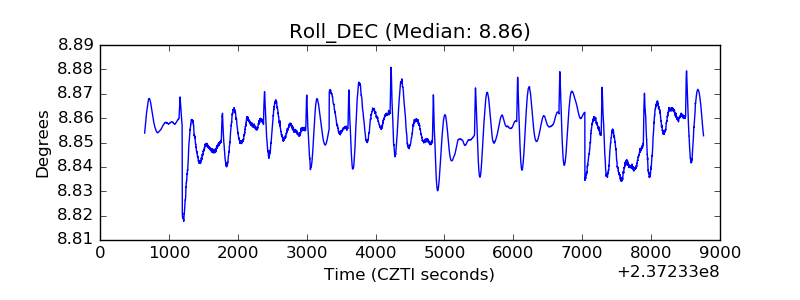

| _Roll_DEC |  |

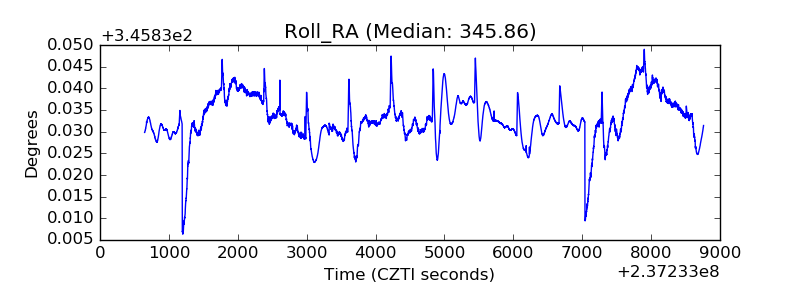

| _Roll_RA |  |
| Veto Counter |  |
