| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_033T01_9000001368_09624cztM0_level2.evt | modeM0/AS1A03_033T01_9000001368_09624cztM0_level2_quad_clean.evt |
| Size (bytes) | 117,187,200 | 32,253,120 |
| Size | 111.8 MB | 30.8 MB |
| Events in quadrant A | 746,017 | 222,964 |
| Events in quadrant B | 743,331 | 225,644 |
| Events in quadrant C | 705,969 | 217,386 |
| Events in quadrant D | 1,253,719 | 204,010 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3021 | 2 |
| B | 0 | 3027 | 1 |
| C | 0 | 2965 | 1 |
| D | 0 | 4645 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1433 | 22 | 1.535241% |
| B | 1433 | 28 | 1.953943% |
| C | 1433 | 17 | 1.186322% |
| D | 1433 | 112 | 7.815771% |

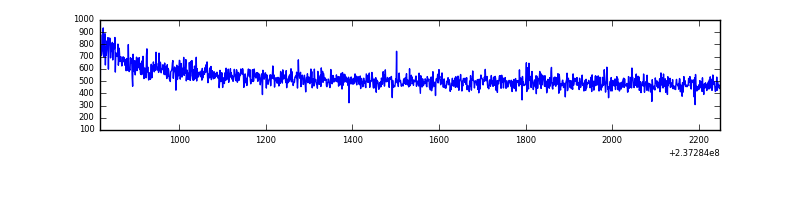

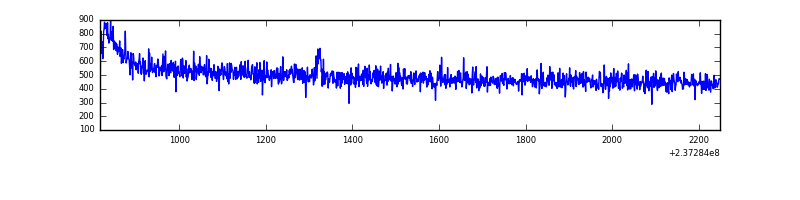

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1433 | 1433 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1433 | 1433 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1433 | 1433 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1433 | 1433 | 130 | 130 | 9.07% | 9.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 1819 | 39.7 | 193 | 190 | 41.0 |
| A | 12 | 194 | 1559 | 33.36 | 193 | 190 | 41.0 |
| A | 3 | 1 | 1454 | 30.8 | 193 | 190 | 41.0 |
| B | 12 | 111 | 3950 | 99.61 | 191 | 187 | 37.8 |
| B | 11 | 111 | 3135 | 78.04 | 191 | 187 | 37.8 |
| B | 14 | 111 | 2560 | 62.82 | 191 | 187 | 37.8 |
| C | 14 | 128 | 1769 | 37.31 | 180 | 181 | 42.6 |
| C | 13 | 61 | 1313 | 26.59 | 180 | 181 | 42.6 |
| C | 14 | 67 | 758 | 13.56 | 180 | 181 | 42.6 |
| D | 1 | 52 | 416000 | 8811.74 | 176 | 172 | 47.2 |
| D | 8 | 195 | 78317 | 1655.96 | 176 | 172 | 47.2 |
| D | 10 | 199 | 40256 | 849.41 | 176 | 172 | 47.2 |

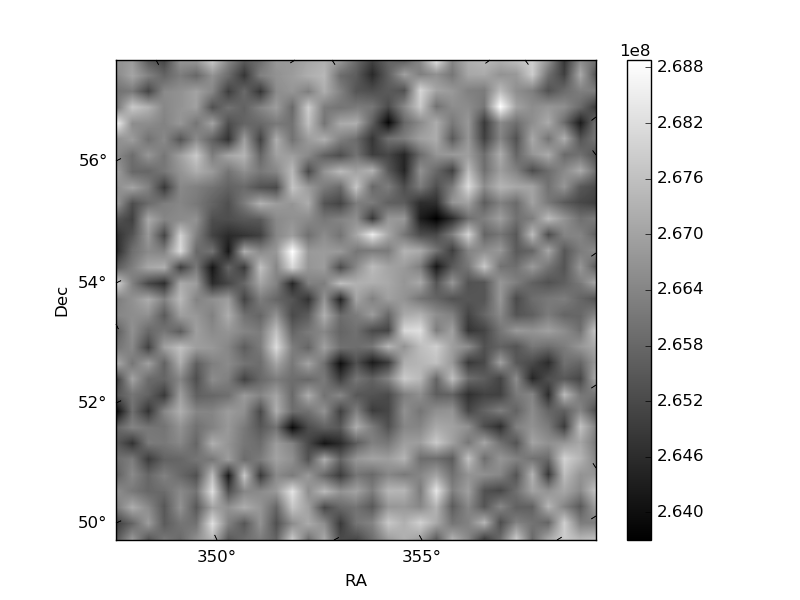

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

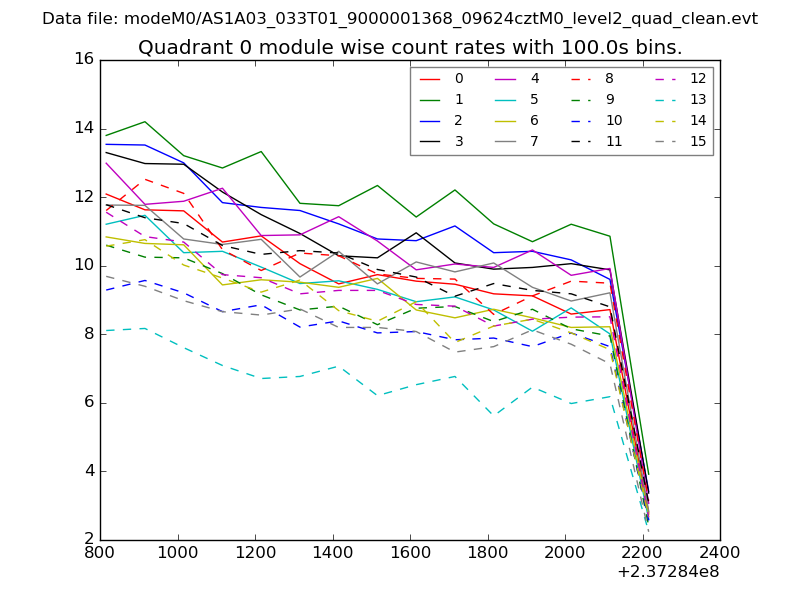

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

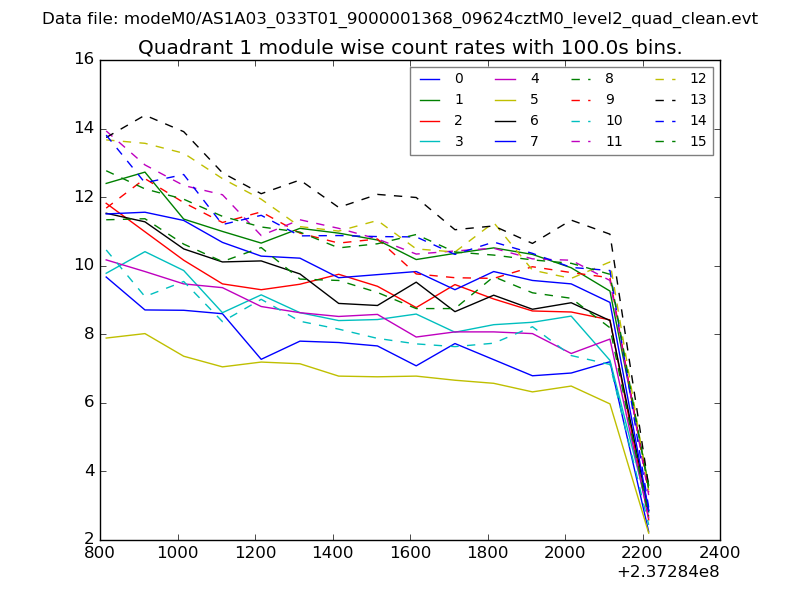

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

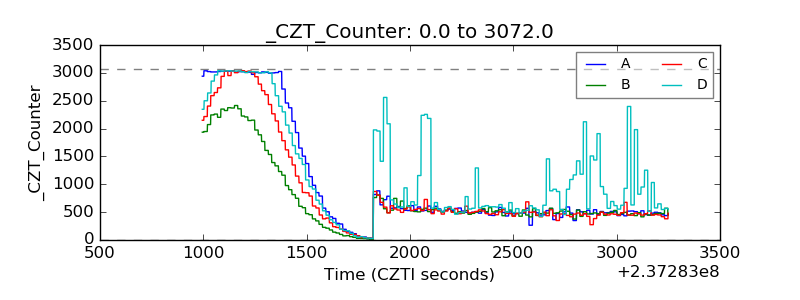

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

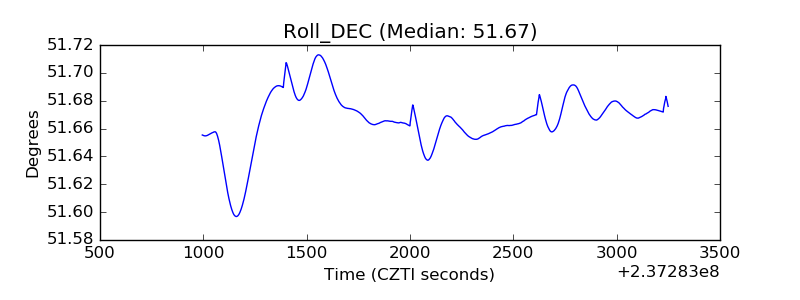

| _Roll_DEC |  |
| _Roll_RA |  |

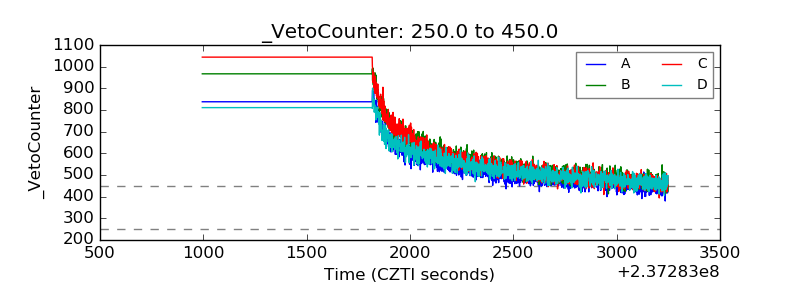

| Veto Counter |  |
