| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_077T01_9000001372_09637cztM0_level2.evt | modeM0/AS1A03_077T01_9000001372_09637cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,726,400 | 73,157,760 |
| Size | 411.7 MB | 69.8 MB |
| Events in quadrant A | 3,052,084 | 445,252 |
| Events in quadrant B | 3,243,322 | 445,073 |
| Events in quadrant C | 3,027,458 | 443,795 |
| Events in quadrant D | 3,314,764 | 432,367 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13216 | 3 |
| B | 0 | 13677 | 2 |
| C | 0 | 13226 | 4 |
| D | 0 | 13994 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6433 | 40 | 0.621794% |
| B | 6433 | 47 | 0.730608% |
| C | 6432 | 55 | 0.855100% |
| D | 6433 | 40 | 0.621794% |

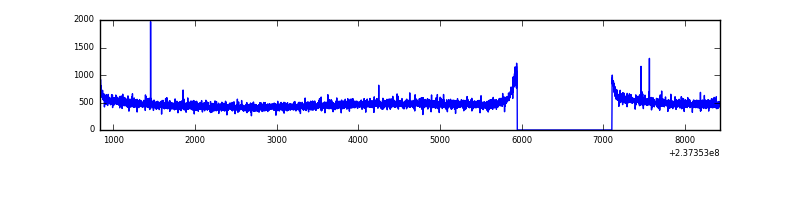

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7593 | 6434 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7593 | 6434 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7593 | 6433 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7593 | 6434 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 253 | 8441 | 47.55 | 791 | 776 | 161.2 |
| A | 0 | 226 | 7297 | 40.45 | 791 | 776 | 161.2 |
| A | 12 | 194 | 6260 | 34.02 | 791 | 776 | 161.2 |
| B | 0 | 219 | 59178 | 385.54 | 797 | 778 | 151.5 |
| B | 0 | 214 | 51731 | 336.38 | 797 | 778 | 151.5 |
| B | 0 | 229 | 26782 | 171.67 | 797 | 778 | 151.5 |
| C | 13 | 61 | 5642 | 27.06 | 774 | 778 | 179.7 |
| C | 14 | 67 | 5301 | 25.16 | 774 | 778 | 179.7 |
| C | 12 | 4 | 2952 | 12.09 | 774 | 778 | 179.7 |
| D | 8 | 195 | 225121 | 1208.37 | 765 | 749 | 185.7 |
| D | 7 | 71 | 52543 | 278.94 | 765 | 749 | 185.7 |
| D | 1 | 52 | 41233 | 218.03 | 765 | 749 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

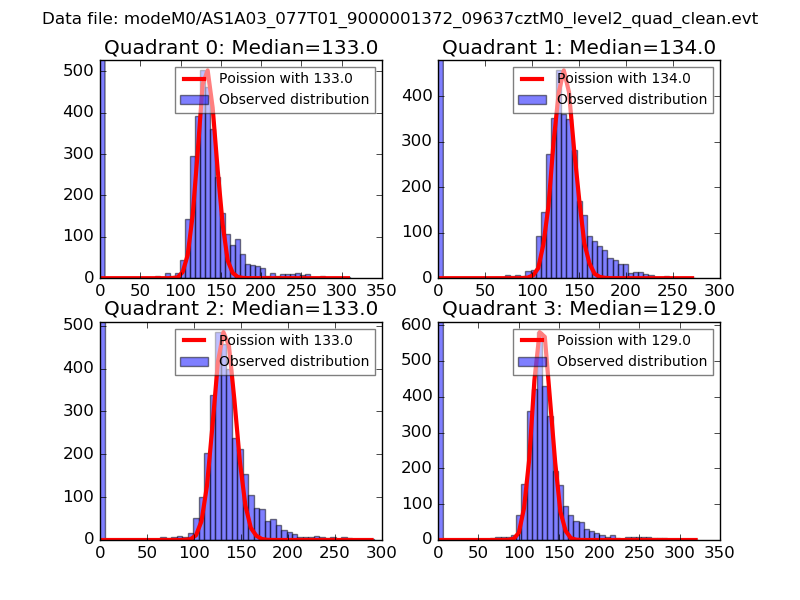

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

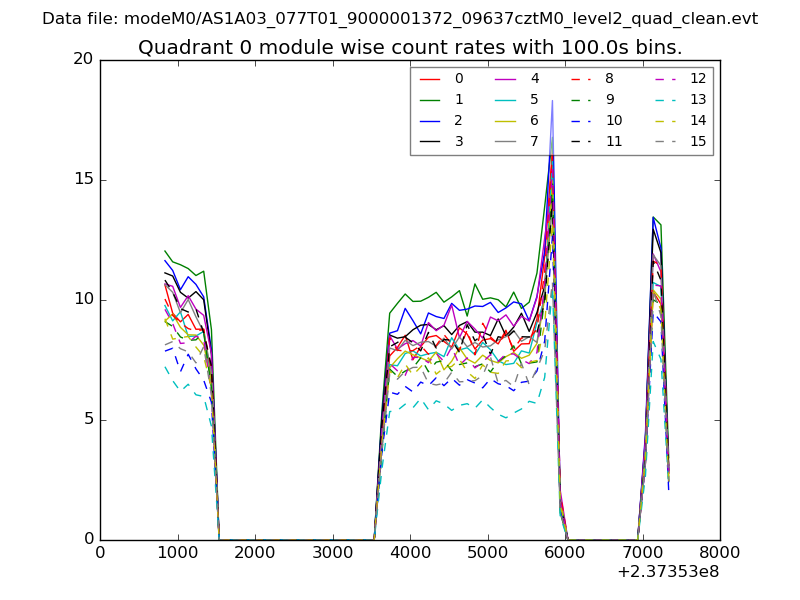

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

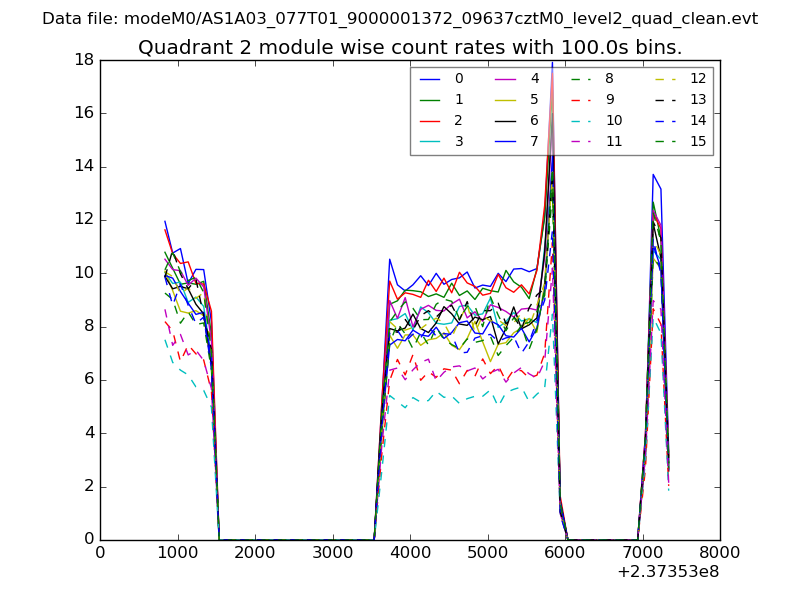

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

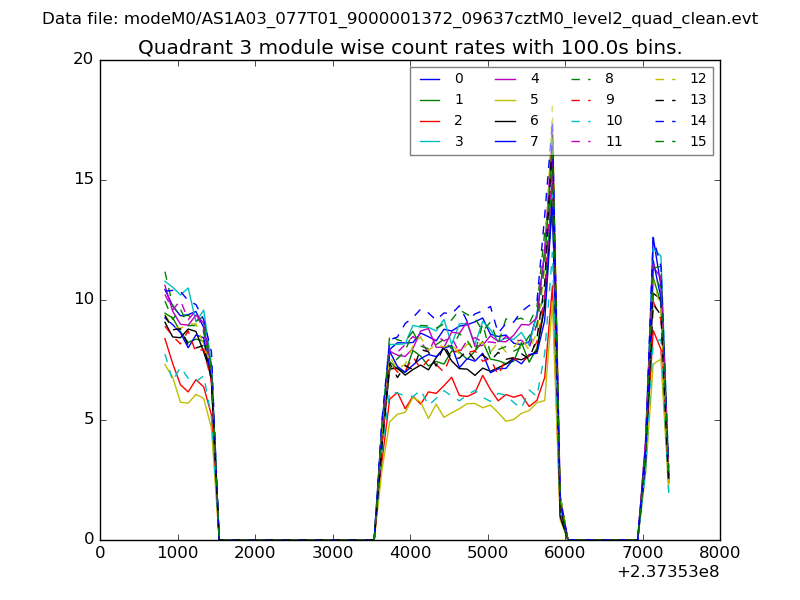

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

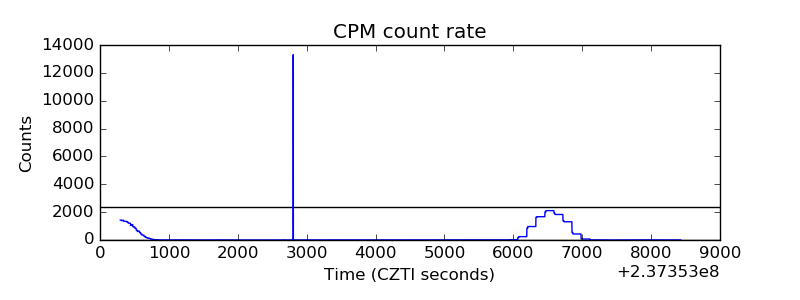

| _CPM_Rate |  |

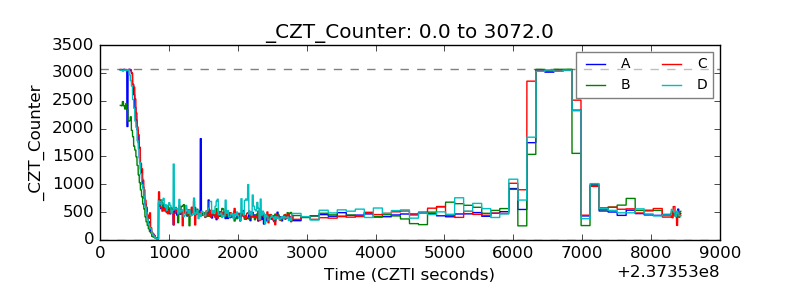

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

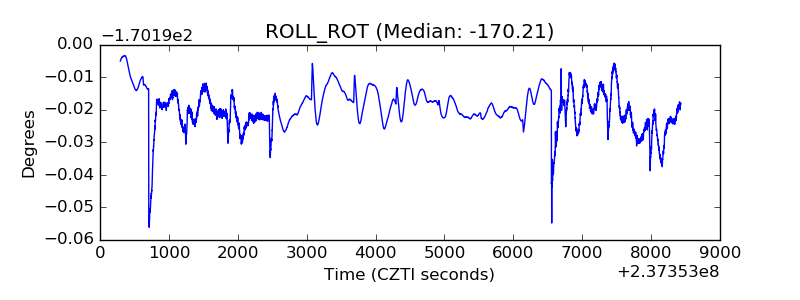

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
