| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_077T01_9000001372_09651cztM0_level2.evt | modeM0/AS1A03_077T01_9000001372_09651cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,789,440 | 84,346,560 |
| Size | 442.3 MB | 80.4 MB |
| Events in quadrant A | 3,243,240 | 523,581 |
| Events in quadrant B | 3,358,367 | 528,368 |
| Events in quadrant C | 3,161,298 | 521,029 |
| Events in quadrant D | 3,812,164 | 498,510 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14225 | 3 |
| B | 0 | 14349 | 2 |
| C | 0 | 14069 | 2 |
| D | 0 | 16209 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6921 | 35 | 0.505707% |
| B | 6921 | 18 | 0.260078% |
| C | 6921 | 10 | 0.144488% |
| D | 6921 | 84 | 1.213697% |

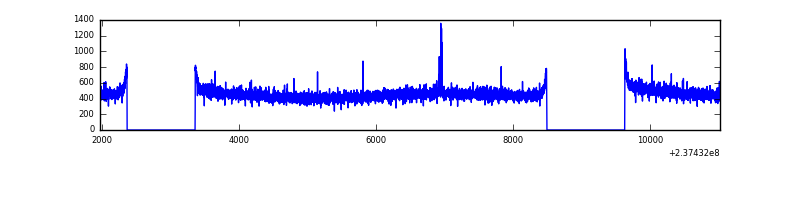

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9056 | 6923 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9056 | 6923 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9056 | 6923 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9056 | 6923 | 44 | 44 | 0.49% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 36493 | 211.59 | 827 | 810 | 168.6 |
| A | 15 | 174 | 17236 | 97.4 | 827 | 810 | 168.6 |
| A | 0 | 226 | 7565 | 40.05 | 827 | 810 | 168.6 |
| B | 0 | 214 | 38944 | 241.84 | 834 | 815 | 157.7 |
| B | 10 | 245 | 34456 | 213.38 | 834 | 815 | 157.7 |
| B | 0 | 229 | 21492 | 131.15 | 834 | 815 | 157.7 |
| C | 5 | 128 | 12418 | 61.65 | 807 | 812 | 188.3 |
| C | 13 | 61 | 6104 | 28.11 | 807 | 812 | 188.3 |
| C | 14 | 67 | 3397 | 13.73 | 807 | 812 | 188.3 |
| D | 1 | 52 | 582192 | 3017.8 | 794 | 773 | 192.7 |
| D | 7 | 71 | 86232 | 443.57 | 794 | 773 | 192.7 |
| D | 12 | 233 | 45988 | 234.68 | 794 | 773 | 192.7 |

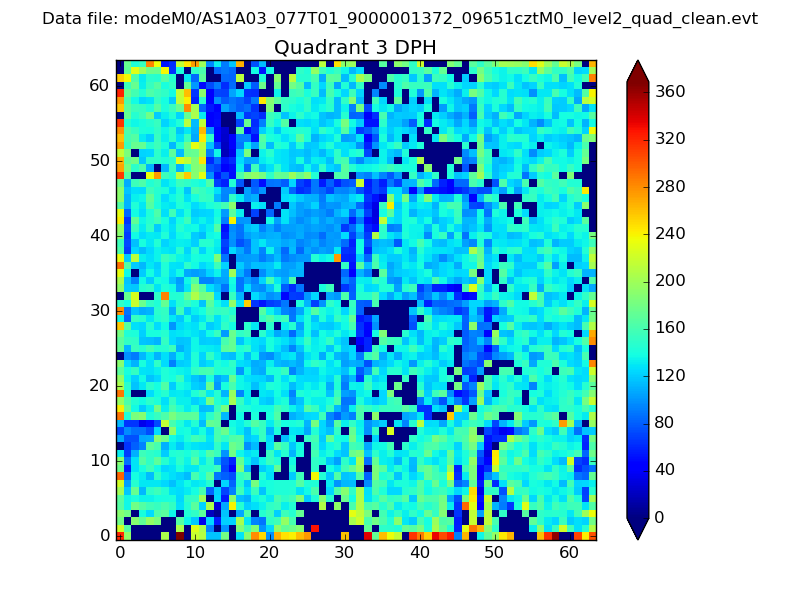

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

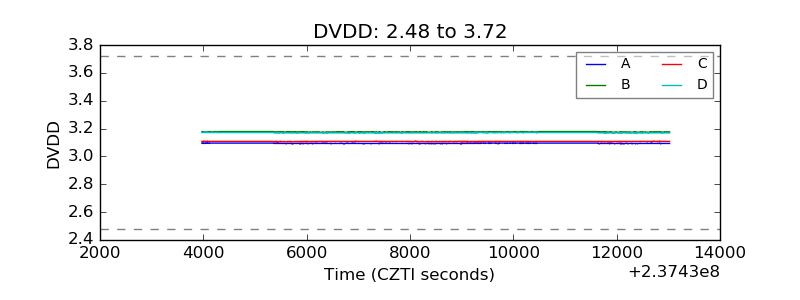

| D_VDD |  |

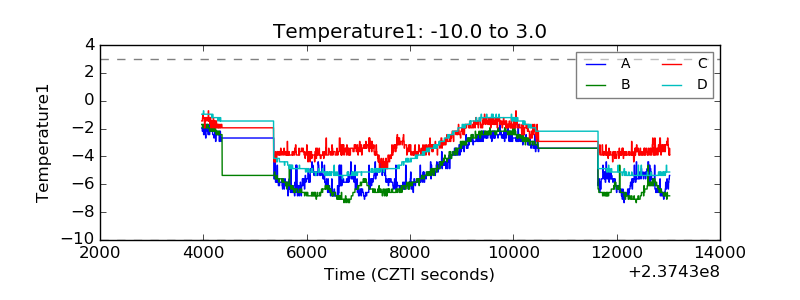

| Temperature 1 |  |
| Veto HV Monitor |  |

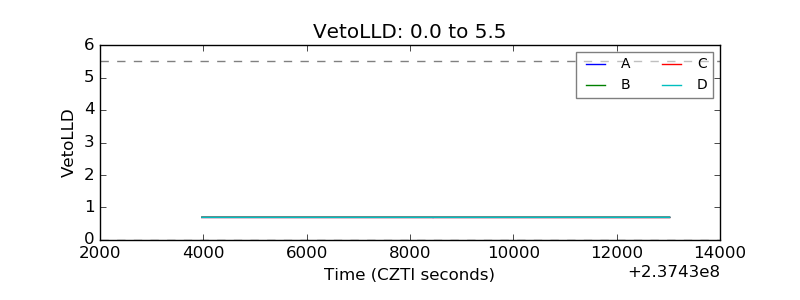

| Veto LLD |  |

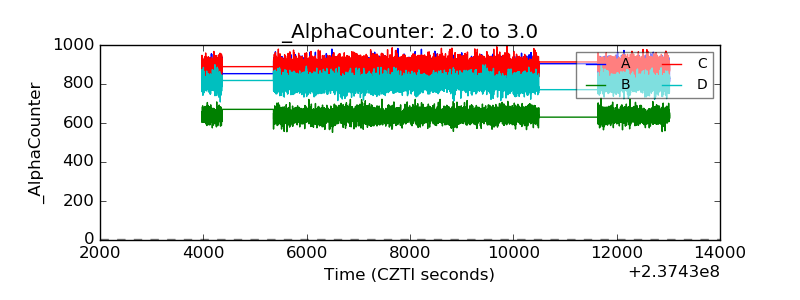

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

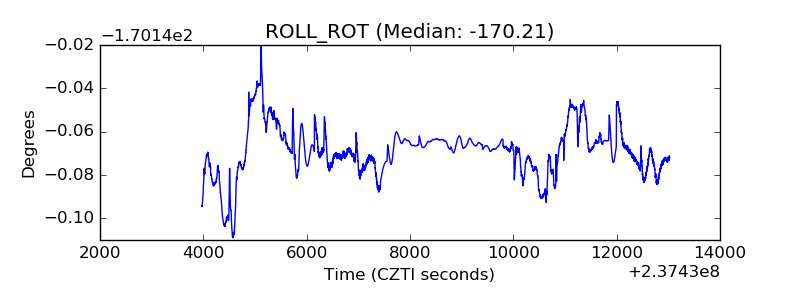

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
