| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_077T01_9000001372_09655cztM0_level2.evt | modeM0/AS1A03_077T01_9000001372_09655cztM0_level2_quad_clean.evt |
| Size (bytes) | 400,639,680 | 71,916,480 |
| Size | 382.1 MB | 68.6 MB |
| Events in quadrant A | 2,756,263 | 449,167 |
| Events in quadrant B | 2,847,797 | 456,302 |
| Events in quadrant C | 2,727,194 | 453,307 |
| Events in quadrant D | 3,425,622 | 431,949 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 14 |
| B | 0 | 27 | 12 |
| C | 0 | 27 | 13 |
| D | 0 | 28 | 11 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 226 | 120 |
| B | 0 | 226 | 110 |
| C | 0 | 226 | 114 |
| D | 0 | 226 | 112 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23408 | 11905 |
| B | 0 | 23697 | 12018 |
| C | 0 | 23479 | 11957 |
| D | 0 | 26762 | 13122 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5534 | 79 | 1.427539% |
| B | 5524 | 94 | 1.701665% |
| C | 5544 | 76 | 1.370851% |
| D | 5520 | 157 | 2.844203% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13826 | 5951 | 1 | 1 | 0.01% | 0.02% |  |
| B | 13826 | 5916 | 1 | 1 | 0.01% | 0.02% |  |
| C | 13826 | 5945 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13826 | 5908 | 67 | 67 | 0.48% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6786 | 42.01 | 714 | 699 | 144.9 |
| A | 15 | 174 | 5914 | 35.99 | 714 | 699 | 144.9 |
| A | 12 | 194 | 5900 | 35.9 | 714 | 699 | 144.9 |
| B | 0 | 214 | 52529 | 379.41 | 713 | 696 | 136.6 |
| B | 12 | 111 | 14467 | 100.8 | 713 | 696 | 136.6 |
| B | 10 | 252 | 13264 | 91.99 | 713 | 696 | 136.6 |
| C | 13 | 61 | 5336 | 28.98 | 698 | 700 | 160.0 |
| C | 14 | 67 | 4003 | 20.65 | 698 | 700 | 160.0 |
| C | 5 | 128 | 1873 | 7.33 | 698 | 700 | 160.0 |
| D | 1 | 52 | 613933 | 3739.61 | 687 | 670 | 164.0 |
| D | 12 | 233 | 56387 | 339.76 | 687 | 670 | 164.0 |
| D | 2 | 152 | 40181 | 240.93 | 687 | 670 | 164.0 |

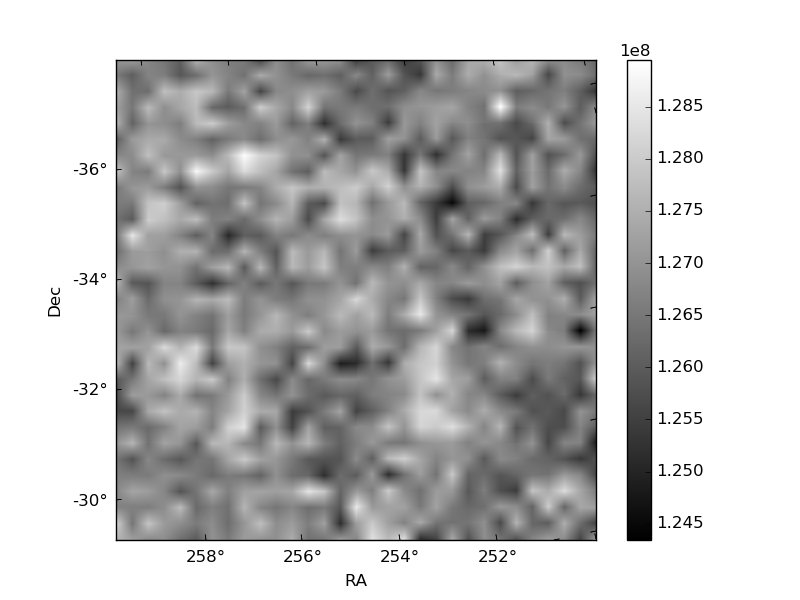

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

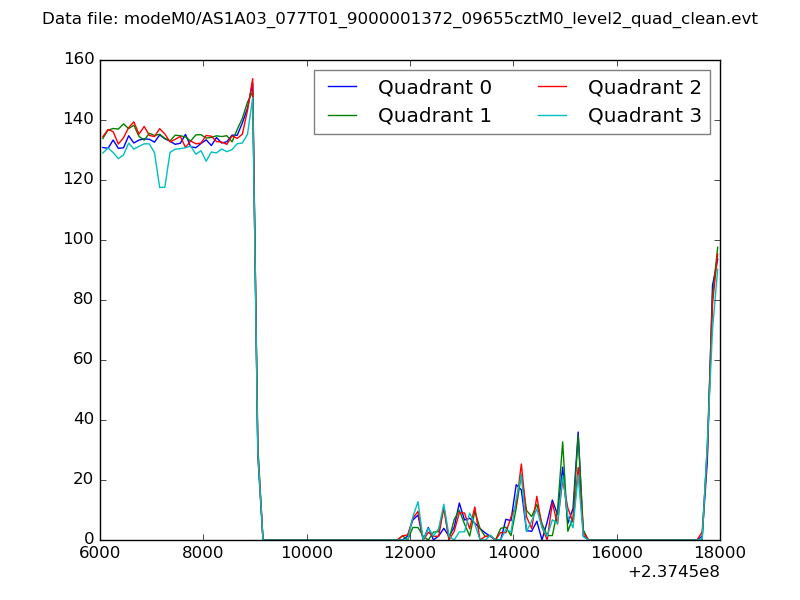

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

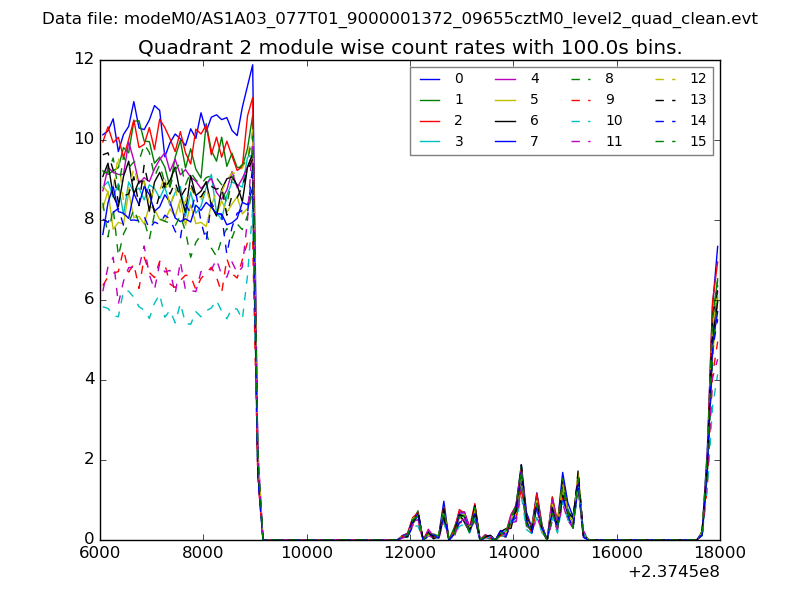

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

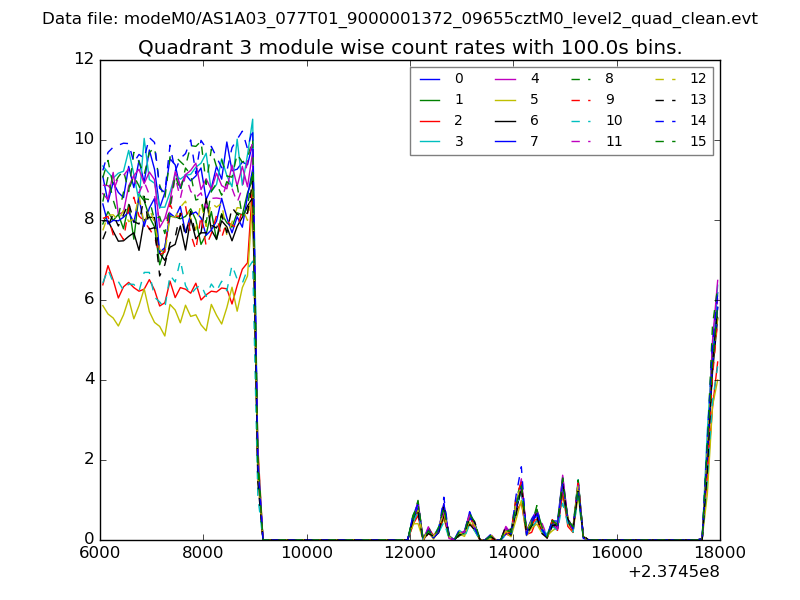

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

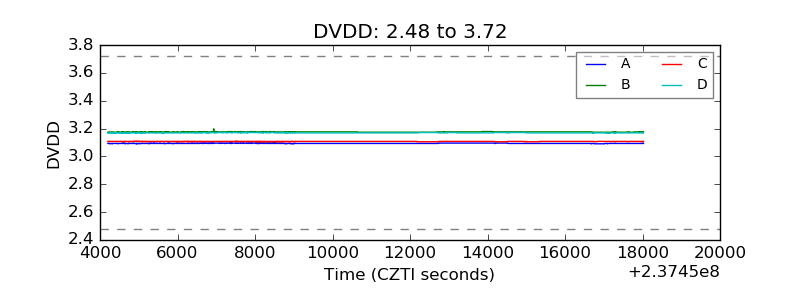

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

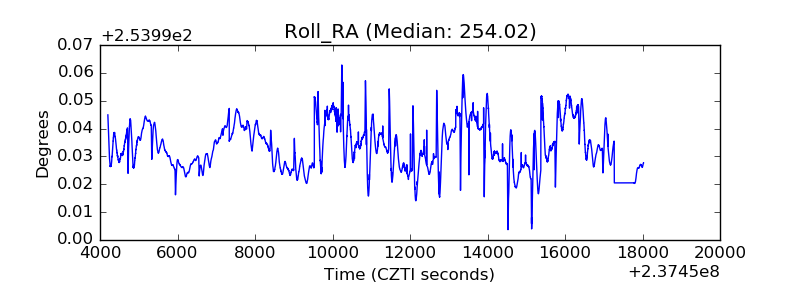

| _Roll_RA |  |

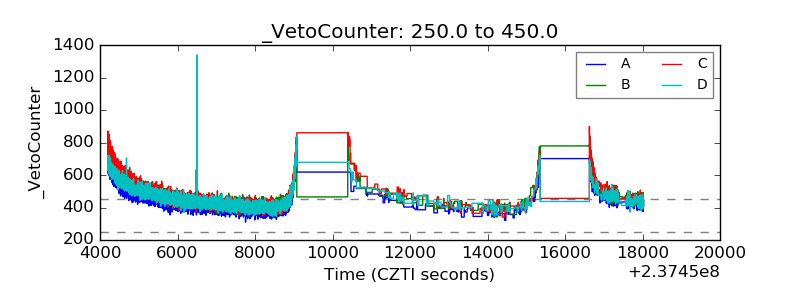

| Veto Counter |  |
