| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_068T01_9000001380_09696cztM0_level2.evt | modeM0/AS1A03_068T01_9000001380_09696cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,152,320 | 80,432,640 |
| Size | 416.9 MB | 76.7 MB |
| Events in quadrant A | 3,010,277 | 514,936 |
| Events in quadrant B | 3,045,259 | 527,585 |
| Events in quadrant C | 3,556,766 | 483,729 |
| Events in quadrant D | 3,211,968 | 483,004 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12606 | 2 |
| B | 0 | 12671 | 1 |
| C | 0 | 14489 | 1 |
| D | 0 | 13417 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6105 | 65 | 1.064701% |
| B | 6105 | 70 | 1.146601% |
| C | 6105 | 283 | 4.635545% |
| D | 6105 | 70 | 1.146601% |

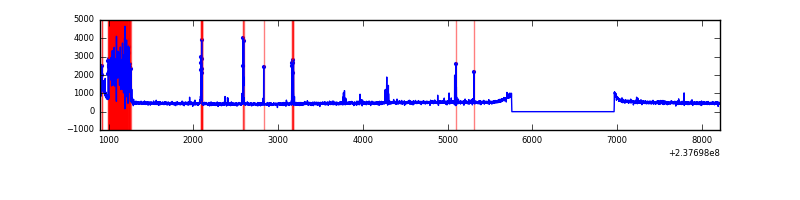

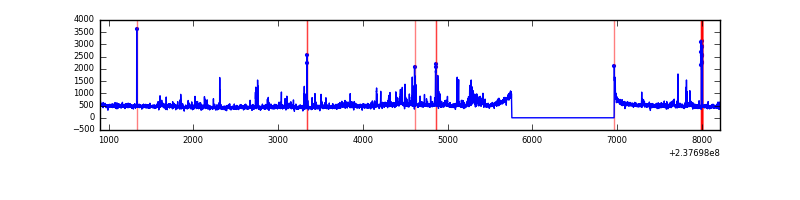

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7315 | 6106 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7315 | 6106 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7315 | 6106 | 203 | 203 | 2.78% | 3.32% |  |
| D | 7315 | 6106 | 18 | 18 | 0.25% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7268 | 41.54 | 781 | 769 | 156.4 |
| A | 12 | 194 | 6226 | 34.88 | 781 | 769 | 156.4 |
| A | 13 | 248 | 3962 | 20.41 | 781 | 769 | 156.4 |
| B | 12 | 111 | 17444 | 111.69 | 780 | 764 | 149.3 |
| B | 4 | 173 | 15358 | 97.72 | 780 | 764 | 149.3 |
| B | 11 | 111 | 14140 | 89.57 | 780 | 764 | 149.3 |
| C | 14 | 234 | 698564 | 4131.06 | 733 | 739 | 168.9 |
| C | 13 | 61 | 5379 | 27.47 | 733 | 739 | 168.9 |
| C | 3 | 202 | 1810 | 6.34 | 733 | 739 | 168.9 |
| D | 1 | 52 | 275249 | 1441.06 | 738 | 723 | 190.5 |
| D | 8 | 195 | 84310 | 438.77 | 738 | 723 | 190.5 |
| D | 14 | 49 | 32640 | 167.54 | 738 | 723 | 190.5 |

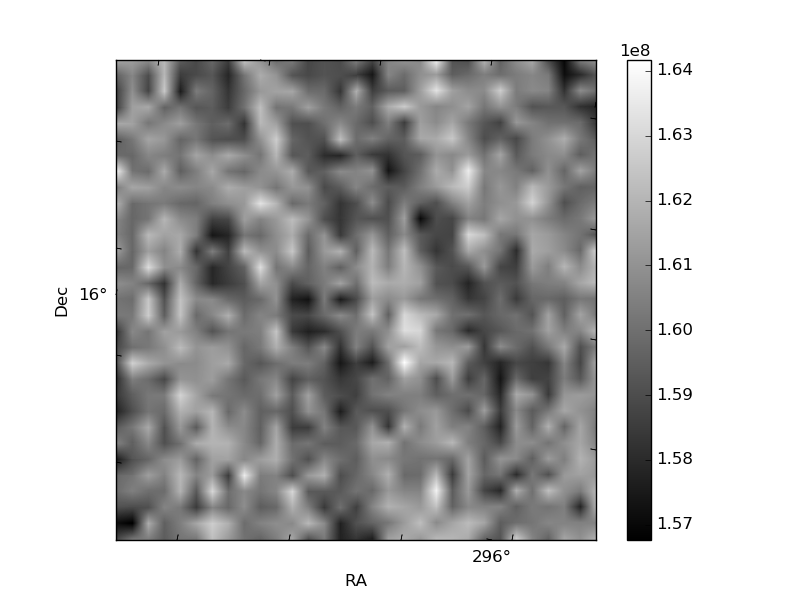

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

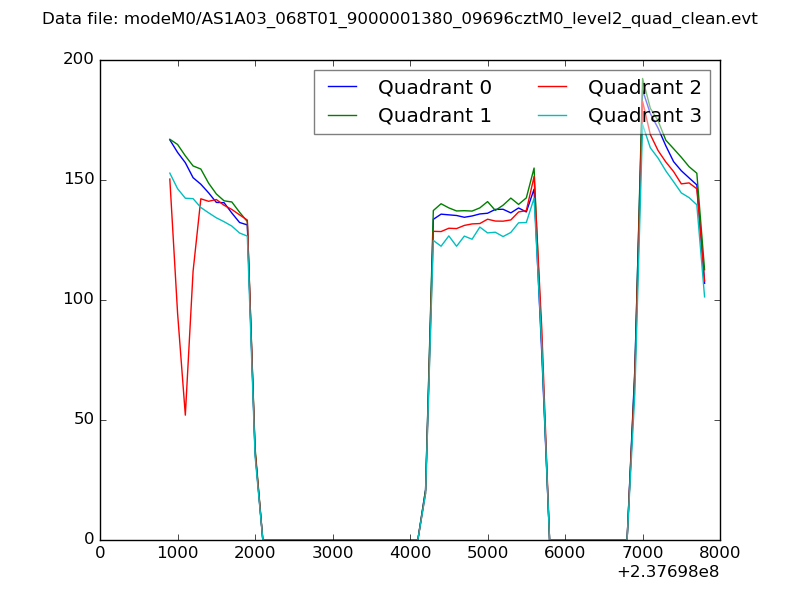

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

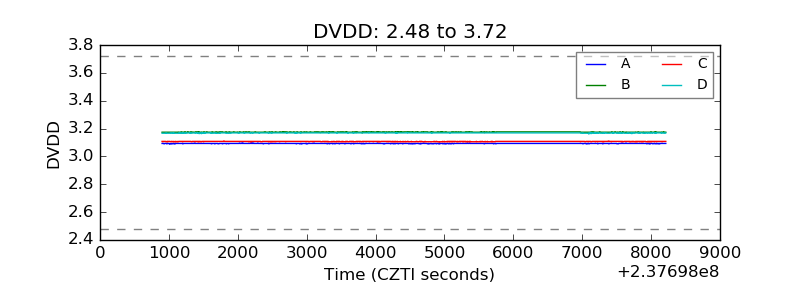

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

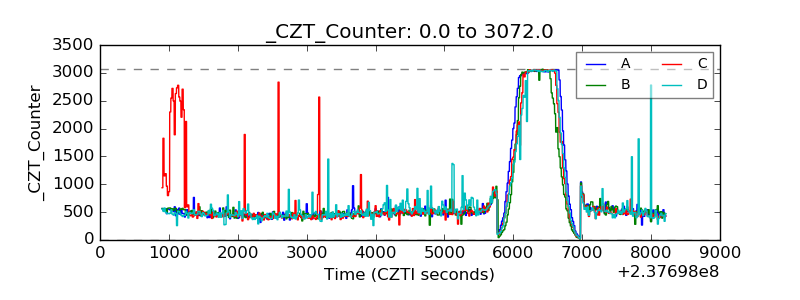

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

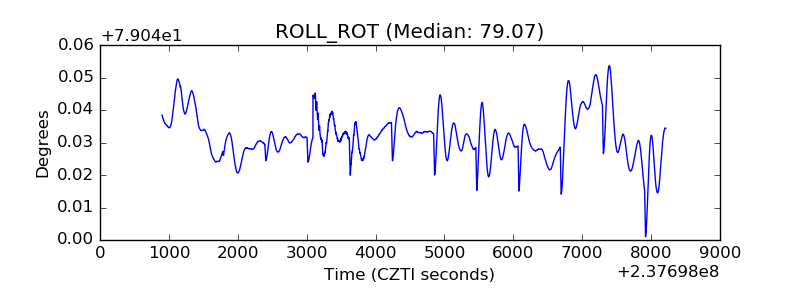

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

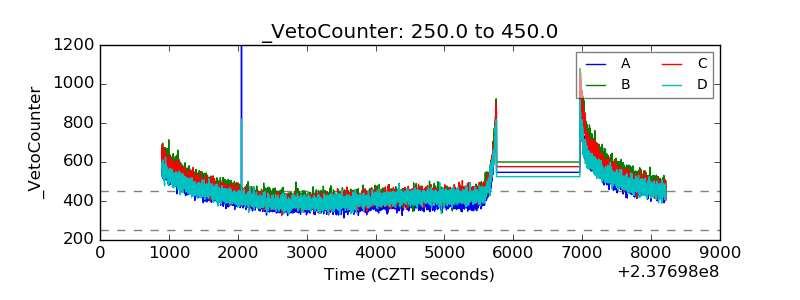

| Veto Counter |  |
