| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_176T01_9000001378_09687cztM0_level2.evt | modeM0/AS1T01_176T01_9000001378_09687cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,333,120 | 93,047,040 |
| Size | 469.5 MB | 88.7 MB |
| Events in quadrant A | 3,247,782 | 595,355 |
| Events in quadrant B | 3,467,724 | 599,385 |
| Events in quadrant C | 3,463,314 | 590,803 |
| Events in quadrant D | 4,272,360 | 561,297 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14175 | 89 |
| B | 0 | 14667 | 100 |
| C | 0 | 14773 | 113 |
| D | 0 | 17686 | 213 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 2 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6768 | 202 | 2.984634% |
| B | 6767 | 201 | 2.970297% |
| C | 6761 | 123 | 1.819258% |
| D | 6737 | 166 | 2.464005% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7036 | 6807 | 11 | 11 | 0.16% | 0.16% |  |
| B | 7036 | 6810 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7036 | 6809 | 12 | 12 | 0.17% | 0.18% |  |
| D | 7036 | 6807 | 12 | 12 | 0.17% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 38907 | 224.3 | 832 | 814 | 169.8 |
| A | 0 | 226 | 7827 | 41.29 | 832 | 814 | 169.8 |
| A | 12 | 194 | 6835 | 35.45 | 832 | 814 | 169.8 |
| B | 0 | 214 | 95154 | 584.51 | 832 | 810 | 161.4 |
| B | 0 | 187 | 41570 | 252.53 | 832 | 810 | 161.4 |
| B | 10 | 245 | 31339 | 189.14 | 832 | 810 | 161.4 |
| C | 9 | 68 | 319491 | 1690.1 | 806 | 809 | 188.6 |
| C | 13 | 61 | 5933 | 27.17 | 806 | 809 | 188.6 |
| C | 3 | 202 | 2061 | 6.64 | 806 | 809 | 188.6 |
| D | 8 | 195 | 744591 | 3754.8 | 801 | 781 | 198.1 |
| D | 7 | 46 | 265819 | 1337.93 | 801 | 781 | 198.1 |
| D | 7 | 71 | 66268 | 330.58 | 801 | 781 | 198.1 |

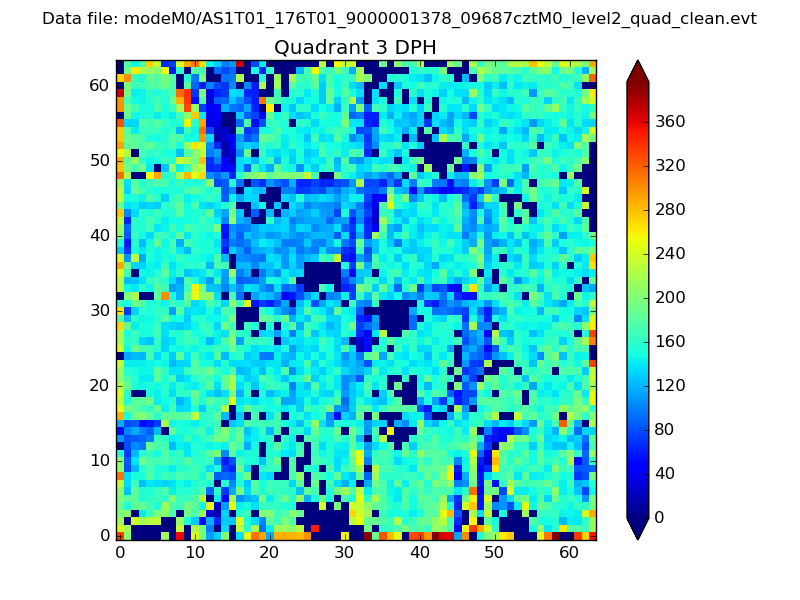

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

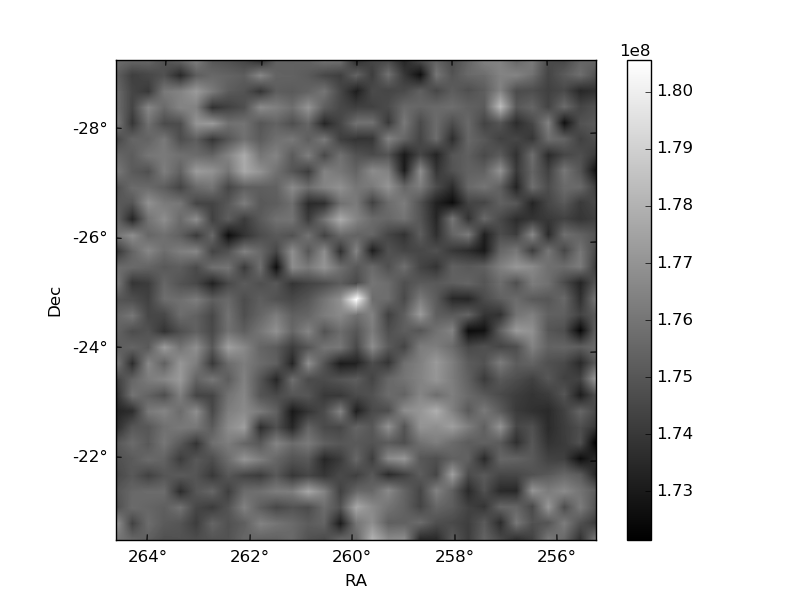

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

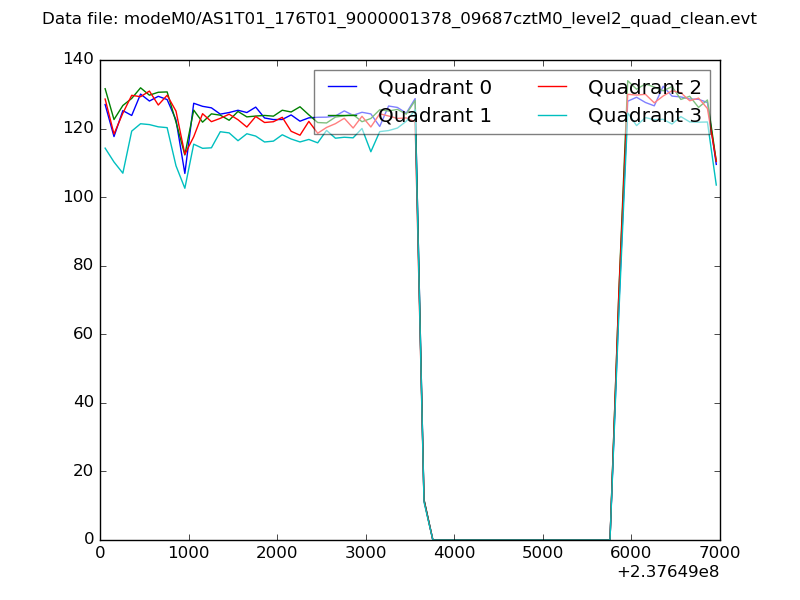

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

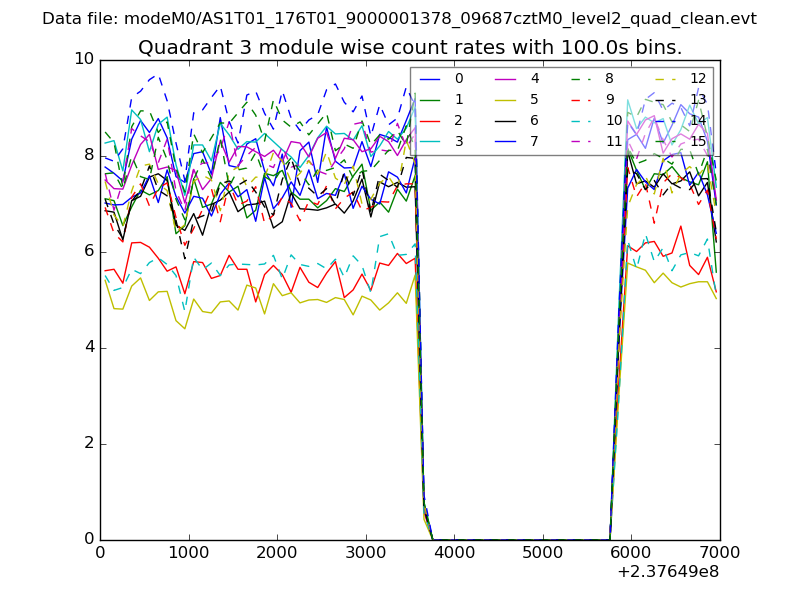

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

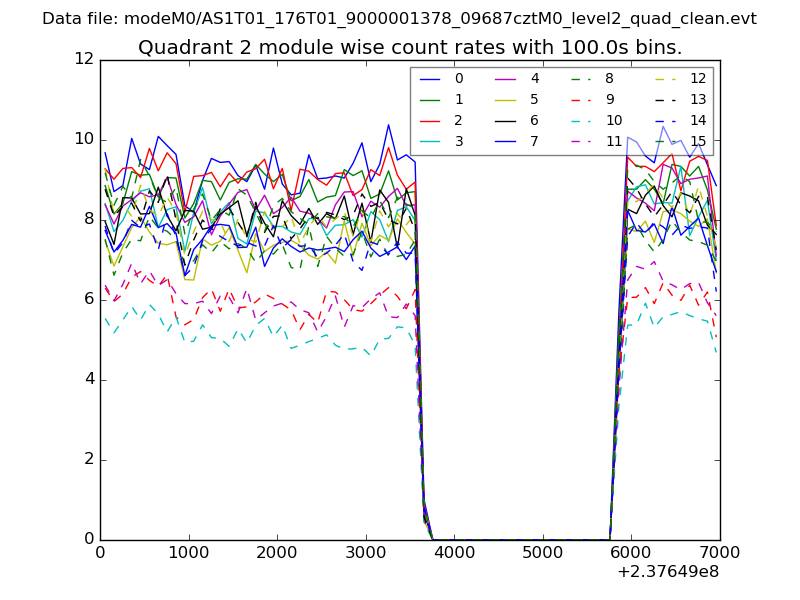

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

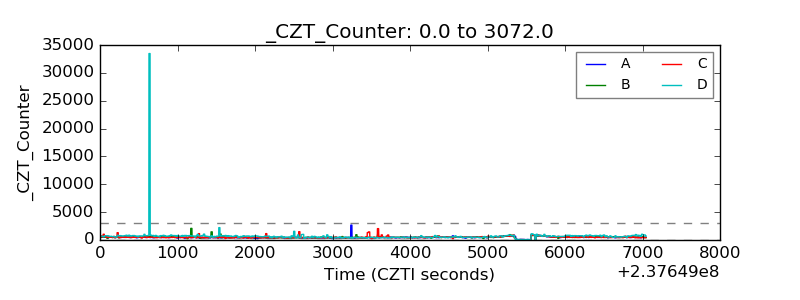

| CZT Counter |  |

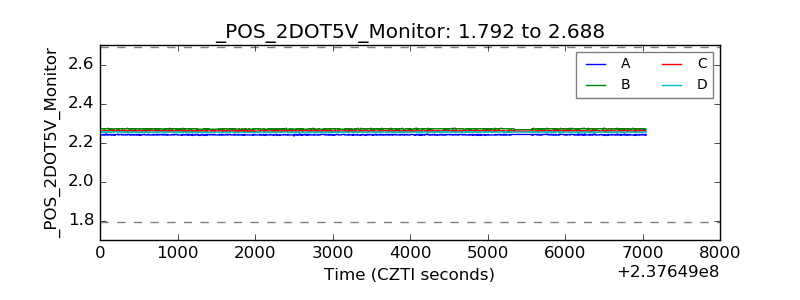

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

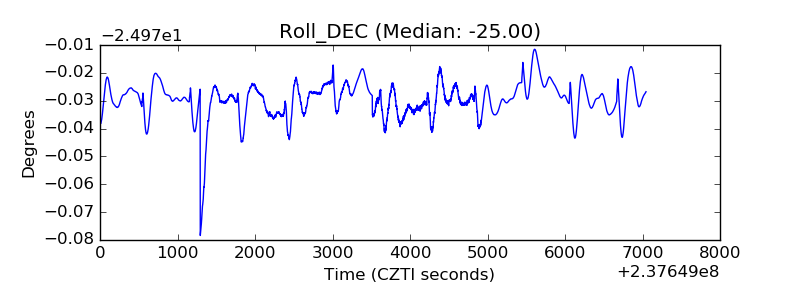

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
