| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_176T01_9000001378_09688cztM0_level2.evt | modeM0/AS1T01_176T01_9000001378_09688cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,729,920 | 103,253,760 |
| Size | 556.7 MB | 98.5 MB |
| Events in quadrant A | 3,942,904 | 650,241 |
| Events in quadrant B | 4,332,752 | 651,635 |
| Events in quadrant C | 3,933,123 | 646,355 |
| Events in quadrant D | 4,919,628 | 615,759 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17063 | 4 |
| B | 0 | 17882 | 3 |
| C | 0 | 17148 | 3 |
| D | 0 | 20172 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8101 | 296 | 3.653870% |
| B | 8101 | 311 | 3.839032% |
| C | 8101 | 167 | 2.061474% |
| D | 8101 | 273 | 3.369954% |

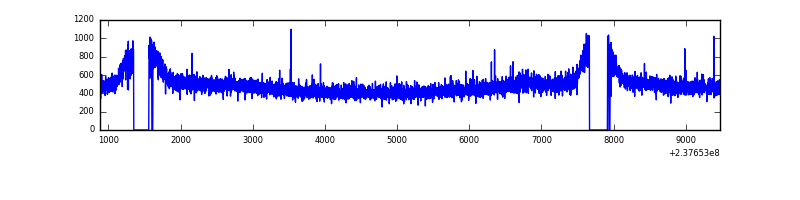

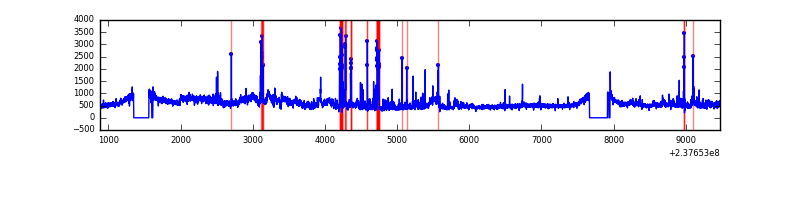

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8591 | 8105 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8591 | 8105 | 14 | 14 | 0.16% | 0.17% |  |
| C | 8591 | 8105 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8591 | 8105 | 56 | 56 | 0.65% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 9543 | 40.51 | 1020 | 996 | 211.0 |
| A | 13 | 251 | 9383 | 39.75 | 1020 | 996 | 211.0 |
| A | 12 | 194 | 8609 | 36.08 | 1020 | 996 | 211.0 |
| B | 10 | 245 | 137034 | 688.81 | 1021 | 996 | 197.5 |
| B | 4 | 173 | 65811 | 328.18 | 1021 | 996 | 197.5 |
| B | 0 | 214 | 49182 | 243.98 | 1021 | 996 | 197.5 |
| C | 9 | 68 | 38936 | 162.39 | 992 | 994 | 233.6 |
| C | 8 | 208 | 20031 | 81.48 | 992 | 994 | 233.6 |
| C | 13 | 61 | 7392 | 27.38 | 992 | 994 | 233.6 |
| D | 8 | 195 | 509598 | 2067.23 | 984 | 954 | 246.1 |
| D | 7 | 46 | 369689 | 1498.61 | 984 | 954 | 246.1 |
| D | 7 | 71 | 207831 | 840.79 | 984 | 954 | 246.1 |

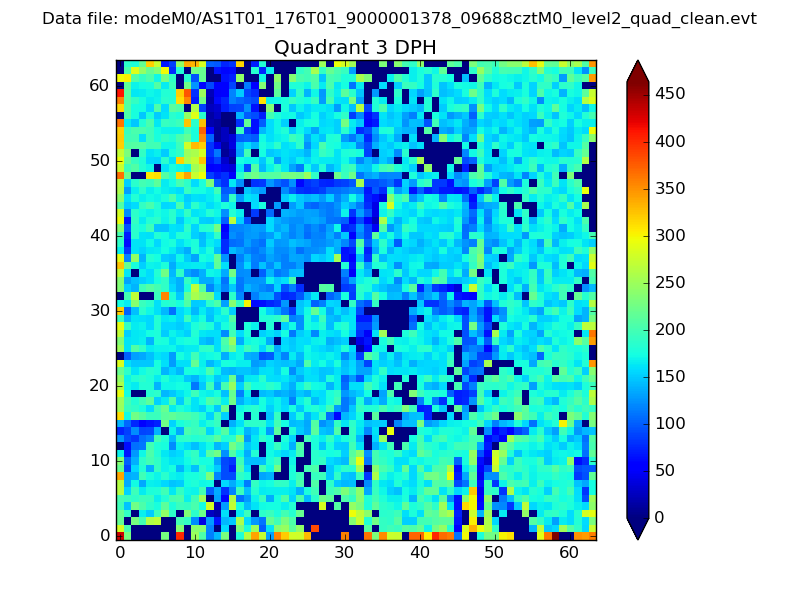

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

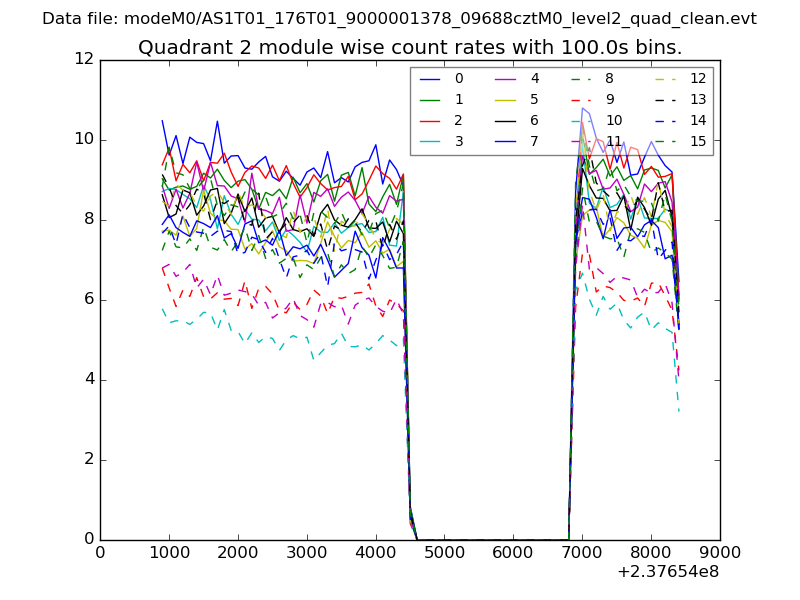

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

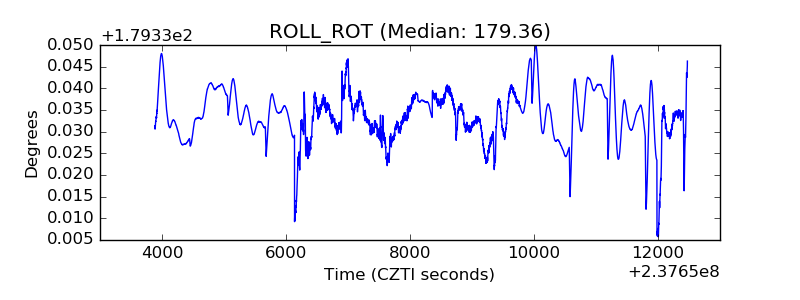

| _ROLL_ROT |  |

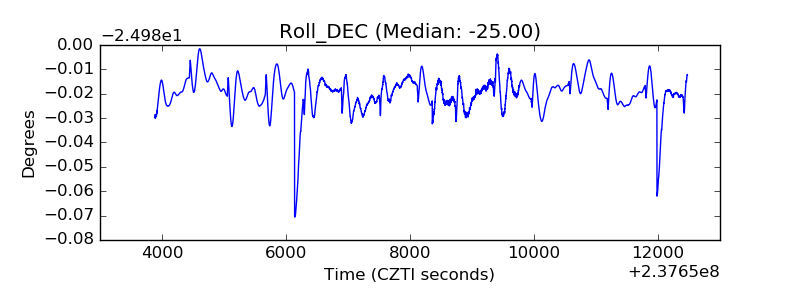

| _Roll_DEC |  |
| _Roll_RA |  |

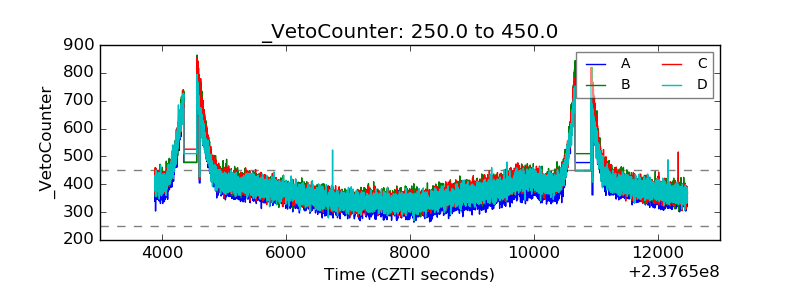

| Veto Counter |  |
