| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_029T01_9000001384_09706cztM0_level2.evt | modeM0/AS1A03_029T01_9000001384_09706cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,198,172,160 | 228,191,040 |
| Size | 1.1 GB | 217.6 MB |
| Events in quadrant A | 8,699,170 | 1,434,621 |
| Events in quadrant B | 8,587,685 | 1,445,113 |
| Events in quadrant C | 8,166,995 | 1,419,536 |
| Events in quadrant D | 9,611,554 | 1,367,537 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37746 | 6 |
| B | 0 | 37451 | 5 |
| C | 0 | 37044 | 3 |
| D | 0 | 40747 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 368 | 0 |
| B | 0 | 368 | 0 |
| C | 0 | 368 | 0 |
| D | 0 | 368 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18054 | 103 | 0.570511% |
| B | 18054 | 129 | 0.714523% |
| C | 18055 | 90 | 0.498477% |
| D | 18054 | 136 | 0.753296% |

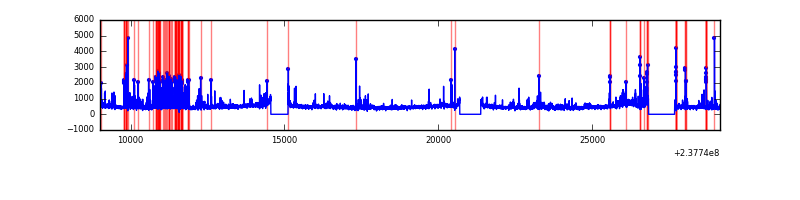

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20150 | 18058 | 12 | 12 | 0.06% | 0.07% |  |
| B | 20150 | 18058 | 9 | 9 | 0.04% | 0.05% |  |
| C | 20150 | 18058 | 34 | 34 | 0.17% | 0.19% |  |
| D | 20150 | 18058 | 117 | 117 | 0.58% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 208912 | 481.08 | 2113 | 2070 | 430.0 |
| A | 15 | 174 | 103353 | 235.57 | 2113 | 2070 | 430.0 |
| A | 1 | 178 | 74762 | 169.07 | 2113 | 2070 | 430.0 |
| B | 0 | 214 | 167194 | 409.83 | 2124 | 2070 | 402.9 |
| B | 0 | 229 | 55272 | 132.04 | 2124 | 2070 | 402.9 |
| B | 12 | 111 | 44638 | 105.65 | 2124 | 2070 | 402.9 |
| C | 14 | 234 | 168989 | 352.86 | 2041 | 2052 | 473.1 |
| C | 13 | 61 | 15253 | 27.9 | 2041 | 2052 | 473.1 |
| C | 14 | 238 | 14219 | 25.72 | 2041 | 2052 | 473.1 |
| D | 1 | 52 | 1600384 | 3131.81 | 2023 | 1972 | 510.4 |
| D | 7 | 71 | 85707 | 164.06 | 2023 | 1972 | 510.4 |
| D | 12 | 233 | 79942 | 152.77 | 2023 | 1972 | 510.4 |

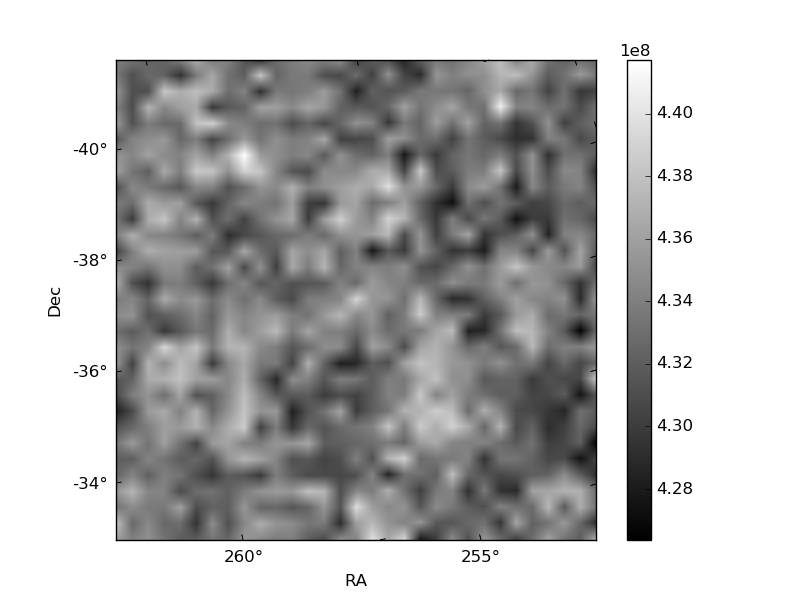

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

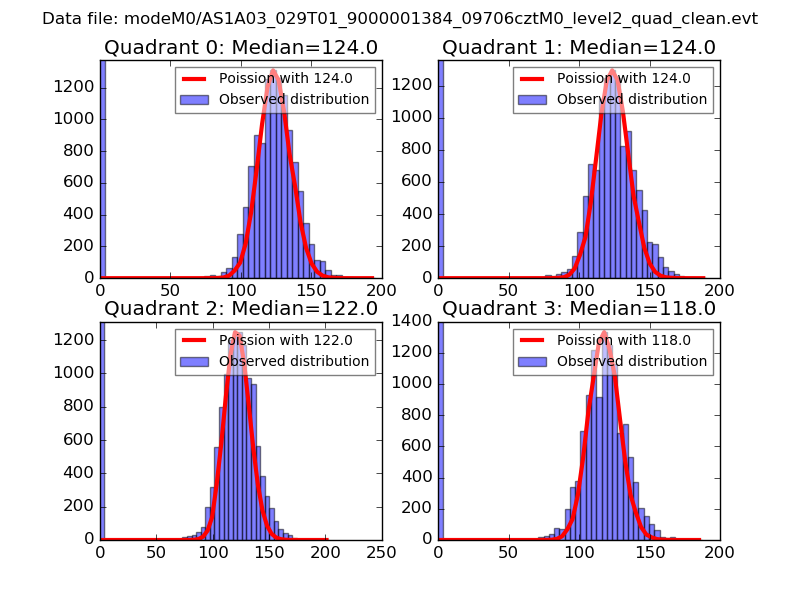

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

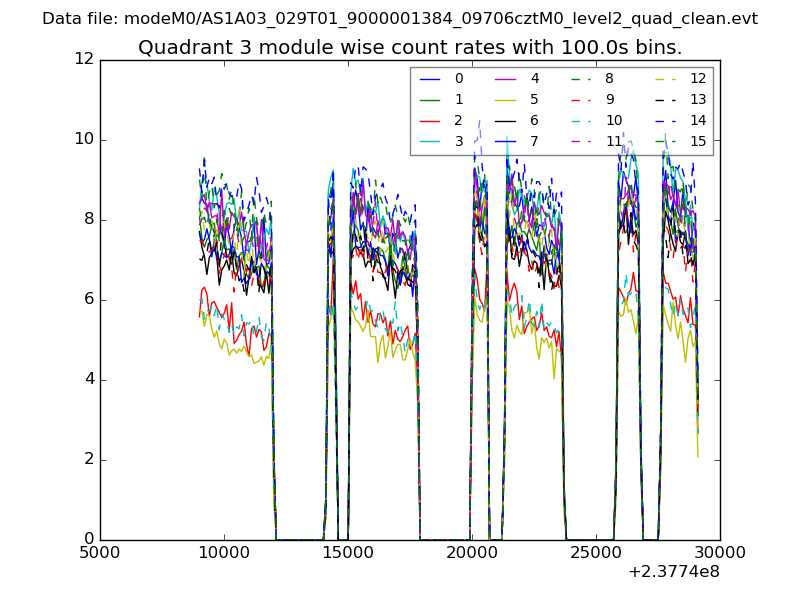

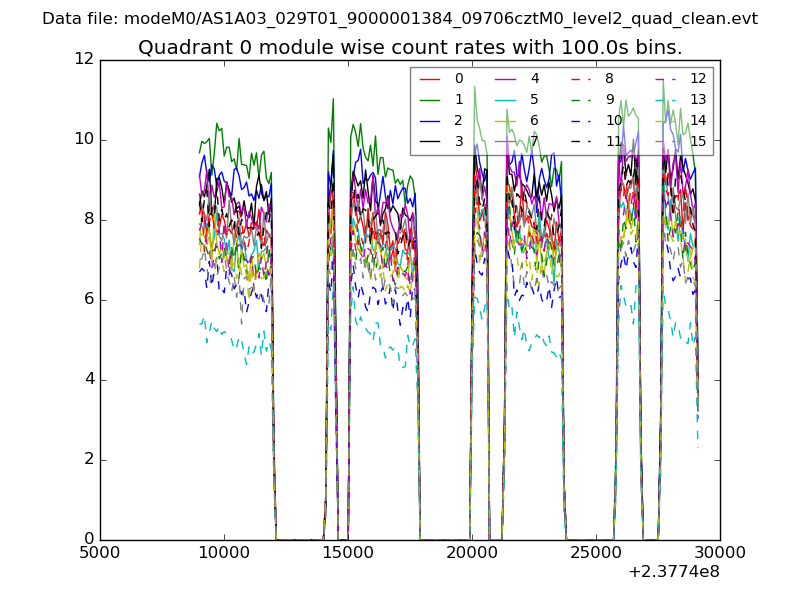

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

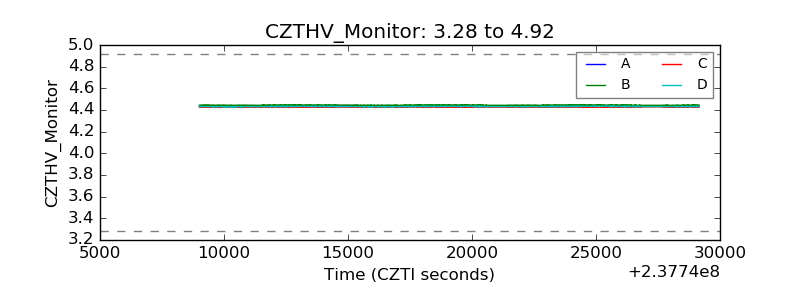

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

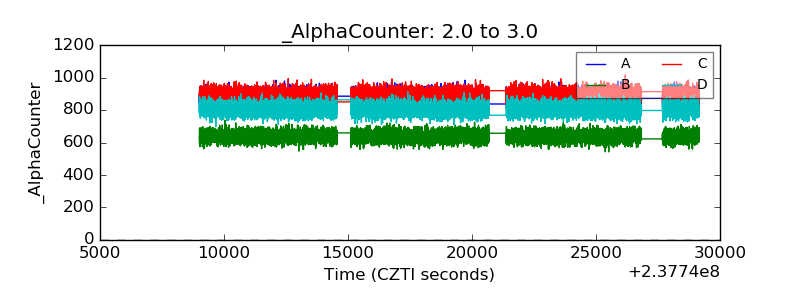

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

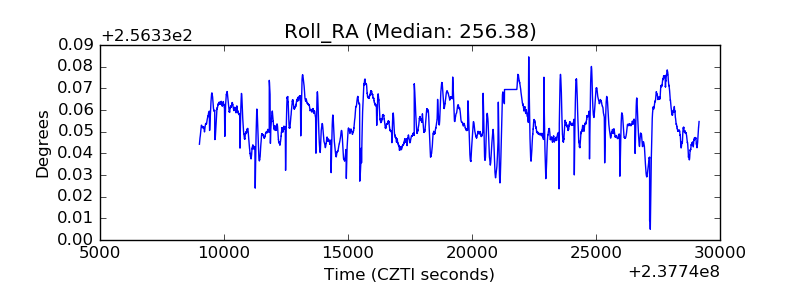

| _Roll_RA |  |
| Veto Counter |  |
