| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_029T01_9000001384_09709cztM0_level2.evt | modeM0/AS1A03_029T01_9000001384_09709cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,481,280 | 74,577,600 |
| Size | 407.7 MB | 71.1 MB |
| Events in quadrant A | 3,096,976 | 446,162 |
| Events in quadrant B | 2,975,910 | 474,541 |
| Events in quadrant C | 2,819,980 | 465,198 |
| Events in quadrant D | 3,631,555 | 439,415 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13368 | 2 |
| B | 0 | 12822 | 1 |
| C | 0 | 12624 | 1 |
| D | 0 | 15144 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6192 | 308 | 4.974160% |
| B | 6192 | 25 | 0.403747% |
| C | 6192 | 15 | 0.242248% |
| D | 6192 | 141 | 2.277132% |

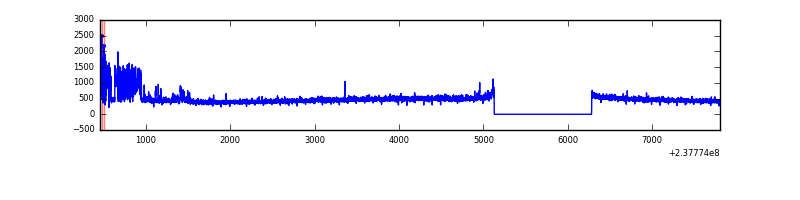

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7347 | 6193 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7347 | 6193 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7347 | 6193 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7347 | 6192 | 94 | 94 | 1.28% | 1.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 347730 | 2383.16 | 712 | 697 | 145.6 |
| A | 4 | 2 | 8942 | 56.62 | 712 | 697 | 145.6 |
| A | 0 | 226 | 6372 | 38.97 | 712 | 697 | 145.6 |
| B | 0 | 214 | 45791 | 321.03 | 739 | 723 | 140.4 |
| B | 0 | 219 | 25010 | 173.0 | 739 | 723 | 140.4 |
| B | 0 | 85 | 20420 | 140.31 | 739 | 723 | 140.4 |
| C | 9 | 237 | 34648 | 205.64 | 712 | 717 | 165.0 |
| C | 14 | 234 | 5711 | 30.27 | 712 | 717 | 165.0 |
| C | 13 | 61 | 5389 | 28.31 | 712 | 717 | 165.0 |
| D | 1 | 52 | 694241 | 4108.41 | 694 | 677 | 168.8 |
| D | 10 | 172 | 120582 | 710.27 | 694 | 677 | 168.8 |
| D | 12 | 233 | 90873 | 534.29 | 694 | 677 | 168.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

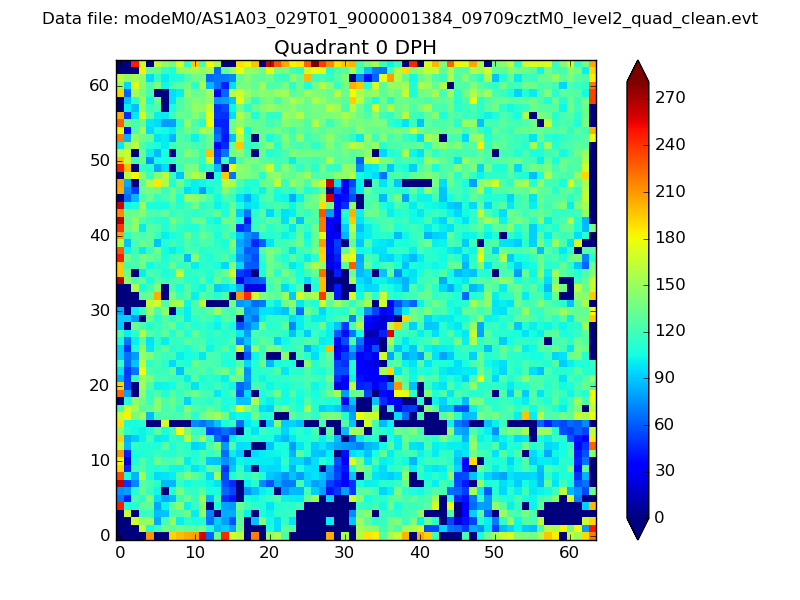

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

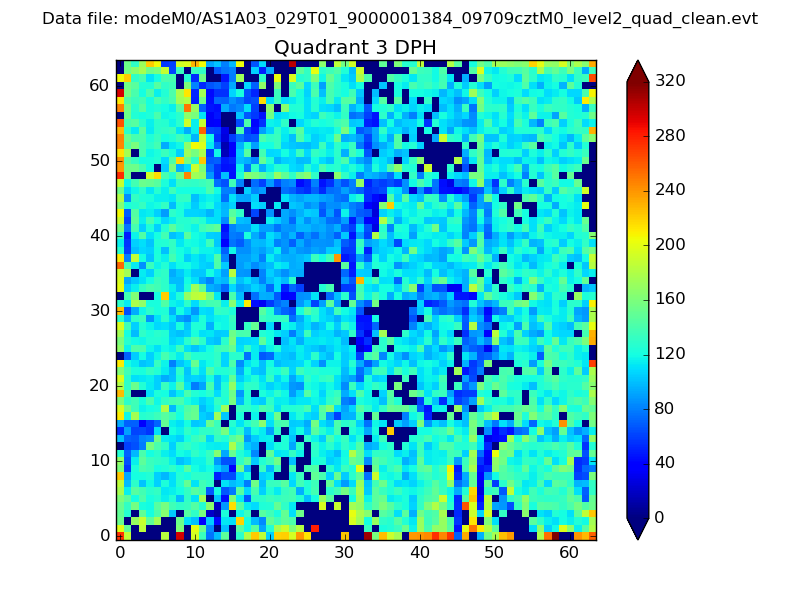

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

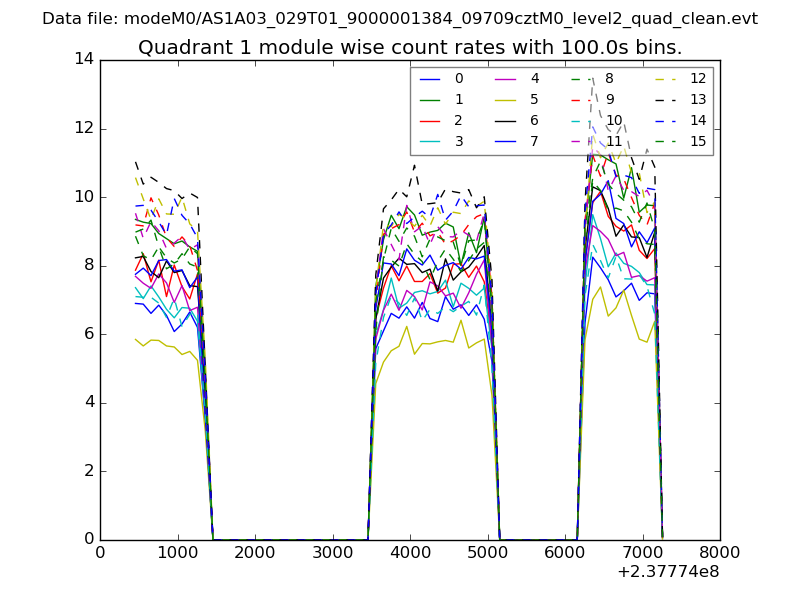

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

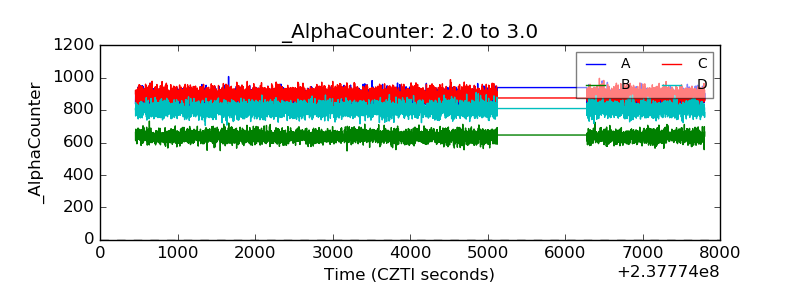

| Alpha Counter |  |

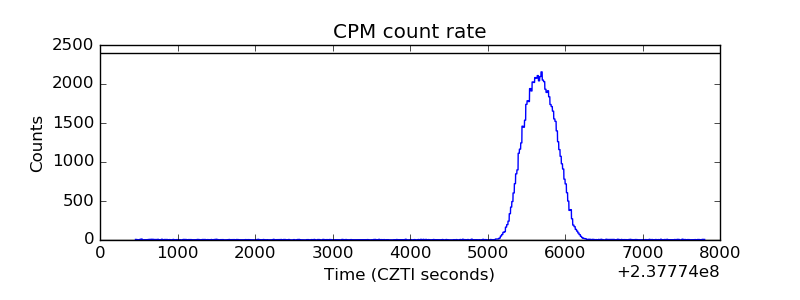

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

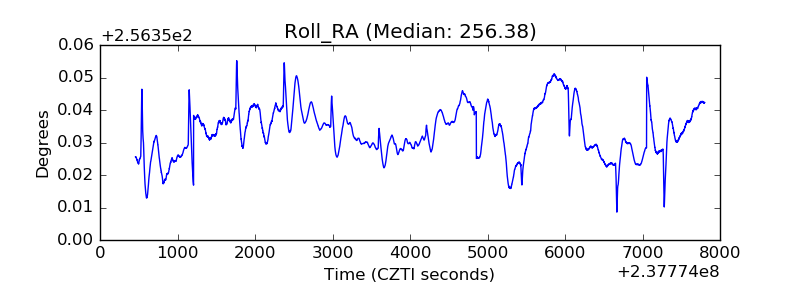

| _Roll_RA |  |

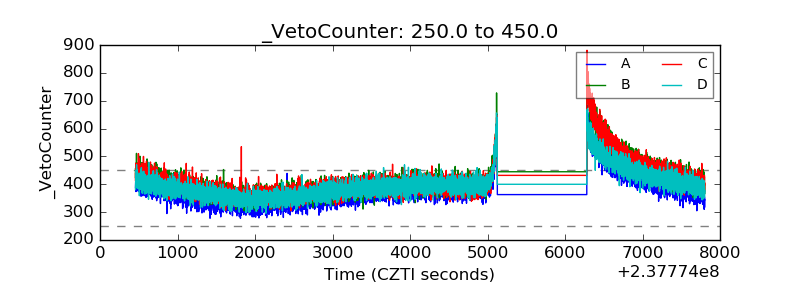

| Veto Counter |  |
