| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_084T01_9000001382_09699cztM0_level2.evt | modeM0/AS1A03_084T01_9000001382_09699cztM0_level2_quad_clean.evt |
| Size (bytes) | 98,697,600 | 4,680,000 |
| Size | 94.1 MB | 4.5 MB |
| Events in quadrant A | 750,948 | 9,465 |
| Events in quadrant B | 708,443 | 9,914 |
| Events in quadrant C | 700,774 | 9,612 |
| Events in quadrant D | 732,518 | 9,199 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3025 | 2 |
| B | 0 | 2890 | 1 |
| C | 0 | 2881 | 1 |
| D | 0 | 2978 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1380 | 36 | 2.608696% |
| B | 1380 | 38 | 2.753623% |
| C | 1380 | 29 | 2.101449% |
| D | 1380 | 19 | 1.376812% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1380 | 1380 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1380 | 1380 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1380 | 1380 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1380 | 1380 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 29019 | 746.92 | 180 | 176 | 38.6 |
| A | 1 | 178 | 10964 | 279.36 | 180 | 176 | 38.6 |
| A | 1 | 161 | 10272 | 261.44 | 180 | 176 | 38.6 |
| B | 12 | 111 | 4120 | 108.0 | 181 | 176 | 36.5 |
| B | 11 | 111 | 3437 | 89.3 | 181 | 176 | 36.5 |
| B | 4 | 173 | 3095 | 79.94 | 181 | 176 | 36.5 |
| C | 14 | 234 | 7871 | 179.24 | 177 | 177 | 42.9 |
| C | 13 | 61 | 1341 | 27.12 | 177 | 177 | 42.9 |
| C | 10 | 22 | 690 | 11.95 | 177 | 177 | 42.9 |
| D | 2 | 136 | 24253 | 519.3 | 173 | 169 | 46.4 |
| D | 1 | 52 | 15361 | 327.57 | 173 | 169 | 46.4 |
| D | 12 | 227 | 13766 | 293.18 | 173 | 169 | 46.4 |

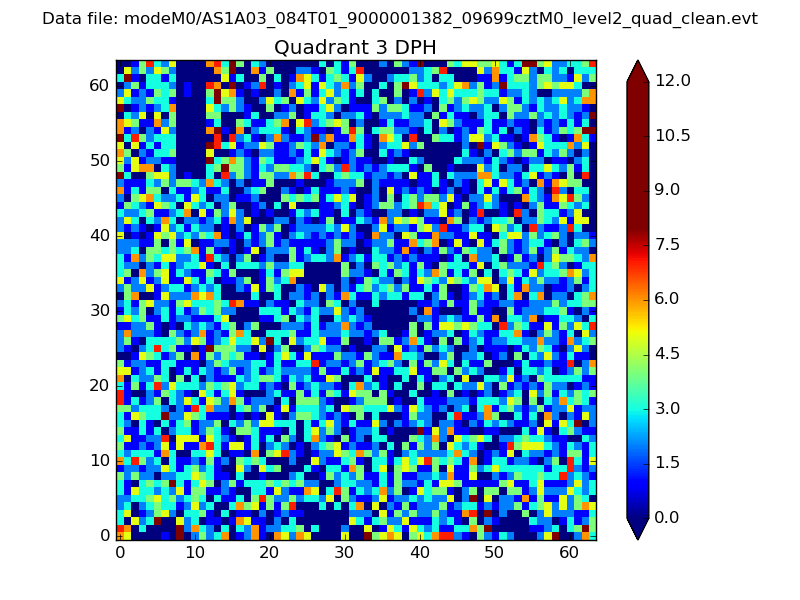

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

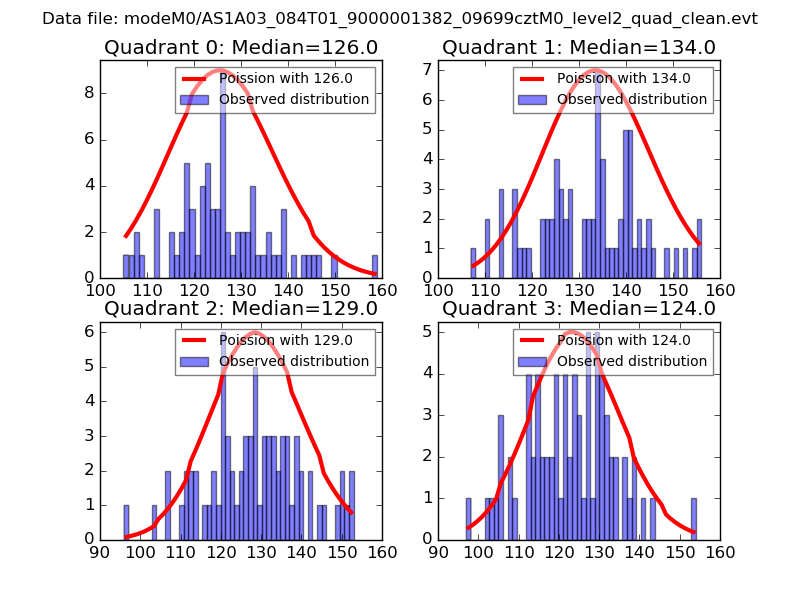

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

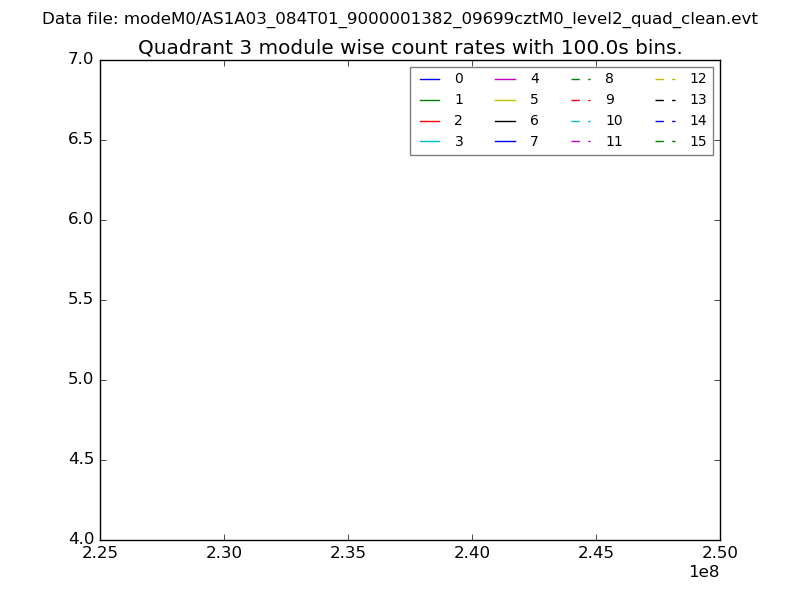

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

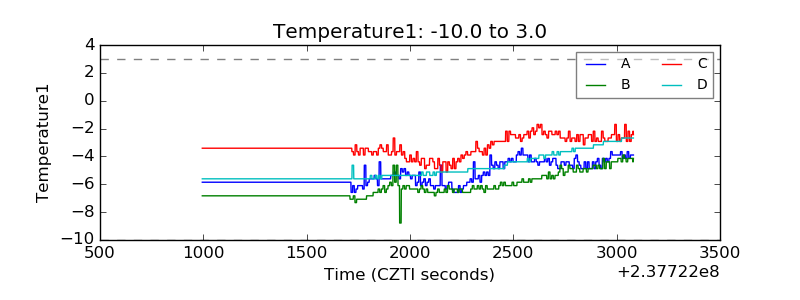

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

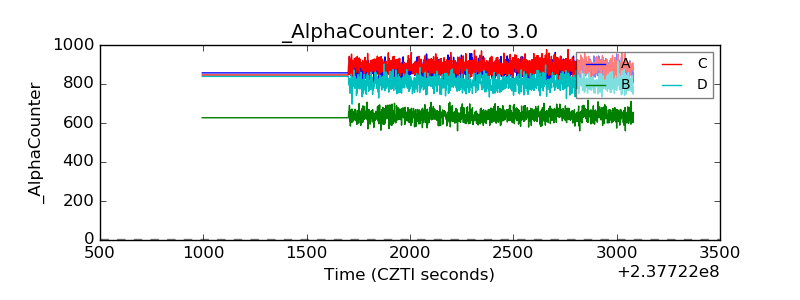

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

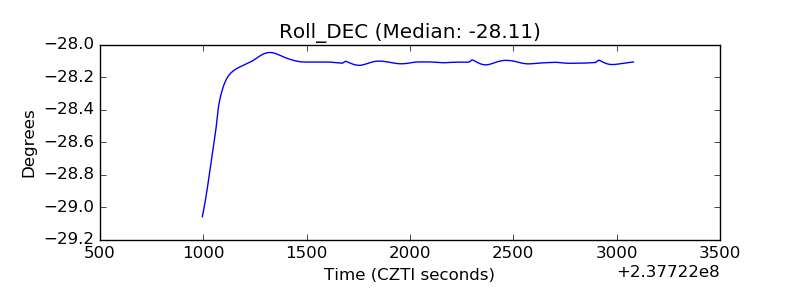

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
