| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_029T01_9000001386_09727cztM0_level2.evt | modeM0/AS1A02_029T01_9000001386_09727cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,099,840 | 63,840,960 |
| Size | 452.1 MB | 60.9 MB |
| Events in quadrant A | 3,631,880 | 370,224 |
| Events in quadrant B | 3,446,221 | 379,763 |
| Events in quadrant C | 3,201,537 | 376,119 |
| Events in quadrant D | 3,645,022 | 361,136 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14812 | 3 |
| B | 0 | 13953 | 2 |
| C | 0 | 13428 | 2 |
| D | 0 | 15022 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6390 | 86 | 1.345853% |
| B | 6390 | 136 | 2.128326% |
| C | 6390 | 93 | 1.455399% |
| D | 6391 | 87 | 1.361289% |

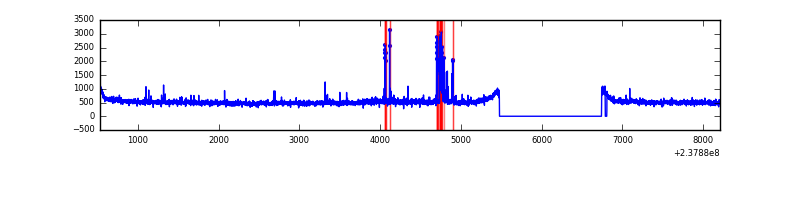

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7675 | 6392 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7675 | 6392 | 31 | 31 | 0.40% | 0.48% |  |
| C | 7675 | 6392 | 8 | 8 | 0.10% | 0.13% |  |
| D | 7676 | 6393 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 229160 | 1374.89 | 818 | 800 | 166.1 |
| A | 1 | 178 | 94210 | 562.39 | 818 | 800 | 166.1 |
| A | 1 | 161 | 84962 | 506.71 | 818 | 800 | 166.1 |
| B | 10 | 245 | 121987 | 778.83 | 827 | 810 | 155.6 |
| B | 4 | 173 | 48244 | 304.87 | 827 | 810 | 155.6 |
| B | 0 | 214 | 32667 | 204.75 | 827 | 810 | 155.6 |
| C | 14 | 234 | 56004 | 297.6 | 806 | 813 | 185.5 |
| C | 13 | 61 | 6107 | 28.55 | 806 | 813 | 185.5 |
| C | 8 | 222 | 2396 | 8.54 | 806 | 813 | 185.5 |
| D | 2 | 152 | 460271 | 2383.78 | 794 | 774 | 192.8 |
| D | 1 | 52 | 85387 | 438.96 | 794 | 774 | 192.8 |
| D | 12 | 233 | 38484 | 195.63 | 794 | 774 | 192.8 |

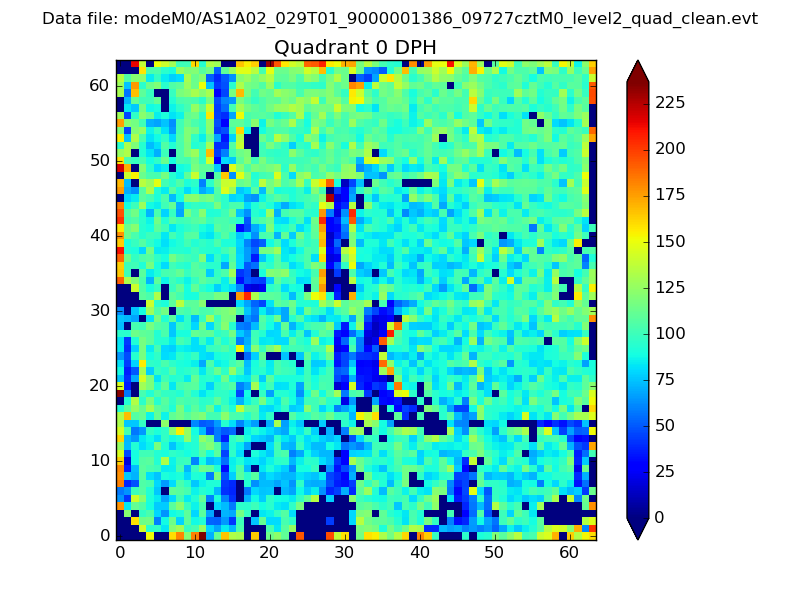

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

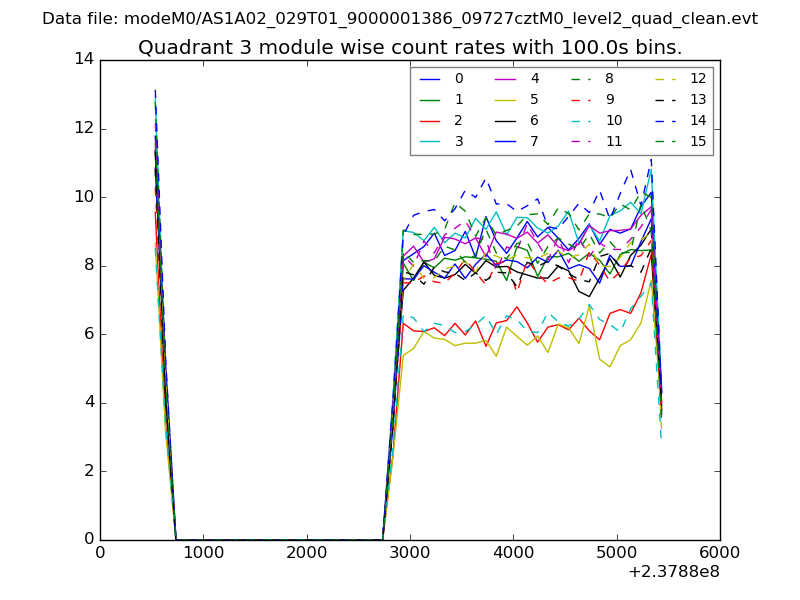

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

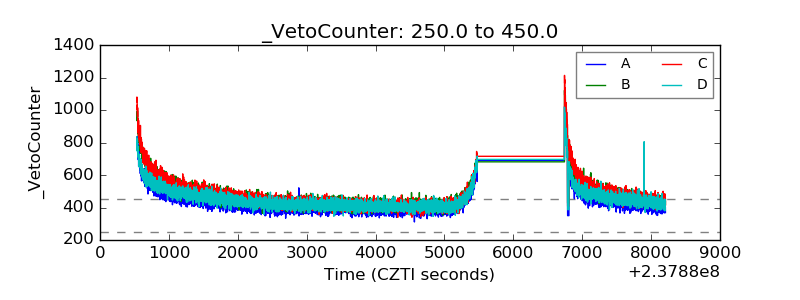

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

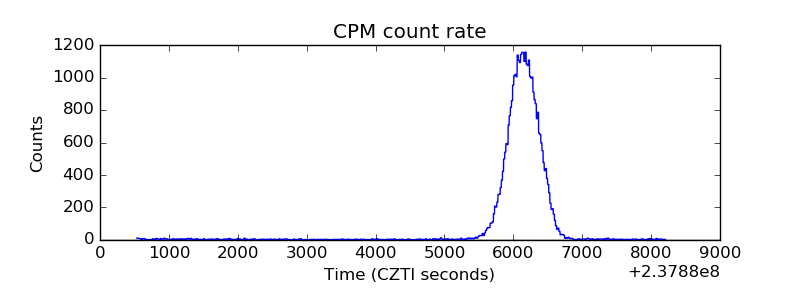

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

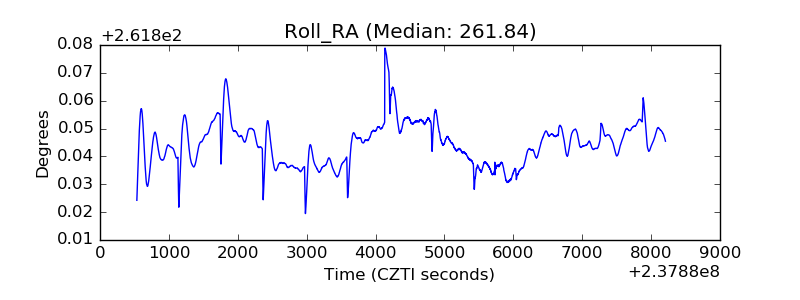

| _Roll_RA |  |
| Veto Counter |  |
