| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_029T01_9000001386_09729cztM0_level2.evt | modeM0/AS1A02_029T01_9000001386_09729cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,318,080 | 91,607,040 |
| Size | 530.5 MB | 87.4 MB |
| Events in quadrant A | 4,594,799 | 561,894 |
| Events in quadrant B | 4,133,469 | 570,913 |
| Events in quadrant C | 3,620,595 | 572,031 |
| Events in quadrant D | 3,988,752 | 545,889 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18960 | 145 |
| B | 0 | 17018 | 129 |
| C | 0 | 15863 | 73 |
| D | 0 | 17026 | 162 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 2 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7516 | 272 | 3.618946% |
| B | 7520 | 335 | 4.454787% |
| C | 7537 | 220 | 2.918933% |
| D | 7502 | 242 | 3.225806% |

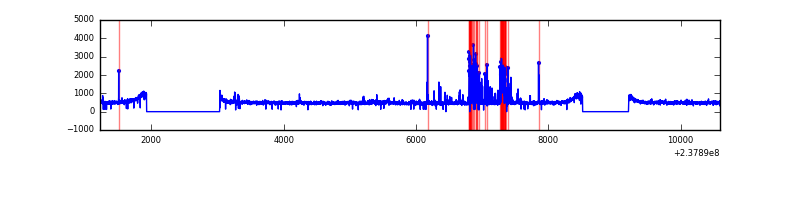

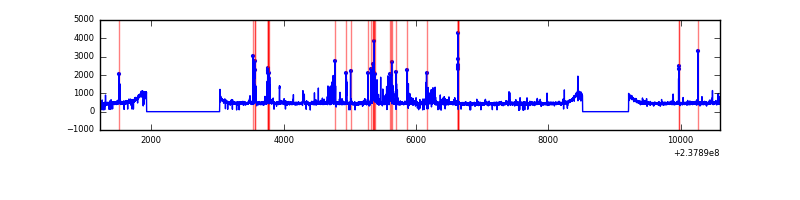

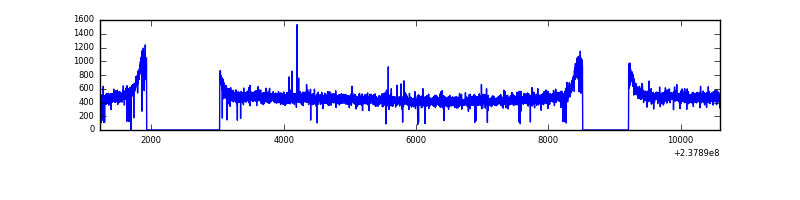

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9371 | 7571 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9371 | 7570 | 56 | 56 | 0.60% | 0.74% |  |
| C | 9371 | 7572 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9370 | 7572 | 33 | 33 | 0.35% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 426016 | 2175.83 | 940 | 917 | 195.4 |
| A | 1 | 178 | 201653 | 1027.45 | 940 | 917 | 195.4 |
| A | 1 | 161 | 187104 | 952.98 | 940 | 917 | 195.4 |
| B | 4 | 173 | 333752 | 1810.49 | 946 | 922 | 183.8 |
| B | 0 | 219 | 39094 | 207.64 | 946 | 922 | 183.8 |
| B | 10 | 245 | 30789 | 162.47 | 946 | 922 | 183.8 |
| C | 13 | 61 | 6924 | 27.67 | 927 | 931 | 216.5 |
| C | 12 | 4 | 2585 | 7.64 | 927 | 931 | 216.5 |
| C | 8 | 222 | 2372 | 6.65 | 927 | 931 | 216.5 |
| D | 1 | 52 | 422713 | 1910.24 | 913 | 892 | 220.8 |
| D | 12 | 233 | 43060 | 190.96 | 913 | 892 | 220.8 |
| D | 2 | 234 | 28020 | 122.85 | 913 | 892 | 220.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

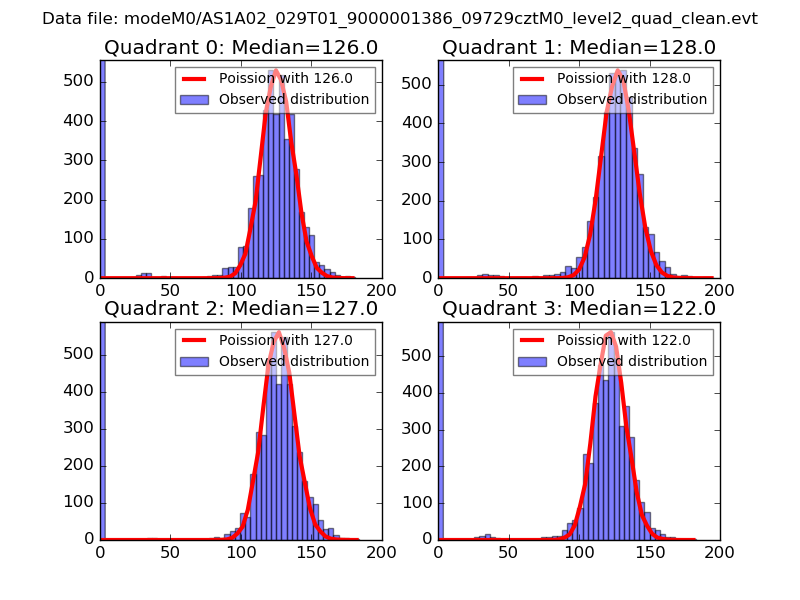

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

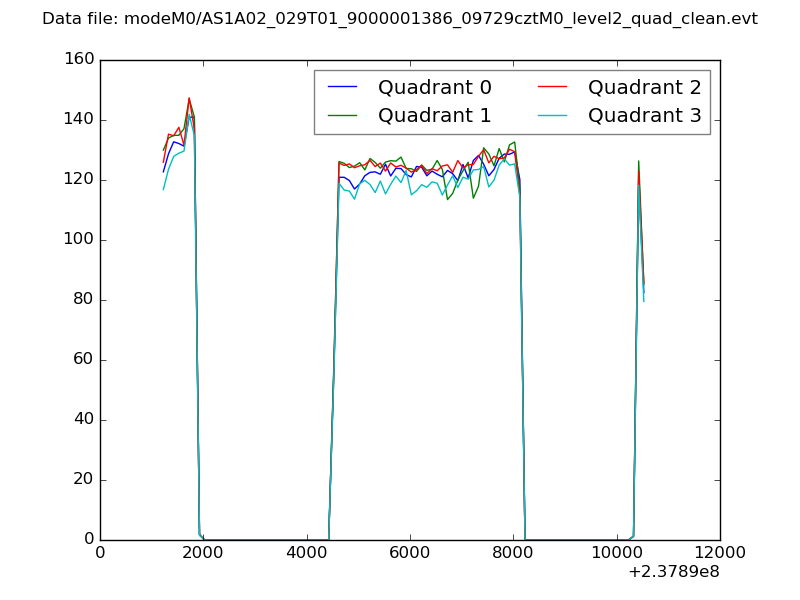

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

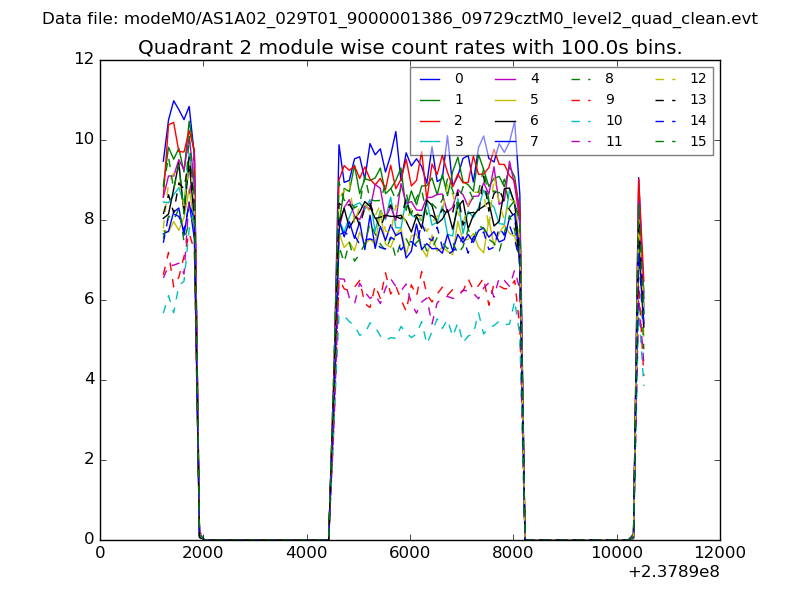

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

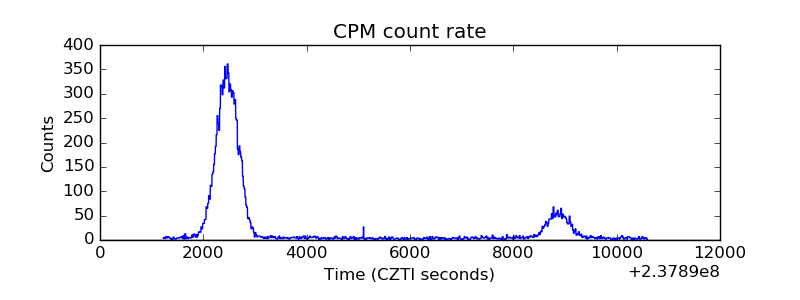

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

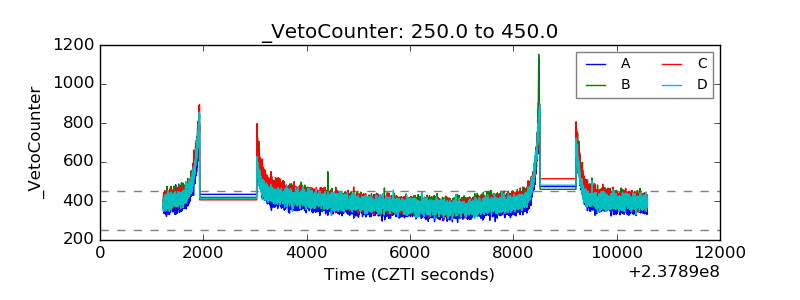

| Veto Counter |  |
